本文目标：使用全卷积网络进行图像分割。

简介


下面的示例介绍了在牛津国际理工学院宠物数据集上实现用于图像分割的全卷积网络的步骤。

该模型是 Long 等人在论文《用于语义分割的全卷积网络》（Fully Convolutional Networks for Semantic Segmentation）（2014 年）中提出的。

图像分割是计算机视觉领域最常见、最入门的任务之一，我们将图像分类问题从每张图像一个标签扩展到像素分类问题。

在本示例中，我们将组装上述能够执行图像分割的全卷积分割架构。该网络扩展了来自 VGG 的池化层输出，以执行上采样并获得最终结果。

从 VGG19 的第 3、4 和 5 个最大池化层中提取出中间输出，并按不同级别和系数进行升采样，以获得与输出相同形状的最终输出，但每个位置的每个像素的类别，而不是像素强度值。不同版本的网络会提取和处理不同的中间池层。

FCN 架构有 3 个不同质量的版本。

  • FCN-32S
  • FCN-16S
  • FCN-8S

所有版本的模型都是通过对所使用的主干网的连续中间池层进行迭代处理而获得输出结果的。

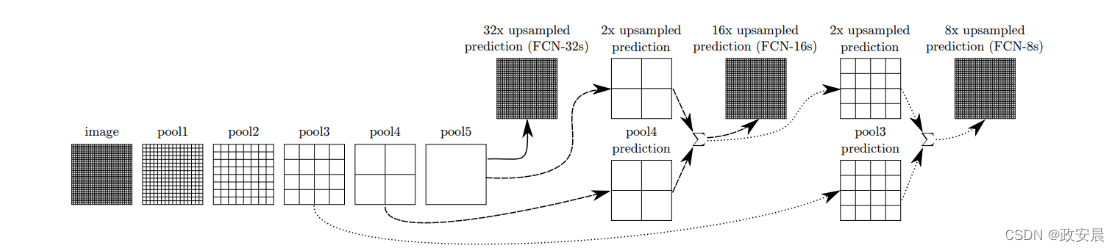

从下图中可以更好地了解这一点。

（上图 ：组合架构版本）

设置导入

import os
os.environ["KERAS_BACKEND"] = "tensorflow"
import keras
from keras import ops
import tensorflow as tf
import matplotlib.pyplot as plt
import tensorflow_datasets as tfds
import numpy as np

AUTOTUNE = tf.data.AUTOTUNE

为笔记本变量设置配置


我们设置了实验所需的参数。所选数据集的每幅图像共有 4 个类别，与分割掩码有关。

我们还在此单元中设置了超参数。

在支持混合精度（Mixed Precision）的系统中，还可以将其作为一个选项，以减少负载。这将使大多数张量使用 16 位浮点数值，而不是 32 位浮点数值，但不会对计算产生不利影响。这意味着，在计算过程中，TensorFlow 将使用 16 位浮点张量，以精度为代价提高速度，同时以原始默认的 32 位浮点形式存储数值。

NUM_CLASSES = 4
INPUT_HEIGHT = 224
INPUT_WIDTH = 224
LEARNING_RATE = 1e-3
WEIGHT_DECAY = 1e-4
EPOCHS = 20
BATCH_SIZE = 32
MIXED_PRECISION = True
SHUFFLE = True

# Mixed-precision setting
if MIXED_PRECISION:
    policy = keras.mixed_precision.Policy("mixed_float16")
    keras.mixed_precision.set_global_policy(policy)
INFO:tensorflow:Mixed precision compatibility check (mixed_float16): OK
Your GPU will likely run quickly with dtype policy mixed_float16 as it has compute capability of at least 7.0. Your GPU: Quadro RTX 5000, compute capability 7.5

加载数据集

我们使用的是Oxford-IIIT宠物数据集，该数据集包含总共7,349个样本及其分割掩码。共有37个类别，每个类别大约有200个样本。我们的训练和验证数据集分别有3,128个和552个样本。除此之外，我们的测试集划分了共计3,669个样本。

我们设置了一个batch_size参数，用于将样本分批处理，还使用shuffle参数将样本混合在一起。

(train_ds, valid_ds, test_ds) = tfds.load(
    "oxford_iiit_pet",
    split=["train[:85%]", "train[85%:]", "test"],
    batch_size=BATCH_SIZE,
    shuffle_files=SHUFFLE,
)

解压和预处理数据集

我们定义了一个简单的函数，其中包括对训练、验证和测试数据集执行调整。我们也会对掩码进行同样的处理，以确保两者在形状和大小上保持一致。

# Image and Mask Pre-processing
def unpack_resize_data(section):
    image = section["image"]
    segmentation_mask = section["segmentation_mask"]

    resize_layer = keras.layers.Resizing(INPUT_HEIGHT, INPUT_WIDTH)

    image = resize_layer(image)
    segmentation_mask = resize_layer(segmentation_mask)

    return image, segmentation_mask


train_ds = train_ds.map(unpack_resize_data, num_parallel_calls=AUTOTUNE)
valid_ds = valid_ds.map(unpack_resize_data, num_parallel_calls=AUTOTUNE)
test_ds = test_ds.map(unpack_resize_data, num_parallel_calls=AUTOTUNE)

可视化预处理数据集中的一个随机样本

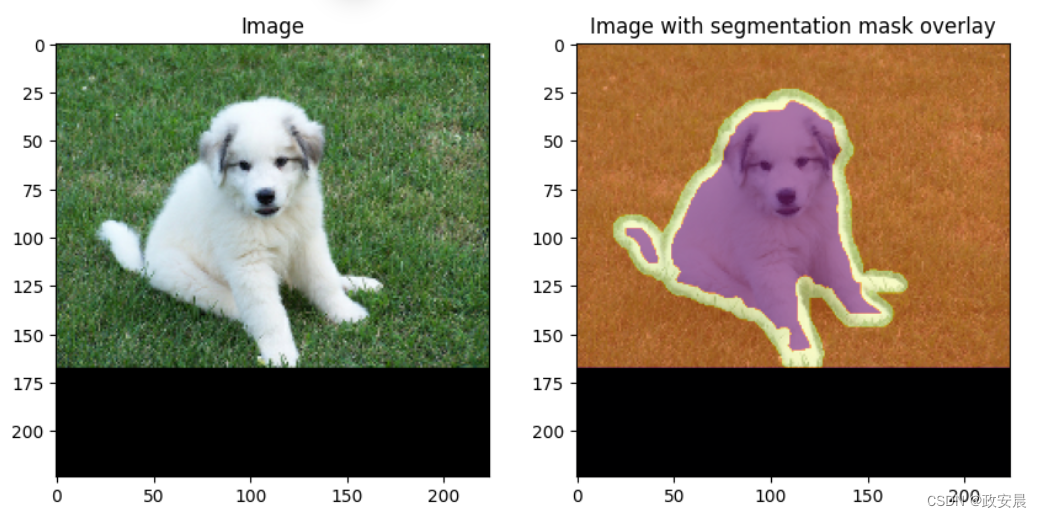

我们将测试数据集中的随机样本可视化，并在上面绘制分割掩码，以查看有效的掩码区域。

请注意，我们也对该数据集进行了预处理，这使得图像和掩码大小相同。

# Select random image and mask. Cast to NumPy array
# for Matplotlib visualization.

images, masks = next(iter(test_ds))
random_idx = keras.random.uniform([], minval=0, maxval=BATCH_SIZE, seed=10)

test_image = images[int(random_idx)].numpy().astype("float")
test_mask = masks[int(random_idx)].numpy().astype("float")

# Overlay segmentation mask on top of image.
fig, ax = plt.subplots(nrows=1, ncols=2, figsize=(10, 5))

ax[0].set_title("Image")
ax[0].imshow(test_image / 255.0)

ax[1].set_title("Image with segmentation mask overlay")
ax[1].imshow(test_image / 255.0)
ax[1].imshow(
    test_mask,
    cmap="inferno",
    alpha=0.6,
)
plt.show()

执行针对 VGG 的预处理

keras.applications.VGG19 要求使用预处理输入函数，该函数将主动执行图像网风格的标准偏差归一化方案。

def preprocess_data(image, segmentation_mask):
    image = keras.applications.vgg19.preprocess_input(image)

    return image, segmentation_mask


train_ds = (
    train_ds.map(preprocess_data, num_parallel_calls=AUTOTUNE)
    .shuffle(buffer_size=1024)
    .prefetch(buffer_size=1024)
)
valid_ds = (
    valid_ds.map(preprocess_data, num_parallel_calls=AUTOTUNE)
    .shuffle(buffer_size=1024)
    .prefetch(buffer_size=1024)
)
test_ds = (
    test_ds.map(preprocess_data, num_parallel_calls=AUTOTUNE)
    .shuffle(buffer_size=1024)
    .prefetch(buffer_size=1024)
)

模型定义


全卷积网络拥有一个简单的架构，仅由 keras.layers.Conv2D 层、keras.layer.Dense 层和 keras.layers.Dropout 层组成。

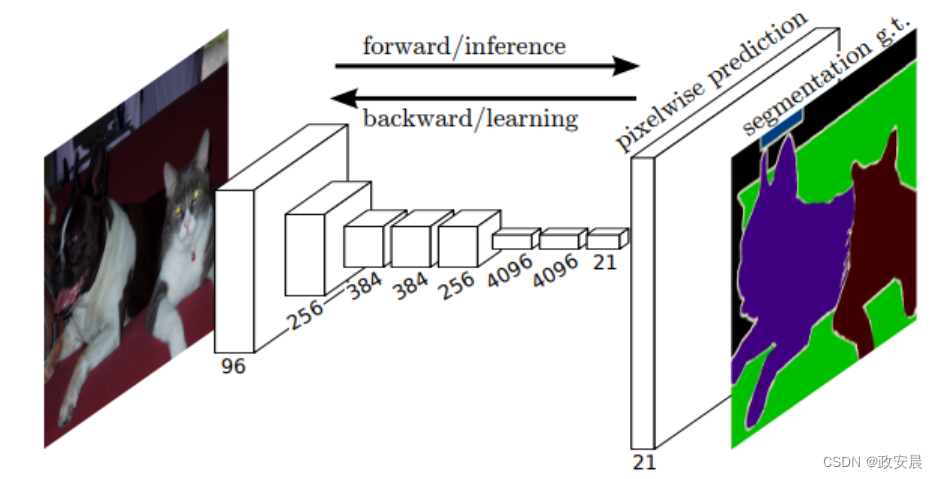

（图 ：通用 FCN 前传）

我们可以在网络上找到几个重要的指标，如准确率和平均交集超过联合度。

骨干网（VGG-19）


我们使用 VGG-19 网络作为骨干网，因为本文认为它是该网络最有效的骨干网之一。我们利用 keras.models.Model 从网络中提取不同的输出。

然后，我们在上面添加层，使网络完全模拟上图。骨干网的 keras.layers.Dense 层将根据此处的 Caffe 原始代码转换为 keras.layers.Conv2D 层。所有 3 个网络将共享相同的骨干网权重，但会根据其扩展产生不同的结果。我们使骨干层不可训练，以提高训练时间要求。

论文中还指出，让网络可训练并不会带来很大的好处。

input_layer = keras.Input(shape=(INPUT_HEIGHT, INPUT_WIDTH, 3))

# VGG Model backbone with pre-trained ImageNet weights.
vgg_model = keras.applications.vgg19.VGG19(include_top=True, weights="imagenet")

# Extracting different outputs from same model
fcn_backbone = keras.models.Model(
    inputs=vgg_model.layers[1].input,
    outputs=[
        vgg_model.get_layer(block_name).output
        for block_name in ["block3_pool", "block4_pool", "block5_pool"]
    ],
)

# Setting backbone to be non-trainable
fcn_backbone.trainable = False

x = fcn_backbone(input_layer)

# Converting Dense layers to Conv2D layers
units = [4096, 4096]
dense_convs = []

for filter_idx in range(len(units)):
    dense_conv = keras.layers.Conv2D(
        filters=units[filter_idx],
        kernel_size=(7, 7) if filter_idx == 0 else (1, 1),
        strides=(1, 1),
        activation="relu",
        padding="same",
        use_bias=False,
        kernel_initializer=keras.initializers.Constant(1.0),,
    )
    dense_convs.append(dense_conv)
    dropout_layer = keras.layers.Dropout(0.5)
    dense_convs.append(dropout_layer)

dense_convs = keras.Sequential(dense_convs)
dense_convs.trainable = False

x[-1] = dense_convs(x[-1])

pool3_output, pool4_output, pool5_output = x

FCN-32S

我们扩展了最后的输出，进行一个1x1的卷积操作，然后通过32倍的双线性上采样得到与我们输入相同大小的图像。

我们使用了简单的keras.layers.UpSampling2D层覆盖在keras.layers.Conv2DTranspose上，因为它是基于确定性数学操作的卷积操作，它具有性能优势。

在论文中还指出，使上采样参数可训练并没有产生好处。论文的原始实验也使用了上采样。

# 1x1 convolution to set channels = number of classes
pool5 = keras.layers.Conv2D(
    filters=NUM_CLASSES,
    kernel_size=(1, 1),
    padding="same",
    strides=(1, 1),
    activation="relu",
)

# Get Softmax outputs for all classes
fcn32s_conv_layer = keras.layers.Conv2D(
    filters=NUM_CLASSES,
    kernel_size=(1, 1),
    activation="softmax",
    padding="same",
    strides=(1, 1),
)

# Up-sample to original image size
fcn32s_upsampling = keras.layers.UpSampling2D(
    size=(32, 32),
    data_format=keras.backend.image_data_format(),
    interpolation="bilinear",
)

final_fcn32s_pool = pool5(pool5_output)
final_fcn32s_output = fcn32s_conv_layer(final_fcn32s_pool)
final_fcn32s_output = fcn32s_upsampling(final_fcn32s_output)

fcn32s_model = keras.Model(inputs=input_layer, outputs=final_fcn32s_output)

FCN-16S


FCN-32S 的池化输出被扩展并添加到主干网的第四级池化输出中。

之后，我们将图像的采样率提高 16 倍，以获得与输入图像大小相同的图像。

# 1x1 convolution to set channels = number of classes
# Followed from the original Caffe implementation
pool4 = keras.layers.Conv2D(
    filters=NUM_CLASSES,
    kernel_size=(1, 1),
    padding="same",
    strides=(1, 1),
    activation="linear",
    kernel_initializer=keras.initializers.Zeros(),
)(pool4_output)

# Intermediate up-sample
pool5 = keras.layers.UpSampling2D(
    size=(2, 2),
    data_format=keras.backend.image_data_format(),
    interpolation="bilinear",
)(final_fcn32s_pool)

# Get Softmax outputs for all classes
fcn16s_conv_layer = keras.layers.Conv2D(
    filters=NUM_CLASSES,
    kernel_size=(1, 1),
    activation="softmax",
    padding="same",
    strides=(1, 1),
)

# Up-sample to original image size
fcn16s_upsample_layer = keras.layers.UpSampling2D(
    size=(16, 16),
    data_format=keras.backend.image_data_format(),
    interpolation="bilinear",
)

# Add intermediate outputs
final_fcn16s_pool = keras.layers.Add()([pool4, pool5])
final_fcn16s_output = fcn16s_conv_layer(final_fcn16s_pool)
final_fcn16s_output = fcn16s_upsample_layer(final_fcn16s_output)

fcn16s_model = keras.models.Model(inputs=input_layer, outputs=final_fcn16s_output)

FCN-8S


FCN-16S 的池化输出再次扩展，并加入主干网的三级池化输出。这一结果的采样率提高了 8 倍，从而得到与输入图像大小相同的图像。

# 1x1 convolution to set channels = number of classes
# Followed from the original Caffe implementation
pool3 = keras.layers.Conv2D(
    filters=NUM_CLASSES,
    kernel_size=(1, 1),
    padding="same",
    strides=(1, 1),
    activation="linear",
    kernel_initializer=keras.initializers.Zeros(),
)(pool3_output)

# Intermediate up-sample
intermediate_pool_output = keras.layers.UpSampling2D(
    size=(2, 2),
    data_format=keras.backend.image_data_format(),
    interpolation="bilinear",
)(final_fcn16s_pool)

# Get Softmax outputs for all classes
fcn8s_conv_layer = keras.layers.Conv2D(
    filters=NUM_CLASSES,
    kernel_size=(1, 1),
    activation="softmax",
    padding="same",
    strides=(1, 1),
)

# Up-sample to original image size
fcn8s_upsample_layer = keras.layers.UpSampling2D(
    size=(8, 8),
    data_format=keras.backend.image_data_format(),
    interpolation="bilinear",
)

# Add intermediate outputs
final_fcn8s_pool = keras.layers.Add()([pool3, intermediate_pool_output])
final_fcn8s_output = fcn8s_conv_layer(final_fcn8s_pool)
final_fcn8s_output = fcn8s_upsample_layer(final_fcn8s_output)

fcn8s_model = keras.models.Model(inputs=input_layer, outputs=final_fcn8s_output)

将权重加载到骨干层


我们在论文中以及通过实验发现，从骨干层中提取最后 2 个全连接密集层的权重，重塑权重以适应我们之前转换为 keras.layers.Conv2D 的 keras.layers.Dense 层的权重，并将其设置为 keras.layers.Conv2D 会产生更好的结果，并显著提高 mIOU 性能。

# VGG's last 2 layers
weights1 = vgg_model.get_layer("fc1").get_weights()[0]
weights2 = vgg_model.get_layer("fc2").get_weights()[0]

weights1 = weights1.reshape(7, 7, 512, 4096)
weights2 = weights2.reshape(1, 1, 4096, 4096)

dense_convs.layers[0].set_weights([weights1])
dense_convs.layers[2].set_weights([weights2])

培训


最初的论文提到使用 SGD 和 Momentum 作为优化器。但在实验过程中发现，AdamW 在 mIOU 和像素精确度方面取得了更好的结果。

FCN-32S

fcn32s_optimizer = keras.optimizers.AdamW(
    learning_rate=LEARNING_RATE, weight_decay=WEIGHT_DECAY
)

fcn32s_loss = keras.losses.SparseCategoricalCrossentropy()

# Maintain mIOU and Pixel-wise Accuracy as metrics
fcn32s_model.compile(
    optimizer=fcn32s_optimizer,
    loss=fcn32s_loss,
    metrics=[
        keras.metrics.MeanIoU(num_classes=NUM_CLASSES, sparse_y_pred=False),
        keras.metrics.SparseCategoricalAccuracy(),
    ],
)

fcn32s_history = fcn32s_model.fit(train_ds, epochs=EPOCHS, validation_data=valid_ds)
Epoch 1/20

Corrupt JPEG data: premature end of data segment
Corrupt JPEG data: 240 extraneous bytes before marker 0xd9

98/98 [==============================] - 31s 171ms/step - loss: 0.9853 - mean_io_u: 0.3056 - sparse_categorical_accuracy: 0.6242 - val_loss: 0.7911 - val_mean_io_u: 0.4022 - val_sparse_categorical_accuracy: 0.7011
Epoch 2/20

Corrupt JPEG data: 240 extraneous bytes before marker 0xd9
Corrupt JPEG data: premature end of data segment

98/98 [==============================] - 22s 131ms/step - loss: 0.7463 - mean_io_u: 0.3978 - sparse_categorical_accuracy: 0.7100 - val_loss: 0.7162 - val_mean_io_u: 0.3968 - val_sparse_categorical_accuracy: 0.7157
Epoch 3/20

Corrupt JPEG data: 240 extraneous bytes before marker 0xd9
Corrupt JPEG data: premature end of data segment

98/98 [==============================] - 21s 120ms/step - loss: 0.6939 - mean_io_u: 0.4139 - sparse_categorical_accuracy: 0.7255 - val_loss: 0.6714 - val_mean_io_u: 0.4383 - val_sparse_categorical_accuracy: 0.7379
Epoch 4/20

Corrupt JPEG data: premature end of data segment
Corrupt JPEG data: 240 extraneous bytes before marker 0xd9

98/98 [==============================] - 21s 117ms/step - loss: 0.6694 - mean_io_u: 0.4239 - sparse_categorical_accuracy: 0.7339 - val_loss: 0.6715 - val_mean_io_u: 0.4258 - val_sparse_categorical_accuracy: 0.7332
Epoch 5/20

Corrupt JPEG data: 240 extraneous bytes before marker 0xd9
Corrupt JPEG data: premature end of data segment

98/98 [==============================] - 21s 115ms/step - loss: 0.6556 - mean_io_u: 0.4279 - sparse_categorical_accuracy: 0.7382 - val_loss: 0.6271 - val_mean_io_u: 0.4483 - val_sparse_categorical_accuracy: 0.7514
Epoch 6/20

Corrupt JPEG data: 240 extraneous bytes before marker 0xd9
Corrupt JPEG data: premature end of data segment

98/98 [==============================] - 21s 120ms/step - loss: 0.6501 - mean_io_u: 0.4295 - sparse_categorical_accuracy: 0.7394 - val_loss: 0.6390 - val_mean_io_u: 0.4375 - val_sparse_categorical_accuracy: 0.7442
Epoch 7/20

Corrupt JPEG data: premature end of data segment
Corrupt JPEG data: 240 extraneous bytes before marker 0xd9

98/98 [==============================] - 20s 109ms/step - loss: 0.6464 - mean_io_u: 0.4309 - sparse_categorical_accuracy: 0.7402 - val_loss: 0.6143 - val_mean_io_u: 0.4508 - val_sparse_categorical_accuracy: 0.7553
Epoch 8/20

Corrupt JPEG data: 240 extraneous bytes before marker 0xd9
Corrupt JPEG data: premature end of data segment

98/98 [==============================] - 20s 108ms/step - loss: 0.6363 - mean_io_u: 0.4343 - sparse_categorical_accuracy: 0.7444 - val_loss: 0.6143 - val_mean_io_u: 0.4481 - val_sparse_categorical_accuracy: 0.7541
Epoch 9/20

Corrupt JPEG data: premature end of data segment
Corrupt JPEG data: 240 extraneous bytes before marker 0xd9

98/98 [==============================] - 20s 108ms/step - loss: 0.6367 - mean_io_u: 0.4346 - sparse_categorical_accuracy: 0.7445 - val_loss: 0.6222 - val_mean_io_u: 0.4534 - val_sparse_categorical_accuracy: 0.7510
Epoch 10/20

Corrupt JPEG data: 240 extraneous bytes before marker 0xd9
Corrupt JPEG data: premature end of data segment

98/98 [==============================] - 19s 108ms/step - loss: 0.6398 - mean_io_u: 0.4346 - sparse_categorical_accuracy: 0.7426 - val_loss: 0.6123 - val_mean_io_u: 0.4494 - val_sparse_categorical_accuracy: 0.7541
Epoch 11/20

Corrupt JPEG data: 240 extraneous bytes before marker 0xd9
Corrupt JPEG data: premature end of data segment

98/98 [==============================] - 20s 110ms/step - loss: 0.6361 - mean_io_u: 0.4365 - sparse_categorical_accuracy: 0.7439 - val_loss: 0.6310 - val_mean_io_u: 0.4405 - val_sparse_categorical_accuracy: 0.7461
Epoch 12/20

Corrupt JPEG data: premature end of data segment
Corrupt JPEG data: 240 extraneous bytes before marker 0xd9

98/98 [==============================] - 21s 110ms/step - loss: 0.6325 - mean_io_u: 0.4362 - sparse_categorical_accuracy: 0.7454 - val_loss: 0.6155 - val_mean_io_u: 0.4441 - val_sparse_categorical_accuracy: 0.7509
Epoch 13/20

Corrupt JPEG data: 240 extraneous bytes before marker 0xd9
Corrupt JPEG data: premature end of data segment

98/98 [==============================] - 20s 112ms/step - loss: 0.6335 - mean_io_u: 0.4368 - sparse_categorical_accuracy: 0.7452 - val_loss: 0.6153 - val_mean_io_u: 0.4430 - val_sparse_categorical_accuracy: 0.7504
Epoch 14/20

Corrupt JPEG data: premature end of data segment
Corrupt JPEG data: 240 extraneous bytes before marker 0xd9

98/98 [==============================] - 20s 113ms/step - loss: 0.6289 - mean_io_u: 0.4380 - sparse_categorical_accuracy: 0.7466 - val_loss: 0.6357 - val_mean_io_u: 0.4309 - val_sparse_categorical_accuracy: 0.7382
Epoch 15/20

Corrupt JPEG data: premature end of data segment
Corrupt JPEG data: 240 extraneous bytes before marker 0xd9

98/98 [==============================] - 20s 113ms/step - loss: 0.6267 - mean_io_u: 0.4369 - sparse_categorical_accuracy: 0.7474 - val_loss: 0.5974 - val_mean_io_u: 0.4619 - val_sparse_categorical_accuracy: 0.7617
Epoch 16/20

Corrupt JPEG data: 240 extraneous bytes before marker 0xd9
Corrupt JPEG data: premature end of data segment

98/98 [==============================] - 20s 109ms/step - loss: 0.6309 - mean_io_u: 0.4368 - sparse_categorical_accuracy: 0.7458 - val_loss: 0.6071 - val_mean_io_u: 0.4463 - val_sparse_categorical_accuracy: 0.7533
Epoch 17/20

Corrupt JPEG data: 240 extraneous bytes before marker 0xd9
Corrupt JPEG data: premature end of data segment

98/98 [==============================] - 20s 112ms/step - loss: 0.6285 - mean_io_u: 0.4382 - sparse_categorical_accuracy: 0.7465 - val_loss: 0.5979 - val_mean_io_u: 0.4576 - val_sparse_categorical_accuracy: 0.7602
Epoch 18/20

Corrupt JPEG data: premature end of data segment
Corrupt JPEG data: 240 extraneous bytes before marker 0xd9

98/98 [==============================] - 20s 111ms/step - loss: 0.6250 - mean_io_u: 0.4403 - sparse_categorical_accuracy: 0.7479 - val_loss: 0.6121 - val_mean_io_u: 0.4451 - val_sparse_categorical_accuracy: 0.7507
Epoch 19/20

Corrupt JPEG data: premature end of data segment
Corrupt JPEG data: 240 extraneous bytes before marker 0xd9

98/98 [==============================] - 20s 111ms/step - loss: 0.6307 - mean_io_u: 0.4386 - sparse_categorical_accuracy: 0.7454 - val_loss: 0.6010 - val_mean_io_u: 0.4532 - val_sparse_categorical_accuracy: 0.7577
Epoch 20/20

Corrupt JPEG data: premature end of data segment
Corrupt JPEG data: 240 extraneous bytes before marker 0xd9

98/98 [==============================] - 20s 114ms/step - loss: 0.6199 - mean_io_u: 0.4403 - sparse_categorical_accuracy: 0.7505 - val_loss: 0.6180 - val_mean_io_u: 0.4339 - val_sparse_categorical_accuracy: 0.7465

FCN-16S

fcn16s_optimizer = keras.optimizers.AdamW(
    learning_rate=LEARNING_RATE, weight_decay=WEIGHT_DECAY
)

fcn16s_loss = keras.losses.SparseCategoricalCrossentropy()

# Maintain mIOU and Pixel-wise Accuracy as metrics
fcn16s_model.compile(
    optimizer=fcn16s_optimizer,
    loss=fcn16s_loss,
    metrics=[
        keras.metrics.MeanIoU(num_classes=NUM_CLASSES, sparse_y_pred=False),
        keras.metrics.SparseCategoricalAccuracy(),
    ],
)

fcn16s_history = fcn16s_model.fit(train_ds, epochs=EPOCHS, validation_data=valid_ds)
Epoch 1/20

Corrupt JPEG data: 240 extraneous bytes before marker 0xd9
Corrupt JPEG data: premature end of data segment

98/98 [==============================] - 23s 127ms/step - loss: 6.4519 - mean_io_u_1: 0.3101 - sparse_categorical_accuracy: 0.5649 - val_loss: 5.7052 - val_mean_io_u_1: 0.3842 - val_sparse_categorical_accuracy: 0.6057
Epoch 2/20

Corrupt JPEG data: 240 extraneous bytes before marker 0xd9
Corrupt JPEG data: premature end of data segment

98/98 [==============================] - 19s 110ms/step - loss: 5.2670 - mean_io_u_1: 0.3936 - sparse_categorical_accuracy: 0.6339 - val_loss: 5.8929 - val_mean_io_u_1: 0.3864 - val_sparse_categorical_accuracy: 0.5940
Epoch 3/20

Corrupt JPEG data: 240 extraneous bytes before marker 0xd9
Corrupt JPEG data: premature end of data segment

98/98 [==============================] - 20s 111ms/step - loss: 5.2376 - mean_io_u_1: 0.3945 - sparse_categorical_accuracy: 0.6366 - val_loss: 5.6404 - val_mean_io_u_1: 0.3889 - val_sparse_categorical_accuracy: 0.6079
Epoch 4/20

Corrupt JPEG data: premature end of data segment
Corrupt JPEG data: 240 extraneous bytes before marker 0xd9

98/98 [==============================] - 21s 113ms/step - loss: 5.3014 - mean_io_u_1: 0.3924 - sparse_categorical_accuracy: 0.6323 - val_loss: 5.6516 - val_mean_io_u_1: 0.3874 - val_sparse_categorical_accuracy: 0.6094
Epoch 5/20

Corrupt JPEG data: premature end of data segment
Corrupt JPEG data: 240 extraneous bytes before marker 0xd9

98/98 [==============================] - 20s 112ms/step - loss: 5.3135 - mean_io_u_1: 0.3918 - sparse_categorical_accuracy: 0.6323 - val_loss: 5.6588 - val_mean_io_u_1: 0.3903 - val_sparse_categorical_accuracy: 0.6084
Epoch 6/20

Corrupt JPEG data: premature end of data segment
Corrupt JPEG data: 240 extraneous bytes before marker 0xd9

98/98 [==============================] - 20s 108ms/step - loss: 5.2401 - mean_io_u_1: 0.3938 - sparse_categorical_accuracy: 0.6357 - val_loss: 5.6463 - val_mean_io_u_1: 0.3868 - val_sparse_categorical_accuracy: 0.6097
Epoch 7/20

Corrupt JPEG data: 240 extraneous bytes before marker 0xd9
Corrupt JPEG data: premature end of data segment

98/98 [==============================] - 20s 109ms/step - loss: 5.2277 - mean_io_u_1: 0.3921 - sparse_categorical_accuracy: 0.6371 - val_loss: 5.6272 - val_mean_io_u_1: 0.3796 - val_sparse_categorical_accuracy: 0.6136
Epoch 8/20

Corrupt JPEG data: premature end of data segment
Corrupt JPEG data: 240 extraneous bytes before marker 0xd9

98/98 [==============================] - 20s 112ms/step - loss: 5.2479 - mean_io_u_1: 0.3910 - sparse_categorical_accuracy: 0.6360 - val_loss: 5.6303 - val_mean_io_u_1: 0.3823 - val_sparse_categorical_accuracy: 0.6108
Epoch 9/20

Corrupt JPEG data: premature end of data segment
Corrupt JPEG data: 240 extraneous bytes before marker 0xd9

98/98 [==============================] - 21s 112ms/step - loss: 5.1940 - mean_io_u_1: 0.3913 - sparse_categorical_accuracy: 0.6388 - val_loss: 5.8818 - val_mean_io_u_1: 0.3848 - val_sparse_categorical_accuracy: 0.5912
Epoch 10/20

Corrupt JPEG data: premature end of data segment
Corrupt JPEG data: 240 extraneous bytes before marker 0xd9

98/98 [==============================] - 20s 111ms/step - loss: 5.2457 - mean_io_u_1: 0.3898 - sparse_categorical_accuracy: 0.6358 - val_loss: 5.6423 - val_mean_io_u_1: 0.3880 - val_sparse_categorical_accuracy: 0.6087
Epoch 11/20

Corrupt JPEG data: 240 extraneous bytes before marker 0xd9
Corrupt JPEG data: premature end of data segment

98/98 [==============================] - 20s 110ms/step - loss: 5.1808 - mean_io_u_1: 0.3905 - sparse_categorical_accuracy: 0.6400 - val_loss: 5.6175 - val_mean_io_u_1: 0.3834 - val_sparse_categorical_accuracy: 0.6090
Epoch 12/20

Corrupt JPEG data: premature end of data segment
Corrupt JPEG data: 240 extraneous bytes before marker 0xd9

98/98 [==============================] - 20s 112ms/step - loss: 5.2730 - mean_io_u_1: 0.3907 - sparse_categorical_accuracy: 0.6341 - val_loss: 5.6322 - val_mean_io_u_1: 0.3878 - val_sparse_categorical_accuracy: 0.6109
Epoch 13/20

Corrupt JPEG data: premature end of data segment
Corrupt JPEG data: 240 extraneous bytes before marker 0xd9

98/98 [==============================] - 20s 109ms/step - loss: 5.2501 - mean_io_u_1: 0.3904 - sparse_categorical_accuracy: 0.6359 - val_loss: 5.8711 - val_mean_io_u_1: 0.3859 - val_sparse_categorical_accuracy: 0.5950
Epoch 14/20

Corrupt JPEG data: premature end of data segment
Corrupt JPEG data: 240 extraneous bytes before marker 0xd9

98/98 [==============================] - 20s 107ms/step - loss: 5.2407 - mean_io_u_1: 0.3926 - sparse_categorical_accuracy: 0.6362 - val_loss: 5.6387 - val_mean_io_u_1: 0.3805 - val_sparse_categorical_accuracy: 0.6122
Epoch 15/20

Corrupt JPEG data: premature end of data segment
Corrupt JPEG data: 240 extraneous bytes before marker 0xd9

98/98 [==============================] - 20s 108ms/step - loss: 5.2280 - mean_io_u_1: 0.3909 - sparse_categorical_accuracy: 0.6370 - val_loss: 5.6382 - val_mean_io_u_1: 0.3837 - val_sparse_categorical_accuracy: 0.6112
Epoch 16/20

Corrupt JPEG data: premature end of data segment
Corrupt JPEG data: 240 extraneous bytes before marker 0xd9

98/98 [==============================] - 20s 108ms/step - loss: 5.2232 - mean_io_u_1: 0.3899 - sparse_categorical_accuracy: 0.6369 - val_loss: 5.6285 - val_mean_io_u_1: 0.3818 - val_sparse_categorical_accuracy: 0.6101
Epoch 17/20

Corrupt JPEG data: 240 extraneous bytes before marker 0xd9
Corrupt JPEG data: premature end of data segment

98/98 [==============================] - 20s 107ms/step - loss: 1.4671 - mean_io_u_1: 0.5928 - sparse_categorical_accuracy: 0.8210 - val_loss: 0.7661 - val_mean_io_u_1: 0.6455 - val_sparse_categorical_accuracy: 0.8504
Epoch 18/20

Corrupt JPEG data: 240 extraneous bytes before marker 0xd9
Corrupt JPEG data: premature end of data segment

98/98 [==============================] - 20s 110ms/step - loss: 0.6795 - mean_io_u_1: 0.6508 - sparse_categorical_accuracy: 0.8664 - val_loss: 0.6913 - val_mean_io_u_1: 0.6490 - val_sparse_categorical_accuracy: 0.8562
Epoch 19/20

Corrupt JPEG data: 240 extraneous bytes before marker 0xd9
Corrupt JPEG data: premature end of data segment

98/98 [==============================] - 20s 110ms/step - loss: 0.6498 - mean_io_u_1: 0.6530 - sparse_categorical_accuracy: 0.8663 - val_loss: 0.6834 - val_mean_io_u_1: 0.6559 - val_sparse_categorical_accuracy: 0.8577
Epoch 20/20

Corrupt JPEG data: premature end of data segment
Corrupt JPEG data: 240 extraneous bytes before marker 0xd9

98/98 [==============================] - 20s 110ms/step - loss: 0.6305 - mean_io_u_1: 0.6563 - sparse_categorical_accuracy: 0.8681 - val_loss: 0.6529 - val_mean_io_u_1: 0.6575 - val_sparse_categorical_accuracy: 0.8657

FCN-8S

fcn8s_optimizer = keras.optimizers.AdamW(
    learning_rate=LEARNING_RATE, weight_decay=WEIGHT_DECAY
)

fcn8s_loss = keras.losses.SparseCategoricalCrossentropy()

# Maintain mIOU and Pixel-wise Accuracy as metrics
fcn8s_model.compile(
    optimizer=fcn8s_optimizer,
    loss=fcn8s_loss,
    metrics=[
        keras.metrics.MeanIoU(num_classes=NUM_CLASSES, sparse_y_pred=False),
        keras.metrics.SparseCategoricalAccuracy(),
    ],
)

fcn8s_history = fcn8s_model.fit(train_ds, epochs=EPOCHS, validation_data=valid_ds)
Epoch 1/20

Corrupt JPEG data: 240 extraneous bytes before marker 0xd9
Corrupt JPEG data: premature end of data segment

98/98 [==============================] - 24s 125ms/step - loss: 8.4168 - mean_io_u_2: 0.3116 - sparse_categorical_accuracy: 0.4237 - val_loss: 7.6113 - val_mean_io_u_2: 0.3540 - val_sparse_categorical_accuracy: 0.4682
Epoch 2/20

Corrupt JPEG data: premature end of data segment
Corrupt JPEG data: 240 extraneous bytes before marker 0xd9

98/98 [==============================] - 20s 110ms/step - loss: 8.1030 - mean_io_u_2: 0.3423 - sparse_categorical_accuracy: 0.4401 - val_loss: 7.7038 - val_mean_io_u_2: 0.3335 - val_sparse_categorical_accuracy: 0.4481
Epoch 3/20

Corrupt JPEG data: premature end of data segment
Corrupt JPEG data: 240 extraneous bytes before marker 0xd9

98/98 [==============================] - 20s 110ms/step - loss: 8.0868 - mean_io_u_2: 0.3433 - sparse_categorical_accuracy: 0.4408 - val_loss: 7.5839 - val_mean_io_u_2: 0.3518 - val_sparse_categorical_accuracy: 0.4722
Epoch 4/20

Corrupt JPEG data: premature end of data segment
Corrupt JPEG data: 240 extraneous bytes before marker 0xd9

98/98 [==============================] - 21s 111ms/step - loss: 8.1508 - mean_io_u_2: 0.3414 - sparse_categorical_accuracy: 0.4365 - val_loss: 7.2391 - val_mean_io_u_2: 0.3519 - val_sparse_categorical_accuracy: 0.4805
Epoch 5/20

Corrupt JPEG data: premature end of data segment
Corrupt JPEG data: 240 extraneous bytes before marker 0xd9

98/98 [==============================] - 20s 112ms/step - loss: 8.1621 - mean_io_u_2: 0.3440 - sparse_categorical_accuracy: 0.4361 - val_loss: 7.2805 - val_mean_io_u_2: 0.3474 - val_sparse_categorical_accuracy: 0.4816
Epoch 6/20

Corrupt JPEG data: premature end of data segment
Corrupt JPEG data: 240 extraneous bytes before marker 0xd9

98/98 [==============================] - 20s 110ms/step - loss: 8.1470 - mean_io_u_2: 0.3412 - sparse_categorical_accuracy: 0.4360 - val_loss: 7.5605 - val_mean_io_u_2: 0.3543 - val_sparse_categorical_accuracy: 0.4736
Epoch 7/20

Corrupt JPEG data: 240 extraneous bytes before marker 0xd9
Corrupt JPEG data: premature end of data segment

98/98 [==============================] - 20s 110ms/step - loss: 8.1464 - mean_io_u_2: 0.3430 - sparse_categorical_accuracy: 0.4368 - val_loss: 7.5442 - val_mean_io_u_2: 0.3542 - val_sparse_categorical_accuracy: 0.4702
Epoch 8/20

Corrupt JPEG data: premature end of data segment
Corrupt JPEG data: 240 extraneous bytes before marker 0xd9

98/98 [==============================] - 20s 108ms/step - loss: 8.0812 - mean_io_u_2: 0.3463 - sparse_categorical_accuracy: 0.4403 - val_loss: 7.5565 - val_mean_io_u_2: 0.3471 - val_sparse_categorical_accuracy: 0.4614
Epoch 9/20

Corrupt JPEG data: premature end of data segment
Corrupt JPEG data: 240 extraneous bytes before marker 0xd9

98/98 [==============================] - 20s 109ms/step - loss: 8.0441 - mean_io_u_2: 0.3463 - sparse_categorical_accuracy: 0.4420 - val_loss: 7.5563 - val_mean_io_u_2: 0.3522 - val_sparse_categorical_accuracy: 0.4734
Epoch 10/20

Corrupt JPEG data: premature end of data segment
Corrupt JPEG data: 240 extraneous bytes before marker 0xd9

98/98 [==============================] - 20s 110ms/step - loss: 8.1385 - mean_io_u_2: 0.3432 - sparse_categorical_accuracy: 0.4363 - val_loss: 7.5236 - val_mean_io_u_2: 0.3506 - val_sparse_categorical_accuracy: 0.4660
Epoch 11/20

Corrupt JPEG data: premature end of data segment
Corrupt JPEG data: 240 extraneous bytes before marker 0xd9

98/98 [==============================] - 20s 111ms/step - loss: 8.1114 - mean_io_u_2: 0.3447 - sparse_categorical_accuracy: 0.4381 - val_loss: 7.2068 - val_mean_io_u_2: 0.3518 - val_sparse_categorical_accuracy: 0.4808
Epoch 12/20

Corrupt JPEG data: premature end of data segment
Corrupt JPEG data: 240 extraneous bytes before marker 0xd9

98/98 [==============================] - 20s 107ms/step - loss: 8.0777 - mean_io_u_2: 0.3451 - sparse_categorical_accuracy: 0.4392 - val_loss: 7.2252 - val_mean_io_u_2: 0.3497 - val_sparse_categorical_accuracy: 0.4815
Epoch 13/20

Corrupt JPEG data: 240 extraneous bytes before marker 0xd9
Corrupt JPEG data: premature end of data segment

98/98 [==============================] - 21s 110ms/step - loss: 8.1355 - mean_io_u_2: 0.3446 - sparse_categorical_accuracy: 0.4366 - val_loss: 7.5587 - val_mean_io_u_2: 0.3500 - val_sparse_categorical_accuracy: 0.4671
Epoch 14/20

Corrupt JPEG data: 240 extraneous bytes before marker 0xd9
Corrupt JPEG data: premature end of data segment

98/98 [==============================] - 20s 107ms/step - loss: 8.1828 - mean_io_u_2: 0.3410 - sparse_categorical_accuracy: 0.4330 - val_loss: 7.2464 - val_mean_io_u_2: 0.3557 - val_sparse_categorical_accuracy: 0.4927
Epoch 15/20

Corrupt JPEG data: premature end of data segment
Corrupt JPEG data: 240 extraneous bytes before marker 0xd9

98/98 [==============================] - 20s 108ms/step - loss: 8.1845 - mean_io_u_2: 0.3432 - sparse_categorical_accuracy: 0.4330 - val_loss: 7.2032 - val_mean_io_u_2: 0.3506 - val_sparse_categorical_accuracy: 0.4805
Epoch 16/20

Corrupt JPEG data: premature end of data segment
Corrupt JPEG data: 240 extraneous bytes before marker 0xd9

98/98 [==============================] - 21s 109ms/step - loss: 8.1183 - mean_io_u_2: 0.3449 - sparse_categorical_accuracy: 0.4374 - val_loss: 7.6210 - val_mean_io_u_2: 0.3460 - val_sparse_categorical_accuracy: 0.4751
Epoch 17/20

Corrupt JPEG data: 240 extraneous bytes before marker 0xd9
Corrupt JPEG data: premature end of data segment

98/98 [==============================] - 21s 111ms/step - loss: 8.1766 - mean_io_u_2: 0.3429 - sparse_categorical_accuracy: 0.4329 - val_loss: 7.5361 - val_mean_io_u_2: 0.3489 - val_sparse_categorical_accuracy: 0.4639
Epoch 18/20

Corrupt JPEG data: premature end of data segment
Corrupt JPEG data: 240 extraneous bytes before marker 0xd9

98/98 [==============================] - 20s 109ms/step - loss: 8.0453 - mean_io_u_2: 0.3442 - sparse_categorical_accuracy: 0.4404 - val_loss: 7.1767 - val_mean_io_u_2: 0.3549 - val_sparse_categorical_accuracy: 0.4839
Epoch 19/20

Corrupt JPEG data: premature end of data segment
Corrupt JPEG data: 240 extraneous bytes before marker 0xd9

98/98 [==============================] - 20s 109ms/step - loss: 8.0856 - mean_io_u_2: 0.3449 - sparse_categorical_accuracy: 0.4390 - val_loss: 7.1724 - val_mean_io_u_2: 0.3574 - val_sparse_categorical_accuracy: 0.4878
Epoch 20/20

Corrupt JPEG data: 240 extraneous bytes before marker 0xd9
Corrupt JPEG data: premature end of data segment

98/98 [==============================] - 21s 109ms/step - loss: 8.1378 - mean_io_u_2: 0.3445 - sparse_categorical_accuracy: 0.4358 - val_loss: 7.5449 - val_mean_io_u_2: 0.3521 - val_sparse_categorical_accuracy: 0.4681

可视化


绘制训练运行指标图

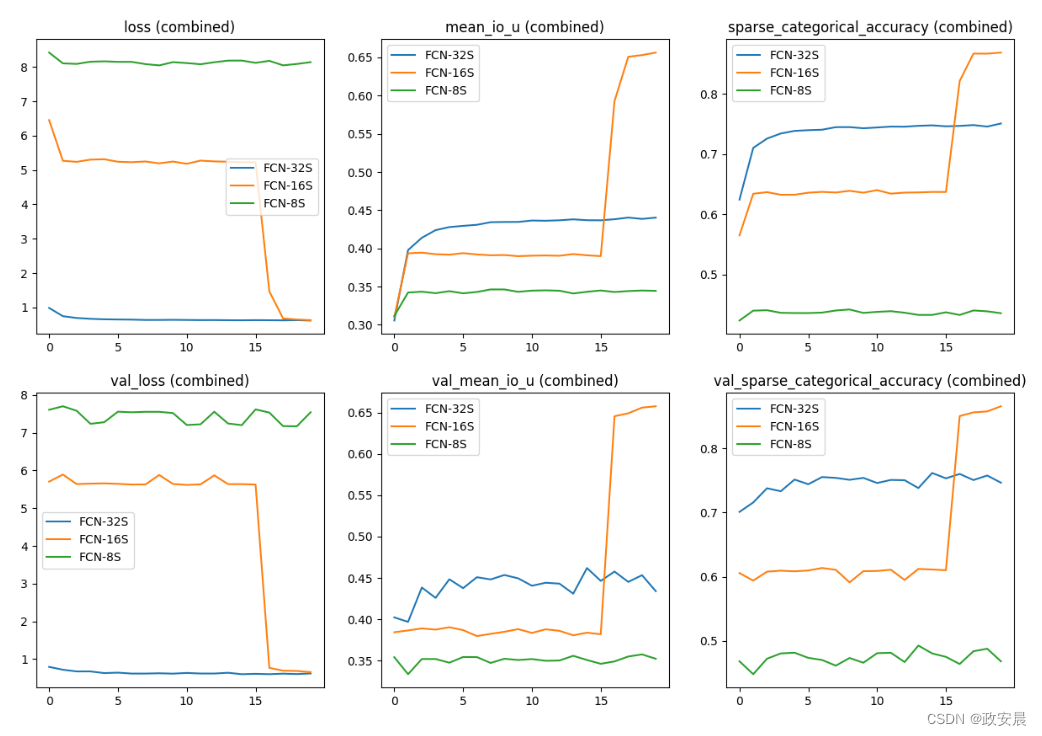

我们通过跟踪准确率、损失和平均 IoU 的训练和验证指标，对所有 3 个版本的模型进行比较研究。

total_plots = len(fcn32s_history.history)
cols = total_plots // 2

rows = total_plots // cols

if total_plots % cols != 0:
    rows += 1

# Set all history dictionary objects
fcn32s_dict = fcn32s_history.history
fcn16s_dict = fcn16s_history.history
fcn8s_dict = fcn8s_history.history

pos = range(1, total_plots + 1)
plt.figure(figsize=(15, 10))

for i, ((key_32s, value_32s), (key_16s, value_16s), (key_8s, value_8s)) in enumerate(
    zip(fcn32s_dict.items(), fcn16s_dict.items(), fcn8s_dict.items())
):
    plt.subplot(rows, cols, pos[i])
    plt.plot(range(len(value_32s)), value_32s)
    plt.plot(range(len(value_16s)), value_16s)
    plt.plot(range(len(value_8s)), value_8s)
    plt.title(str(key_32s) + " (combined)")
    plt.legend(["FCN-32S", "FCN-16S", "FCN-8S"])

plt.show()

可视化预测的分割掩码


为了更好地理解和查看结果，我们从测试数据集中随机选取一张图像，对其进行推理，以查看每个模型生成的掩码。注：为了获得更好的结果，模型必须经过更多的历时训练。

images, masks = next(iter(test_ds))
random_idx = keras.random.uniform([], minval=0, maxval=BATCH_SIZE,seed=10)

# Get random test image and mask
test_image = images[int(random_idx)].numpy().astype("float")
test_mask = masks[int(random_idx)].numpy().astype("float")

pred_image = ops.expand_dims(test_image, axis=0)
pred_image = keras.applications.vgg19.preprocess_input(pred_image)

# Perform inference on FCN-32S
pred_mask_32s = fcn32s_model.predict(pred_image, verbose=0).astype("float")
pred_mask_32s = np.argmax(pred_mask_32s, axis=-1)
pred_mask_32s = pred_mask_32s[0, ...]

# Perform inference on FCN-16S
pred_mask_16s = fcn16s_model.predict(pred_image, verbose=0).astype("float")
pred_mask_16s = np.argmax(pred_mask_16s, axis=-1)
pred_mask_16s = pred_mask_16s[0, ...]

# Perform inference on FCN-8S
pred_mask_8s = fcn8s_model.predict(pred_image, verbose=0).astype("float")
pred_mask_8s = np.argmax(pred_mask_8s, axis=-1)
pred_mask_8s = pred_mask_8s[0, ...]

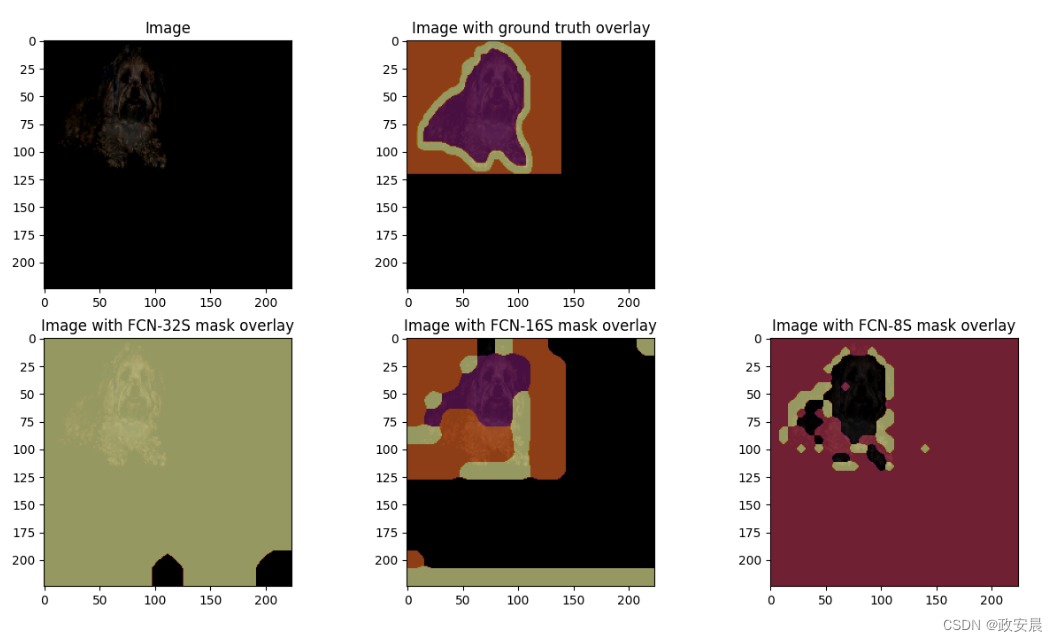

# Plot all results
fig, ax = plt.subplots(nrows=2, ncols=3, figsize=(15, 8))

fig.delaxes(ax[0, 2])

ax[0, 0].set_title("Image")
ax[0, 0].imshow(test_image / 255.0)

ax[0, 1].set_title("Image with ground truth overlay")
ax[0, 1].imshow(test_image / 255.0)
ax[0, 1].imshow(
    test_mask,
    cmap="inferno",
    alpha=0.6,
)

ax[1, 0].set_title("Image with FCN-32S mask overlay")
ax[1, 0].imshow(test_image / 255.0)
ax[1, 0].imshow(pred_mask_32s, cmap="inferno", alpha=0.6)

ax[1, 1].set_title("Image with FCN-16S mask overlay")
ax[1, 1].imshow(test_image / 255.0)
ax[1, 1].imshow(pred_mask_16s, cmap="inferno", alpha=0.6)

ax[1, 2].set_title("Image with FCN-8S mask overlay")
ax[1, 2].imshow(test_image / 255.0)
ax[1, 2].imshow(pred_mask_8s, cmap="inferno", alpha=0.6)

plt.show()
WARNING:matplotlib.image:Clipping input data to the valid range for imshow with RGB data ([0..1] for floats or [0..255] for integers).
WARNING:matplotlib.image:Clipping input data to the valid range for imshow with RGB data ([0..1] for floats or [0..255] for integers).
WARNING:matplotlib.image:Clipping input data to the valid range for imshow with RGB data ([0..1] for floats or [0..255] for integers).
WARNING:matplotlib.image:Clipping input data to the valid range for imshow with RGB data ([0..1] for floats or [0..255] for integers).
WARNING:matplotlib.image:Clipping input data to the valid range for imshow with RGB data ([0..1] for floats or [0..255] for integers).

结论

全卷积网络是一种异常简单的网络，在不同的基准测试中在图像分割任务中取得了强大的结果。随着像SegFormer和DeTR这样的更好的机制如注意力机制的出现，这个模型可以作为一种快速迭代和找到未知数据上任务基准的方法。

网站公告

今日签到

点亮在社区的每一天
去签到

热门文章

最新发布
