前文

Android U 多任务启动分屏——SystemUI流程
前文分屏中说到Transitions的startTransition方法中，通过mOrganizer.startNewTransition(type, wct);提交WindowContainerTransaction相关事务到system_server侧，这里以此流程为例，讲解WindowOrganizerController是如何处理WindowContainerTransaction的。

system_server侧事务处理流程

systemui跨进程通信到system_server

代码路径：frameworks/base/core/java/android/window/WindowOrganizer.java

    /**
     * Starts a new transition, don't use this to start an already created one.
     * @param type The type of the transition. This is ignored if a transitionToken is provided.
     * @param t The set of window operations that are part of this transition.
     * @return A token identifying the transition. This will be the same as transitionToken if it
     *         was provided.
     * @hide
     */
    @RequiresPermission(android.Manifest.permission.MANAGE_ACTIVITY_TASKS)
    @NonNull
    public IBinder startNewTransition(int type, @Nullable WindowContainerTransaction t) {
        try {
            return getWindowOrganizerController().startNewTransition(type, t);
        } catch (RemoteException e) {
            throw e.rethrowFromSystemServer();
        }
    }

    static IWindowOrganizerController getWindowOrganizerController() {
        return IWindowOrganizerControllerSingleton.get();
    }

这里可以看出getWindowOrganizerController()就是获取IWindowOrganizerController对象，调用其startNewTransition(type, t)方法，其中参数type为systemui侧传递的TRANSIT_TO_FRONT(值为3)，t则是systemui侧传递的WindowContainerTransaction对象。

代码路径：frameworks/base/core/java/android/window/IWindowOrganizerController.aidl

interface IWindowOrganizerController {

    ......

    /**
     * Starts a new transition.
     * @param type The transition type.
     * @param t Operations that are part of the transition.
     * @return a token representing the transition.
     */
    IBinder startNewTransition(int type, in @nullable WindowContainerTransaction t);

找到其aidl接口，接下来找到其实现类

/**
 * Server side implementation for the interface for organizing windows
 * @see android.window.WindowOrganizer
 */
class WindowOrganizerController extends IWindowOrganizerController.Stub
        implements BLASTSyncEngine.TransactionReadyListener {

代码路径：frameworks/base/services/core/java/com/android/server/wm/WindowOrganizerController.java

    @Override
    public IBinder startNewTransition(int type, @Nullable WindowContainerTransaction t) {
        return startTransition(type, null /* transitionToken */, t);
    }

最终调用到WindowOrganizerController的startNewTransition方法，该方法就是调用一个startTransition方法，这个方法中传递了type（值为TRANSIT_TO_FRONT，即3）、transitionToken（值为null）以及WindowContainerTransaction对象。

处理动画并提交事务

    private IBinder startTransition(@WindowManager.TransitionType int type,
            @Nullable IBinder transitionToken, @Nullable WindowContainerTransaction t) {
        //检查MANAGE_ACTIVITY_TASKS权限
        enforceTaskPermission("startTransition()");
        //获取调用方法的pid和uid
        final CallerInfo caller = new CallerInfo();
        final long ident = Binder.clearCallingIdentity();
        try {
            synchronized (mGlobalLock) {
                //transitionToken为空，因此transition为空
                Transition transition = Transition.fromBinder(transitionToken);
                //transition为空不满足条件，因此不走该逻辑
                if (mTransitionController.getTransitionPlayer() == null && transition == null) {
                    Slog.w(TAG, "Using shell transitions API for legacy transitions.");
                    if (t == null) {
                        throw new IllegalArgumentException("Can't use legacy transitions in"
                                + " compatibility mode with no WCT.");
                    }
                    //如果mTransitionController.getTransitionPlayer()和transition
                    //均为空，则直接调用applyTransaction方法
                    applyTransaction(t, -1 /* syncId */, null, caller);
                    return null;
                }
                //判断当前传递过来的WindowContainerTransaction对象t是否为空
                //不为空则赋值给wct，为空则重新创建一个WindowContainerTransaction对象。
                final WindowContainerTransaction wct =
                        t != null ? t : new WindowContainerTransaction();
                //transition为空，走此处逻辑
                if (transition == null) {
                    if (type < 0) {
                        throw new IllegalArgumentException("Can't create transition with no type");
                    }
                    // This is a direct call from shell, so the entire transition lifecycle is
                    // contained in the provided transaction if provided. Thus, we can setReady
                    // immediately after apply.
                    final boolean needsSetReady = t != null;
                    final Transition nextTransition = new Transition(type, 0 /* flags */,
                            mTransitionController, mService.mWindowManager.mSyncEngine);
                    nextTransition.calcParallelCollectType(wct);
                    mTransitionController.startCollectOrQueue(nextTransition,
                            //deferred表示这个Transition的启动是否被推迟，
                            //startCollectOrQueue方法中传递的值为false
                            (deferred) -> {
                                //动画状态为STATE_STARTED
                                nextTransition.start();
                                nextTransition.mLogger.mStartWCT = wct;
                                applyTransaction(wct, -1 /* syncId */, nextTransition, caller,
                                        deferred);
                                if (needsSetReady) {
                                    nextTransition.setAllReady();
                                }
                            });
                    return nextTransition.getToken();
                }
                // The transition already started collecting before sending a request to shell,
                // so just start here.
                //如果transition.isCollecting()和transition.isForcePlaying()均为false
                if (!transition.isCollecting() && !transition.isForcePlaying()) {
                    Slog.e(TAG, "Trying to start a transition that isn't collecting. This probably"
                            + " means Shell took too long to respond to a request. WM State may be"
                            + " incorrect now, please file a bug");
                    applyTransaction(wct, -1 /*syncId*/, null /*transition*/, caller);
                    return transition.getToken();
                }
                //动画状态为STATE_STARTED
                transition.start();
                transition.mLogger.mStartWCT = wct;
                applyTransaction(wct, -1 /*syncId*/, transition, caller);
                // Since the transition is already provided, it means WMCore is determining the
                // "readiness lifecycle" outside the provided transaction, so don't set ready here.
                return transition.getToken();
            }
        } finally {
            Binder.restoreCallingIdentity(ident);
        }
    }

我们先顺理一下传递过来的参数值，这有助于我们排查后续的逻辑顺序。
@WindowManager.TransitionType int type：TRANSIT_TO_FRONT(3)
@Nullable IBinder transitionToken：null，空值
@Nullable WindowContainerTransaction t：systemui侧传递过来的WindowContainerTransaction对象，包含bounds、task等相关操作指令。

因此从入参我们可以清楚该方法的逻辑走向

如果mTransitionController.getTransitionPlayer()和transition均为空，则直接调用applyTransaction(t, -1 /* syncId */, null, caller);
如果transition为空，则创建一个Transition对象，然后通过mTransitionController.startCollectOrQueue调用 applyTransaction(wct, -1 /* syncId */, nextTransition, caller, deferred);
如果transition.isCollecting()和transition.isForcePlaying()均为false，则直接调用applyTransaction(t, -1 /* syncId */, null, caller);
如果上述条件均不满足的情况，则直接通过transition.start()修改动画状态为STATE_STARTED，后续调用applyTransaction(wct, -1 /*syncId*/, transition, caller);

注：这里我们不关注Shell动画的逻辑，仅关注applyTransaction方法的调用逻辑。

结合传递过来的参数发现，transitionToken为空，因此Transition transition = Transition.fromBinder(transitionToken);这里transition值也为空，所以我们这里走的是第二步逻辑，也就是applyTransaction(wct, -1 /* syncId */, nextTransition, caller, deferred);。
其中参数：

wct，systemui侧传递过来的WindowContainerTransaction对象
-1，一个syncId
nextTransition，新创建的shell动画

caller，是CallerInfo对象，这个主要就是用来记录Binder调用方的pid和uid

    static class CallerInfo {
        final int mPid;
        final int mUid;

        CallerInfo() {
            mPid = Binder.getCallingPid();
            mUid = Binder.getCallingUid();
        }
    }

我们这里调用方是SystemUI，因此caller记录的就是SystemUI的pid和uid。

deferred，表示这个Transition的启动是否被推迟，我们可以从mTransitionController.startCollectOrQueue方法中知道该值为false

    /** Returns {@code true} if it started collecting, {@code false} if it was queued. */
    boolean startCollectOrQueue(Transition transit, OnStartCollect onStartCollect) {
    	......
    	//首先将当前Transition的状态标记为STATE_COLLECTING，接着通过BLASTSyncEngine.startSyncSet方法，创建一个SyncGroup，用来收集动画的参与者
	    moveToCollecting(transit);
	    //传递deferred值为false
     	onStartCollect.onCollectStarted(false /* deferred */);
     	return true;
    }

这里我们继续跟踪applyTransaction方法。

    private int applyTransaction(@NonNull WindowContainerTransaction t, int syncId,
            @Nullable Transition transition, @NonNull CallerInfo caller, boolean deferred) {
        if (deferred) {
            try {
                return applyTransaction(t, syncId, transition, caller);
            } catch (RuntimeException e) {
                // If the transaction is deferred, the caller could be from TransitionController
                // #tryStartCollectFromQueue that executes on system's worker thread rather than
                // binder thread. And the operation in the WCT may be outdated that violates the
                // current state. So catch the exception to avoid crashing the system.
                Slog.e(TAG, "Failed to execute deferred applyTransaction", e);
            }
            return TRANSACT_EFFECTS_NONE;
        }
        return applyTransaction(t, syncId, transition, caller);
    }

这里根据前面传递的参数deferred，决定了走哪个分支，deferred仅表示这个Transition的启动是否被推迟，对我们这里分析并无影响（涉及shell动画流程），最终都会走到以下方法中：

    private int applyTransaction(@NonNull WindowContainerTransaction t, int syncId,
            @Nullable Transition transition, @NonNull CallerInfo caller) {
        return applyTransaction(t, syncId, transition, caller, null /* finishTransition */);
    }

继上述参数的传递多了一个finishTransition参数，这里的值就是null，继续跟踪这个重载的applyTransaction方法。

处理事务

    /**
     * @param syncId If non-null, this will be a sync-transaction.
     * @param transition A transition to collect changes into.
     * @param caller Info about the calling process.
     * @param finishTransition The transition that is currently being finished.
     * @return The effects of the window container transaction.
     */
    private int applyTransaction(@NonNull WindowContainerTransaction t, int syncId,
            @Nullable Transition transition, @NonNull CallerInfo caller,
            @Nullable Transition finishTransition) {
        int effects = TRANSACT_EFFECTS_NONE;
        ProtoLog.v(WM_DEBUG_WINDOW_ORGANIZER, "Apply window transaction, syncId=%d", syncId);
        mService.deferWindowLayout();
        mService.mTaskSupervisor.setDeferRootVisibilityUpdate(true /* deferUpdate */);
        try {
            //1.动画处理
            if (transition != null) {
                transition.applyDisplayChangeIfNeeded();
            }
            //2.WindowContainerTransaction.Change处理
            final List<WindowContainerTransaction.HierarchyOp> hops = t.getHierarchyOps();
            final int hopSize = hops.size();
            final ArraySet<WindowContainer<?>> haveConfigChanges = new ArraySet<>();
            Iterator<Map.Entry<IBinder, WindowContainerTransaction.Change>> entries =
                    t.getChanges().entrySet().iterator();
            while (entries.hasNext()) {
                final Map.Entry<IBinder, WindowContainerTransaction.Change> entry = entries.next();
                final WindowContainer wc = WindowContainer.fromBinder(entry.getKey());
                if (wc == null || !wc.isAttached()) {
                    Slog.e(TAG, "Attempt to operate on detached container: " + wc);
                    continue;
                }
                // Make sure we add to the syncSet before performing
                // operations so we don't end up splitting effects between the WM
                // pending transaction and the BLASTSync transaction.
                if (syncId >= 0) {
                    addToSyncSet(syncId, wc);
                }
                if (transition != null) transition.collect(wc);

                if ((entry.getValue().getChangeMask()
                        & WindowContainerTransaction.Change.CHANGE_FORCE_NO_PIP) != 0) {
                    // Disable entering pip (eg. when recents pretends to finish itself)
                    if (finishTransition != null) {
                        finishTransition.setCanPipOnFinish(false /* canPipOnFinish */);
                    } else if (transition != null) {
                        transition.setCanPipOnFinish(false /* canPipOnFinish */);
                    }
                }
                // A bit hacky, but we need to detect "remove PiP" so that we can "wrap" the
                // setWindowingMode call in force-hidden.
                boolean forceHiddenForPip = false;
                //判断PIP(画中画)是否在顶端
                if (wc.asTask() != null && wc.inPinnedWindowingMode()
                        && entry.getValue().getWindowingMode() == WINDOWING_MODE_UNDEFINED) {
                    // We are in pip and going to undefined. Now search hierarchy ops to determine
                    // whether we are removing pip or expanding pip.
                    for (int i = 0; i < hopSize; ++i) {
                        final WindowContainerTransaction.HierarchyOp hop = hops.get(i);
                        //找到hop类型问题为HIERARCHY_OP_TYPE_REORDER的操作，不是则跳过
                        if (hop.getType() != HIERARCHY_OP_TYPE_REORDER) continue;
                        final WindowContainer hopWc = WindowContainer.fromBinder(
                                hop.getContainer());
                        if (!wc.equals(hopWc)) continue;
                        //getToTop表示获取reparent操作后是否需要将子WindowContainer移动到父WindowContainer的top。
                        //这里取是reparent操作后不用将子WindowContainer移动到父WindowContainer的top。
                        forceHiddenForPip = !hop.getToTop();
                    }
                }
                //隐藏PIP（画中画）
                if (forceHiddenForPip) {
                    wc.asTask().setForceHidden(FLAG_FORCE_HIDDEN_FOR_PINNED_TASK, true /* set */);
                    // When removing pip, make sure that onStop is sent to the app ahead of
                    // onPictureInPictureModeChanged.
                    // See also PinnedStackTests#testStopBeforeMultiWindowCallbacksOnDismiss
                    wc.asTask().ensureActivitiesVisible(null, 0, PRESERVE_WINDOWS);
                    wc.asTask().mTaskSupervisor.processStoppingAndFinishingActivities(
                            null /* launchedActivity */, false /* processPausingActivities */,
                            "force-stop-on-removing-pip");
                }

                //获取一个的change，取出change中包裹的具体WindowContainer，即上屏和下屏的对应Task，
                //然后调用applyWindowContainerChange进行对应处理
                int containerEffect = applyWindowContainerChange(wc, entry.getValue(),
                        t.getErrorCallbackToken());
                effects |= containerEffect;

                //隐藏画中画
                if (forceHiddenForPip) {
                    wc.asTask().setForceHidden(FLAG_FORCE_HIDDEN_FOR_PINNED_TASK, false /* set */);
                }

                // Lifecycle changes will trigger ensureConfig for everything.
                if ((effects & TRANSACT_EFFECTS_LIFECYCLE) == 0
                        && (containerEffect & TRANSACT_EFFECTS_CLIENT_CONFIG) != 0) {
                    haveConfigChanges.add(wc);
                }
            }
            //3.WindowContainerTransaction.HierarchyOp处理
            // Hierarchy changes
            if (hopSize > 0) {
                final boolean isInLockTaskMode = mService.isInLockTaskMode();
                for (int i = 0; i < hopSize; ++i) {
                    effects |= applyHierarchyOp(hops.get(i), effects, syncId, transition,
                            isInLockTaskMode, caller, t.getErrorCallbackToken(),
                            t.getTaskFragmentOrganizer(), finishTransition);
                }
            }
            // Queue-up bounds-change transactions for tasks which are now organized. Do
            // this after hierarchy ops so we have the final organized state.
            //4.Change.mBoundsChangeSurfaceBounds处理
            entries = t.getChanges().entrySet().iterator();
            while (entries.hasNext()) {
                final Map.Entry<IBinder, WindowContainerTransaction.Change> entry = entries.next();
                final WindowContainer wc = WindowContainer.fromBinder(entry.getKey());
                if (wc == null || !wc.isAttached()) {
                    Slog.e(TAG, "Attempt to operate on detached container: " + wc);
                    continue;
                }
                final Task task = wc.asTask();
                final Rect surfaceBounds = entry.getValue().getBoundsChangeSurfaceBounds();
                if (task == null || !task.isAttached() || surfaceBounds == null) {
                    continue;
                }
                if (!task.isOrganized()) {
                    final Task parent = task.getParent() != null ? task.getParent().asTask() : null;
                    // Also allow direct children of created-by-organizer tasks to be
                    // controlled. In the future, these will become organized anyways.
                    if (parent == null || !parent.mCreatedByOrganizer) {
                        throw new IllegalArgumentException(
                                "Can't manipulate non-organized task surface " + task);
                    }
                }
                final SurfaceControl.Transaction sft = new SurfaceControl.Transaction();
                final SurfaceControl sc = task.getSurfaceControl();
                sft.setPosition(sc, surfaceBounds.left, surfaceBounds.top);
                if (surfaceBounds.isEmpty()) {
                    sft.setWindowCrop(sc, null);
                } else {
                    sft.setWindowCrop(sc, surfaceBounds.width(), surfaceBounds.height());
                }
                task.setMainWindowSizeChangeTransaction(sft);
            }
            //5.更新Activity的可见性和Configuration
            if ((effects & TRANSACT_EFFECTS_LIFECYCLE) != 0) {
                mService.mTaskSupervisor.setDeferRootVisibilityUpdate(false /* deferUpdate */);
                // Already calls ensureActivityConfig
                mService.mRootWindowContainer.ensureActivitiesVisible(null, 0, PRESERVE_WINDOWS);
                mService.mRootWindowContainer.resumeFocusedTasksTopActivities();
            } else if ((effects & TRANSACT_EFFECTS_CLIENT_CONFIG) != 0) {
                for (int i = haveConfigChanges.size() - 1; i >= 0; --i) {
                    haveConfigChanges.valueAt(i).forAllActivities(r -> {
                        r.ensureActivityConfiguration(0, PRESERVE_WINDOWS);
                    });
                }
            }

            if (effects != 0) {
                mService.mWindowManager.mWindowPlacerLocked.requestTraversal();
            }
        } finally {
            mService.mTaskSupervisor.setDeferRootVisibilityUpdate(false /* deferUpdate */);
            mService.continueWindowLayout();
        }
        return effects;
    }

这个方法总体可以分为三个部分：
1.transition动画处理
2.WindowContainerTransaction.Change处理
3.WindowContainerTransaction.HierarchyOp处理
4.Change.mBoundsChangeSurfaceBounds处理
5.更新Activity的可见性和Configuration

transition动画处理

      if (transition != null) {
          transition.applyDisplayChangeIfNeeded();
      }

这里transition由前面传递的值可以知道其不为空，调用了Transition的applyDisplayChangeIfNeeded方法。
代码路径：frameworks/base/services/core/java/com/android/server/wm/Transition.java

    /** Applies the new configuration for the changed displays. */
    void applyDisplayChangeIfNeeded() {
        for (int i = mParticipants.size() - 1; i >= 0; --i) {
            final WindowContainer<?> wc = mParticipants.valueAt(i);
            final DisplayContent dc = wc.asDisplayContent();
            if (dc == null || !mChanges.get(dc).hasChanged()) continue;
            dc.sendNewConfiguration();
            // Set to ready if no other change controls the ready state. But if there is, such as
            // if an activity is pausing, it will call setReady(ar, false) and wait for the next
            // resumed activity. Then do not set to ready because the transition only contains
            // partial participants. Otherwise the transition may only handle HIDE and miss OPEN.
            if (!mReadyTracker.mUsed) {
                setReady(dc, true);
            }
        }
    }

只有setReady为true的时候，sendNewConfiguration才会执行，这个方法后续做一些配置上的处理，最后通过performSurfacePlacement处理窗口布局。

WindowContainerTransaction.Change处理

	final List<WindowContainerTransaction.HierarchyOp> hops = t.getHierarchyOps();
	final int hopSize = hops.size();
	final ArraySet<WindowContainer<?>> haveConfigChanges = new ArraySet<>();
	Iterator<Map.Entry<IBinder, WindowContainerTransaction.Change>> entries =
	        t.getChanges().entrySet().iterator();
	while (entries.hasNext()) {
	    final Map.Entry<IBinder, WindowContainerTransaction.Change> entry = entries.next();
	    final WindowContainer wc = WindowContainer.fromBinder(entry.getKey());
	    if (wc == null || !wc.isAttached()) {
	        Slog.e(TAG, "Attempt to operate on detached container: " + wc);
	        continue;
	    }
	    // Make sure we add to the syncSet before performing
	    // operations so we don't end up splitting effects between the WM
	    // pending transaction and the BLASTSync transaction.
	    if (syncId >= 0) {
	        addToSyncSet(syncId, wc);
	    }
	    if (transition != null) transition.collect(wc);
	    ......

	    //获取一个的change，取出change中包裹的具体WindowContainer，即上屏和下屏的对应Task，
	    //然后调用applyWindowContainerChange进行对应处理
	    int containerEffect = applyWindowContainerChange(wc, entry.getValue(),
	            t.getErrorCallbackToken());
	    effects |= containerEffect;

	    ......

	    // Lifecycle changes will trigger ensureConfig for everything.
	    if ((effects & TRANSACT_EFFECTS_LIFECYCLE) == 0
	            && (containerEffect & TRANSACT_EFFECTS_CLIENT_CONFIG) != 0) {
	        haveConfigChanges.add(wc);
	    }
	}

这里我们省略了画中画相关部分，仅看这段代码的关键部分。
这部分的主要工作是，遍历前面传入的WindowContainerTransaction的mChanges（比如：在分屏时，SystemUI侧调用setBounds调整Task大小）并操作，总体概括为这几件事：

取出在WindowContainerTransaction中的mChanges集合，根据里面的WindowContainerToken转化为WindowContainer。
```
	final Map.Entry<IBinder, WindowContainerTransaction.Change> entry = entries.next();
	final WindowContainer wc = WindowContainer.fromBinder(entry.getKey());
```
这里entry的key和value其实就是，容器的token以及其对应的Change。
在多任务分屏启动流程中，调用updateWindowBounds方法用来更新上下分屏的bounds，其中的容器指的就是SideStage和MainStage这两个分屏task，把他们需要修改的bounds保存在了WindowContainerTransaction中的mChanges集合中，这里就是把它们取出来进行处理。

调用addToSyncSet将当前WindowContainer添加到同步集合中，syncId是前面传递过来的-1，因此这里流程不会走。

    // Make sure we add to the syncSet before performing
    // operations so we don't end up splitting effects between the WM
    // pending transaction and the BLASTSync transaction.
    if (syncId >= 0) {
        addToSyncSet(syncId, wc);
    }

调用applyWindowContainerChange去应用Change里的设置，并将返回结果赋值给effects。

     int containerEffect = applyWindowContainerChange(wc, entry.getValue(),
             t.getErrorCallbackToken());
     effects |= containerEffect;

后面会详细分析applyWindowContainerChange方法。

如果本次修改没有影响到TRANSACT_EFFECTS_LIFECYCLE，但是对TRANSACT_EFFECTS_CLIENT_CONFIG产生了影响，那么将当前WindowContainer添加到haveConfigChanges队列中，该队列保存了所有Configuration发生改变的WindowContainer。
```
      // Lifecycle changes will trigger ensureConfig for everything.
      if ((effects & TRANSACT_EFFECTS_LIFECYCLE) == 0
              && (containerEffect & TRANSACT_EFFECTS_CLIENT_CONFIG) != 0) {
          haveConfigChanges.add(wc);
      }
```
effects的值依赖前面applyWindowContainerChange方法的返回结果，haveConfigChanges为后续确认Configuration的正确性做准备。

WindowContainerTransaction.HierarchyOp处理

	// Hierarchy changes
	if (hopSize > 0) {
	   final boolean isInLockTaskMode = mService.isInLockTaskMode();
	   for (int i = 0; i < hopSize; ++i) {
	       effects |= applyHierarchyOp(hops.get(i), effects, syncId, transition,
	               isInLockTaskMode, caller, t.getErrorCallbackToken(),
	               t.getTaskFragmentOrganizer(), finishTransition);
	   }
	}

处理Task的一些相关操作，比如：在分屏时，SystemUI侧调用的startTask、reroderTask和reparent等。
后面会详细分析applyHierarchyOp方法。

Change.mBoundsChangeSurfaceBounds处理

	 // Queue-up bounds-change transactions for tasks which are now organized. Do
	 // this after hierarchy ops so we have the final organized state.
	 entries = t.getChanges().entrySet().iterator();
	 while (entries.hasNext()) {
	     final Map.Entry<IBinder, WindowContainerTransaction.Change> entry = entries.next();
	     final WindowContainer wc = WindowContainer.fromBinder(entry.getKey());
	     if (wc == null || !wc.isAttached()) {
	         Slog.e(TAG, "Attempt to operate on detached container: " + wc);
	         continue;
	     }
	     final Task task = wc.asTask();
	     //获取mBoundsChangeSurfaceBounds
	     final Rect surfaceBounds = entry.getValue().getBoundsChangeSurfaceBounds();
	     if (task == null || !task.isAttached() || surfaceBounds == null) {
	         continue;
	     }
	     if (!task.isOrganized()) {
	         final Task parent = task.getParent() != null ? task.getParent().asTask() : null;
	         // Also allow direct children of created-by-organizer tasks to be
	         // controlled. In the future, these will become organized anyways.
	         if (parent == null || !parent.mCreatedByOrganizer) {
	             throw new IllegalArgumentException(
	                     "Can't manipulate non-organized task surface " + task);
	         }
	     }
	     //对task的Surface进行处理
	     final SurfaceControl.Transaction sft = new SurfaceControl.Transaction();
	     final SurfaceControl sc = task.getSurfaceControl();
	     sft.setPosition(sc, surfaceBounds.left, surfaceBounds.top);
	     if (surfaceBounds.isEmpty()) {
	         sft.setWindowCrop(sc, null);
	     } else {
	         sft.setWindowCrop(sc, surfaceBounds.width(), surfaceBounds.height());
	     }
	     task.setMainWindowSizeChangeTransaction(sft);
	 }

这个方法同样是遍历Change，这里主要就是对Change中保存的mBoundsChangeSurfaceBounds进行处理。针对Surface的操作，这里不做重点。

更新Activity的可见性和Configuration

      //是否有生命周期相关的更新
      if ((effects & TRANSACT_EFFECTS_LIFECYCLE) != 0) {
          //是否延迟更新容器可见性，这里传递的是false
          mService.mTaskSupervisor.setDeferRootVisibilityUpdate(false /* deferUpdate */);
          // Already calls ensureActivityConfig
          //重新更新系统中的所有Activity的可见性和Configuration
          mService.mRootWindowContainer.ensureActivitiesVisible(null, 0, PRESERVE_WINDOWS);
          //寻找新的top Task和resume Activty
          mService.mRootWindowContainer.resumeFocusedTasksTopActivities();
      // 在没有生命周期相关方面的更新的情况，
      // 判断是否只有Configuration相关的更新
      } else if ((effects & TRANSACT_EFFECTS_CLIENT_CONFIG) != 0) {
          for (int i = haveConfigChanges.size() - 1; i >= 0; --i) {
           //针对这些发生了Configuration更新的WindowContainer，
           //遍历其下的所有子ActivityRecord，调用ActivityRecord.ensureActivityConfiguration进行Configuration相关的更新
              haveConfigChanges.valueAt(i).forAllActivities(r -> {
                  r.ensureActivityConfiguration(0, PRESERVE_WINDOWS);
              });
          }
      }

      //判断effects是否为0
      if (effects != 0) {
          //更新窗口布局
          mService.mWindowManager.mWindowPlacerLocked.requestTraversal();
      }

简单来说，这个方法根据不同条件更新Activity的可见性和Configuration。
haveConfigChanges就是前面处理Change的流程中通过haveConfigChanges.add(wc);添加了相关容器，这里调用ensureActivityConfiguration用来确定该容器Configuration的正确性。

WindowContainerTransaction事务处理

WindowContainerTransaction的发送都是通过WindowOrganizer的相关方法，最终跨进程将WindowContainerTransaction发送给了服务端的WindowOrganizerController。

WindowContainerToken介绍

WindowContainerTransaction中许多操作，是需要传递WindowContainerToken的。
如果想通过WindowContainerTransaction的方法修改某个WindowContainer的属性，必须传入该WindowContainer对应的token（拥有户口信息的居民才是合法居民）。
因此在了解WindowContainerTransaction之前我们先简单了解下WindowContainerToken。

WindowContainerToken

代码路径：frameworks/base/core/java/android/window/WindowContainerToken.java

/**
 * Interface for a window container to communicate with the window manager. This also acts as a
 * token.
 * @hide
 */
@TestApi
public final class WindowContainerToken implements Parcelable {

    private final IWindowContainerToken mRealToken;

    /** @hide */
    public WindowContainerToken(IWindowContainerToken realToken) {
        mRealToken = realToken;
    }

    private WindowContainerToken(Parcel in) {
        mRealToken = IWindowContainerToken.Stub.asInterface(in.readStrongBinder());
    }

    /** @hide */
    public IBinder asBinder() {
        return mRealToken.asBinder();
    }

    @Override
    public void writeToParcel(@NonNull Parcel dest, int flags) {
        dest.writeStrongBinder(mRealToken.asBinder());
    }

    @NonNull
    public static final Creator<WindowContainerToken> CREATOR =
            new Creator<WindowContainerToken>() {
                @Override
                public WindowContainerToken createFromParcel(Parcel in) {
                    return new WindowContainerToken(in);
                }

                @Override
                public WindowContainerToken[] newArray(int size) {
                    return new WindowContainerToken[size];
                }
            };
   ......
   }

WindowContainterToken实现了Parcelable，因此可以跨进程传递。
简单来说，WindowContainerToken可以看做是IBinder类型的token的封装，这个token通过asBinder方法返回。
这里的成员变量mRealToken是IWindowContainerToken对象，其作用也就是作为一个Token。

代码路径：frameworks/base/core/java/android/window/IWindowContainerToken.aidl

/**
 * Interface for a window container to communicate with the window manager. This also acts as a
 * token.
 * @hide
 */
interface IWindowContainerToken {
}

从代码中可以看到，其实就是空的aidl接口，如前面所说的只作为Token。

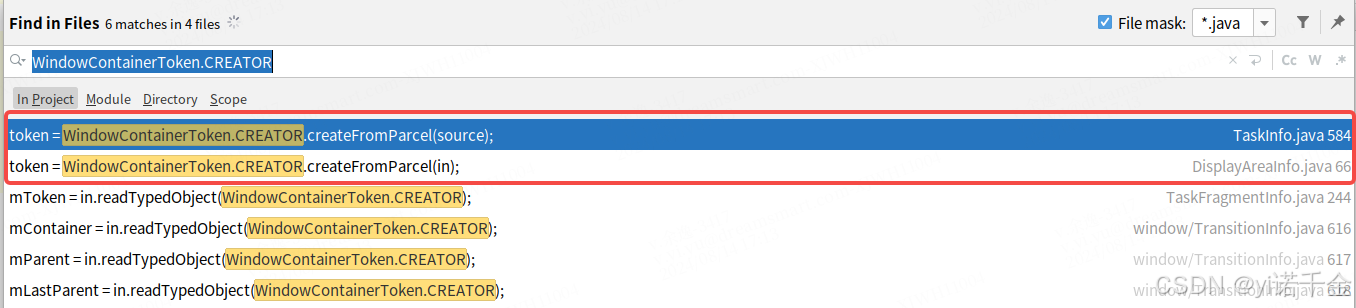

再看看在哪里会创建这个WindowContainterToken

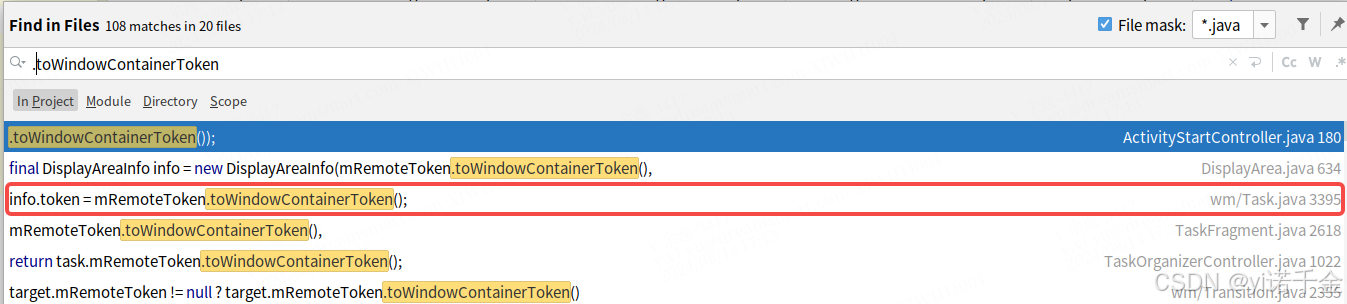

在这里插入图片描述我们可以发现当前是在TaskInfo和DisplayAreaInfo有使用到，至少能说明Task容器和DisplayArea容器都拥有WindowContainterToken。

下面再来看看IWindowContainerToken的实现。

RemoteToken

代码路径：frameworks/base/services/core/java/com/android/server/wm/WindowContainer.java

    static class RemoteToken extends IWindowContainerToken.Stub {

        final WeakReference<WindowContainer> mWeakRef;
        private WindowContainerToken mWindowContainerToken;

        RemoteToken(WindowContainer container) {
            mWeakRef = new WeakReference<>(container);
        }

        @Nullable
        WindowContainer getContainer() {
            return mWeakRef.get();
        }

        static RemoteToken fromBinder(IBinder binder) {
            return (RemoteToken) binder;
        }

        WindowContainerToken toWindowContainerToken() {
            if (mWindowContainerToken == null) {
                mWindowContainerToken = new WindowContainerToken(this);
            }
            return mWindowContainerToken;
        }
        ......
    }

RemoteToken是IWindowContainerToken的实现，这里我们可以看到通过弱引用的方式，关联了WindowContainerToken。即通过RemoteToken关联WindowContainer和WindowContainerToken。
也就是说，mRealToken其实就是一个RemoteToken类型的对象，它才是能够通过弱引用真正的指向WindowContainer，同时还包含WindowContainerToken属性。
再来查找下在哪里使用到了RemoteToken：

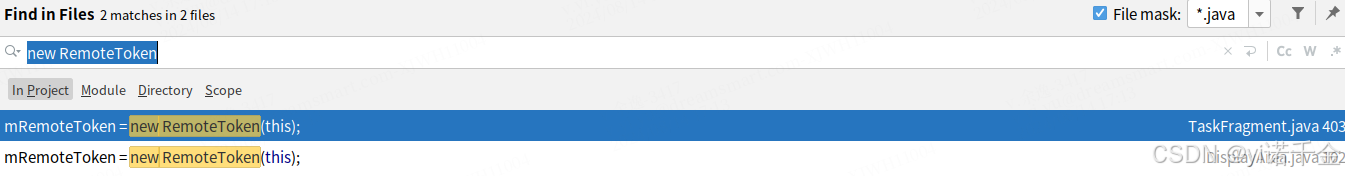

在这里插入图片描述
从代码中查找可以发现，Task、TaskFragmet和DisplayArea均拥有RemoteToken。

即Task、TaskFragmet和DisplayArea这个几个容器，可以使用WindowContainerTransaction的方式进行Change的相关操作。

WindowContainerTransaction介绍

代码路径：frameworks/base/core/java/android/window/WindowContainerTransaction.java

/**
 * Represents a collection of operations on some WindowContainers that should be applied all at
 * once.
 *
 * @hide
 */
@TestApi
public final class WindowContainerTransaction implements Parcelable {

    //Change集合，用来保存容器中一些属性的修改
    private final ArrayMap<IBinder, Change> mChanges = new ArrayMap<>();

    // Flat list because re-order operations are order-dependent
    //HierarchyOp集合，用来保存容器层级的操作
    private final ArrayList<HierarchyOp> mHierarchyOps = new ArrayList<>();

WindowContainerTransaction是应用在WindowContainer上的操作集合，其实现了Parcelable为其在系统服务端和App端之间的传输提供了支持。
其最重要的就是Change和HierarchyOp，这里我们可以看到mChanges集合中IBinder和Change是一一对应的。

Change

用来保存容器中一些属性的修改，之后通过mChanges取出。

Change的获取

    private Change getOrCreateChange(IBinder token) {
        Change out = mChanges.get(token);
        if (out == null) {
            out = new Change();
            mChanges.put(token, out);
        }
        return out;
    }

通过Ibinder对象的传递来获取对应的Change，调用该方法时，这里Ibinder对象token传递的其实就是WindowContainerToken对象的asBinder()。
也就是说，这个方法就是通过传递过来的不同的容器所对应的WindowContainerToken，然后找到其对应着的Change；如果这个Change为空则创建一个Change，并将其放到mChanges集合中，使WindowContainerToken和Change一一对应。

Change的定义

    /**
     * Holds changes on a single WindowContainer including Configuration changes.
     * @hide
     */
    public static class Change implements Parcelable {
        ......

        private final Configuration mConfiguration = new Configuration();
        private boolean mFocusable = true;
        private boolean mHidden = false;
        private boolean mIgnoreOrientationRequest = false;
        private boolean mForceTranslucent = false;
        private boolean mDragResizing = false;

        private int mChangeMask = 0;
        private @ActivityInfo.Config int mConfigSetMask = 0;
        private @WindowConfiguration.WindowConfig int mWindowSetMask = 0;

        private Rect mPinnedBounds = null;
        private SurfaceControl.Transaction mBoundsChangeTransaction = null;
        private Rect mBoundsChangeSurfaceBounds = null;
        @Nullable
        private Rect mRelativeBounds = null;

        private int mActivityWindowingMode = -1;
        private int mWindowingMode = -1;

这里面的一些成员变量都是可以修改属性，其中最为常用的就是Configuration。
WindowContainerTransaction并不支持对Configuration中所有的属性进行修改，主要是screenSize、windowingMode和bounds等。
mChangeMask、mConfigSetMask和mWindowSetMask均为标记，后续有不同类型的修改都会通过该变量进行标记。

常用方法

这些常用方法都会通过mChangeMask、mConfigSetMask和mWindowSetMask这个几个变量在不同的情况设置标记，后续通过这些标记，就可以判断调用过哪些Chane修改。

设置容器Configuration相关属性

    //修改容器bounds
    public WindowContainerTransaction setBounds(
            @NonNull WindowContainerToken container,@NonNull Rect bounds) {
        Change chg = getOrCreateChange(container.asBinder());
        chg.mConfiguration.windowConfiguration.setBounds(bounds);
        chg.mConfigSetMask |= ActivityInfo.CONFIG_WINDOW_CONFIGURATION;
        chg.mWindowSetMask |= WindowConfiguration.WINDOW_CONFIG_BOUNDS;
        return this;
    }

    //修改应用bounds
    /**
     * Resize a container's app bounds. This is the bounds used to report appWidth/Height to an
     * app's DisplayInfo. It is derived by subtracting the overlapping portion of the navbar from
     * the full bounds.
     */
    @NonNull
    public WindowContainerTransaction setAppBounds(
            @NonNull WindowContainerToken container,@NonNull Rect appBounds) {
        Change chg = getOrCreateChange(container.asBinder());
        chg.mConfiguration.windowConfiguration.setAppBounds(appBounds);
        chg.mConfigSetMask |= ActivityInfo.CONFIG_WINDOW_CONFIGURATION;
        chg.mWindowSetMask |= WindowConfiguration.WINDOW_CONFIG_APP_BOUNDS;
        return this;
    }

    //修改容器屏幕尺寸
    /**
     * Resize a container's configuration size. The configuration size is what gets reported to the
     * app via screenWidth/HeightDp and influences which resources get loaded. This size is
     * derived by subtracting the overlapping portions of both the statusbar and the navbar from
     * the full bounds.
     */
    @NonNull
    public WindowContainerTransaction setScreenSizeDp(
            @NonNull WindowContainerToken container, int w, int h) {
        Change chg = getOrCreateChange(container.asBinder());
        chg.mConfiguration.screenWidthDp = w;
        chg.mConfiguration.screenHeightDp = h;
        chg.mConfigSetMask |= ActivityInfo.CONFIG_SCREEN_SIZE;
        return this;
    }

    //修改容器densityDpi
    /**
     * Sets the densityDpi value in the configuration for the given container.
     * @hide
     */
    @NonNull
    public WindowContainerTransaction setDensityDpi(@NonNull WindowContainerToken container,
            int densityDpi) {
        Change chg = getOrCreateChange(container.asBinder());
        chg.mConfiguration.densityDpi = densityDpi;
        chg.mConfigSetMask |= ActivityInfo.CONFIG_DENSITY;
        return this;
    }

这些方法都是通过传递的WindowContainerToken，获取对应的Change，然后再通过Configuration对象修改对应的属性值，保存在Change中，并且在mConfigSetMask和mWindowSetMask中保存了修改标记。

设置容器窗口模式

    /**
     * Sets the windowing mode of the given container.
     */
    @NonNull
    public WindowContainerTransaction setWindowingMode(
            @NonNull WindowContainerToken container, int windowingMode) {
        Change chg = getOrCreateChange(container.asBinder());
        chg.mWindowingMode = windowingMode;
        return this;
    }

获取WindowContainerToken对应的Change，将Change的成员变量mWindowingMode赋值为传入的windowingMode。

设置容器焦点

    /**
     * Sets whether a container or any of its children can be focusable. When {@code false}, no
     * child can be focused; however, when {@code true}, it is still possible for children to be
     * non-focusable due to WM policy.
     */
    @NonNull
    public WindowContainerTransaction setFocusable(
            @NonNull WindowContainerToken container, boolean focusable) {
        Change chg = getOrCreateChange(container.asBinder());
        chg.mFocusable = focusable;
        chg.mChangeMask |= Change.CHANGE_FOCUSABLE;
        return this;
    }

获取WindowContainerToken对应的Change，将Change的成员变量mFocusable赋值为传入的focusable。

HierarchyOp

用来保存容器层级的操作，之后通过mHierarchyOps取出。

HierarchyOp的定义

代码路径：frameworks/base/core/java/android/window/WindowContainerTransaction.java

    /**
     * Holds information about a reparent/reorder operation in the hierarchy. This is separate from
     * Changes because they must be executed in the same order that they are added.
     * @hide
     */
    public static final class HierarchyOp implements Parcelable {
        //这些TYPE对应着调用的方法
        public static final int HIERARCHY_OP_TYPE_REPARENT = 0;
        public static final int HIERARCHY_OP_TYPE_REORDER = 1;
        public static final int HIERARCHY_OP_TYPE_CHILDREN_TASKS_REPARENT = 2;
        public static final int HIERARCHY_OP_TYPE_SET_LAUNCH_ROOT = 3;
        public static final int HIERARCHY_OP_TYPE_SET_ADJACENT_ROOTS = 4;
        public static final int HIERARCHY_OP_TYPE_LAUNCH_TASK = 5;
        public static final int HIERARCHY_OP_TYPE_SET_LAUNCH_ADJACENT_FLAG_ROOT = 6;
        public static final int HIERARCHY_OP_TYPE_PENDING_INTENT = 7;
        public static final int HIERARCHY_OP_TYPE_START_SHORTCUT = 8;
        public static final int HIERARCHY_OP_TYPE_RESTORE_TRANSIENT_ORDER = 9;
        public static final int HIERARCHY_OP_TYPE_ADD_INSETS_FRAME_PROVIDER = 10;
        public static final int HIERARCHY_OP_TYPE_REMOVE_INSETS_FRAME_PROVIDER = 11;
        public static final int HIERARCHY_OP_TYPE_SET_ALWAYS_ON_TOP = 12;
        public static final int HIERARCHY_OP_TYPE_REMOVE_TASK = 13;
        public static final int HIERARCHY_OP_TYPE_FINISH_ACTIVITY = 14;
        public static final int HIERARCHY_OP_TYPE_CLEAR_ADJACENT_ROOTS = 15;
        public static final int HIERARCHY_OP_TYPE_SET_REPARENT_LEAF_TASK_IF_RELAUNCH = 16;
        public static final int HIERARCHY_OP_TYPE_ADD_TASK_FRAGMENT_OPERATION = 17;

        // The following key(s) are for use with mLaunchOptions:
        // When launching a task (eg. from recents), this is the taskId to be launched.
        public static final String LAUNCH_KEY_TASK_ID = "android:transaction.hop.taskId";

        // When starting from a shortcut, this contains the calling package.
        public static final String LAUNCH_KEY_SHORTCUT_CALLING_PACKAGE =
                "android:transaction.hop.shortcut_calling_package";

        private final int mType;

        // Container we are performing the operation on.
        @Nullable
        private IBinder mContainer;

        // If this is same as mContainer, then only change position, don't reparent.
        @Nullable
        private IBinder mReparent;

        // Moves/reparents to top of parent when {@code true}, otherwise moves/reparents to bottom.
        private boolean mToTop;

        @Nullable
        private Bundle mLaunchOptions;

        ......

        public static final Creator<HierarchyOp> CREATOR = new Creator<HierarchyOp>() {
            @Override
            public HierarchyOp createFromParcel(Parcel in) {
                return new HierarchyOp(in);
            }

            @Override
            public HierarchyOp[] newArray(int size) {
                return new HierarchyOp[size];
            }
        };

        private static class Builder {

            private final int mType;

            @Nullable
            private IBinder mContainer;

            @Nullable
            private IBinder mReparent;

            private boolean mToTop;

            @Nullable
            private Bundle mLaunchOptions;

           ....

            //builder时传递TYPE值，为后续服务端根据不同的TYPE操作做准备
            Builder(int type) {
                mType = type;
            }

            ......

            //把HierarchyOp.Builder中成员变量的值，赋值给HierarchyOp中对应的成员变量
            HierarchyOp build() {
                final HierarchyOp hierarchyOp = new HierarchyOp(mType);
                hierarchyOp.mContainer = mContainer;
                hierarchyOp.mReparent = mReparent;
                ......
            }

        }

在HierarchyOp中定义了很多常量，如：HIERARCHY_OP_TYPE_REPARENT，这些常量对应构建时传递的类型。
通过HierarchyOp.Builder中构建层级结构，最后在通过其build方法把HierarchyOp.Builder中成员变量的值，赋值给HierarchyOp中对应的成员变量。
HierarchyOp和其内部类HierarchyOp.Builder参数含义相同，关键参数说明：
mType：表示操作类型，其值为通过Builder(int type)中的type传递过来的HierarchyOp中的常量。
mContainer：表示当前容器的WindowContainerToken。
mReparent：表示父容器的WindowContainerToken。
mToTop：表示reparent/reorder操作后是否需要将子容器移动到父容器之上。true：表示移动到父容器上方，false表示移动到父容器下方。
mLaunchOptions：启动操作项，如分屏时会调用addActivityOptions设置操作项。

启动task

代码路径：frameworks/base/core/java/android/window/WindowContainerTransaction.java

    /**
     * Starts a task by id. The task is expected to already exist (eg. as a recent task).
     * @param taskId Id of task to start.
     * @param options bundle containing ActivityOptions for the task's top activity.
     * @hide
     */
    @NonNull
    public WindowContainerTransaction startTask(int taskId, @Nullable Bundle options) {
        mHierarchyOps.add(HierarchyOp.createForTaskLaunch(taskId, options));
        return this;
    }

startTask的作用就是通过taskId来启动一个task，这个task是已经启动过的，比如最近任务中的task。
这个里面传递的options，存放了一些启动操作项。例如，分屏操作中调用的addActivityOptions(options1, mSideStage);,就是在options1中存放了关联SideStage的WindowContainerToken与ActivityOptions的KEY_LAUNCH_ROOT_TASK_TOKEN的映射关系。
调用HierarchyOp.createForTaskLaunch构建对应的层级结构HierarchyOp，并将该其添加到mHierarchyOps集合中。

    /**
     * Holds information about a reparent/reorder operation in the hierarchy. This is separate from
     * Changes because they must be executed in the same order that they are added.
     * @hide
     */
    public static final class HierarchyOp implements Parcelable {
       ......
  	   /** Create a hierarchy op for launching a task. */
       public static HierarchyOp createForTaskLaunch(int taskId, @Nullable Bundle options) {
           final Bundle fullOptions = options == null ? new Bundle() : options;
           //绑定LAUNCH_KEY_TASK_ID和taskId
           fullOptions.putInt(LAUNCH_KEY_TASK_ID, taskId);
           return new HierarchyOp.Builder(HIERARCHY_OP_TYPE_LAUNCH_TASK)
                   .setToTop(true)
                   .setLaunchOptions(fullOptions)
                   .build();
       }

fullOptions.putInt(LAUNCH_KEY_TASK_ID, taskId);绑定了LAUNCH_KEY_TASK_ID和taskId，后面直接通过LAUNCH_KEY_TASK_ID取出。

这里HierarchyOp.Builder(HIERARCHY_OP_TYPE_LAUNCH_TASK)中的参数为HIERARCHY_OP_TYPE_LAUNCH_TASK，即HierarchyOp的mType的值为HIERARCHY_OP_TYPE_LAUNCH_TASK
setToTop(true)，设置HierarchyOp中mToTop为true；
setLaunchOptions(fullOptions)，设置HierarchyOp中mLaunchOptions为fullOptions；
最后通过HierarchyOp.Builder的build()方法构建层级结构HierarchyOp。
待事务提交后，在WindowOrganizerController侧会取出mHierarchyOps中，用来处理需要启动的task和需要设置的options。

移除task

代码路径：frameworks/base/core/java/android/window/WindowContainerTransaction.java

    /**
     * Finds and removes a task and its children using its container token. The task is removed
     * from recents.
     * @param containerToken ContainerToken of Task to be removed
     */
    @NonNull
    public WindowContainerTransaction removeTask(@NonNull WindowContainerToken containerToken) {
        mHierarchyOps.add(HierarchyOp.createForRemoveTask(containerToken.asBinder()));
        return this;
    }

removeTask作用就是根据的task的WindowContainerToken移除task。
参数传入需要移除的task的WindowContainerToken进行移除，同样调用HierarchyOp.createForRemoveTask，并将该层级结构HierarchyOp添加到mHierarchyOps中。

    /**
     * Holds information about a reparent/reorder operation in the hierarchy. This is separate from
     * Changes because they must be executed in the same order that they are added.
     * @hide
     */
    public static final class HierarchyOp implements Parcelable {
        ......
       /** create a hierarchy op for deleting a task **/
       public static HierarchyOp createForRemoveTask(@NonNull IBinder container) {
           return new HierarchyOp.Builder(HIERARCHY_OP_TYPE_REMOVE_TASK)
                   .setContainer(container)
                   .build();
       }

这里HierarchyOp.Builder(HIERARCHY_OP_TYPE_REMOVE_TASK)中的参数为HIERARCHY_OP_TYPE_REMOVE_TASK，即mType的值为HIERARCHY_OP_TYPE_REMOVE_TASK。
setContainer(container)，需要移除的task的WindowContainerToken赋值给mContainer。

Task重排序

    /**
     * Reorders a container within its parent.
     *
     * @param onTop When {@code true}, the child goes to the top of parent; otherwise it goes to
     *              the bottom.
     */
    @NonNull
    public WindowContainerTransaction reorder(@NonNull WindowContainerToken child, boolean onTop) {
        mHierarchyOps.add(HierarchyOp.createForReorder(child.asBinder(), onTop));
        return this;
    }

reorder操作是对当前容器以及其父容器的顺序进行调整，这里传入的就是当前需要调整顺序的容器。
调用HierarchyOp.createForReorder，并将该层级结构HierarchyOp添加到mHierarchyOps中。

    /**
     * Holds information about a reparent/reorder operation in the hierarchy. This is separate from
     * Changes because they must be executed in the same order that they are added.
     * @hide
     */
    public static final class HierarchyOp implements Parcelable {
        ......
        public static HierarchyOp createForReorder(@NonNull IBinder container, boolean toTop) {
	        return new HierarchyOp.Builder(HIERARCHY_OP_TYPE_REORDER)
	                .setContainer(container)
	                .setReparentContainer(container)
	                .setToTop(toTop)
	                .build();
    	}

设置了HierarchyOp的mType的值为HIERARCHY_OP_TYPE_REORDER
这里我们可以看到setContainer(container)和setReparentContainer(container)，表示把HierarchyOp中mContainer和mReparent均设置为container，即相同的WindowContainerToken对象。
reorder操作作用是根据mToTop的值调整container在当前父容器中的位置，true：表示移动到父容器上方，false表示移动到父容器下方。其实现原理可通过后续WindowOrganizerController侧流程了解到。

Task重定层级

代码路径：frameworks/base/core/java/android/window/WindowContainerTransaction.java

    /**
     * Reparents a container into another one. The effect of a {@code null} parent can vary. For
     * example, reparenting a stack to {@code null} will reparent it to its display.
     *
     * @param onTop When {@code true}, the child goes to the top of parent; otherwise it goes to
     *              the bottom.
     */
    @NonNull
    public WindowContainerTransaction reparent(@NonNull WindowContainerToken child,
            @Nullable WindowContainerToken parent, boolean onTop) {
        mHierarchyOps.add(HierarchyOp.createForReparent(child.asBinder(),
                parent == null ? null : parent.asBinder(),
                onTop));
        return this;
    }

reparent操作就是用来调整容器父子层级关系，这里传入当前容器的WindowContainerToken，以及新父容器的WindowContainerToken。
调用HierarchyOp.createForReparent，并将该层级结构HierarchyOp添加到mHierarchyOps中。

    /**
     * Holds information about a reparent/reorder operation in the hierarchy. This is separate from
     * Changes because they must be executed in the same order that they are added.
     * @hide
     */
    public static final class HierarchyOp implements Parcelable {
        ......
        public static HierarchyOp createForReparent(
                @NonNull IBinder container, @Nullable IBinder reparent, boolean toTop) {
            return new HierarchyOp.Builder(HIERARCHY_OP_TYPE_REPARENT)
                    .setContainer(container)
                    .setReparentContainer(reparent)
                    .setToTop(toTop)
                    .build();
        }

和reorder同理，设置了HierarchyOp中对应的参数，不同点在于根据传递过来的reparent的值，会有几种不同的情况：

reparent不为空，且不等于container，将子容器移入父容器中。
reparent不为空，且等于container，那么此次操作不是reparent，而是等效于reorder，根据mToTop的值调整container在当前父容器中的位置。
reparent为空，那么将container移入当前Display中。

其实现原理可通过后续WindowOrganizerController侧流程了解到。

WindowOrganizerController侧Change处理

回到WindowOrganizerController.applyTransaction中

int containerEffect = applyWindowContainerChange(wc, entry.getValue(),
        t.getErrorCallbackToken());

entry的key和value其实就是，容器的token以及其对应的Change。
这里传递的entry.getValue()就是容器对应的Change，继续看applyWindowContainerChange方法。

    private int applyWindowContainerChange(WindowContainer wc,
            WindowContainerTransaction.Change c, @Nullable IBinder errorCallbackToken) {
        //判断容器类型
        sanitizeWindowContainer(wc);
        //根据不同的容器类型进行不同的操作
        if (wc.asDisplayArea() != null) {
        //当前容器为DisplayArea
            return applyDisplayAreaChanges(wc.asDisplayArea(), c);
        } else if (wc.asTask() != null) {
        //当前容器为Task
            return applyTaskChanges(wc.asTask(), c);
        } else if (wc.asTaskFragment() != null && wc.asTaskFragment().isEmbedded()) {
        //当前容器为TaskFragment并且是嵌入式的（嵌入到某个Task中）。
            return applyTaskFragmentChanges(wc.asTaskFragment(), c, errorCallbackToken);
        } else {
        //其他情况，直接提交Changes
            return applyChanges(wc, c);
        }
    }

    //判断容器类型是否是TaskFragment或者DisplayArea，否则抛出异常
    //注：Task类和TaskFragment都算做Task
    private void sanitizeWindowContainer(WindowContainer wc) {
        if (!(wc instanceof TaskFragment) && !(wc instanceof DisplayArea)) {
            throw new RuntimeException("Invalid token in task fragment or displayArea transaction");
        }
    }

这个方法进一步说明了当前WindowContainerTransaction只支持对Task和DisplayArea进行修改，如果对ActivityRecord，WindowState之类的修改则会报错。

applyDisplayAreaChanges

    private int applyDisplayAreaChanges(DisplayArea displayArea,
            WindowContainerTransaction.Change c) {
        final int[] effects = new int[1];
        //提交Configuration相关Changes
        effects[0] = applyChanges(displayArea, c);

        //c.getChangeMask()获取mChangeMask的值
        //CHANGE_IGNORE_ORIENTATION_REQUEST，判断Change中是否有调用过setIgnoreOrientationRequest（）
        if ((c.getChangeMask()
                & WindowContainerTransaction.Change.CHANGE_IGNORE_ORIENTATION_REQUEST) != 0) {
            //调用displayArea的setIgnoreOrientationRequest方法
            //设置忽略来自app的固定方向请求
            if (displayArea.setIgnoreOrientationRequest(c.getIgnoreOrientationRequest())) {
                effects[0] |= TRANSACT_EFFECTS_LIFECYCLE;
            }
        }

        //遍历当前displayArea下的所有task
        displayArea.forAllTasks(task -> {
            Task tr = (Task) task;
            //c.getChangeMask()获取mChangeMask的值
            //这里通过CHANGE_HIDDEN标记判断当前Change中是否有调用过setHidden（隐藏当前容器的方法）
            if ((c.getChangeMask() & WindowContainerTransaction.Change.CHANGE_HIDDEN) != 0) {
                //通过task调用setForceHidden方法强制隐藏task
                if (tr.setForceHidden(FLAG_FORCE_HIDDEN_FOR_TASK_ORG, c.getHidden())) {
                    effects[0] |= TRANSACT_EFFECTS_LIFECYCLE;
                }
            }
        });

        return effects[0];
    }

这个方法主要做了三件事：

通过applyChanges方法提交Configuration相关Changes。
通过CHANGE_IGNORE_ORIENTATION_REQUEST判断在WindowContainerTransaction侧displayArea是否调用过setIgnoreOrientationRequest方法，如果有则通过displayArea调用setIgnoreOrientationRequest方法设置忽略来自app的固定方向请求。
遍历displayArea所有task，通过CHANGE_HIDDEN判断这些task在WindowContainerTransaction侧是否调用过setHidden方法，如果有则通过task调用setForceHidden方法强制隐藏task。

最后返回对应的effects值。

applyTaskFragmentChanges

    private int applyTaskFragmentChanges(@NonNull TaskFragment taskFragment,
            @NonNull WindowContainerTransaction.Change c, @Nullable IBinder errorCallbackToken) {
        //判断PIP中嵌入式TaskFragment是否是画中画模式
        if (taskFragment.isEmbeddedTaskFragmentInPip()) {
            // No override from organizer for embedded TaskFragment in a PIP Task.
            //返回TRANSACT_EFFECTS_NONE不做修改
            return TRANSACT_EFFECTS_NONE;
        }

        // When the TaskFragment is resized, we may want to create a change transition for it, for
        // which we want to defer the surface update until we determine whether or not to start
        // change transition.
        //获取当前taskFragment的bounds，设置到临时变量中
        mTmpBounds0.set(taskFragment.getBounds());
        //获取嵌入式taskFragment相对于父Task的bounds，设置到临时变量中
        mTmpBounds1.set(taskFragment.getRelativeEmbeddedBounds());
        //延迟更新Surface
        taskFragment.deferOrganizedTaskFragmentSurfaceUpdate();
        //获取存储在WindowContainerTransaction.Change中的bounds
        final Rect relBounds = c.getRelativeBounds();
        if (relBounds != null) {
            // Make sure the requested bounds satisfied the min dimensions requirement.
            adjustTaskFragmentRelativeBoundsForMinDimensionsIfNeeded(taskFragment, relBounds,
                    errorCallbackToken);

            // For embedded TaskFragment, the organizer set the bounds in parent coordinate to
            // prevent flicker in case there is a racing condition between the parent bounds changed
            // and the organizer request.
            //获取taskFragment父容器的bounds
            final Rect parentBounds = taskFragment.getParent().getBounds();
            // Convert relative bounds to screen space.
            //从相对的bounds转换为绝对bounds
            final Rect absBounds = taskFragment.translateRelativeBoundsToAbsoluteBounds(relBounds,
                    parentBounds);
            //设置绝对bounds
            c.getConfiguration().windowConfiguration.setBounds(absBounds);
            //给嵌入式taskFragment设置相对bounds
            taskFragment.setRelativeEmbeddedBounds(relBounds);
        }
        //提交Configuration相关Changes
        final int effects = applyChanges(taskFragment, c);
        if (taskFragment.shouldStartChangeTransition(mTmpBounds0, mTmpBounds1)) {
            taskFragment.initializeChangeTransition(mTmpBounds0);
        }
        //更新Surface
        taskFragment.continueOrganizedTaskFragmentSurfaceUpdate();
        return effects;
    }

EmbeddedTaskFragment：嵌入式taskFragment，指的是taskFragment是否嵌入在一个Task之中。

这个方法主要做了三件事：

判断画中画模式并处理
设置taskFragment相关bounds
通过applyChanges方法提交Configuration相关Changes，并更新surface

最后返回对应的effects值。

applyTaskChanges

    private int applyTaskChanges(Task tr, WindowContainerTransaction.Change c) {
        //提交Configuration相关Changes
        int effects = applyChanges(tr, c);
        final SurfaceControl.Transaction t = c.getBoundsChangeTransaction();

        //c.getChangeMask()获取mChangeMask的值
        //这里通过CHANGE_HIDDEN标记判断当前Change中是否有调用过setHidden（隐藏当前容器的方法）
        if ((c.getChangeMask() & WindowContainerTransaction.Change.CHANGE_HIDDEN) != 0) {
            //通过task调用setForceHidden方法强制隐藏task
            if (tr.setForceHidden(FLAG_FORCE_HIDDEN_FOR_TASK_ORG, c.getHidden())) {
                effects = TRANSACT_EFFECTS_LIFECYCLE;
            }
        }
        //c.getChangeMask()获取mChangeMask的值
        //这里通过CHANGE_FORCE_TRANSLUCENT标记判断当前Change中是否有调用过setForceTranslucent（设置当前容器半透明的方法）
        if ((c.getChangeMask()
                & WindowContainerTransaction.Change.CHANGE_FORCE_TRANSLUCENT) != 0) {
            //通过task调用setForceTranslucent方法强制半透明task
            tr.setForceTranslucent(c.getForceTranslucent());
            effects = TRANSACT_EFFECTS_LIFECYCLE;
        }
        //c.getChangeMask()获取mChangeMask的值
        //这里通过CHANGE_DRAG_RESIZING标记判断当前Change中是否有调用过setDragResizing（设置当前容器拖动大小的方法）
        if ((c.getChangeMask() & WindowContainerTransaction.Change.CHANGE_DRAG_RESIZING) != 0) {
            //设置DragResizing
            tr.setDragResizing(c.getDragResizing());
        }

        //获取Change中保存的activity的窗口模式
        final int childWindowingMode = c.getActivityWindowingMode();
        if (childWindowingMode > -1) {
            //遍历Task下的所有activity，设置其窗口模式为前面获取Change中保存的activity的窗口模式
            tr.forAllActivities(a -> { a.setWindowingMode(childWindowingMode); });
        }

        //调整Surface
        if (t != null) {
            tr.setMainWindowSizeChangeTransaction(t);
        }

        //设置PIP相关bounds
        Rect enterPipBounds = c.getEnterPipBounds();
        if (enterPipBounds != null) {
            tr.mDisplayContent.mPinnedTaskController.setEnterPipBounds(enterPipBounds);
        }

        if (c.getWindowingMode() == WindowConfiguration.WINDOWING_MODE_PINNED
                && !tr.inPinnedWindowingMode()) {
            final ActivityRecord activity = tr.getTopNonFinishingActivity();
            if (activity != null) {
                final boolean lastSupportsEnterPipOnTaskSwitch =
                        activity.supportsEnterPipOnTaskSwitch;
                // Temporarily force enable enter PIP on task switch so that PIP is requested
                // regardless of whether the activity is resumed or paused.
                activity.supportsEnterPipOnTaskSwitch = true;
                boolean canEnterPip = activity.checkEnterPictureInPictureState(
                        "applyTaskChanges", true /* beforeStopping */);
                if (canEnterPip) {
                    canEnterPip = mService.mActivityClientController
                            .requestPictureInPictureMode(activity);
                }
                if (!canEnterPip) {
                    // Restore the flag to its previous state when the activity cannot enter PIP.
                    activity.supportsEnterPipOnTaskSwitch = lastSupportsEnterPipOnTaskSwitch;
                }
            }
        }

        return effects;
    }

这个方法主要做了四件事：

通过applyChanges方法提交Configuration相关Changes。
通过c.getChangeMask()判断在WindowContainerTransaction侧Task是否调用过哪些方法，如果有则通过Task调用相关方法进行设置。
设置task下所有activity窗口模式，并更新surface。
判断画中画模式并处理

最后返回对应的effects值。

applyChanges

    private int applyChanges(@NonNull WindowContainer<?> container,
            @NonNull WindowContainerTransaction.Change change) {
        // The "client"-facing API should prevent bad changes; however, just in case, sanitize
        // masks here.
        //判断Change中包含哪些configurations相关修改
        final int configMask = change.getConfigSetMask() & CONTROLLABLE_CONFIGS;
        //判断Change中包含哪些Window相关修改
        final int windowMask = change.getWindowSetMask() & CONTROLLABLE_WINDOW_CONFIGS;
        int effects = TRANSACT_EFFECTS_NONE;
        //获取窗口模式
        final int windowingMode = change.getWindowingMode();
        //判断configurations是否有修改
        if (configMask != 0) {
            //判断windowingMode的有效性，且是否发生改变
            if (windowingMode > -1 && windowingMode != container.getWindowingMode()) {
                // Special handling for when we are setting a windowingMode in the same transaction.
                // Setting the windowingMode is going to call onConfigurationChanged so we don't
                // need it called right now. Additionally, some logic requires everything in the
                // configuration to change at the same time (ie. surface-freezer requires bounds
                // and mode to change at the same time).
                //windowingMode有效且发生改变的场景
                //请求一个Configuration，用于设置新的Configuration
                final Configuration c = container.getRequestedOverrideConfiguration();
                //设置相关属性
                c.setTo(change.getConfiguration(), configMask, windowMask);
            } else {
                //windowingMode无效或未发生改变的场景
                //请求一个Configuration，用于设置新的Configuration
                final Configuration c =
                        new Configuration(container.getRequestedOverrideConfiguration());
                //设置相关属性
                c.setTo(change.getConfiguration(), configMask, windowMask);
                //更新Configuration
                container.onRequestedOverrideConfigurationChanged(c);
            }
            effects |= TRANSACT_EFFECTS_CLIENT_CONFIG;
            if (windowMask != 0 && container.isEmbedded()) {
                // Changing bounds of the embedded TaskFragments may result in lifecycle changes.
                effects |= TRANSACT_EFFECTS_LIFECYCLE;
            }
        }

        //change.getChangeMask()获取mChangeMask的值
        //这里通过CHANGE_FOCUSABLE标记判断当前Change中是否有调用过setFocusable（设置当前容器焦点的方法）
        if ((change.getChangeMask() & WindowContainerTransaction.Change.CHANGE_FOCUSABLE) != 0) {
            //修改容器焦点
            if (container.setFocusable(change.getFocusable())) {
                effects |= TRANSACT_EFFECTS_LIFECYCLE;
            }
        }

        if (windowingMode > -1) {
            //判断窗口模式是否为多窗口
            if (mService.isInLockTaskMode()
                    && WindowConfiguration.inMultiWindowMode(windowingMode)) {
                Slog.w(TAG, "Dropping unsupported request to set multi-window windowing mode"
                        + " during locked task mode.");
                return effects;
            }

            //判断窗口模式是否为PIP
            if (windowingMode == WindowConfiguration.WINDOWING_MODE_PINNED) {
                // Do not directly put the container into PINNED mode as it may not support it or
                // the app may not want to enter it. Instead, send a signal to request PIP
                // mode to the app if they wish to support it below in #applyTaskChanges.
                return effects;
            }

            //获取修改前的窗口模式
            final int prevMode = container.getRequestedOverrideWindowingMode();
            //设置新窗口模式
            container.setWindowingMode(windowingMode);
            //判断之前的窗口模式和现在的窗口模式是否相同
            if (prevMode != container.getWindowingMode()) {
                // The activity in the container may become focusable or non-focusable due to
                // windowing modes changes (such as entering or leaving pinned windowing mode),
                // so also apply the lifecycle effects to this transaction.
                effects |= TRANSACT_EFFECTS_LIFECYCLE;
            }
        }
        return effects;
    }

这个方法主要就是去修改Change中的保存的configurations修改和焦点的修改，以及windowingMode的修改。
接下来我们补充说明一下这段代码中的一些内容

结合代码我们看看CONTROLLABLE_CONFIGS和CONTROLLABLE_WINDOW_CONFIGS的含义

    /**
     * Masks specifying which configurations task-organizers can control. Incoming transactions
     * will be filtered to only include these.
     */
    static final int CONTROLLABLE_CONFIGS = ActivityInfo.CONFIG_WINDOW_CONFIGURATION
            | ActivityInfo.CONFIG_SMALLEST_SCREEN_SIZE | ActivityInfo.CONFIG_SCREEN_SIZE
            | ActivityInfo.CONFIG_LAYOUT_DIRECTION | ActivityInfo.CONFIG_DENSITY;
    static final int CONTROLLABLE_WINDOW_CONFIGS = WINDOW_CONFIG_BOUNDS
            | WindowConfiguration.WINDOW_CONFIG_APP_BOUNDS;

CONTROLLABLE_CONFIGS：包含窗口的configuration、最新屏幕尺寸、屏幕尺寸、layout方向、density。
CONTROLLABLE_WINDOW_CONFIGS：包含容器bounds和应用bounds。

关于更新configuration时，是否windowingMode是否有效且发生过修改的代码差异

        if (configMask != 0) {
            if (windowingMode > -1 && windowingMode != container.getWindowingMode()) {
                //windowingMode有效且发生改变的场景
                final Configuration c = container.getRequestedOverrideConfiguration();
                c.setTo(change.getConfiguration(), configMask, windowMask);
            } else {
                //windowingMode无效或未发生改变的场景
                final Configuration c =
                        new Configuration(container.getRequestedOverrideConfiguration());
                c.setTo(change.getConfiguration(), configMask, windowMask);
                container.onRequestedOverrideConfigurationChanged(c);
            }
            ......
        }

这里我们可以看到在到，在windowingMode无效或未发生改变的场景时，通过调用onRequestedOverrideConfigurationChanged方法进行了更新configuration的操作，然而在windowingMode有效且发生改变的场景却没有更新，这是为什么呢？
这是因为这里还没有对windowingMode进行更新，后续在调用container.setWindowingMode(windowingMode);时，这个方法里面就会去调用onRequestedOverrideConfigurationChanged方法进行了更新configuration相关操作。
调用onRequestedOverrideConfigurationChanged就会触发ConfigurationContainer中onConfigurationChanged，这也是为了避免触发多次ConfigurationContainer中onConfigurationChanged。
因此windowingMode有效且发生改变的场景无需重复调用onRequestedOverrideConfigurationChanged

WindowOrganizerController侧Task相关操作处理

回到WindowOrganizerController.applyTransaction中

effects |= applyHierarchyOp(hops.get(i), effects, syncId, transition,
        isInLockTaskMode, caller, t.getErrorCallbackToken(),
        t.getTaskFragmentOrganizer(), finishTransition);

该方法中applyHierarchyOp方法对象task操作进行相关处理，applyHierarchyOp方法中对task有很多种不同的操作，这里我们主要来看Task的启动、移除、重排序和重定向。

    private int applyHierarchyOp(WindowContainerTransaction.HierarchyOp hop, int effects,
            int syncId, @Nullable Transition transition, boolean isInLockTaskMode,
            @NonNull CallerInfo caller, @Nullable IBinder errorCallbackToken,
            @Nullable ITaskFragmentOrganizer organizer, @Nullable Transition finishTransition) {
        //获取HierarchyOp.mType值
        final int type = hop.getType();
        switch (type) {
            ......

从这里我们可以看到，根据不同的type值进入不同的流程，hop.getType()就是获取的WindowContainerTransaction.HierarchyOp.mType的值，这个值正是WindowContainerTransaction侧调用不同的方法时传递的。
下面结合WindowContainerTransaction侧的构建的层级结构和applyHierarchyOp侧的实现来说明。

启动Task

WindowContainerTransaction侧调用createForTaskLaunch方法设置HierarchyOp.mType为HIERARCHY_OP_TYPE_LAUNCH_TASK，我们找到applyHierarchyOp中对应的代码。

代码路径：frameworks/base/services/core/java/com/android/server/wm/WindowOrganizerController.java

    private int applyHierarchyOp(WindowContainerTransaction.HierarchyOp hop, int effects,
            int syncId, @Nullable Transition transition, boolean isInLockTaskMode,
            @NonNull CallerInfo caller, @Nullable IBinder errorCallbackToken,
            @Nullable ITaskFragmentOrganizer organizer, @Nullable Transition finishTransition) {
        //获取HierarchyOp.mType值
        final int type = hop.getType();
        switch (type) {
            ......
            case HIERARCHY_OP_TYPE_LAUNCH_TASK: {
                mService.mAmInternal.enforceCallingPermission(START_TASKS_FROM_RECENTS,
                        "launchTask HierarchyOp");

                //之前在WindowContainerTransaction.HierarchyOp中
                //调用的createForTaskLaunch方法中设置了相应的options，这里是把它取出
                final Bundle launchOpts = hop.getLaunchOptions();
                //之前在WindowContainerTransaction.HierarchyOp中
                //调用的createForTaskLaunch方法中绑定LAUNCH_KEY_TASK_ID和taskId
                //这获取的就是需要启动的taskId
                final int taskId = launchOpts.getInt(
                        WindowContainerTransaction.HierarchyOp.LAUNCH_KEY_TASK_ID);
                //获取到应用taskId后从launchOpts中移除该taskId
                launchOpts.remove(WindowContainerTransaction.HierarchyOp.LAUNCH_KEY_TASK_ID);
                //转化成SafeActivityOptions类型
                final SafeActivityOptions safeOptions =
                        SafeActivityOptions.fromBundle(launchOpts, caller.mPid, caller.mUid);
                //调用ActivityTaskManagerService侧
                //通过ActivityTaskSupervisor.startActivityFromRecents去启动这个Task
                //这种启动方式一般是Launcher会用到。
                waitAsyncStart(() -> mService.mTaskSupervisor.startActivityFromRecents(
                        caller.mPid, caller.mUid, taskId, safeOptions));
                break;
            }
            ......
        }
        return effects;
    }

在分屏流程中，systemui侧会调用addActivityOptions设置操作项，关联了KEY_LAUNCH_ROOT_TASK_TOKEN和stage.mRootTaskInfo.token，之后会通过调用WindowContainerTransaction.startTask方法去设置，这里hop.getLaunchOptions()获取的就是systemui侧设置的mainOptions和sideOptions。

移除Task

WindowContainerTransaction侧调用createForRemoveTask方法设置HierarchyOp.mType为HIERARCHY_OP_TYPE_REMOVE_TASK，我们找到applyHierarchyOp中对应的代码。

代码路径：frameworks/base/services/core/java/com/android/server/wm/WindowOrganizerController.java

    private int applyHierarchyOp(WindowContainerTransaction.HierarchyOp hop, int effects,
            int syncId, @Nullable Transition transition, boolean isInLockTaskMode,
            @NonNull CallerInfo caller, @Nullable IBinder errorCallbackToken,
            @Nullable ITaskFragmentOrganizer organizer, @Nullable Transition finishTransition) {
        //获取HierarchyOp.mType值
        final int type = hop.getType();
        switch (type) {
            case HIERARCHY_OP_TYPE_REMOVE_TASK: {
                final WindowContainer wc = WindowContainer.fromBinder(hop.getContainer());
                if (wc == null || wc.asTask() == null || !wc.isAttached()) {
                    Slog.e(TAG, "Attempt to remove invalid task: " + wc);
                    break;
                }
                final Task task = wc.asTask();
                task.remove(true, "Applying remove task Hierarchy Op");
                break;
            }
            ......
        }
        return effects;
    }

Task重排序和重定层级

WindowContainerTransaction侧调用createForReorder和createForReparent方法分别设置HierarchyOp.mType为HIERARCHY_OP_TYPE_REORDER和HIERARCHY_OP_TYPE_REPARENT，我们找到applyHierarchyOp中对应的代码。

代码路径：frameworks/base/services/core/java/com/android/server/wm/WindowOrganizerController.java

    private int applyHierarchyOp(WindowContainerTransaction.HierarchyOp hop, int effects,
            int syncId, @Nullable Transition transition, boolean isInLockTaskMode,
            @NonNull CallerInfo caller, @Nullable IBinder errorCallbackToken,
            @Nullable ITaskFragmentOrganizer organizer, @Nullable Transition finishTransition) {
        //获取HierarchyOp.mType值
        final int type = hop.getType();
        switch (type) {
            ......
            case HIERARCHY_OP_TYPE_REORDER:
            case HIERARCHY_OP_TYPE_REPARENT: {
                final WindowContainer wc = WindowContainer.fromBinder(hop.getContainer());
                if (wc == null || !wc.isAttached()) {
                    Slog.e(TAG, "Attempt to operate on detached container: " + wc);
                    break;
                }
                // There is no use case to ask the reparent operation in lock-task mode now, so keep
                // skipping this operation as usual.
                if (isInLockTaskMode && type == HIERARCHY_OP_TYPE_REPARENT) {
                    Slog.w(TAG, "Skip applying hierarchy operation " + hop
                            + " while in lock task mode");
                    break;
                }
                if (isLockTaskModeViolation(wc.getParent(), wc.asTask(), isInLockTaskMode)) {
                    break;
                }
                if (syncId >= 0) {
                    addToSyncSet(syncId, wc);
                }
                if (transition != null) {
                    transition.collect(wc);
                    if (hop.isReparent()) {
                        if (wc.getParent() != null) {
                            // Collect the current parent. It's visibility may change as
                            // a result of this reparenting.
                            transition.collect(wc.getParent());
                        }
                        if (hop.getNewParent() != null) {
                            final WindowContainer parentWc =
                                    WindowContainer.fromBinder(hop.getNewParent());
                            if (parentWc == null) {
                                Slog.e(TAG, "Can't resolve parent window from token");
                                break;
                            }
                            transition.collect(parentWc);
                        }
                    }
                }
                effects |= sanitizeAndApplyHierarchyOp(wc, hop);
                break;
            }
            ......
        }
        return effects;
    }

Android U system_server侧WindowContainerTransaction处理（更新中）

前文

system_server侧事务处理流程

systemui跨进程通信到system_server

处理动画并提交事务

处理事务

transition动画处理

WindowContainerTransaction.Change处理

WindowContainerTransaction.HierarchyOp处理

Change.mBoundsChangeSurfaceBounds处理

更新Activity的可见性和Configuration

WindowContainerTransaction事务处理

WindowContainerToken介绍

WindowContainerToken

RemoteToken

WindowContainerTransaction介绍

Change

Change的获取

Change的定义

常用方法

设置容器Configuration相关属性

设置容器窗口模式

设置容器焦点

HierarchyOp

HierarchyOp的定义

启动task

移除task

Task重排序

Task重定层级

WindowOrganizerController侧Change处理

applyDisplayAreaChanges

applyTaskFragmentChanges

applyTaskChanges

applyChanges

WindowOrganizerController侧Task相关操作处理

启动Task

移除Task

Task重排序和重定层级

网站公告

今日签到

热门文章

最新发布
