C#
using System;
using System.IO;
using System.Linq;
using System.Collections.Generic;
using Microsoft.ML.OnnxRuntime;
using Microsoft.ML.OnnxRuntime.Tensors;
using OpenCvSharp;
using OpenCvSharp.Dnn;
using HalconDotNet;
using System.Runtime.CompilerServices;
using System.Xml.Linq;
namespace Halcon2Yolov8Seg
{
class Program
{
public static void HobjectToMat(HObject ho_Img, out Mat dst)
{
dst = new Mat();
HTuple ht_Channels = null;
HTuple ht_Type = null;
HTuple ht_Width = null, ht_Height = null;
try
{
HOperatorSet.CountChannels(ho_Img, out ht_Channels);
if (ht_Channels.Length == 0)
{
return;
}
if (ht_Channels[0].I == 1)
{
HTuple ht_Pointer = null;
IntPtr intPtr = IntPtr.Zero;
HOperatorSet.GetImagePointer1(ho_Img, out ht_Pointer, out ht_Type, out ht_Width, out ht_Height);
intPtr = ht_Pointer;
dst = Mat.FromPixelData(ht_Height, ht_Width, MatType.CV_8UC1, intPtr);
}
else if (ht_Channels[0].I == 3)
{
HTuple ht_ptrRed = null;
HTuple ht_ptrGreen = null;
HTuple ht_ptrBlue = null;
IntPtr ptrRed = IntPtr.Zero;
IntPtr ptrGreen = IntPtr.Zero;
IntPtr ptrBlue = IntPtr.Zero;
HOperatorSet.GetImagePointer3(ho_Img, out ht_ptrRed, out ht_ptrGreen, out ht_ptrBlue, out ht_Type, out ht_Width, out ht_Height);
ptrRed = ht_ptrRed;
ptrGreen = ht_ptrGreen;
ptrBlue = ht_ptrBlue;
Mat matRed = new Mat();
Mat matGreen = new Mat();
Mat matBlue = new Mat();
matRed = Mat.FromPixelData(ht_Height, ht_Width, MatType.CV_8UC1, ptrRed);
matGreen = Mat.FromPixelData(ht_Height, ht_Width, MatType.CV_8UC1, ptrGreen);
matBlue = Mat.FromPixelData(ht_Height, ht_Width, MatType.CV_8UC1, ptrBlue);
Mat[] multi = new Mat[] { matBlue, matGreen, matRed };
Cv2.Merge(multi, dst);
matBlue.Dispose();
matGreen.Dispose();
matRed.Dispose();
}
}
catch (Exception ex)
{
}
}
public static void MatToHObject(Mat src, out HObject ho_Img)
{
ho_Img = new HObject();
try
{
if (src.Channels() == 1)
{
unsafe
{
HOperatorSet.GenImage1(out ho_Img, "byte", src.Width, src.Height, src.Data);
}
}
else if (src.Channels() == 3)
{
Mat[] mats = new Mat[3];
Cv2.Split(src, out mats);
unsafe
{
HOperatorSet.GenImage3(out ho_Img, "byte", src.Width, src.Height, mats[2].Data, mats[1].Data, mats[0].Data);
}
}
}
catch (Exception ex)
{
}
}
private static float sigmoid(float a)
{
float b = 1.0f / (1.0f + (float)Math.Exp(-a));
return b;
}
public static string[] read_class_names(string path)
{
string[] class_names;
List<string> str = new List<string>();
StreamReader sr = new StreamReader(path);
string line;
while ((line = sr.ReadLine()) != null)
{
str.Add(line);
}
class_names = str.ToArray();
return class_names;
}
static void Main(string[] args)
{
float conf_threshold = 0.25f;
float nms_threshold = 0.5f;
string model_path = "yolov8n-seg.onnx";

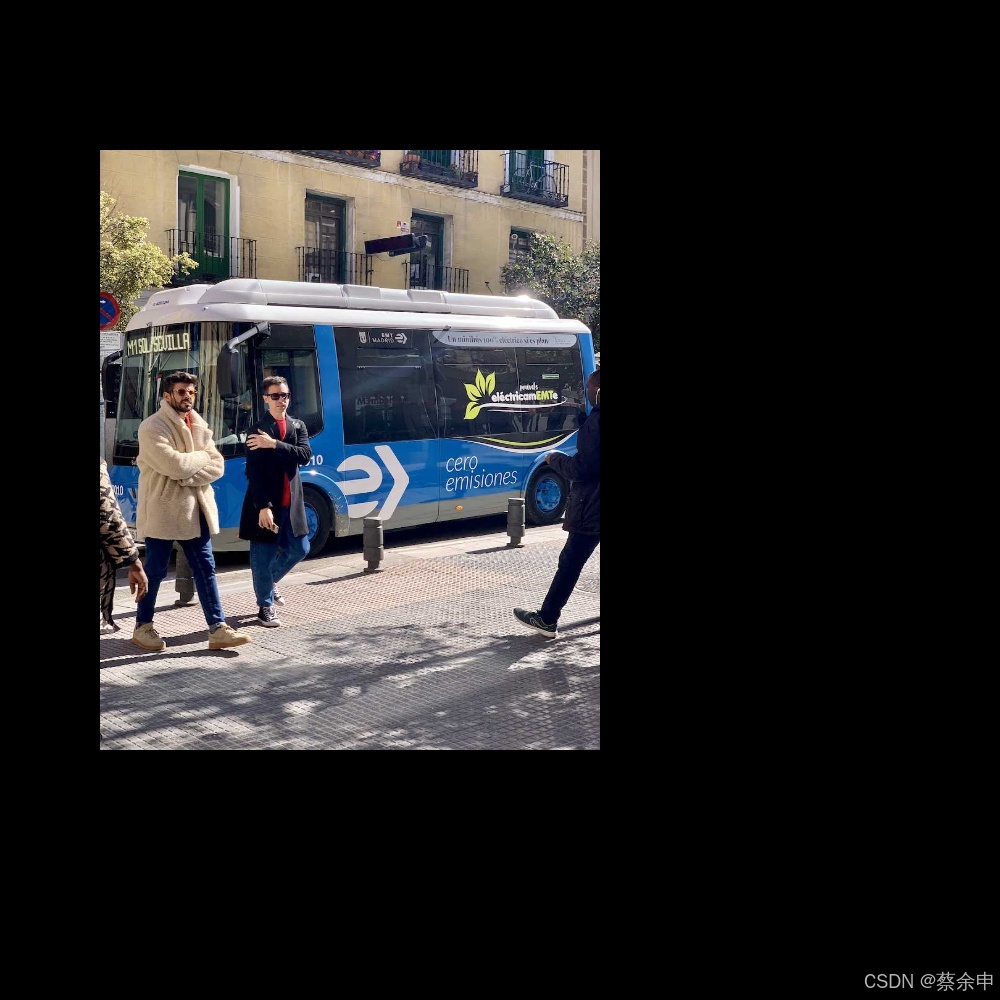

string image_path = "bus_transform.jpg";
string[] classes_names = read_class_names("coco.names");
HObject ho_Input, ho_Region, ho_RegionClosing;
HObject ho_ImageReduced, ho_ImagePart, ho_Image, ho_Image_Result;
HObject ho_GrayImage_Result, ho_Rectangle;
HTuple hv_Width = new HTuple(), hv_Height = new HTuple();
HTuple hv_Area = new HTuple(), hv_Row_Loc = new HTuple();
HTuple hv_Column_Loc = new HTuple(), hv_Width_S = new HTuple();
HTuple hv_Height_S = new HTuple(), hv_Rows = new HTuple();
HTuple hv_Cols = new HTuple(), hv_Grayvals = new HTuple();
HTuple hv_offset_X = new HTuple(), hv_offset_Y = new HTuple();
HOperatorSet.GenEmptyObj(out ho_Input);
HOperatorSet.GenEmptyObj(out ho_Region);
HOperatorSet.GenEmptyObj(out ho_RegionClosing);
HOperatorSet.GenEmptyObj(out ho_ImageReduced);
HOperatorSet.GenEmptyObj(out ho_ImagePart);
HOperatorSet.GenEmptyObj(out ho_Image);
HOperatorSet.GenEmptyObj(out ho_Image_Result);
HOperatorSet.GenEmptyObj(out ho_GrayImage_Result);
HOperatorSet.GenEmptyObj(out ho_Rectangle);
HOperatorSet.ReadImage(out ho_Input, image_path);
HOperatorSet.GetImageSize(ho_Input, out hv_Width, out hv_Height);
HOperatorSet.Threshold(ho_Input, out ho_Region, 1, 255);
HOperatorSet.ClosingCircle(ho_Region, out ho_RegionClosing, 10);
HOperatorSet.ReduceDomain(ho_Input, ho_RegionClosing, out ho_ImageReduced);
HOperatorSet.CropDomain(ho_ImageReduced, out ho_ImagePart);
HOperatorSet.AreaCenter(ho_RegionClosing, out hv_Area, out hv_Row_Loc, out hv_Column_Loc);
HOperatorSet.GenImageConst(out ho_Image, "byte", hv_Width, hv_Height);
Mat masked_img = new Mat();
List<NamedOnnxValue> input_ontainer;
List<Rect> position_boxes = new List<Rect>();
List<int> class_ids = new List<int>();
List<float> class_scores = new List<float>();
List<float> confidences = new List<float>();
List<Mat> masks = new List<Mat>();
Tensor<float> result_tensors_det;
Tensor<float> result_tensors_proto;
SessionOptions options;
InferenceSession onnx_session;
Tensor<float> input_tensor;
IDisposableReadOnlyCollection<DisposableNamedOnnxValue> result_infer;
DisposableNamedOnnxValue[] results_onnxvalue;
options = new SessionOptions();
options.LogSeverityLevel = OrtLoggingLevel.ORT_LOGGING_LEVEL_INFO;
options.AppendExecutionProvider_CPU(0);
onnx_session = new InferenceSession(model_path, options);
input_ontainer = new List<NamedOnnxValue>();
Mat image;
HobjectToMat(ho_ImagePart, out image);
int max_image_length = image.Cols > image.Rows ? image.Cols : image.Rows;
Mat max_image = Mat.Zeros(new OpenCvSharp.Size(max_image_length, max_image_length), MatType.CV_8UC3);
Rect roi = new Rect(0, 0, image.Cols, image.Rows);
image.CopyTo(new Mat(max_image, roi));
float[] det_result_array = new float[25200 * 116];
float[] proto_result_array = new float[32 * 160 * 160];
float[] factors = new float[4];
factors[0] = factors[1] = (float)(max_image_length / 640.0);
factors[2] = image.Rows;
factors[3] = image.Cols;
Mat image_rgb = new Mat();
Mat resize_image = new Mat();
Cv2.CvtColor(max_image, image_rgb, ColorConversionCodes.BGR2RGB);
Cv2.Resize(image_rgb, resize_image, new OpenCvSharp.Size(640, 640));
input_tensor = new DenseTensor<float>(new[] { 1, 3, 640, 640 });
for (int y = 0; y < resize_image.Height; y++)
{
for (int x = 0; x < resize_image.Width; x++)
{
input_tensor[0, 0, y, x] = resize_image.At<Vec3b>(y, x)[0] / 255f;
input_tensor[0, 1, y, x] = resize_image.At<Vec3b>(y, x)[1] / 255f;
input_tensor[0, 2, y, x] = resize_image.At<Vec3b>(y, x)[2] / 255f;
}
}
input_ontainer.Add(NamedOnnxValue.CreateFromTensor("images", input_tensor));
result_infer = onnx_session.Run(input_ontainer);
results_onnxvalue = result_infer.ToArray();
result_tensors_det = results_onnxvalue[0].AsTensor<float>();
result_tensors_proto = results_onnxvalue[1].AsTensor<float>();
det_result_array = result_tensors_det.ToArray();
proto_result_array = result_tensors_proto.ToArray();
Mat detect_data = Mat.FromPixelData(116, 8400, MatType.CV_32F, det_result_array);
Mat proto_data = Mat.FromPixelData(32, 25600, MatType.CV_32F, proto_result_array);
detect_data = detect_data.T();
for (int i = 0; i < detect_data.Rows; i++)
{
Mat classes_scores = detect_data.Row(i).ColRange(4, 84);
Point max_classId_point, min_classId_point;
double max_score, min_score;
Cv2.MinMaxLoc(classes_scores, out min_score, out max_score,
out min_classId_point, out max_classId_point);
if (max_score > 0.25)
{
Mat mask = detect_data.Row(i).ColRange(84, 116);
float cx = detect_data.At<float>(i, 0);
float cy = detect_data.At<float>(i, 1);
float ow = detect_data.At<float>(i, 2);
float oh = detect_data.At<float>(i, 3);
int x = (int)((cx - 0.5 * ow) * factors[0]);
int y = (int)((cy - 0.5 * oh) * factors[1]);
int width = (int)(ow * factors[0]);
int height = (int)(oh * factors[1]);
Rect box = new Rect();
box.X = x;
box.Y = y;
box.Width = width;
box.Height = height;
position_boxes.Add(box);
class_ids.Add(max_classId_point.X);
classes_scores.Add((Scalar)max_score);
confidences.Add((float)max_score);
masks.Add(mask);
}
}
int[] indexes = new int[position_boxes.Count];
CvDnn.NMSBoxes(position_boxes, confidences, conf_threshold, nms_threshold, out indexes);
Mat rgb_mask = Mat.Zeros(new Size((int)factors[3], (int)factors[2]), MatType.CV_8UC3);
Random rd = new Random();
for (int i = 0; i < indexes.Length; i++)
{
int index = indexes[i];
Rect box = position_boxes[index];
int box_x1 = Math.Max(0, box.X);
int box_y1 = Math.Max(0, box.Y);
int box_x2 = Math.Max(0, box.BottomRight.X);
int box_y2 = Math.Max(0, box.BottomRight.Y);
Mat original_mask = masks[index] * proto_data;
for (int col = 0; col < original_mask.Cols; col++)
{
original_mask.At<float>(0, col) = sigmoid(original_mask.At<float>(0, col));
}
Mat reshape_mask = original_mask.Reshape(1, 160);
int mx1 = Math.Max(0, (int)((box_x1 / factors[0]) * 0.25));
int mx2 = Math.Max(0, (int)((box_x2 / factors[0]) * 0.25));
int my1 = Math.Max(0, (int)((box_y1 / factors[1]) * 0.25));
int my2 = Math.Max(0, (int)((box_y2 / factors[1]) * 0.25));
Mat mask_roi = new Mat(reshape_mask, new OpenCvSharp.Range(my1, my2), new OpenCvSharp.Range(mx1, mx2));
Mat actual_maskm = new Mat();
Cv2.Resize(mask_roi, actual_maskm, new Size(box_x2 - box_x1, box_y2 - box_y1));
for (int r = 0; r < actual_maskm.Rows; r++)
{
for (int c = 0; c < actual_maskm.Cols; c++)
{
float pv = actual_maskm.At<float>(r, c);
if (pv > 0.5)
{
actual_maskm.At<float>(r, c) = 1.0f;
}
else
{
actual_maskm.At<float>(r, c) = 0.0f;
}
}
}
Mat bin_mask = new Mat();
actual_maskm = actual_maskm * 200;
actual_maskm.ConvertTo(bin_mask, MatType.CV_8UC1);
if ((box_y1 + bin_mask.Rows) >= factors[2])
{
box_y2 = (int)factors[2] - 1;
}
if ((box_x1 + bin_mask.Cols) >= factors[3])
{
box_x2 = (int)factors[3] - 1;
}
Mat mask = Mat.Zeros(new Size((int)factors[3], (int)factors[2]), MatType.CV_8UC1);
bin_mask = new Mat(bin_mask, new OpenCvSharp.Range(0, box_y2 - box_y1), new OpenCvSharp.Range(0, box_x2 - box_x1));
Rect rois = new Rect(box_x1, box_y1, box_x2 - box_x1, box_y2 - box_y1);
bin_mask.CopyTo(new Mat(mask, rois));
Cv2.Add(rgb_mask, new Scalar(rd.Next(0, 255), rd.Next(0, 255), rd.Next(0, 255)), rgb_mask, mask);
Cv2.Rectangle(image, position_boxes[index], new Scalar(0, 0, 255), 2, LineTypes.Link8);
Cv2.Rectangle(image, new Point(position_boxes[index].TopLeft.X, position_boxes[index].TopLeft.Y - 20),
new Point(position_boxes[index].BottomRight.X, position_boxes[index].TopLeft.Y), new Scalar(0, 255, 255), -1);
Cv2.PutText(image, classes_names[class_ids[index]] + "-" + confidences[index].ToString("0.00"),
new Point(position_boxes[index].X, position_boxes[index].Y - 10),
HersheyFonts.HersheySimplex, 0.6, new Scalar(0, 0, 0), 1);
Cv2.AddWeighted(image, 0.5, rgb_mask.Clone(), 0.5, 0, masked_img);
}
MatToHObject(rgb_mask, out ho_Image_Result);
HOperatorSet.Rgb1ToGray(ho_Image_Result, out ho_GrayImage_Result);
HOperatorSet.GetImageSize(ho_Image_Result, out hv_Width_S, out hv_Height_S);
HOperatorSet.GenRectangle1(out ho_Rectangle, 0, 0, hv_Height_S - 1, hv_Width_S - 1);
HOperatorSet.GetRegionPoints(ho_Rectangle, out hv_Rows, out hv_Cols);
HOperatorSet.GetGrayval(ho_GrayImage_Result, hv_Rows, hv_Cols, out hv_Grayvals);
hv_offset_X = hv_Row_Loc - (hv_Height_S / 2);
hv_offset_Y = hv_Column_Loc - (hv_Width_S / 2);
HTuple ExpTmpLocalVar_Rows = hv_Rows + hv_offset_X;
hv_Rows = ExpTmpLocalVar_Rows;
HTuple ExpTmpLocalVar_Cols = hv_Cols + hv_offset_Y;
hv_Cols = ExpTmpLocalVar_Cols;
HOperatorSet.SetGrayval(ho_Image, hv_Rows, hv_Cols, hv_Grayvals);
HOperatorSet.WriteImage(ho_Image, "bmp", 0, "mask");
}
}
}
Cpp
#include <fstream>
#include <HalconCpp.h>
#include <opencv2/opencv.hpp>
#include <onnxruntime_cxx_api.h>
using namespace std;
using namespace cv;
using namespace Ort;
using namespace HalconCpp;
Mat HImageToMat(HObject& H_img)
{
Mat cv_img;
HTuple channels, w, h;
ConvertImageType(H_img, &H_img, "byte");
CountChannels(H_img, &channels);
if (channels.I() == 1)
{
HalconCpp::HTuple pointer;
GetImagePointer1(H_img, &pointer, nullptr, &w, &h);
int width = w.I(), height = h.I();
int size = width * height;
cv_img = cv::Mat::zeros(height, width, CV_8UC1);
memcpy(cv_img.data, (void*)(pointer.L()), size);
}
else if (channels.I() == 3)
{
HTuple pointerR, pointerG, pointerB;
GetImagePointer3(H_img, &pointerR, &pointerG, &pointerB, nullptr, &w, &h);
int width = w.I(), height = h.I();
int size = width * height;
cv_img = cv::Mat::zeros(height, width, CV_8UC3);
uchar* R = (uchar*)(pointerR.L());
uchar* G = (uchar*)(pointerG.L());
uchar* B = (uchar*)(pointerB.L());
for (int i = 0; i < height; ++i)
{
uchar* p = cv_img.ptr<uchar>(i);
for (int j = 0; j < width; ++j)
{
p[3 * j] = B[i * width + j];
p[3 * j + 1] = G[i * width + j];
p[3 * j + 2] = R[i * width + j];
}
}
}
return cv_img;
}
HObject MatToHImage(Mat& cv_img)
{
HObject H_img;
if (cv_img.channels() == 1)
{
int height = cv_img.rows, width = cv_img.cols;
int size = height * width;
uchar* temp = new uchar[size];
memcpy(temp, cv_img.data, size);
GenImage1(&H_img, "byte", width, height, (Hlong)(temp));
delete[] temp;
}
else if (cv_img.channels() == 3)
{
int height = cv_img.rows, width = cv_img.cols;
int size = height * width;
uchar* B = new uchar[size];
uchar* G = new uchar[size];
uchar* R = new uchar[size];
for (int i = 0; i < height; i++)
{
uchar* p = cv_img.ptr<uchar>(i);
for (int j = 0; j < width; j++)
{
B[i * width + j] = p[3 * j];
G[i * width + j] = p[3 * j + 1];
R[i * width + j] = p[3 * j + 2];
}
}
GenImage3(&H_img, "byte", width, height, (Hlong)(R), (Hlong)(G), (Hlong)(B));
delete[] R;
delete[] G;
delete[] B;
}
return H_img;
}
float sigmoid_function(float a) {
float b = 1. / (1. + exp(-a));
return b;
}
vector<string> readClassNames(const string& filename) {
vector<string> classNames;
ifstream file(filename);
if (!file.is_open()) {
cerr << "Error opening file: " << filename << endl;
return classNames;
}
string line;
while (getline(file, line)) {
if (!line.empty()) {
classNames.push_back(line);
}
}
file.close();
return classNames;
}
int main(int argc, char** argv)
{
string filename = "coco.names";
string imagename = "bus_transform.jpg";
vector<string> labels = readClassNames(filename);
string onnxpath = "yolov8n-seg.onnx";
float conf_threshold = 0.25;
float nms_threshold = 0.4;
float score_threshold = 0.25;
HObject ho_Input, ho_Region, ho_RegionClosing;
HObject ho_ImageReduced, ho_ImagePart, ho_Image, ho_Image_Result;
HObject ho_GrayImage_Result, ho_Rectangle;
HTuple hv_Width, hv_Height, hv_Area, hv_Row_Loc;
HTuple hv_Column_Loc, hv_Width_S, hv_Height_S, hv_Rows;
HTuple hv_Cols, hv_Grayvals, hv_offset_X, hv_offset_Y;
ReadImage(&ho_Input, imagename.c_str());
GetImageSize(ho_Input, &hv_Width, &hv_Height);
Threshold(ho_Input, &ho_Region, 1, 255);
ClosingCircle(ho_Region, &ho_RegionClosing, 10);
ReduceDomain(ho_Input, ho_RegionClosing, &ho_ImageReduced);
CropDomain(ho_ImageReduced, &ho_ImagePart);
Mat image = HImageToMat(ho_ImagePart);
int ih = image.rows;
int iw = image.cols;
AreaCenter(ho_RegionClosing, &hv_Area, &hv_Row_Loc, &hv_Column_Loc);
wstring modelPath = wstring(onnxpath.begin(), onnxpath.end());
Env env = Env(ORT_LOGGING_LEVEL_ERROR, "yolov8n-seg");
SessionOptions session_options;
session_options.SetGraphOptimizationLevel(ORT_ENABLE_BASIC);
Session session_(env, modelPath.c_str(), session_options);
vector<string> input_node_names;
vector<string> output_node_names;
size_t numInputNodes = session_.GetInputCount();
size_t numOutputNodes = session_.GetOutputCount();
AllocatorWithDefaultOptions allocator;
input_node_names.reserve(numInputNodes);
int input_w = 0;
int input_h = 0;
for (int i = 0; i < numInputNodes; i++) {
auto input_name = session_.GetInputNameAllocated(i, allocator);
input_node_names.push_back(input_name.get());
TypeInfo input_type_info = session_.GetInputTypeInfo(i);
auto input_tensor_info = input_type_info.GetTensorTypeAndShapeInfo();
auto input_dims = input_tensor_info.GetShape();
input_w = input_dims[3];
input_h = input_dims[2];
cout << "input format: NxCxHxW = " << input_dims[0] << "x" << input_dims[1] << "x" << input_dims[2] << "x" << input_dims[3] << endl;
}
for (int i = 0; i < numOutputNodes; i++) {
auto out_name = session_.GetOutputNameAllocated(i, allocator);
output_node_names.push_back(out_name.get());
}
int output_detect_h = 0;
int output_detect_w = 0;
TypeInfo output_detect_type_info = session_.GetOutputTypeInfo(0);
auto output_detect_tensor_info = output_detect_type_info.GetTensorTypeAndShapeInfo();
auto output_detect_dims = output_detect_tensor_info.GetShape();
output_detect_h = output_detect_dims[1];
output_detect_w = output_detect_dims[2];
cout << "output detect format : HxW = " << output_detect_h << "x" << output_detect_w << endl;
int output_proto_h = 0;
int output_proto_w = 0;
int output_proto_c = 0;
TypeInfo output_proto_type_info = session_.GetOutputTypeInfo(1);
auto output_proto_tensor_info = output_proto_type_info.GetTensorTypeAndShapeInfo();
auto output_proto_dims = output_proto_tensor_info.GetShape();
output_proto_h = output_proto_dims[2];
output_proto_w = output_proto_dims[3];
output_proto_c = output_proto_dims[1];
cout << "output proto format : CxHxW = " << output_proto_c << "x" << output_proto_h << "x" << output_proto_w << endl;
cout << "input: " << input_node_names[0] << " output detect: " << output_node_names[0] <<
" output proto: " << output_node_names[1] << endl;
int64 start = getTickCount();
int w = image.cols;
int h = image.rows;
int _max = max(h, w);
Mat image_ = Mat::zeros(Size(_max, _max), CV_8UC3);
Rect roi(0, 0, w, h);
image.copyTo(image_(roi));
float x_factor = image_.cols / static_cast<float>(input_w);
float y_factor = image_.rows / static_cast<float>(input_h);
Mat blob = dnn::blobFromImage(image_, 1 / 255.0, Size(input_w, input_h), Scalar(0, 0, 0), true, false);
size_t tpixels = input_h * input_w * 3;
array<int64_t, 4> input_shape_info{ 1, 3, input_h, input_w };
auto allocator_info = MemoryInfo::CreateCpu(OrtDeviceAllocator, OrtMemTypeCPU);
Value input_tensor_ = Value::CreateTensor<float>(allocator_info, blob.ptr<float>(), tpixels, input_shape_info.data(), input_shape_info.size());
const array<const char*, 1> inputNames = { input_node_names[0].c_str() };
const array<const char*, 2> outNames = { output_node_names[0].c_str() , output_node_names[1].c_str() };
vector<Value> ort_outputs;
try {
ort_outputs = session_.Run(RunOptions{ nullptr }, inputNames.data(), &input_tensor_, 1, outNames.data(), outNames.size());
}
catch (exception e) {
cout << e.what() << endl;
}
auto data_detect_shape = ort_outputs[0].GetTensorTypeAndShapeInfo().GetShape();
float* detect_pdata = ort_outputs[0].GetTensorMutableData<float>();
Mat output_detect = Mat(Size((int)data_detect_shape[2], (int)data_detect_shape[1]), CV_32F, detect_pdata).t();
auto data_proto_shape = ort_outputs[1].GetTensorTypeAndShapeInfo().GetShape();
float* proto_pdata = ort_outputs[1].GetTensorMutableData<float>();
Mat output_proto = Mat(Size((int)(data_proto_shape[2]) * (int)(data_proto_shape[3]), (int)data_proto_shape[1]), CV_32F, proto_pdata);
vector<Rect> boxes;
vector<int> classIds;
vector<float> confidences;
std::vector<Mat> mask_confs;
for (int i = 0; i < output_detect.rows; i++) {
Mat classes_scores = output_detect.row(i).colRange(4, data_detect_shape[1] - data_proto_shape[1]);
Point classIdPoint;
double score;
minMaxLoc(classes_scores, 0, &score, 0, &classIdPoint);
if (score > 0.25)
{
float cx = output_detect.at<float>(i, 0);
float cy = output_detect.at<float>(i, 1);
float ow = output_detect.at<float>(i, 2);
float oh = output_detect.at<float>(i, 3);
int x = static_cast<int>((cx - 0.5 * ow) * x_factor);
int y = static_cast<int>((cy - 0.5 * oh) * y_factor);
int width = static_cast<int>(ow * x_factor);
int height = static_cast<int>(oh * y_factor);
Rect box;
box.x = x;
box.y = y;
box.width = width;
box.height = height;
boxes.push_back(box);
classIds.push_back(classIdPoint.x);
confidences.push_back(score);
Mat mask_conf = output_detect.row(i).colRange(data_detect_shape[1] - data_proto_shape[1], data_detect_shape[1]);
mask_confs.push_back(mask_conf);
}
}
Mat rgb_mask = Mat::zeros(image.size(), image.type());
Mat masked_img;
RNG rng;
vector<int> indexes;
dnn::NMSBoxes(boxes, confidences, 0.25, 0.45, indexes);
for (size_t i = 0; i < indexes.size(); i++) {
int index = indexes[i];
int idx = classIds[index];
rectangle(image, boxes[index], Scalar(0, 0, 255), 2, 8);
rectangle(image, Point(boxes[index].tl().x, boxes[index].tl().y - 20),
Point(boxes[index].br().x, boxes[index].tl().y), Scalar(0, 255, 255), -1);
putText(image, labels[idx], Point(boxes[index].tl().x, boxes[index].tl().y), FONT_HERSHEY_PLAIN, 2.0, Scalar(255, 0, 0), 2, 8);
Mat m = mask_confs[i] * output_proto;
for (int col = 0; col < m.cols; col++) {
m.at<float>(0, col) = sigmoid_function(m.at<float>(0, col));
}
Mat m1 = m.reshape(1, 160);
int x1 = std::max(0, boxes[index].x);
int y1 = std::max(0, boxes[index].y);
int x2 = std::max(0, boxes[index].br().x);
int y2 = std::max(0, boxes[index].br().y);
int mx1 = int(x1 / x_factor * 0.25);
int my1 = int(y1 / y_factor * 0.25);
int mx2 = int(x2 / x_factor * 0.25);
int my2 = int(y2 / y_factor * 0.25);
Mat mask_roi = m1(Range(my1, my2), Range(mx1, mx2));
Mat rm, det_mask;
resize(mask_roi, rm, Size(x2 - x1, y2 - y1));
for (int r = 0; r < rm.rows; r++) {
for (int c = 0; c < rm.cols; c++) {
float pv = rm.at<float>(r, c);
if (pv > 0.5) {
rm.at<float>(r, c) = 1.0;
}
else {
rm.at<float>(r, c) = 0.0;
}
}
}
rm = rm * rng.uniform(0, 255);
rm.convertTo(det_mask, CV_8UC1);
if ((y1 + det_mask.rows) >= image.rows) {
y2 = image.rows - 1;
}
if ((x1 + det_mask.cols) >= image.cols) {
x2 = image.cols - 1;
}
Mat mask = Mat::zeros(Size(image.cols, image.rows), CV_8UC1);
det_mask(Range(0, y2 - y1), Range(0, x2 - x1)).copyTo(mask(Range(y1, y2), Range(x1, x2)));
add(rgb_mask, Scalar(rng.uniform(0, 255), rng.uniform(0, 255), rng.uniform(0, 255)), rgb_mask, mask);
addWeighted(image, 0.5, rgb_mask, 0.5, 0, masked_img);
}
ho_Image_Result = MatToHImage(rgb_mask);
GenImageConst(&ho_Image, "byte", hv_Width, hv_Height);
Rgb1ToGray(ho_Image_Result, &ho_GrayImage_Result);
GetImageSize(ho_Image_Result, &hv_Width_S, &hv_Height_S);
GenRectangle1(&ho_Rectangle, 0, 0, hv_Height_S - 1, hv_Width_S - 1);
GetRegionPoints(ho_Rectangle, &hv_Rows, &hv_Cols);
GetGrayval(ho_GrayImage_Result, hv_Rows, hv_Cols, &hv_Grayvals);
hv_offset_X = hv_Row_Loc - (hv_Height_S / 2);
hv_offset_Y = hv_Column_Loc - (hv_Width_S / 2);
hv_Rows += hv_offset_X;
hv_Cols += hv_offset_Y;
SetGrayval(ho_Image, hv_Rows, hv_Cols, hv_Grayvals);
WriteImage(ho_Image, "bmp", 0, "mask");
return 0;
}
CMakeLists.txt
cmake_minimum_required(VERSION 3.18)
project(Halcon-yolov8-seg)
set("OpenCV_DIR" "E:\\Opencv\\opencv_vs\\build")
set("ONNXRUNTIME_DIR" "E:\\Onnxruntime\\cpu\\1.15")
set(OpenCV_INCLUDE_DIRS ${OpenCV_DIR}\\include)
set(OpenCV_LIB_DIRS ${OpenCV_DIR}\\x64\\vc16\\lib)
set(OpenCV_LIB_DEBUG ${OpenCV_DIR}\\x64\\vc16\\lib\\opencv_world480d.lib)
set(OpenCV_LIB_RELEASE ${OpenCV_DIR}\\x64\\vc16\\lib\\opencv_world480.lib)
set(CMAKE_CXX_STANDARD 14)
set(CMAKE_CXX_STANDARD_REQUIRED ON)
find_package(OpenCV QUIET)
set(HALCON_INCLUDE_DIR "E:/Halcon/HALCON-24.05-Progress/include"
"E:/Halcon/HALCON-24.05-Progress/include/halconcpp")
set(HALCON_LIB_DIR "E:/Halcon/HALCON-24.05-Progress/lib/x64-win64")
include_directories(${OpenCV_INCLUDE_DIRS} ${HALCON_INCLUDE_DIR})
link_directories(${HALCON_LIB_DIR})
add_executable(Halcon-yolov8-seg main.cpp)
target_compile_features(Halcon-yolov8-seg PRIVATE cxx_std_14)
find_library(PATH ${ONNXRUNTIME_DIR})
target_include_directories(Halcon-yolov8-seg PRIVATE "${ONNXRUNTIME_DIR}/include")
target_link_libraries(Halcon-yolov8-seg "${ONNXRUNTIME_DIR}/lib/onnxruntime.lib")
target_link_libraries(Halcon-yolov8-seg
$<$<CONFIG:Debug>:${OpenCV_LIB_DEBUG}>
$<$<CONFIG:Release>:${OpenCV_LIB_RELEASE}>
halconcpp.lib
)
