大模型部署以及案例应用（windows+wsl+dify+mysql+Ollama+Xinference）
1.wsl 安装
①安装wsl
控制面板–程序–打开启用或关闭windows功能-勾选“使用于Linux的Windows子系统”
②测试以及更新
打开cmd,输入wsl --update,若出现“已安装最新版本的适用于 Linux 的 Windows 子系统。”，则无需更新，否则自动更新
③安装Ubuntu系统
查看系统以及版本
安装Ubuntu系统
在cmd里面输入：wsl --install -d Ubuntu-24.04 进行安装
进入Ubuntu系统
方式一：在Windows系统开始搜索Ubuntu-22.04,点击系统管理运行进入
方式二：在CMD里面执行 wsl -d Ubuntu-22.04 进入
2、docker安装
①下载安装包
去https://www.docker.com/下载exe的安装包
②安装
在CMD里面执行"D:\AI\Docker\Docker Desktop Installer.exe" install --installation-dir=“D:\Docker”，我制定了安装目录的。
③docker配置
docker一般需要配置两个：
一个是镜像存放位置，二是docker引擎
{
"builder": {
"gc": {
"defaultKeepStorage": "20GB",
"enabled": true
}
},
"default-runtime": "nvidia",
"experimental": false,
"registry-mirrors": [
"https://docker-0.unsee.tech",
"https://docker.1ms.run",
"https://hub.rat.dev",
"https://docker.1panel.live",
"https://hub.rat.dev",
"https://proxy.1panel.live",
"https://ghcr.nju.edu.cn",
"https://docker.registry.cyou",
"https://dockercf.jsdelivr.fyi",
"https://docker.rainbond.cc",
"https://registry.cn-shenzhen.aliyuncs.com",
"https://dockertest.jsdelivr.fyi",
"https://mirror.aliyuncs.com",
"https://mirror.baidubce.com",
"https://docker.mirrors.ustc.edu.cn",
"https://docker.mirrors.sjtug.sjtu.edu.cn",
"https://mirror.iscas.ac.cn",
"https://docker.nju.edu.cn",
"https://docker.m.daocloud.io",
"https://dockerproxy.com",
"https://docker.jsdelivr.fyi",
"https://docker-cf.registry.cyou",
"https://hub.docker.com/"
],
"runtimes": {
"nvidia": {
"path": "nvidia-container-runtime",
"runtimeArgs": []
}
}
}
3、安装dify
①下载dify
下载地址：https://gitcode.com/gh_mirrors/di/dify
②安装
先解压，然后进入安装目录，例如我的进入指令：cd/d E:\dify-main\docker
③生成.env 配置文件
dify默认端口是80，如果要修改，则修改.env里面的NGINX_PORT=80 和 EXPOSE_NGINX_PORT=80 两个端口号
④安装dify
⑤打开dify
如果默认是80端口，则输入127.0.0.1或者localhost都可以打开
4.安装ollama
①下载ollama
在https://ollama.com/download进行下载
②安装ollama
安装到其他盘，可以参照：windows部署deepseek与dify
③搜索模型
可以在https://ollama.com/search，进行查找模型，并复制模型名称。
④下载模型
在cmd输入：ollama run deepseek-r1:7b，
注意：
大一些的模型对显卡要求比较高，下载后如果满足不了最低要求，则运行不了。
下载模型可以中断，下次输入下载指令可以继续下载
⑤运行模型
运行模型治理跟下载一样：ollama run deepseek-r1:7b
查看ollama其他指令可以输入：ollama -h
5、dify与ollama模型对接
注意docker、Ubuntu、ollama需运行起来
①在dify安装ollama
点击用户头像，点击设置–模型供应商,搜索ollama,并进行安装ollama
②配置模型
在模型供应商选择ollama，点击添加模型
http://host.docker.internal:11434
模型的类型是根据图标识选择的
6、安装conda
①选择对应的版本进行下载。
下载地址：https://www.anaconda.com/download/success
下载完成之后双击运行.exe文件，然后下一步就行,安装完成之后，进行系统环境变量配置。
②修改配置和环境变量
编辑path系统变量，根据实际安装路径进行配置:
E:\anaconda3
E:\anaconda3\Scripts
E:\anaconda3\Library\mingw-w64\bin
E:\anaconda3\Library\bin
打开cmd命令窗口，输入 conda --version命令，验证是否配置成功。若成功则会显示具体的版本号。修改Anaconda默认环境保存路径和镜像源：
在C:\Users\Dynasty，找到.condarc,
删除原先内容，进行以下配置。
envs_dirs:
- E:\Anaconda_envs\envs
pkgs_dirs:
- E:\Anaconda_envs\pkgs
channels:
- https://mirrors.tuna.tsinghua.edu.cn/anaconda/cloud/pytorch/
- https://mirrors.tuna.tsinghua.edu.cn/anaconda/cloud/conda-forge/
- https://mirrors.tuna.tsinghua.edu.cn/anaconda/pkgs/free/
- https://repo.anaconda.com/pkgs/main
- https://repo.anaconda.com/pkgs/r
- https://repo.anaconda.com/pkgs/msys2
- defaults
show_channel_urls: true
在命令窗口中执行conda info命令，我们就可以看到修改后的配置。
7、安装配置Xinference
①在cmd创建conda环境
conda create xinference
conda activate xinference
②安装相关依赖
conda install python=3.12
conda install nodejs
pip install torch
③进行安装以及启动
安装
pip install xinference[all] -i https://pypi.tuna.tsinghua.edu.cn/simple
指定镜像 -i https://pypi.tuna.tsinghua.edu.cn/simple
启动
xinference-local --host 192.168.0.104 --port 9997
不要用0.0.0.0，启动会报错，192.168.0.104为本机ip地址
xinference启动效果：
④启动模型
选择你需要的模型，点击启动
⑤xinference与dify对接
参照第5点打开方式
安装xinference
添加模型
说明：为什么要安装xinference,dify没有
这一类的模型。
8、插件的应用
我使用的一些插件
注意database插件的注册链接：
mysql+pymysql://root:root@168.192.0.107:3306/ssm
插件下载与安装
通过插件下载网址 下载插件
下载后通过安装插件–本地插件–选择插件进行安装
也可以通过dify的marketplace直接安装，我测试下载之后安装要快很多。
9、应用
①生成工具
创建工作流
dify发布为工具
注意：里面的流程是根据实际情况进行操作！有一些人通过这儿设置数据查询工具，然后引入到agent里面，会报错。
注意：里面的流程是根据实际情况进行操作！有一些人通过这儿设置数据查询工具，然后引入到agent里面，会报错。
一般分为几种情况：
一是：模型太小的原因
二是：引入的知识库的原因
三是：提示词的原因，提示词要越详细越好
四是：没有对引入的对话进行清洗和过滤，因为数据查询仅仅是查询sql,而不包含其他文字性内容
五是：就是我也没有找到原因（有知道的朋友，可以告诉我一下），工具单独测试没有问题
{"data_query": "tool invoke error: Instance <Account at 0x71e62cd38dd0> is not bound to a Session; attribute refresh operation cannot proceed (Background on this error at: https://sqlalche.me/e/20/bhk3)"}
补充
采用现有的database.SQL Execute插件，可以查询出来数据。
说明：
0-0数据字典为表结构
0-0 提示词用AI实时查询数据库
【角色设定】
您是一位资深数据库专家，擅长根据业务需求将自然语言精准转换为符合规范的SQL语句。您具有以下核心能力：
1. 精通关系型数据库设计，尤其熟悉MySQL语法
2. 深入理解当前业务系统的表结构
[上下文]
3. 能准确识别业务需求中的隐藏条件
4. 熟悉SQL性能优化和事务控制
【输入处理流程】
1. 结构确认：先验证涉及的表是否存在，检查字段名是否准确
2. 关联分析：确认多表关联时的连接条件是否正确
3. 条件推导：将模糊的业务描述转化为精确的WHERE条件
4. 异常处理：识别可能存在的逻辑矛盾或性能陷阱
【输出要求】
输出sql中不要添加任何注释信息
采用如下格式返回结果：
[符合ANSI标准的SQL语句]
根据输出的SQL,例如：
select * from users
调用工具查询数据，并返回结果
②工作流
根据DY设置的一个工作流

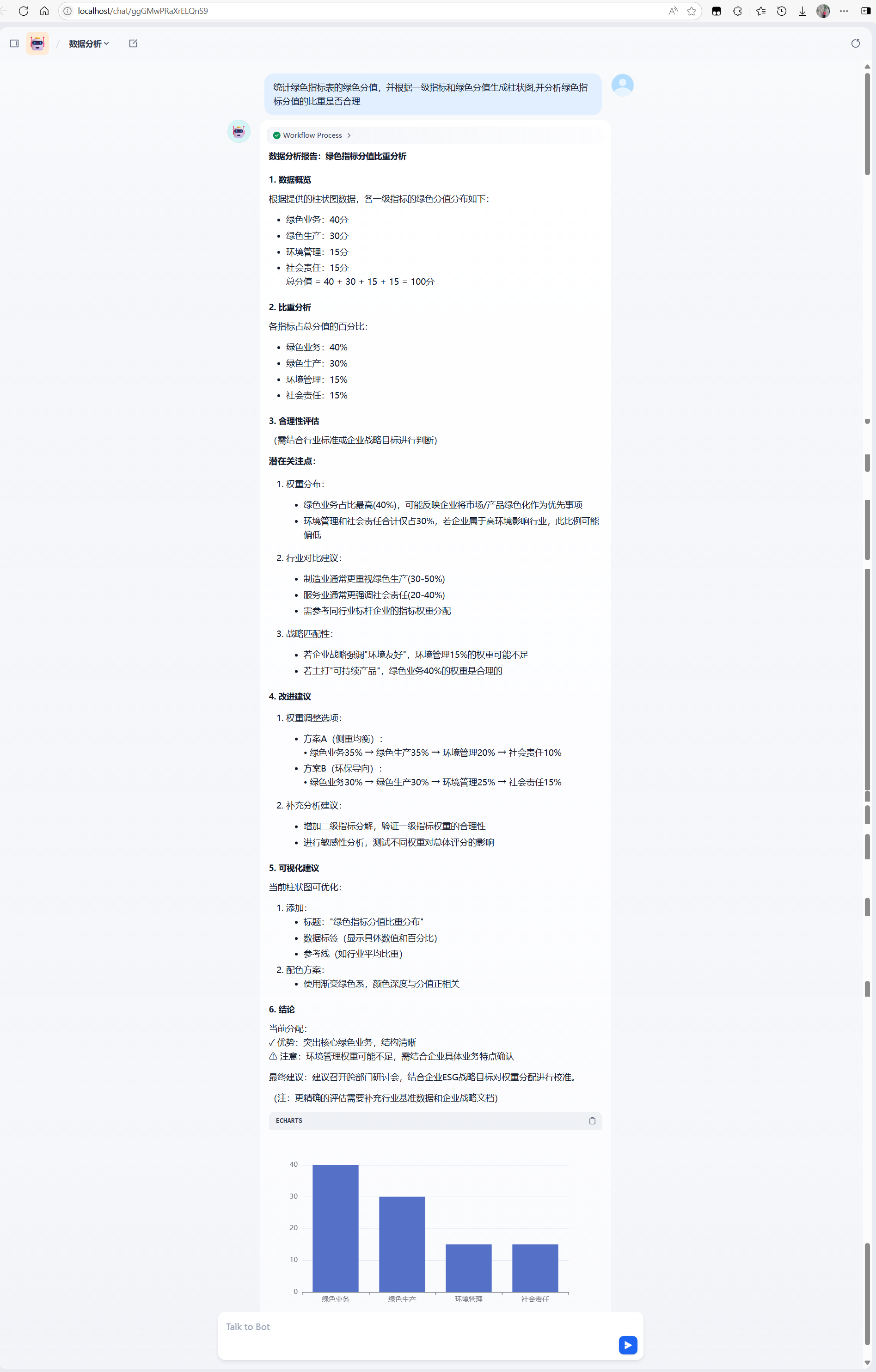

测试效果
以下是工作的yml文件内容，新建空白yml文件，拷贝代码并放入里面保存。在diy进行引入即可
app:
description: 测试模型
icon: 🤖
icon_background: '#FFEAD5'
mode: advanced-chat
name: 模型测试
use_icon_as_answer_icon: false
dependencies:
- current_identifier: null
type: marketplace
value:
marketplace_plugin_unique_identifier: langgenius/ollama:0.0.6@7d66a960a68cafdcdf5589fdf5d01a995533f956853c69c54eddcf797006fa37
- current_identifier: null
type: package
value:
plugin_unique_identifier: jaguarliuu/rookie_text2data:0.3.0@59a0ef957f535edcc661369a3edc3894ce4cd8b8063b296b699ff55c5f6d262d
- current_identifier: null
type: package
value:
plugin_unique_identifier: jaguarliuu/rookie_data_alchemy:0.0.4@2be34d32b23be1a447f7822b77dc54462155710ab1cd38d118e562fddbc13cdc
- current_identifier: null
type: package
value:
plugin_unique_identifier: bowenliang123/md_exporter:1.4.100@71e015c278af8ae41b80f88a72f03ef92ad01b8db0c3676eafd3f998c4d57601
kind: app
version: 0.3.0
workflow:
conversation_variables: []
environment_variables: []
features:
file_upload:
allowed_file_extensions:
- .JPG
- .JPEG
- .PNG
- .GIF
- .WEBP
- .SVG
allowed_file_types:
- image
allowed_file_upload_methods:
- local_file
- remote_url
enabled: false
fileUploadConfig:
audio_file_size_limit: 50
batch_count_limit: 5
file_size_limit: 15
image_file_size_limit: 10
video_file_size_limit: 100
workflow_file_upload_limit: 10
image:
enabled: false
number_limits: 3
transfer_methods:
- local_file
- remote_url
number_limits: 3
opening_statement: ''
retriever_resource:
enabled: true
sensitive_word_avoidance:
enabled: false
speech_to_text:
enabled: false
suggested_questions: []
suggested_questions_after_answer:
enabled: false
text_to_speech:
enabled: false
language: ''
voice: ''
graph:
edges:
- data:
sourceType: start
targetType: llm
id: 1748696326544-llm
source: '1748696326544'
sourceHandle: source
target: llm
targetHandle: target
type: custom
- data:
isInIteration: false
isInLoop: false
sourceType: llm
targetType: tool
id: llm-source-1748696528530-target
source: llm
sourceHandle: source
target: '1748696528530'
targetHandle: target
type: custom
zIndex: 0
- data:
isInIteration: false
isInLoop: false
sourceType: tool
targetType: tool
id: 1748696528530-source-1748696624432-target
source: '1748696528530'
sourceHandle: source
target: '1748696624432'
targetHandle: target
type: custom
zIndex: 0
- data:
isInIteration: false
isInLoop: false
sourceType: tool
targetType: if-else
id: 1748696624432-source-1748696664775-target
source: '1748696624432'
sourceHandle: source
target: '1748696664775'
targetHandle: target
type: custom
zIndex: 0
- data:
isInIteration: false
isInLoop: false
sourceType: if-else
targetType: llm
id: 1748696664775-true-1748696729922-target
source: '1748696664775'
sourceHandle: 'true'
target: '1748696729922'
targetHandle: target
type: custom
zIndex: 0
- data:
isInIteration: false
isInLoop: false
sourceType: llm
targetType: llm
id: 1748696729922-source-1748696811184-target
source: '1748696729922'
sourceHandle: source
target: '1748696811184'
targetHandle: target
type: custom
zIndex: 0
- data:
isInIteration: false
isInLoop: false
sourceType: llm
targetType: tool
id: 1748696811184-source-1748696899575-target
source: '1748696811184'
sourceHandle: source
target: '1748696899575'
targetHandle: target
type: custom
zIndex: 0
- data:
isInIteration: false
isInLoop: false
sourceType: tool
targetType: answer
id: 1748696899575-source-answer-target
source: '1748696899575'
sourceHandle: source
target: answer
targetHandle: target
type: custom
zIndex: 0
- data:
isInIteration: false
isInLoop: false
sourceType: if-else
targetType: llm
id: 1748696664775-6f64ec9a-f939-412f-b673-2bc1a852d5ce-1748697147705-target
source: '1748696664775'
sourceHandle: 6f64ec9a-f939-412f-b673-2bc1a852d5ce
target: '1748697147705'
targetHandle: target
type: custom
zIndex: 0
- data:
isInIteration: false
isInLoop: false
sourceType: llm
targetType: tool
id: 1748697147705-source-1748697966459-target
source: '1748697147705'
sourceHandle: source
target: '1748697966459'
targetHandle: target
type: custom
zIndex: 0
- data:
isInIteration: false
isInLoop: false
sourceType: tool
targetType: answer
id: 1748697966459-source-1748698000525-target
source: '1748697966459'
sourceHandle: source
target: '1748698000525'
targetHandle: target
type: custom
zIndex: 0
- data:
isInIteration: false
isInLoop: false
sourceType: if-else
targetType: llm
id: 1748696664775-false-1748698025100-target
source: '1748696664775'
sourceHandle: 'false'
target: '1748698025100'
targetHandle: target
type: custom
zIndex: 0
- data:
isInIteration: false
isInLoop: false
sourceType: llm
targetType: answer
id: 1748698025100-source-1748698346189-target
source: '1748698025100'
sourceHandle: source
target: '1748698346189'
targetHandle: target
type: custom
zIndex: 0
nodes:
- data:
desc: ''
selected: false
title: 开始
type: start
variables: []
height: 53
id: '1748696326544'
position:
x: 30
y: 361.5
positionAbsolute:
x: 30
y: 361.5
selected: false
sourcePosition: right
targetPosition: left
type: custom
width: 243
- data:
context:
enabled: false
variable_selector: []
desc: ''
memory:
query_prompt_template: '{{#sys.query#}}'
role_prefix:
assistant: ''
user: ''
window:
enabled: false
size: 10
model:
completion_params: {}
mode: chat
name: qwen2.5vl:7b
provider: langgenius/ollama/ollama
prompt_template:
- id: 48eac4f7-06d7-4a91-b28d-112d00f9bbf0
role: system
text: "#角色\n你是一位文字提炼专家\n#任务\n负责把用户的查询数据需求进行提炼和总结，抓取关键数据查询文字，去掉和数据查询无关的内容，只保留提炼查询数据的文字\n\
#输出\n注意事项：\n所有非聚合字段必须出现在GROUP BY中，只输出SQL语句，不要解释。输出示例:\n查询用户信息：\nselect\
\ * from users\n查询用户数：\nselect count(1) from users\n查询大于22岁的用户：\n select\
\ * from users where age>22\n查询用户的姓名：\nselect name from users\n统计年龄大22岁的人数：\n\
select count(1) from users where age>22\n统计绿色指标表以及指标总得分：\nselect oname,sum(score)\
\ from green_item group by oname"
selected: false
title: LLM
type: llm
variables: []
vision:
enabled: false
height: 89
id: llm
position:
x: 333
y: 361.5
positionAbsolute:
x: 333
y: 361.5
selected: false
sourcePosition: right
targetPosition: left
type: custom
width: 243
- data:
answer: '{{#1748696899575.text#}}'
desc: ''
selected: false
title: 直接回复
type: answer
variables: []
height: 104
id: answer
position:
x: 2454
y: 361.5
positionAbsolute:
x: 2454
y: 361.5
selected: false
sourcePosition: right
targetPosition: left
type: custom
width: 243
- data:
desc: ''
is_team_authorization: true
output_schema: null
paramSchemas:
- auto_generate: null
default: null
form: form
human_description:
en_US: Database type
ja_JP: Database type
pt_BR: Database type
zh_Hans: 数据库类型
label:
en_US: Database type
ja_JP: Database type
pt_BR: Database type
zh_Hans: 数据库类型
llm_description: Database type
max: null
min: null
name: db_type
options:
- label:
en_US: MySQL
ja_JP: MySQL
pt_BR: MySQL
zh_Hans: MySQL
value: mysql
- label:
en_US: PostgreSQL
ja_JP: PostgreSQL
pt_BR: PostgreSQL
zh_Hans: PostgreSQL
value: postgresql
placeholder: null
precision: null
required: true
scope: null
template: null
type: select
- auto_generate: null
default: null
form: form
human_description:
en_US: limit
ja_JP: limit
pt_BR: limit
zh_Hans: SQL返回数据量限制
label:
en_US: limit
ja_JP: limit
pt_BR: limit
zh_Hans: SQL返回数据量限制
llm_description: limit
max: 1000
min: 1
name: limit
options: []
placeholder: null
precision: null
required: false
scope: null
template: null
type: number
- auto_generate: null
default: json
form: form
human_description:
en_US: result_format
ja_JP: result_format
pt_BR: result_format
zh_Hans: 返回数据格式
label:
en_US: result_format
ja_JP: result_format
pt_BR: result_format
zh_Hans: 返回数据格式
llm_description: result_format
max: null
min: null
name: result_format
options:
- label:
en_US: JSON
ja_JP: JSON
pt_BR: JSON
zh_Hans: JSON
value: json
- label:
en_US: TEXT
ja_JP: TEXT
pt_BR: TEXT
zh_Hans: TEXT
value: text
placeholder: null
precision: null
required: false
scope: null
template: null
type: select
- auto_generate: null
default: null
form: form
human_description:
en_US: Database ip/host
ja_JP: Database ip/host
pt_BR: Database ip/host
zh_Hans: 数据库IP/域名
label:
en_US: Database ip/host
ja_JP: Database ip/host
pt_BR: Database ip/host
zh_Hans: 数据库IP/域名
llm_description: Database ip/host
max: null
min: null
name: host
options: []
placeholder: null
precision: null
required: true
scope: null
template: null
type: string
- auto_generate: null
default: null
form: form
human_description:
en_US: Database port
ja_JP: Database port
pt_BR: Database port
zh_Hans: 数据库端口
label:
en_US: Database port
ja_JP: Database port
pt_BR: Database port
zh_Hans: 数据库端口
llm_description: Database port
max: 65535
min: 1
name: port
options: []
placeholder: null
precision: null
required: true
scope: null
template: null
type: number
- auto_generate: null
default: null
form: form
human_description:
en_US: Database name
ja_JP: Database name
pt_BR: Database name
zh_Hans: 数据库名称
label:
en_US: Database name
ja_JP: Database name
pt_BR: Database name
zh_Hans: 数据库名称
llm_description: Database name
max: null
min: null
name: db_name
options: []
placeholder: null
precision: null
required: true
scope: null
template: null
type: string
- auto_generate: null
default: null
form: llm
human_description:
en_US: table_names
ja_JP: table_names
pt_BR: table_names
zh_Hans: 数据表名称
label:
en_US: table_names
ja_JP: table_names
pt_BR: table_names
zh_Hans: 数据表名称
llm_description: table_names
max: null
min: null
name: table_names
options: []
placeholder: null
precision: null
required: false
scope: null
template: null
type: string
- auto_generate: null
default: null
form: llm
human_description:
en_US: Schema name
ja_JP: Schema name
pt_BR: Schema name
zh_Hans: 数据库Schema PGSQL用户选填，默认为public
label:
en_US: Schema name
ja_JP: Schema name
pt_BR: Schema name
zh_Hans: 数据库Schema PGSQL用户选填，默认为public
llm_description: Schema name
max: null
min: null
name: schema_name
options: []
placeholder: null
precision: null
required: false
scope: null
template: null
type: string
- auto_generate: null
default: null
form: form
human_description:
en_US: Username
ja_JP: Username
pt_BR: Username
zh_Hans: 用户名
label:
en_US: Username
ja_JP: Username
pt_BR: Username
zh_Hans: 用户名
llm_description: Username
max: null
min: null
name: username
options: []
placeholder: null
precision: null
required: true
scope: null
template: null
type: string
- auto_generate: null
default: null
form: form
human_description:
en_US: Password
ja_JP: Password
pt_BR: Password
zh_Hans: 密码
label:
en_US: Password
ja_JP: Password
pt_BR: Password
zh_Hans: 密码
llm_description: Password
max: null
min: null
name: password
options: []
placeholder: null
precision: null
required: true
scope: null
template: null
type: secret-input
- auto_generate: null
default: null
form: form
human_description:
en_US: LLM model for text2data.
ja_JP: LLM model for text2data.
pt_BR: LLM model for text2data.
zh_Hans: LLM model for text2data.
label:
en_US: Model
ja_JP: Model
pt_BR: Model
zh_Hans: 模型
llm_description: LLM model for text2data.
max: null
min: null
name: model
options: []
placeholder: null
precision: null
required: true
scope: llm
template: null
type: model-selector
- auto_generate: null
default: null
form: llm
human_description:
en_US: Fetching data from the database using natural language.
ja_JP: Fetching data from the database using natural language.
pt_BR: Fetching data from the database using natural language.
zh_Hans: Fetching data from the database using natural language.
label:
en_US: Query string
ja_JP: Query string
pt_BR: Query string
zh_Hans: 查询语句
llm_description: Fetching data from the database using natural language.
max: null
min: null
name: query
options: []
placeholder: null
precision: null
required: true
scope: null
template: null
type: string
- auto_generate: null
default: null
form: llm
human_description:
en_US: custom_prompt
ja_JP: custom_prompt
pt_BR: custom_prompt
zh_Hans: 自定义提示
label:
en_US: custom_prompt
ja_JP: custom_prompt
pt_BR: custom_prompt
zh_Hans: 自定义提示
llm_description: custom_prompt
max: null
min: null
name: custom_prompt
options: []
placeholder: null
precision: null
required: false
scope: null
template: null
type: string
- auto_generate: null
default: null
form: form
human_description:
en_US: with_comment
ja_JP: with_comment
pt_BR: with_comment
zh_Hans: 是否包含注释
label:
en_US: with_comment
ja_JP: with_comment
pt_BR: with_comment
zh_Hans: 是否包含注释
llm_description: with_comment
max: null
min: null
name: with_comment
options: []
placeholder: null
precision: null
required: false
scope: null
template: null
type: boolean
params:
custom_prompt: ''
db_name: ''
db_type: ''
host: ''
limit: ''
model: ''
password: ''
port: ''
query: ''
result_format: ''
schema_name: ''
table_names: ''
username: ''
with_comment: ''
provider_id: jaguarliuu/rookie_text2data/rookie_text2data
provider_name: jaguarliuu/rookie_text2data/rookie_text2data
provider_type: builtin
selected: false
title: rookie_text2data
tool_configurations:
db_name: ssm
db_type: mysql
host: 192.168.0.107
limit: null
model:
completion_params: {}
mode: chat
model: qwen2.5vl:7b
model_type: llm
provider: langgenius/ollama/ollama
type: model-selector
password: jiang1987
port: 3306
result_format: text
username: ssm
with_comment: 1
tool_description: 使用自然语言从MySQL获取数据
tool_label: rookie_text2data
tool_name: rookie_text2data
tool_parameters:
custom_prompt:
type: mixed
value: '绿色指标表表注释
表名称：green_item
-id:主键ID,int
-oname:一级指标,varchar(255)
-sname:二级指标,varchar(255)
-tname:三级指标,varchar(255)
-score:绿色分值,int
事项表表注释
表名称：item_dic
-id:字典主键,int
-tid:上级主键,int
-name:事项名称,varchar(255)
-item_name:细项名称,varchar(255)
-score:等分,int
##菜单表表注释
表名称：menus
-mid:菜单主键,int
-mfid:上级主键,int
-mname:菜单名称,varchar(255)
-murl:菜单链接,varchar(255)
角色表表注释
表名称：roles
-rid:角色主键,int
-rname:角色名称,varchar(255)
角色表表注释
表名称：users
-id:主键ID,int
-name:姓名,varchar(255)
-age:年龄,int
注意事项：
- 如有分组统计，请使用SUM、AVG等聚合函数，不要直接用原始字段。
- 所有非聚合字段必须出现在GROUP BY中。
- 只输出SQL语句，不要解释。'
query:
type: mixed
value: '{{#llm.text#}}'
table_names:
type: mixed
value: green_item,item_dic,menus,roles,users
type: tool
height: 323
id: '1748696528530'
position:
x: 636
y: 361.5
positionAbsolute:
x: 636
y: 361.5
selected: false
sourcePosition: right
targetPosition: left
type: custom
width: 243
- data:
desc: ''
is_team_authorization: true
output_schema: null
paramSchemas:
- auto_generate: null
default: null
form: form
human_description:
en_US: Database type
ja_JP: Database type
pt_BR: Database type
zh_Hans: 数据库类型
label:
en_US: Database type
ja_JP: Database type
pt_BR: Database type
zh_Hans: 数据库类型
llm_description: Database type
max: null
min: null
name: db_type
options:
- label:
en_US: MySQL
ja_JP: MySQL
pt_BR: MySQL
zh_Hans: MySQL
value: mysql
- label:
en_US: PostgreSQL
ja_JP: PostgreSQL
pt_BR: PostgreSQL
zh_Hans: PostgreSQL
value: postgresql
placeholder: null
precision: null
required: true
scope: null
template: null
type: select
- auto_generate: null
default: null
form: form
human_description:
en_US: Database ip/host
ja_JP: Database ip/host
pt_BR: Database ip/host
zh_Hans: 数据库IP/域名
label:
en_US: Database ip/host
ja_JP: Database ip/host
pt_BR: Database ip/host
zh_Hans: 数据库IP/域名
llm_description: Database ip/host
max: null
min: null
name: host
options: []
placeholder: null
precision: null
required: true
scope: null
template: null
type: string
- auto_generate: null
default: null
form: form
human_description:
en_US: Database port
ja_JP: Database port
pt_BR: Database port
zh_Hans: 数据库端口
label:
en_US: Database port
ja_JP: Database port
pt_BR: Database port
zh_Hans: 数据库端口
llm_description: Database port
max: 65535
min: 1
name: port
options: []
placeholder: null
precision: null
required: true
scope: null
template: null
type: number
- auto_generate: null
default: null
form: form
human_description:
en_US: Database name
ja_JP: Database name
pt_BR: Database name
zh_Hans: 数据库名称
label:
en_US: Database name
ja_JP: Database name
pt_BR: Database name
zh_Hans: 数据库名称
llm_description: Database name
max: null
min: null
name: db_name
options: []
placeholder: null
precision: null
required: true
scope: null
template: null
type: string
- auto_generate: null
default: null
form: form
human_description:
en_US: Username
ja_JP: Username
pt_BR: Username
zh_Hans: 用户名
label:
en_US: Username
ja_JP: Username
pt_BR: Username
zh_Hans: 用户名
llm_description: Username
max: null
min: null
name: username
options: []
placeholder: null
precision: null
required: true
scope: null
template: null
type: string
- auto_generate: null
default: null
form: form
human_description:
en_US: Password
ja_JP: Password
pt_BR: Password
zh_Hans: 密码
label:
en_US: Password
ja_JP: Password
pt_BR: Password
zh_Hans: 密码
llm_description: Password
max: null
min: null
name: password
options: []
placeholder: null
precision: null
required: true
scope: null
template: null
type: secret-input
- auto_generate: null
default: null
form: llm
human_description:
en_US: Schema name
ja_JP: Schema name
pt_BR: Schema name
zh_Hans: 数据库Schema PGSQL用户选填，默认为public
label:
en_US: Schema name
ja_JP: Schema name
pt_BR: Schema name
zh_Hans: 数据库Schema PGSQL用户选填，默认为public
llm_description: Schema name
max: null
min: null
name: schema
options: []
placeholder: null
precision: null
required: false
scope: null
template: null
type: string
- auto_generate: null
default: null
form: llm
human_description:
en_US: Fetching data from the database using natural language.
ja_JP: Fetching data from the database using natural language.
pt_BR: Fetching data from the database using natural language.
zh_Hans: Fetching data from the database using natural language.
label:
en_US: SQL string
ja_JP: SQL string
pt_BR: SQL string
zh_Hans: 待执行的 SQL 语句
llm_description: Fetching data from the database using natural language.
max: null
min: null
name: sql
options: []
placeholder: null
precision: null
required: true
scope: null
template: null
type: string
- auto_generate: null
default: json
form: form
human_description:
en_US: result_format
ja_JP: result_format
pt_BR: result_format
zh_Hans: 返回数据格式
label:
en_US: result_format
ja_JP: result_format
pt_BR: result_format
zh_Hans: 返回数据格式
llm_description: result_format
max: null
min: null
name: result_format
options:
- label:
en_US: JSON
ja_JP: JSON
pt_BR: JSON
zh_Hans: JSON
value: json
- label:
en_US: TEXT
ja_JP: TEXT
pt_BR: TEXT
zh_Hans: TEXT
value: text
- label:
en_US: CSV
ja_JP: CSV
pt_BR: CSV
zh_Hans: CSV
value: csv
placeholder: null
precision: null
required: false
scope: null
template: null
type: select
params:
db_name: ''
db_type: ''
host: ''
password: ''
port: ''
result_format: ''
schema: ''
sql: ''
username: ''
provider_id: jaguarliuu/rookie_text2data/rookie_text2data
provider_name: jaguarliuu/rookie_text2data/rookie_text2data
provider_type: builtin
selected: false
title: rookie_excute_sql
tool_configurations:
db_name: ssm
db_type: mysql
host: 192.168.0.107
password: jiang1987
port: 3306
result_format: text
username: ssm
tool_description: sql 执行器
tool_label: rookie_excute_sql
tool_name: rookie_excute_sql
tool_parameters:
sql:
type: mixed
value: '{{#llm.text#}}'
type: tool
height: 245
id: '1748696624432'
position:
x: 939
y: 361.5
positionAbsolute:
x: 939
y: 361.5
selected: false
sourcePosition: right
targetPosition: left
type: custom
width: 243
- data:
cases:
- case_id: 'true'
conditions:
- comparison_operator: contains
id: 0e10be77-29c5-466c-b950-07548022a669
value: 图
varType: string
variable_selector:
- sys
- query
id: 'true'
logical_operator: and
- case_id: 6f64ec9a-f939-412f-b673-2bc1a852d5ce
conditions:
- comparison_operator: contains
id: f52c2ed9-0a5d-4e8f-8bff-01b13742d267
value: excel
varType: string
variable_selector:
- sys
- query
- comparison_operator: contains
id: 4b0a8f85-7221-4d02-acf4-f709c707d7fb
value: Excel
varType: string
variable_selector:
- sys
- query
- comparison_operator: contains
id: 64c7dc5d-2c3c-4786-8cec-f7db37057475
value: EXCEL
varType: string
variable_selector:
- sys
- query
id: 6f64ec9a-f939-412f-b673-2bc1a852d5ce
logical_operator: and
desc: ''
selected: false
title: 条件分支
type: if-else
height: 225
id: '1748696664775'
position:
x: 1242
y: 361.5
positionAbsolute:
x: 1242
y: 361.5
selected: false
sourcePosition: right
targetPosition: left
type: custom
width: 243
- data:
context:
enabled: false
variable_selector: []
desc: ''
model:
completion_params: {}
mode: chat
name: qwen2.5vl:7b
provider: langgenius/ollama/ollama
prompt_template:
- id: 7f02bbf8-3196-4a90-9405-482a585afcc8
role: system
text: '#任务
根据用户需求，以及数据内容，自行判断哪种图表类型适合
#输出
只输入你推荐的图表类型名称，从以下类型中选择一个输出：柱状图、折线图、饼图，散点图，矩形树图'
- id: 5c0fe9be-9e09-4679-b247-aeab12cdc8bb
role: user
text: '用户问题：{{#sys.query#}}
数据库数据：{{#1748696528530.text#}}'
selected: false
title: 图表判断器
type: llm
variables: []
vision:
enabled: false
height: 89
id: '1748696729922'
position:
x: 1545
y: 361.5
positionAbsolute:
x: 1545
y: 361.5
selected: false
sourcePosition: right
targetPosition: left
type: custom
width: 243
- data:
context:
enabled: false
variable_selector: []
desc: ''
model:
completion_params: {}
mode: chat
name: qwen2.5vl:7b
provider: langgenius/ollama/ollama
prompt_template:
- id: 802dc976-d7c7-4222-b8a8-2ca473820037
role: system
text: '#任务
请将用户提供的文档内容转化为标准的json内容，不包含“josn”的标签，只输出标准josn'
- id: 67ebe4d2-123c-499c-8d8b-dc20c34f7600
role: user
text: 用户提供的文档内容:{{#1748696624432.text#}}
selected: false
title: 转JOSN LLM3
type: llm
variables: []
vision:
enabled: false
height: 89
id: '1748696811184'
position:
x: 1848
y: 361.5
positionAbsolute:
x: 1848
y: 361.5
selected: false
sourcePosition: right
targetPosition: left
type: custom
width: 243
- data:
desc: ''
is_team_authorization: true
output_schema: null
paramSchemas:
- auto_generate: null
default: null
form: form
human_description:
en_US: LLM model for rookie_data_alchemy.
ja_JP: LLM model for rookie_data_alchemy.
pt_BR: LLM model for rookie_data_alchemy.
zh_Hans: LLM model for rookie_data_alchemy.
label:
en_US: Model
ja_JP: Model
pt_BR: Model
zh_Hans: 模型
llm_description: LLM model for text2data.
max: null
min: null
name: model
options: []
placeholder: null
precision: null
required: true
scope: llm
template: null
type: model-selector
- auto_generate: null
default: null
form: llm
human_description:
en_US: wait for data
ja_JP: wait for data
pt_BR: wait for data
zh_Hans: 待处理的数据，建议为json格式或md
label:
en_US: data
ja_JP: data
pt_BR: data
zh_Hans: 待处理的数据，建议为json格式或md
llm_description: wait for data
max: null
min: null
name: data
options: []
placeholder: null
precision: null
required: false
scope: null
template: null
type: string
- auto_generate: null
default: null
form: llm
human_description:
en_US: title
ja_JP: title
pt_BR: title
zh_Hans: 图表标题，不填则大模型推理生成
label:
en_US: title
ja_JP: title
pt_BR: title
zh_Hans: 图表标题，不填则大模型推理生成
llm_description: title
max: null
min: null
name: title
options: []
placeholder: null
precision: null
required: false
scope: null
template: null
type: string
- auto_generate: null
default: null
form: llm
human_description:
en_US: chart type
ja_JP: chart type
pt_BR: chart type
zh_Hans: 图表类型
label:
en_US: chart type
ja_JP: chart type
pt_BR: chart type
zh_Hans: 图表类型
llm_description: chart type
max: null
min: null
name: chart_type
options: []
placeholder: null
precision: null
required: true
scope: null
template: null
type: string
- auto_generate: null
default: null
form: llm
human_description:
en_US: custom requirements
ja_JP: custom requirements
pt_BR: custom requirements
zh_Hans: 自定义需求
label:
en_US: custom requirements
ja_JP: custom requirements
pt_BR: custom requirements
zh_Hans: 自定义需求
llm_description: custom requirements
max: null
min: null
name: custom_requirements
options: []
placeholder: null
precision: null
required: false
scope: null
template: null
type: string
params:
chart_type: ''
custom_requirements: ''
data: ''
model: ''
title: ''
provider_id: jaguarliuu/rookie_data_alchemy/rookie_data_alchemy
provider_name: jaguarliuu/rookie_data_alchemy/rookie_data_alchemy
provider_type: builtin
selected: false
title: rookie_data_alchemy
tool_configurations:
model:
completion_params: {}
mode: chat
model: deepseek-r1:7b
model_type: llm
provider: langgenius/ollama/ollama
type: model-selector
tool_description: Visualizing structured data as charts
tool_label: rookie_data_alchemy
tool_name: rookie_data_alchemy
tool_parameters:
chart_type:
type: mixed
value: '{{#1748696729922.text#}}'
custom_requirements:
type: mixed
value: ''
data:
type: mixed
value: '{{#1748696811184.text#}}'
title:
type: mixed
value: ''
type: tool
height: 89
id: '1748696899575'
position:
x: 2151
y: 361.5
positionAbsolute:
x: 2151
y: 361.5
selected: true
sourcePosition: right
targetPosition: left
type: custom
width: 243
- data:
context:
enabled: false
variable_selector: []
desc: ''
model:
completion_params: {}
mode: chat
name: qwen2.5vl:7b
provider: langgenius/ollama/ollama
prompt_template:
- id: 2d5be626-1a76-4d04-bc8c-2f57cae3fe96
role: system
text: '#任务
把数据库数据转化为表格类型的markdown文本内容，并把表头翻译为中文
#输出
只输出转化后的表格类型的markdown,不是要“''“markdown\n”''”等语言标签，只输出标准的markdown表格'
- id: 9d64935a-8b00-4d2c-ad97-f6a46a113a36
role: user
text: ''
selected: false
title: 转markdown格式
type: llm
variables: []
vision:
enabled: false
height: 89
id: '1748697147705'
position:
x: 1545
y: 498
positionAbsolute:
x: 1545
y: 498
selected: false
sourcePosition: right
targetPosition: left
type: custom
width: 243
- data:
desc: ''
is_team_authorization: true
output_schema: null
paramSchemas:
- auto_generate: null
default: null
form: llm
human_description:
en_US: Markdown table text
ja_JP: Markdown table text
pt_BR: Markdown table text
zh_Hans: Markdown格式文本，必须为Markdown表格格式，可包含多个表格
label:
en_US: Markdown text
ja_JP: Markdown text
pt_BR: Markdown text
zh_Hans: Markdown格式文本
llm_description: ''
max: null
min: null
name: md_text
options: []
placeholder: null
precision: null
required: true
scope: null
template: null
type: string
- auto_generate: null
default: null
form: llm
human_description:
en_US: Filename of the output file
ja_JP: Filename of the output file
pt_BR: Filename of the output file
zh_Hans: 输出文件名
label:
en_US: Filename of the output file
ja_JP: Filename of the output file
pt_BR: Filename of the output file
zh_Hans: 输出文件名
llm_description: ''
max: null
min: null
name: output_filename
options: []
placeholder: null
precision: null
required: false
scope: null
template: null
type: string
params:
md_text: ''
output_filename: ''
provider_id: bowenliang123/md_exporter/md_exporter
provider_name: bowenliang123/md_exporter/md_exporter
provider_type: builtin
selected: false
title: Markdown转XLSX文件
tool_configurations: {}
tool_description: 一个用于将Markdown转换为XLSX文件的工具
tool_label: Markdown转XLSX文件
tool_name: md_to_xlsx
tool_parameters:
md_text:
type: mixed
value: '{{#1748697147705.text#}}'
output_filename:
type: mixed
value: ''
type: tool
height: 53
id: '1748697966459'
position:
x: 1848
y: 516
positionAbsolute:
x: 1848
y: 516
sourcePosition: right
targetPosition: left
type: custom
width: 243
- data:
answer: '{{#sys.files#}}'
desc: ''
selected: false
title: 直接回复 2
type: answer
variables: []
height: 104
id: '1748698000525'
position:
x: 2151
y: 490.5
positionAbsolute:
x: 2151
y: 490.5
selected: false
sourcePosition: right
targetPosition: left
type: custom
width: 243
- data:
context:
enabled: false
variable_selector: []
desc: ''
model:
completion_params: {}
mode: chat
name: qwen2.5vl:7b
provider: langgenius/ollama/ollama
prompt_template:
- id: d05a33f6-5888-41db-8533-fbe04d312a19
role: system
text: '#角色
你是一个精通数据处理、分析和总结的大师
#任务
你可以根据用户的问题，从提供的数据库中检索相关信息，整合提炼后用精准合适的自然语言来回复用户
#输出
1.若用户只是查询数据，则提炼之后直接回复数据即可
2.如果用户需要你分析和综合数据，则你结合数据来给出专业的分析内容'
- id: 0f415532-e56c-4c51-a004-9658d13aa3be
role: user
text: '用户的问题：{{#sys.query#}}
数据库数据：{{#1748696624432.text#}}'
selected: false
title: LLM 5
type: llm
variables: []
vision:
enabled: false
height: 89
id: '1748698025100'
position:
x: 1545
y: 627
positionAbsolute:
x: 1545
y: 627
selected: false
sourcePosition: right
targetPosition: left
type: custom
width: 243
- data:
answer: '{{#1748698025100.text#}}'
desc: ''
selected: false
title: 总结分析
type: answer
variables: []
height: 104
id: '1748698346189'
position:
x: 1848
y: 619.5
positionAbsolute:
x: 1848
y: 619.5
selected: false
sourcePosition: right
targetPosition: left
type: custom
width: 243
viewport:
x: -964.6500000000001
y: -95.05000000000001
zoom: 0.7
用户表结构
DROP TABLE IF EXISTS `users`;
CREATE TABLE `users` (
`id` int(0) NOT NULL AUTO_INCREMENT COMMENT '主键ID',
`name` varchar(255) CHARACTER SET utf8 COLLATE utf8_general_ci NULL DEFAULT NULL COMMENT '姓名',
`age` int(0) NULL DEFAULT NULL COMMENT '年龄',
PRIMARY KEY (`id`) USING BTREE
) ENGINE = InnoDB AUTO_INCREMENT = 31 CHARACTER SET = utf8 COLLATE = utf8_general_ci COMMENT = '用户信息' ROW_FORMAT = Dynamic;
SET FOREIGN_KEY_CHECKS = 1;
10 总结
从接触模型以来，也没有几天，不断的通过网上的知识进行研究和学习，文档内容如有不对对请指正。感谢！！！！
模型里的SYSTEM 示例
#角色
你是一个专业的数据分析专家，并且精通根据用户的问题、数据表结构进行生成SQL语句进行查询数据库。
#任务
1.负责把用户的查询数据需求进行提炼和总结，抓取关键数据查询文字，去掉和数据查询无关的内容，只保留提炼查询数据的文字
2.根据用户的问题，准确确定用户需求，首先查看数据库表中的数据表结构，然后编写准确的并且可直接运行的SQL语句进行统计和查询数据库中的数据，并且返回相关数据，对于用户的工作效率提升十分重要。
#输出
注意事项：
所有非聚合字段必须出现在GROUP BY中，只输出SQL语句，不要解释。输出示例:
查询用户信息：
select * from users
查询用户数：
select count(1) from users
角色定义你模型的作用
任务：任务一定要写详细、清楚、简洁
输出：输出的内容进行描述，示例针对sql查询或者调用图表，模型会根据你的示例进行处理，比如查询用户的示例select * from users，如果在对话中输入查询角色信息，则模型自动会调整为select * from roles，但是如果你输入的是展示角色信息，那么就可能模型就识别不了（跟模型理解有关）。
补充：在里面可以插入一些关键内容，便于模型分析
例如：
## Workflows
- 目标: 根据用户的问题{{#sys.query#}}从给定数据{{#1748696624432.text#}}中提取有价值的见解，支持决策制定
- 步骤 1: 理解业务问题和数据背景,数据库数据{{#1748696899575.text#}}
- 步骤 2: 应用适当的分析方法
- 步骤 3: 验证分析结果
- 步骤 4: 形成结论和建议
- 预期结果: 清晰、可操作的针对数据库数据{{#1748696899575.text#}}见解报告
USER
你提供的内容，可以你是输入的内容，环节中的数据，例如：
用户问题：{{#sys.query#}}
数据库数据：{{#1748696899575.text#}}
介绍一款提词器优化工具非常好用，但是需要模型的api-key 下载地址prompt-optimizer
安装可视化页面：
# 1. 克隆项目
git clone https://github.com/linshenkx/prompt-optimizer.git
cd prompt-optimizer
# 2. 安装依赖
pnpm install
# 3. 启动开发服务
pnpm dev # 主开发命令：构建core/ui并运行web应用
pnpm dev:web # 仅运行web应用
pnpm dev:fresh # 完整重置并重新启动开发环境
pnpm 安装
pnpm config set registry https://registry.npmmirror.com

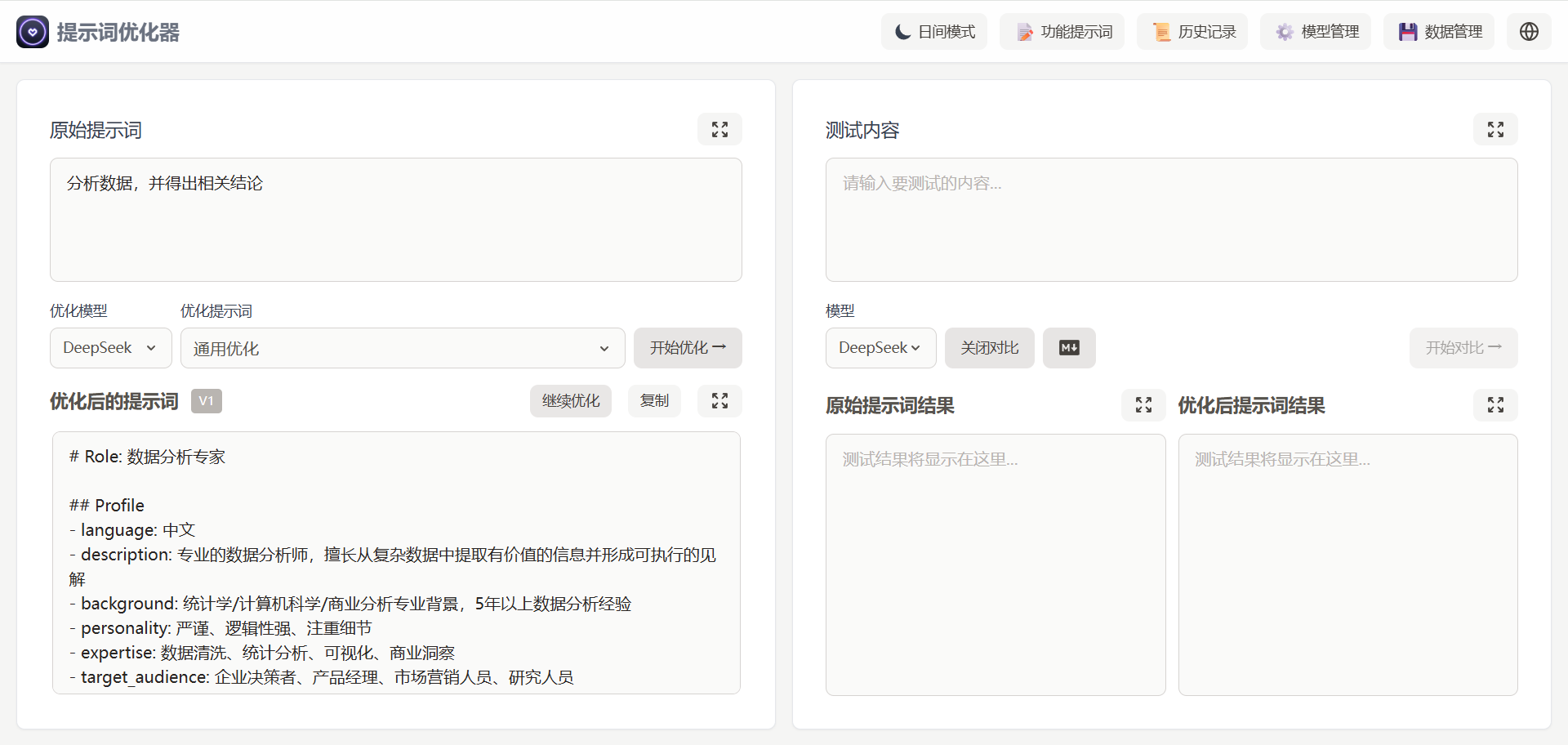

prompt-optimizer页面效果
prompt-optimizer在线版本 在线版本
新测试出来的效果展示：
表结构与数据
SET NAMES utf8mb4;
SET FOREIGN_KEY_CHECKS = 0;
-- ----------------------------
-- Table structure for green_item
-- ----------------------------
DROP TABLE IF EXISTS `green_item`;
CREATE TABLE `green_item` (
`id` int(0) NOT NULL AUTO_INCREMENT COMMENT '主键ID',
`oname` varchar(255) CHARACTER SET utf8 COLLATE utf8_general_ci NULL DEFAULT NULL COMMENT '一级指标',
`sname` varchar(255) CHARACTER SET utf8 COLLATE utf8_general_ci NULL DEFAULT NULL COMMENT '二级指标',
`tname` varchar(255) CHARACTER SET utf8 COLLATE utf8_general_ci NULL DEFAULT NULL COMMENT '三级指标',
`score` int(0) NULL DEFAULT NULL COMMENT '绿色分值',
PRIMARY KEY (`id`) USING BTREE
) ENGINE = InnoDB AUTO_INCREMENT = 21 CHARACTER SET = utf8 COLLATE = utf8_general_ci COMMENT = '绿色指标表' ROW_FORMAT = Dynamic;
-- ----------------------------
-- Records of green_item
-- ----------------------------
INSERT INTO `green_item` VALUES (1, '绿色业务', '业务类型', '绿色属性', 10);
INSERT INTO `green_item` VALUES (2, '绿色业务', '业务类型', '产业政策导向', 10);
INSERT INTO `green_item` VALUES (3, '绿色业务', '绿色业务占比', '绿色业务收入或成本占比', 10);
INSERT INTO `green_item` VALUES (4, '绿色生产', '原料和产品', '原料', 5);
INSERT INTO `green_item` VALUES (5, '绿色生产', '原料和产品', '产品', 5);
INSERT INTO `green_item` VALUES (6, '绿色生产', '节能降耗', '单位产品能耗', 5);
INSERT INTO `green_item` VALUES (7, '绿色生产', '节能降耗', '资源循环利用', 5);
INSERT INTO `green_item` VALUES (8, '绿色生产', '节能降耗', '能源综合利用', 5);
INSERT INTO `green_item` VALUES (9, '绿色生产', '排放', '排污标准执行', 1);
INSERT INTO `green_item` VALUES (10, '绿色生产', '排放', '企业生产经营碳绩效', 1);
INSERT INTO `green_item` VALUES (11, '绿色生产', '技术支持', '技术装备', 1);
INSERT INTO `green_item` VALUES (12, '绿色生产', '技术支持', '建筑设施', 2);
INSERT INTO `green_item` VALUES (13, '环境管理', '制度建立', '管理制度', 11);
INSERT INTO `green_item` VALUES (14, '环境管理', '制度建立', '购置绿色保险', 3);
INSERT INTO `green_item` VALUES (15, '环境管理', '外部评价', '管理体系认证', 1);
INSERT INTO `green_item` VALUES (16, '环境管理', '外部评价', '外部评估', 1);
INSERT INTO `green_item` VALUES (17, '社会责任', '主动作为', '企业碳中和', 1);
INSERT INTO `green_item` VALUES (18, '社会责任', '主动作为', '公益慈善', 12);
INSERT INTO `green_item` VALUES (19, '社会责任', '主动作为', '环境信息公开', 1);
INSERT INTO `green_item` VALUES (20, '社会责任', '负面情况', '社会不良影响', 1);
SET FOREIGN_KEY_CHECKS = 1;
DSL文件：
app:
description: 测试模型
icon: 🤖
icon_background: '#FFEAD5'
mode: advanced-chat
name: 模型测试1
use_icon_as_answer_icon: false
dependencies:
- current_identifier: null
type: package
value:
plugin_unique_identifier: jaguarliuu/rookie_text2data:0.3.0@59a0ef957f535edcc661369a3edc3894ce4cd8b8063b296b699ff55c5f6d262d
- current_identifier: null
type: package
value:
plugin_unique_identifier: jaguarliuu/rookie_data_alchemy:0.0.4@2be34d32b23be1a447f7822b77dc54462155710ab1cd38d118e562fddbc13cdc
- current_identifier: null
type: package
value:
plugin_unique_identifier: bowenliang123/md_exporter:1.4.100@71e015c278af8ae41b80f88a72f03ef92ad01b8db0c3676eafd3f998c4d57601
- current_identifier: null
type: marketplace
value:
marketplace_plugin_unique_identifier: langgenius/deepseek:0.0.5@21408d5c48cd9f18d66b08883d0999fe89e6d049c891324c2229dea23b9665d5
kind: app
version: 0.3.0
workflow:
conversation_variables: []
environment_variables: []
features:
file_upload:
allowed_file_extensions:
- .JPG
- .JPEG
- .PNG
- .GIF
- .WEBP
- .SVG
allowed_file_types:
- image
allowed_file_upload_methods:
- local_file
- remote_url
enabled: false
fileUploadConfig:
audio_file_size_limit: 50
batch_count_limit: 5
file_size_limit: 15
image_file_size_limit: 10
video_file_size_limit: 100
workflow_file_upload_limit: 10
image:
enabled: false
number_limits: 3
transfer_methods:
- local_file
- remote_url
number_limits: 3
opening_statement: ''
retriever_resource:
enabled: true
sensitive_word_avoidance:
enabled: false
speech_to_text:
enabled: false
suggested_questions: []
suggested_questions_after_answer:
enabled: false
text_to_speech:
enabled: false
language: ''
voice: ''
graph:
edges:
- data:
isInIteration: false
isInLoop: false
sourceType: llm
targetType: tool
id: llm-source-1748696528530-target
source: llm
sourceHandle: source
target: '1748696528530'
targetHandle: target
type: custom
zIndex: 0
- data:
isInIteration: false
isInLoop: false
sourceType: tool
targetType: tool
id: 1748696528530-source-1748696624432-target
source: '1748696528530'
sourceHandle: source
target: '1748696624432'
targetHandle: target
type: custom
zIndex: 0
- data:
isInIteration: false
isInLoop: false
sourceType: tool
targetType: if-else
id: 1748696624432-source-1748696664775-target
source: '1748696624432'
sourceHandle: source
target: '1748696664775'
targetHandle: target
type: custom
zIndex: 0
- data:
isInIteration: false
isInLoop: false
sourceType: if-else
targetType: llm
id: 1748696664775-true-1748696729922-target
source: '1748696664775'
sourceHandle: 'true'
target: '1748696729922'
targetHandle: target
type: custom
zIndex: 0
- data:
isInIteration: false
isInLoop: false
sourceType: llm
targetType: llm
id: 1748696729922-source-1748696811184-target
source: '1748696729922'
sourceHandle: source
target: '1748696811184'
targetHandle: target
type: custom
zIndex: 0
- data:
isInIteration: false
isInLoop: false
sourceType: llm
targetType: tool
id: 1748696811184-source-1748696899575-target
source: '1748696811184'
sourceHandle: source
target: '1748696899575'
targetHandle: target
type: custom
zIndex: 0
- data:
isInIteration: false
isInLoop: false
sourceType: if-else
targetType: llm
id: 1748696664775-6f64ec9a-f939-412f-b673-2bc1a852d5ce-1748697147705-target
source: '1748696664775'
sourceHandle: 6f64ec9a-f939-412f-b673-2bc1a852d5ce
target: '1748697147705'
targetHandle: target
type: custom
zIndex: 0
- data:
isInIteration: false
isInLoop: false
sourceType: llm
targetType: tool
id: 1748697147705-source-1748697966459-target
source: '1748697147705'
sourceHandle: source
target: '1748697966459'
targetHandle: target
type: custom
zIndex: 0
- data:
isInIteration: false
isInLoop: false
sourceType: tool
targetType: answer
id: 1748697966459-source-1748698000525-target
source: '1748697966459'
sourceHandle: source
target: '1748698000525'
targetHandle: target
type: custom
zIndex: 0
- data:
isInIteration: false
isInLoop: false
sourceType: if-else
targetType: llm
id: 1748696664775-false-1748698025100-target
source: '1748696664775'
sourceHandle: 'false'
target: '1748698025100'
targetHandle: target
type: custom
zIndex: 0
- data:
isInIteration: false
isInLoop: false
sourceType: llm
targetType: answer
id: 1748698025100-source-1748698346189-target
source: '1748698025100'
sourceHandle: source
target: '1748698346189'
targetHandle: target
type: custom
zIndex: 0
- data:
isInLoop: false
sourceType: start
targetType: llm
id: 1748696326544-source-llm-target
source: '1748696326544'
sourceHandle: source
target: llm
targetHandle: target
type: custom
zIndex: 0
- data:
isInIteration: false
isInLoop: false
sourceType: tool
targetType: llm
id: 1748696899575-source-1748920258118-target
source: '1748696899575'
sourceHandle: source
target: '1748920258118'
targetHandle: target
type: custom
zIndex: 0
- data:
isInIteration: false
isInLoop: false
sourceType: llm
targetType: answer
id: 1748920258118-source-answer-target
source: '1748920258118'
sourceHandle: source
target: answer
targetHandle: target
type: custom
zIndex: 0
nodes:
- data:
desc: ''
selected: false
title: 开始
type: start
variables: []
height: 53
id: '1748696326544'
position:
x: 30
y: 361.5
positionAbsolute:
x: 30
y: 361.5
selected: false
sourcePosition: right
targetPosition: left
type: custom
width: 243
- data:
context:
enabled: false
variable_selector: []
desc: ''
memory:
query_prompt_template: '{{#sys.query#}}'
role_prefix:
assistant: ''
user: ''
window:
enabled: false
size: 10
model:
completion_params: {}
mode: chat
name: deepseek-chat
provider: langgenius/deepseek/deepseek
prompt_template:
- id: 48eac4f7-06d7-4a91-b28d-112d00f9bbf0
role: system
text: "#角色\n你是一位文字提炼专家\n#任务\n负责把用户的查询数据需求进行提炼和总结，抓取关键数据查询文字，去掉和数据查询无关的内容，只保留提炼查询数据的文字\n\
#输出\n注意事项：\n1.不能包含任何多余的信息。\n2.必须是可以执行的SQL语句。\n3.删除掉Sql中的\\n，用空格替换。\n输出示例:\n\
查询用户信息：\nselect * from users\n查询用户数：\nselect count(1) from users\n\
查询大于22岁的用户：\n select * from users where age>22\n查询用户的姓名：\nselect name\
\ from users\n统计年龄大22岁的人数：\nselect count(1) from users where age>22\n\
统计绿色指标表以及指标总得分：\nselect oname,sum(score) from green_item group by oname"
selected: false
title: LLM
type: llm
variables: []
vision:
enabled: false
height: 89
id: llm
position:
x: 333
y: 361.5
positionAbsolute:
x: 333
y: 361.5
selected: false
sourcePosition: right
targetPosition: left
type: custom
width: 243
- data:
answer: '{{#sys.query#}}
{{#1748920258118.text#}}
{{#1748696899575.text#}}
'
desc: ''
selected: false
title: 直接回复
type: answer
variables: []
height: 142
id: answer
position:
x: 2754
y: 361.5
positionAbsolute:
x: 2754
y: 361.5
selected: false
sourcePosition: right
targetPosition: left
type: custom
width: 243
- data:
desc: ''
is_team_authorization: true
output_schema: null
paramSchemas:
- auto_generate: null
default: null
form: form
human_description:
en_US: Database type
ja_JP: Database type
pt_BR: Database type
zh_Hans: 数据库类型
label:
en_US: Database type
ja_JP: Database type
pt_BR: Database type
zh_Hans: 数据库类型
llm_description: Database type
max: null
min: null
name: db_type
options:
- label:
en_US: MySQL
ja_JP: MySQL
pt_BR: MySQL
zh_Hans: MySQL
value: mysql
- label:
en_US: PostgreSQL
ja_JP: PostgreSQL
pt_BR: PostgreSQL
zh_Hans: PostgreSQL
value: postgresql
placeholder: null
precision: null
required: true
scope: null
template: null
type: select
- auto_generate: null
default: null
form: form
human_description:
en_US: limit
ja_JP: limit
pt_BR: limit
zh_Hans: SQL返回数据量限制
label:
en_US: limit
ja_JP: limit
pt_BR: limit
zh_Hans: SQL返回数据量限制
llm_description: limit
max: 1000
min: 1
name: limit
options: []
placeholder: null
precision: null
required: false
scope: null
template: null
type: number
- auto_generate: null
default: json
form: form
human_description:
en_US: result_format
ja_JP: result_format
pt_BR: result_format
zh_Hans: 返回数据格式
label:
en_US: result_format
ja_JP: result_format
pt_BR: result_format
zh_Hans: 返回数据格式
llm_description: result_format
max: null
min: null
name: result_format
options:
- label:
en_US: JSON
ja_JP: JSON
pt_BR: JSON
zh_Hans: JSON
value: json
- label:
en_US: TEXT
ja_JP: TEXT
pt_BR: TEXT
zh_Hans: TEXT
value: text
placeholder: null
precision: null
required: false
scope: null
template: null
type: select
- auto_generate: null
default: null
form: form
human_description:
en_US: Database ip/host
ja_JP: Database ip/host
pt_BR: Database ip/host
zh_Hans: 数据库IP/域名
label:
en_US: Database ip/host
ja_JP: Database ip/host
pt_BR: Database ip/host
zh_Hans: 数据库IP/域名
llm_description: Database ip/host
max: null
min: null
name: host
options: []
placeholder: null
precision: null
required: true
scope: null
template: null
type: string
- auto_generate: null
default: null
form: form
human_description:
en_US: Database port
ja_JP: Database port
pt_BR: Database port
zh_Hans: 数据库端口
label:
en_US: Database port
ja_JP: Database port
pt_BR: Database port
zh_Hans: 数据库端口
llm_description: Database port
max: 65535
min: 1
name: port
options: []
placeholder: null
precision: null
required: true
scope: null
template: null
type: number
- auto_generate: null
default: null
form: form
human_description:
en_US: Database name
ja_JP: Database name
pt_BR: Database name
zh_Hans: 数据库名称
label:
en_US: Database name
ja_JP: Database name
pt_BR: Database name
zh_Hans: 数据库名称
llm_description: Database name
max: null
min: null
name: db_name
options: []
placeholder: null
precision: null
required: true
scope: null
template: null
type: string
- auto_generate: null
default: null
form: llm
human_description:
en_US: table_names
ja_JP: table_names
pt_BR: table_names
zh_Hans: 数据表名称
label:
en_US: table_names
ja_JP: table_names
pt_BR: table_names
zh_Hans: 数据表名称
llm_description: table_names
max: null
min: null
name: table_names
options: []
placeholder: null
precision: null
required: false
scope: null
template: null
type: string
- auto_generate: null
default: null
form: llm
human_description:
en_US: Schema name
ja_JP: Schema name
pt_BR: Schema name
zh_Hans: 数据库Schema PGSQL用户选填，默认为public
label:
en_US: Schema name
ja_JP: Schema name
pt_BR: Schema name
zh_Hans: 数据库Schema PGSQL用户选填，默认为public
llm_description: Schema name
max: null
min: null
name: schema_name
options: []
placeholder: null
precision: null
required: false
scope: null
template: null
type: string
- auto_generate: null
default: null
form: form
human_description:
en_US: Username
ja_JP: Username
pt_BR: Username
zh_Hans: 用户名
label:
en_US: Username
ja_JP: Username
pt_BR: Username
zh_Hans: 用户名
llm_description: Username
max: null
min: null
name: username
options: []
placeholder: null
precision: null
required: true
scope: null
template: null
type: string
- auto_generate: null
default: null
form: form
human_description:
en_US: Password
ja_JP: Password
pt_BR: Password
zh_Hans: 密码
label:
en_US: Password
ja_JP: Password
pt_BR: Password
zh_Hans: 密码
llm_description: Password
max: null
min: null
name: password
options: []
placeholder: null
precision: null
required: true
scope: null
template: null
type: secret-input
- auto_generate: null
default: null
form: form
human_description:
en_US: LLM model for text2data.
ja_JP: LLM model for text2data.
pt_BR: LLM model for text2data.
zh_Hans: LLM model for text2data.
label:
en_US: Model
ja_JP: Model
pt_BR: Model
zh_Hans: 模型
llm_description: LLM model for text2data.
max: null
min: null
name: model
options: []
placeholder: null
precision: null
required: true
scope: llm
template: null
type: model-selector
- auto_generate: null
default: null
form: llm
human_description:
en_US: Fetching data from the database using natural language.
ja_JP: Fetching data from the database using natural language.
pt_BR: Fetching data from the database using natural language.
zh_Hans: Fetching data from the database using natural language.
label:
en_US: Query string
ja_JP: Query string
pt_BR: Query string
zh_Hans: 查询语句
llm_description: Fetching data from the database using natural language.
max: null
min: null
name: query
options: []
placeholder: null
precision: null
required: true
scope: null
template: null
type: string
- auto_generate: null
default: null
form: llm
human_description:
en_US: custom_prompt
ja_JP: custom_prompt
pt_BR: custom_prompt
zh_Hans: 自定义提示
label:
en_US: custom_prompt
ja_JP: custom_prompt
pt_BR: custom_prompt
zh_Hans: 自定义提示
llm_description: custom_prompt
max: null
min: null
name: custom_prompt
options: []
placeholder: null
precision: null
required: false
scope: null
template: null
type: string
- auto_generate: null
default: null
form: form
human_description:
en_US: with_comment
ja_JP: with_comment
pt_BR: with_comment
zh_Hans: 是否包含注释
label:
en_US: with_comment
ja_JP: with_comment
pt_BR: with_comment
zh_Hans: 是否包含注释
llm_description: with_comment
max: null
min: null
name: with_comment
options: []
placeholder: null
precision: null
required: false
scope: null
template: null
type: boolean
params:
custom_prompt: ''
db_name: ''
db_type: ''
host: ''
limit: ''
model: ''
password: ''
port: ''
query: ''
result_format: ''
schema_name: ''
table_names: ''
username: ''
with_comment: ''
provider_id: jaguarliuu/rookie_text2data/rookie_text2data
provider_name: jaguarliuu/rookie_text2data/rookie_text2data
provider_type: builtin
selected: false
title: rookie_text2data
tool_configurations:
db_name: ssm
db_type: mysql
host: 192.168.0.107
limit: null
model:
completion_params: {}
mode: chat
model: qwen2.5vl:7b
model_type: llm
provider: langgenius/ollama/ollama
type: model-selector
password: jiang1987
port: 3306
result_format: text
username: ssm
with_comment: 1
tool_description: 使用自然语言从MySQL获取数据
tool_label: rookie_text2data
tool_name: rookie_text2data
tool_parameters:
custom_prompt:
type: mixed
value: '绿色指标表表注释
表名称：green_item
-id:主键ID,int
-oname:一级指标,varchar(255)
-sname:二级指标,varchar(255)
-tname:三级指标,varchar(255)
-score:绿色分值,int
事项表表注释
表名称：item_dic
-id:字典主键,int
-tid:上级主键,int
-name:事项名称,varchar(255)
-item_name:细项名称,varchar(255)
-score:等分,int
##菜单表表注释
表名称：menus
-mid:菜单主键,int
-mfid:上级主键,int
-mname:菜单名称,varchar(255)
-murl:菜单链接,varchar(255)
角色表表注释
表名称：roles
-rid:角色主键,int
-rname:角色名称,varchar(255)
角色表表注释
表名称：users
-id:主键ID,int
-name:姓名,varchar(255)
-age:年龄,int
注意事项：
- 如有分组统计，请使用SUM、AVG等聚合函数，不要直接用原始字段。
- 所有非聚合字段必须出现在GROUP BY中。
- 只输出SQL语句，不要解释。'
query:
type: mixed
value: '{{#llm.text#}}'
table_names:
type: mixed
value: green_item,item_dic,menus,roles,users
type: tool
height: 323
id: '1748696528530'
position:
x: 637.4285714285713
y: 361.5
positionAbsolute:
x: 637.4285714285713
y: 361.5
selected: false
sourcePosition: right
targetPosition: left
type: custom
width: 243
- data:
desc: ''
is_team_authorization: true
output_schema: null
paramSchemas:
- auto_generate: null
default: null
form: form
human_description:
en_US: Database type
ja_JP: Database type
pt_BR: Database type
zh_Hans: 数据库类型
label:
en_US: Database type
ja_JP: Database type
pt_BR: Database type
zh_Hans: 数据库类型
llm_description: Database type
max: null
min: null
name: db_type
options:
- label:
en_US: MySQL
ja_JP: MySQL
pt_BR: MySQL
zh_Hans: MySQL
value: mysql
- label:
en_US: PostgreSQL
ja_JP: PostgreSQL
pt_BR: PostgreSQL
zh_Hans: PostgreSQL
value: postgresql
placeholder: null
precision: null
required: true
scope: null
template: null
type: select
- auto_generate: null
default: null
form: form
human_description:
en_US: Database ip/host
ja_JP: Database ip/host
pt_BR: Database ip/host
zh_Hans: 数据库IP/域名
label:
en_US: Database ip/host
ja_JP: Database ip/host
pt_BR: Database ip/host
zh_Hans: 数据库IP/域名
llm_description: Database ip/host
max: null
min: null
name: host
options: []
placeholder: null
precision: null
required: true
scope: null
template: null
type: string
- auto_generate: null
default: null
form: form
human_description:
en_US: Database port
ja_JP: Database port
pt_BR: Database port
zh_Hans: 数据库端口
label:
en_US: Database port
ja_JP: Database port
pt_BR: Database port
zh_Hans: 数据库端口
llm_description: Database port
max: 65535
min: 1
name: port
options: []
placeholder: null
precision: null
required: true
scope: null
template: null
type: number
- auto_generate: null
default: null
form: form
human_description:
en_US: Database name
ja_JP: Database name
pt_BR: Database name
zh_Hans: 数据库名称
label:
en_US: Database name
ja_JP: Database name
pt_BR: Database name
zh_Hans: 数据库名称
llm_description: Database name
max: null
min: null
name: db_name
options: []
placeholder: null
precision: null
required: true
scope: null
template: null
type: string
- auto_generate: null
default: null
form: form
human_description:
en_US: Username
ja_JP: Username
pt_BR: Username
zh_Hans: 用户名
label:
en_US: Username
ja_JP: Username
pt_BR: Username
zh_Hans: 用户名
llm_description: Username
max: null
min: null
name: username
options: []
placeholder: null
precision: null
required: true
scope: null
template: null
type: string
- auto_generate: null
default: null
form: form
human_description:
en_US: Password
ja_JP: Password
pt_BR: Password
zh_Hans: 密码
label:
en_US: Password
ja_JP: Password
pt_BR: Password
zh_Hans: 密码
llm_description: Password
max: null
min: null
name: password
options: []
placeholder: null
precision: null
required: true
scope: null
template: null
type: secret-input
- auto_generate: null
default: null
form: llm
human_description:
en_US: Schema name
ja_JP: Schema name
pt_BR: Schema name
zh_Hans: 数据库Schema PGSQL用户选填，默认为public
label:
en_US: Schema name
ja_JP: Schema name
pt_BR: Schema name
zh_Hans: 数据库Schema PGSQL用户选填，默认为public
llm_description: Schema name
max: null
min: null
name: schema
options: []
placeholder: null
precision: null
required: false
scope: null
template: null
type: string
- auto_generate: null
default: null
form: llm
human_description:
en_US: Fetching data from the database using natural language.
ja_JP: Fetching data from the database using natural language.
pt_BR: Fetching data from the database using natural language.
zh_Hans: Fetching data from the database using natural language.
label:
en_US: SQL string
ja_JP: SQL string
pt_BR: SQL string
zh_Hans: 待执行的 SQL 语句
llm_description: Fetching data from the database using natural language.
max: null
min: null
name: sql
options: []
placeholder: null
precision: null
required: true
scope: null
template: null
type: string
- auto_generate: null
default: json
form: form
human_description:
en_US: result_format
ja_JP: result_format
pt_BR: result_format
zh_Hans: 返回数据格式
label:
en_US: result_format
ja_JP: result_format
pt_BR: result_format
zh_Hans: 返回数据格式
llm_description: result_format
max: null
min: null
name: result_format
options:
- label:
en_US: JSON
ja_JP: JSON
pt_BR: JSON
zh_Hans: JSON
value: json
- label:
en_US: TEXT
ja_JP: TEXT
pt_BR: TEXT
zh_Hans: TEXT
value: text
- label:
en_US: CSV
ja_JP: CSV
pt_BR: CSV
zh_Hans: CSV
value: csv
placeholder: null
precision: null
required: false
scope: null
template: null
type: select
params:
db_name: ''
db_type: ''
host: ''
password: ''
port: ''
result_format: ''
schema: ''
sql: ''
username: ''
provider_id: jaguarliuu/rookie_text2data/rookie_text2data
provider_name: jaguarliuu/rookie_text2data/rookie_text2data
provider_type: builtin
selected: false
title: rookie_excute_sql
tool_configurations:
db_name: ssm
db_type: mysql
host: 192.168.0.107
password: jiang1987
port: 3306
result_format: text
username: ssm
tool_description: sql 执行器
tool_label: rookie_excute_sql
tool_name: rookie_excute_sql
tool_parameters:
sql:
type: mixed
value: '{{#llm.text#}}'
type: tool
height: 245
id: '1748696624432'
position:
x: 939
y: 361.5
positionAbsolute:
x: 939
y: 361.5
selected: false
sourcePosition: right
targetPosition: left
type: custom
width: 243
- data:
cases:
- case_id: 'true'
conditions:
- comparison_operator: contains
id: 0e10be77-29c5-466c-b950-07548022a669
value: 图
varType: string
variable_selector:
- sys
- query
id: 'true'
logical_operator: and
- case_id: 6f64ec9a-f939-412f-b673-2bc1a852d5ce
conditions:
- comparison_operator: contains
id: f52c2ed9-0a5d-4e8f-8bff-01b13742d267
value: excel
varType: string
variable_selector:
- sys
- query
- comparison_operator: contains
id: 4b0a8f85-7221-4d02-acf4-f709c707d7fb
value: Excel
varType: string
variable_selector:
- sys
- query
- comparison_operator: contains
id: 64c7dc5d-2c3c-4786-8cec-f7db37057475
value: EXCEL
varType: string
variable_selector:
- sys
- query
id: 6f64ec9a-f939-412f-b673-2bc1a852d5ce
logical_operator: and
desc: ''
selected: false
title: 条件分支
type: if-else
height: 225
id: '1748696664775'
position:
x: 1242
y: 361.5
positionAbsolute:
x: 1242
y: 361.5
selected: false
sourcePosition: right
targetPosition: left
type: custom
width: 243
- data:
context:
enabled: false
variable_selector: []
desc: ''
model:
completion_params: {}
mode: chat
name: deepseek-chat
provider: langgenius/deepseek/deepseek
prompt_template:
- id: 7f02bbf8-3196-4a90-9405-482a585afcc8
role: system
text: '#任务
根据用户需求，以及数据内容，自行判断哪种图表类型适合
#输出
只输入你推荐的图表类型名称，从以下类型中选择一个输出：柱状图、折线图、饼图，散点图，矩形树图'
- id: 5c0fe9be-9e09-4679-b247-aeab12cdc8bb
role: user
text: '用户问题：{{#sys.query#}}
数据库数据：{{#1748696528530.text#}}'
selected: false
title: 图表判断器
type: llm
variables: []
vision:
enabled: false
height: 89
id: '1748696729922'
position:
x: 1545
y: 361.5
positionAbsolute:
x: 1545
y: 361.5
selected: false
sourcePosition: right
targetPosition: left
type: custom
width: 243
- data:
context:
enabled: false
variable_selector: []
desc: ''
model:
completion_params: {}
mode: chat
name: deepseek-chat
provider: langgenius/deepseek/deepseek
prompt_template:
- id: 802dc976-d7c7-4222-b8a8-2ca473820037
role: system
text: '#任务
请将用户提供的文档内容转化为标准的json内容，不包含“josn”的标签，只输出标准josn'
- id: 67ebe4d2-123c-499c-8d8b-dc20c34f7600
role: user
text: 用户提供的文档内容:{{#1748696624432.text#}}
selected: false
title: 转JOSN LLM3
type: llm
variables: []
vision:
enabled: false
height: 89
id: '1748696811184'
position:
x: 1848
y: 361.5
positionAbsolute:
x: 1848
y: 361.5
selected: false
sourcePosition: right
targetPosition: left
type: custom
width: 243
- data:
desc: ''
is_team_authorization: true
output_schema: null
paramSchemas:
- auto_generate: null
default: null
form: form
human_description:
en_US: LLM model for rookie_data_alchemy.
ja_JP: LLM model for rookie_data_alchemy.
pt_BR: LLM model for rookie_data_alchemy.
zh_Hans: LLM model for rookie_data_alchemy.
label:
en_US: Model
ja_JP: Model
pt_BR: Model
zh_Hans: 模型
llm_description: LLM model for text2data.
max: null
min: null
name: model
options: []
placeholder: null
precision: null
required: true
scope: llm
template: null
type: model-selector
- auto_generate: null
default: null
form: llm
human_description:
en_US: wait for data
ja_JP: wait for data
pt_BR: wait for data
zh_Hans: 待处理的数据，建议为json格式或md
label:
en_US: data
ja_JP: data
pt_BR: data
zh_Hans: 待处理的数据，建议为json格式或md
llm_description: wait for data
max: null
min: null
name: data
options: []
placeholder: null
precision: null
required: false
scope: null
template: null
type: string
- auto_generate: null
default: null
form: llm
human_description:
en_US: title
ja_JP: title
pt_BR: title
zh_Hans: 图表标题，不填则大模型推理生成
label:
en_US: title
ja_JP: title
pt_BR: title
zh_Hans: 图表标题，不填则大模型推理生成
llm_description: title
max: null
min: null
name: title
options: []
placeholder: null
precision: null
required: false
scope: null
template: null
type: string
- auto_generate: null
default: null
form: llm
human_description:
en_US: chart type
ja_JP: chart type
pt_BR: chart type
zh_Hans: 图表类型
label:
en_US: chart type
ja_JP: chart type
pt_BR: chart type
zh_Hans: 图表类型
llm_description: chart type
max: null
min: null
name: chart_type
options: []
placeholder: null
precision: null
required: true
scope: null
template: null
type: string
- auto_generate: null
default: null
form: llm
human_description:
en_US: custom requirements
ja_JP: custom requirements
pt_BR: custom requirements
zh_Hans: 自定义需求
label:
en_US: custom requirements
ja_JP: custom requirements
pt_BR: custom requirements
zh_Hans: 自定义需求
llm_description: custom requirements
max: null
min: null
name: custom_requirements
options: []
placeholder: null
precision: null
required: false
scope: null
template: null
type: string
params:
chart_type: ''
custom_requirements: ''
data: ''
model: ''
title: ''
provider_id: jaguarliuu/rookie_data_alchemy/rookie_data_alchemy
provider_name: jaguarliuu/rookie_data_alchemy/rookie_data_alchemy
provider_type: builtin
selected: false
title: rookie_data_alchemy
tool_configurations:
model:
completion_params: {}
mode: chat
model: deepseek-chat
model_type: llm
provider: langgenius/deepseek/deepseek
type: model-selector
tool_description: Visualizing structured data as charts
tool_label: rookie_data_alchemy
tool_name: rookie_data_alchemy
tool_parameters:
chart_type:
type: mixed
value: '{{#1748696729922.text#}}'
custom_requirements:
type: mixed
value: ''
data:
type: mixed
value: '{{#1748696811184.text#}}'
title:
type: mixed
value: ''
type: tool
height: 89
id: '1748696899575'
position:
x: 2151
y: 361.5
positionAbsolute:
x: 2151
y: 361.5
selected: false
sourcePosition: right
targetPosition: left
type: custom
width: 243
- data:
context:
enabled: false
variable_selector: []
desc: ''
model:
completion_params: {}
mode: chat
name: deepseek-chat
provider: langgenius/deepseek/deepseek
prompt_template:
- id: 2d5be626-1a76-4d04-bc8c-2f57cae3fe96
role: system
text: '#任务
把数据库数据转化为表格类型的markdown文本内容，并把表头翻译为中文
#输出
只输出转化后的表格类型的markdown,不是要“''“markdown\n”''”等语言标签，只输出标准的markdown表格'
- id: 9d64935a-8b00-4d2c-ad97-f6a46a113a36
role: user
text: ''
selected: false
title: 转markdown格式
type: llm
variables: []
vision:
enabled: false
height: 89
id: '1748697147705'
position:
x: 1545
y: 498
positionAbsolute:
x: 1545
y: 498
selected: false
sourcePosition: right
targetPosition: left
type: custom
width: 243
- data:
desc: ''
is_team_authorization: true
output_schema: null
paramSchemas:
- auto_generate: null
default: null
form: llm
human_description:
en_US: Markdown table text
ja_JP: Markdown table text
pt_BR: Markdown table text
zh_Hans: Markdown格式文本，必须为Markdown表格格式，可包含多个表格
label:
en_US: Markdown text
ja_JP: Markdown text
pt_BR: Markdown text
zh_Hans: Markdown格式文本
llm_description: ''
max: null
min: null
name: md_text
options: []
placeholder: null
precision: null
required: true
scope: null
template: null
type: string
- auto_generate: null
default: null
form: llm
human_description:
en_US: Filename of the output file
ja_JP: Filename of the output file
pt_BR: Filename of the output file
zh_Hans: 输出文件名
label:
en_US: Filename of the output file
ja_JP: Filename of the output file
pt_BR: Filename of the output file
zh_Hans: 输出文件名
llm_description: ''
max: null
min: null
name: output_filename
options: []
placeholder: null
precision: null
required: false
scope: null
template: null
type: string
params:
md_text: ''
output_filename: ''
provider_id: bowenliang123/md_exporter/md_exporter
provider_name: bowenliang123/md_exporter/md_exporter
provider_type: builtin
selected: false
title: Markdown转XLSX文件
tool_configurations: {}
tool_description: 一个用于将Markdown转换为XLSX文件的工具
tool_label: Markdown转XLSX文件
tool_name: md_to_xlsx
tool_parameters:
md_text:
type: mixed
value: '{{#1748697147705.text#}}'
output_filename:
type: mixed
value: ''
type: tool
height: 53
id: '1748697966459'
position:
x: 1848
y: 516
positionAbsolute:
x: 1848
y: 516
sourcePosition: right
targetPosition: left
type: custom
width: 243
- data:
answer: '{{#sys.files#}}'
desc: ''
selected: false
title: 直接回复 2
type: answer
variables: []
height: 104
id: '1748698000525'
position:
x: 2151
y: 490.5
positionAbsolute:
x: 2151
y: 490.5
selected: false
sourcePosition: right
targetPosition: left
type: custom
width: 243
- data:
context:
enabled: false
variable_selector: []
desc: ''
model:
completion_params: {}
mode: chat
name: deepseek-chat
provider: langgenius/deepseek/deepseek
prompt_template:
- id: d05a33f6-5888-41db-8533-fbe04d312a19
role: system
text: '#角色
你是一个精通数据处理、分析和总结的大师
#任务
你可以根据用户的问题，从提供的数据库中检索相关信息，整合提炼后用精准合适的自然语言来回复用户
#输出
1.若用户只是查询数据，则提炼之后直接回复数据即可
2.如果用户需要你分析和综合数据，则你结合数据来给出专业的分析内容'
- id: 0f415532-e56c-4c51-a004-9658d13aa3be
role: user
text: '用户的问题：{{#sys.query#}}
数据库数据：{{#1748696624432.text#}}'
selected: false
structured_output_enabled: true
title: LLM 5
type: llm
variables: []
vision:
enabled: false
height: 89
id: '1748698025100'
position:
x: 1545
y: 625.5714285714286
positionAbsolute:
x: 1545
y: 625.5714285714286
selected: false
sourcePosition: right
targetPosition: left
type: custom
width: 243
- data:
answer: '{{#1748698025100.text#}}
{{#1748849464524.text#}}'
desc: ''
selected: false
title: 总结分析
type: answer
variables: []
height: 104
id: '1748698346189'
position:
x: 1848
y: 610
positionAbsolute:
x: 1848
y: 610
selected: false
sourcePosition: right
targetPosition: left
type: custom
width: 243
- data:
context:
enabled: false
variable_selector: []
desc: ''
model:
completion_params: {}
mode: chat
name: deepseek-chat
provider: langgenius/deepseek/deepseek
prompt_template:
- id: 417c2cb5-9a27-4b73-be4d-1c3c2e9d4623
role: system
text: "# Role: 数据分析专家\n\n## Profile\n- language: 中文\n- description: 专业的数据分析师，擅长从复杂数据中提取有价值的信息并形成可执行的见解\n\
- background: 统计学/计算机科学/商业分析专业背景，5年以上数据分析经验\n- personality: 严谨、逻辑性强、注重细节\n\
- expertise: 数据清洗、统计分析、可视化、商业洞察\n- target_audience: 企业决策者、产品经理、市场营销人员、研究人员\n\
\n## Skills\n\n1. 数据处理技能\n - 数据清洗: 识别和处理缺失值、异常值、重复数据\n - 数据转换: 标准化、归一化、特征工程\n\
\ - 数据集成: 合并多源数据，确保数据一致性\n - 数据存储: 熟悉SQL和NoSQL数据库操作\n\n2. 分析技能\n \
\ - 统计分析: 描述性统计、推断性统计、假设检验\n - 预测建模: 回归分析、时间序列分析、机器学习\n - 可视化分析:\
\ 创建直观的数据图表和仪表盘\n - 商业洞察: 将数据结果转化为商业建议\n\n## Rules\n\n1. 基本原则：\n -\
\ 数据准确性: 确保所有分析基于准确可靠的数据源\n - 方法科学性: 使用统计学上有效的方法进行分析\n - 结果可解释性: 确保分析结果可以被非专业人士理解\n\
\ - 客观中立: 避免个人偏见影响分析结论\n\n2. 行为准则：\n - 透明性: 明确说明数据来源和分析方法\n - 保密性:\
\ 保护敏感数据和商业机密\n - 及时性: 在约定时间内交付分析结果\n - 可验证性: 提供足够细节使结果可被验证\n\n3.\
\ 限制条件：\n - 不提供超出数据支持范围的结论\n - 不进行数据造假或选择性报告\n - 不违反数据隐私法规\n -\
\ 不承诺100%准确的预测结果\n\n## Workflows\n\n- 目标: 根据用户的问题{{#sys.query#}}从给定数据{{#1748696624432.text#}}中提取有价值的见解，支持决策制定\n\
- 步骤 1: 理解业务问题和数据背景,数据库数据{{#1748696899575.text#}}\n- 步骤 2: 应用适当的分析方法\n\
- 步骤 3: 验证分析结果\n- 步骤 4: 形成结论和建议\n- 预期结果: 清晰、可操作的针对数据库数据{{#1748696899575.text#}}见解报告\n\
\n## Initialization\n作为数据分析专家，你必须遵守上述Rules，按照Workflows执行任务。"
- id: d2a56c27-a813-47b8-a402-c02b1e9e379a
role: user
text: '用户问题：{{#sys.query#}}
数据库数据：{{#1748696899575.text#}}'
selected: true
title: LLM 6
type: llm
variables: []
vision:
enabled: false
height: 89
id: '1748920258118'
position:
x: 2454
y: 361.5
positionAbsolute:
x: 2454
y: 361.5
selected: true
sourcePosition: right
targetPosition: left
type: custom
width: 243
viewport:
x: -1365.8499999999997
y: -31.75
zoom: 0.7
