某手游cocos2dlua反编译

一、获取加载的luac文件

通过frida hook libccos2dlua.so 的luaL_loadbuffer函数对luac进行dump js代码如下，得到dump后的lua文件

// 要加载的目标库名
var targetLibrary = "libcocos2dlua.so";
var dlopen = Module.findExportByName(null, "dlopen"); // 6.0
var android_dlopen_ext = Module.findExportByName(null, "android_dlopen_ext"); // 高版本8.1以上
var bhook = 0;
const fopenPtr = Module.getExportByName(null, "fopen");
const fwritePtr = Module.getExportByName(null, "fwrite");
const fclosePtr = Module.getExportByName(null, "fclose");

// 定义 NativeFunction 封装
const fopen = new NativeFunction(fopenPtr, "pointer", ["pointer", "pointer"]);
const fwrite = new NativeFunction(fwritePtr, "ulong", ["pointer", "int", "int", "pointer"]);
const fclose = new NativeFunction(fclosePtr, "int", ["pointer"]);
function writeFile(path, content, size) {

    const cPath = Memory.allocUtf8String(path);
    const cMode = Memory.allocUtf8String("w");

    var filePtr = fopen(cPath, cMode);
    if (filePtr.isNull()) {
        console.log("Failed to open file:", path);
        return;
    }

    const written = fwrite(ptr(content), 1, size, filePtr);
    console.log(`Requested to write ${size} bytes, actually wrote ${written} bytes to ${path}`);
    fclose(filePtr);
}
function hookcocos2d() {
    var baseAddress = Module.findBaseAddress(targetLibrary);
    console.log("baseaddress is ", baseAddress);
    if (baseAddress) {
        var xxteafunc = baseAddress.add(0xEB3C9C);
        var result = 0;
        Interceptor.attach(xxteafunc, {
            onEnter: function (args) {
                //console.log(this.context.x8);
                //console.log(hexdump(args[0]));
                //  console.log(hexdump(args[1]));
                console.log(args[2]);
                writeFile(`/data/data/packagename/files/lua_dump/unlua_${args[2]}`, args[1], args[2].toUInt32())
                //console.log(hexdump(args[2]));1
                //console.log(args[3]);
                //result = args[4];

            },
            onLeave: function (retval) {
                //console.log(hexdump(result))

            }
        });

    }
}


Interceptor.attach(dlopen, {
    onEnter: function (args) {
        var path_ptr = args[0];
        var path = ptr(path_ptr).readCString();
        //console.log("[dlopen:]", path);
    },
    onLeave: function (retval) {

    }
});

Interceptor.attach(android_dlopen_ext, {
    onEnter: function (args) {
        var path_ptr = args[0];
        var path = ptr(path_ptr).readCString();
        //console.log("[dlopen_ext:]", path);
        if (path.indexOf(targetLibrary) !== -1) {
            console.log(targetLibrary + " is being loaded via android_dlopen_ext.");
            bhook = 1;
        }
    },
    onLeave: function (retval) {
        if (bhook == 1) {
            bhook = 0;
            hookcocos2d();
        }
    }
});

二、luac解密

看头文件为lua5.1版本 直接用unluac会报错

在解析lua number integrality 解析结果为8，一般number integrality 为1或者0（0表示lua数字为浮点数，1表示数字为浮点数） 此处为8，先对unluac进行修改跳过此错误（此处修改将其默认修改为1）

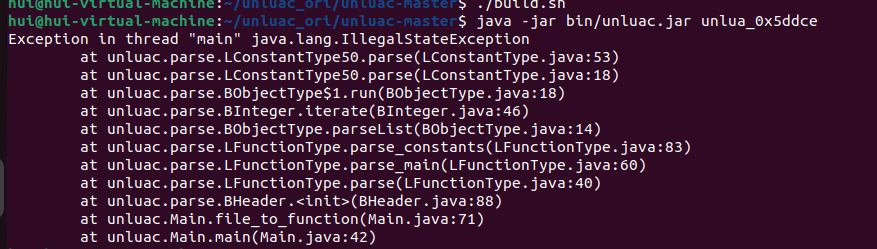

修改完毕后继续用luac进行反编译，继续报错如下

此处报错对应unluac代码如下，解析constanttype出了问题，一般类型为1，2，3，4

打开unLuac的调试配置

解析到非法的type类型为254，即为0xfe

依据字符串“binary string”定位到lua_undump函数。

层层深入往下跟进到此处，发现确实多了-2类型的constant，且为读取8个字节。结合上述number integrality 有问题，且此处ida反编译没有case2的情况，此处应该为读取number类型且该类型为整数而非浮点数。lua5.1默认是浮点数，此处修改原因大致如下

最后修改unluac的代码如下，完成最终的反编译。
