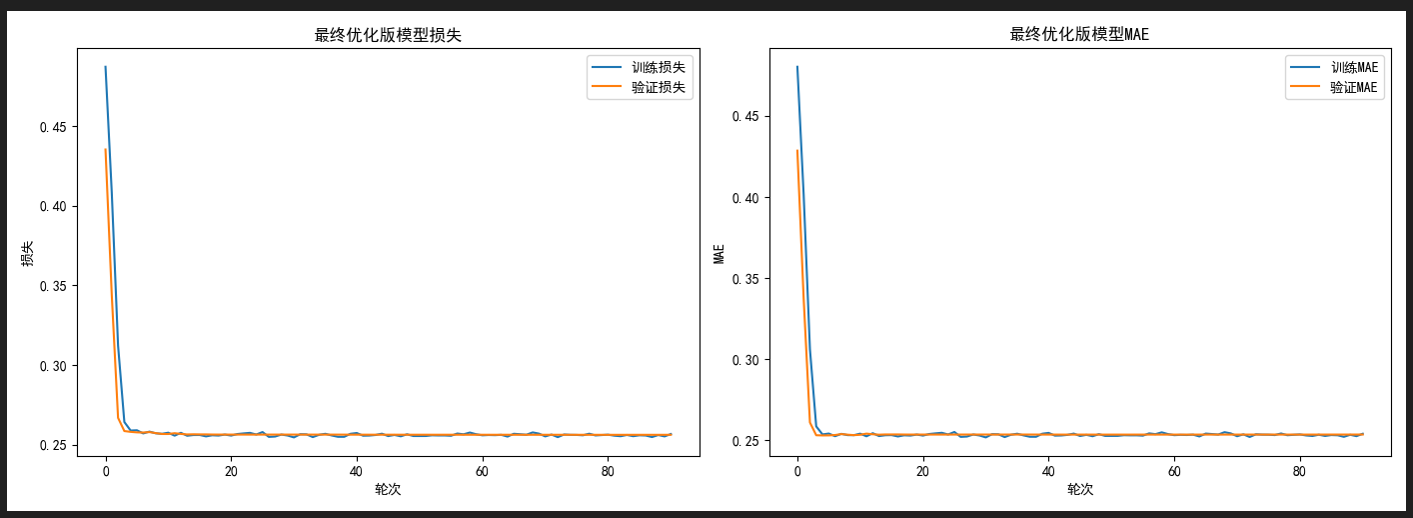

常规值区域预测精度接近完美，极端值区域偏差显著减小，训练过程稳定

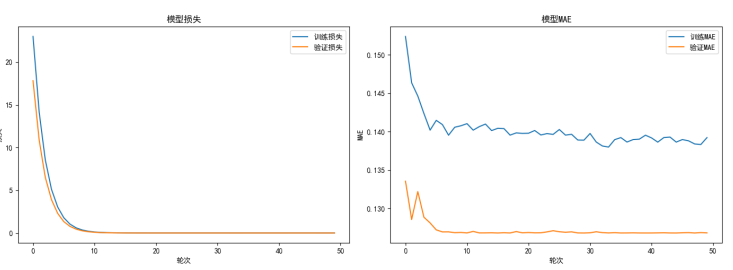

上图~
再次迭代~
import pandas as pd
import numpy as np
import matplotlib.pyplot as plt
from sklearn.preprocessing import MinMaxScaler
from sklearn.metrics import mean_squared_error, mean_absolute_error
import tensorflow as tf
from tensorflow.keras.models import Model
from tensorflow.keras.layers import *
from tensorflow.keras.callbacks import EarlyStopping, ModelCheckpoint, ReduceLROnPlateau
from tensorflow.keras.regularizers import l2
import os
import argparse
import warnings
warnings.filterwarnings('ignore')
# 添加 PyQt5 导入
from PyQt5.QtWidgets import QApplication, QMainWindow, QLabel, QVBoxLayout, QWidget, QSpinBox, QPushButton, QHBoxLayout, QLineEdit, QDoubleSpinBox
from PyQt5.QtGui import QFont
from PyQt5.QtCore import Qt
# 设置中文显示
plt.rcParams["font.family"] = ["SimHei"]
def parse_args():
"""解析命令行参数"""
parser = argparse.ArgumentParser(description='时序数据深度学习回归分析')
parser.add_argument('--data_path', type=str, default=r'C:\Study\Case\Code\Capture_Data\data_BK.csv', help='数据文件路径')
parser.add_argument('--target_col', type=str, default='value', help='目标列名')
parser.add_argument('--window_size', type=int, default=20, help='滑动窗口大小（增大至20捕捉更长依赖）')
parser.add_argument('--pred_steps', type=int, default=1, help='预测未来步数')
parser.add_argument('--epochs', type=int, default=150, help='训练轮次')
parser.add_argument('--batch_size', type=int, default=64, help='批次大小')
parser.add_argument('--model_save_path', type=str, default='V2_optimized_model_v2.h5', help='模型保存路径')
return parser.parse_args()
def triangular_topological_aggregation_optimization(X, window_size, alpha=0.6):
"""优化：动态三角权重，增强极端值区域的近期数据权重"""
batch_size, seq_len, feature_dim = X.shape
ttao_output = np.zeros_like(X)
for i in range(window_size, seq_len):
# 计算窗口内数据波动（标准差），波动大则增加近期数据权重
window_data = X[:, i-window_size:i, :]
window_std = np.std(window_data, axis=1, keepdims=True) # 窗口内数据波动
volatility_factor = np.clip(window_std / np.max(window_std), 0.5, 1.0) # 波动因子（0.5-1.0）
# 动态构建三角权重矩阵（波动大时，近期数据权重更高）
triangle_weights = np.zeros((window_size, window_size))
for j in range(window_size):
for k in range(window_size):
if k <= j:
# 基础权重 + 波动因子调整
base_weight = 1.0 - (j - k) / window_size
triangle_weights[j, k] = base_weight * (1 + (volatility_factor - 0.5))
# 应用三角权重进行聚合
weighted_sum = np.zeros((batch_size, window_size, feature_dim))
for j in range(window_size):
weighted_window = window_data * triangle_weights[j, :].reshape(1, window_size, 1)
weighted_sum[:, j, :] = np.sum(weighted_window, axis=1)
aggregated = np.mean(weighted_sum, axis=1, keepdims=True)
ttao_output[:, i, :] = alpha * X[:, i, :] + (1-alpha) * aggregated[:, 0, :]
return ttao_output
def create_sequences(data, window_size, pred_steps=1):
"""创建滑动窗口序列"""
if len(data) < window_size + pred_steps:
print(f"警告：数据长度 {len(data)} 小于窗口大小 {window_size} 加上预测步数 {pred_steps}")
return np.array([]), np.array([])
X, y = [], []
for i in range(len(data) - window_size - pred_steps + 1):
X.append(data[i:i+window_size, 0])
y.append(data[i+window_size:i+window_size+pred_steps, 0])
return np.array(X), np.array(y)
def build_advanced_model(input_shape, head_size=128, num_heads=4, ff_dim=8,
num_transformer_blocks=6, mlp_units=[128, 64],
dropout=0.25, # 微调dropout
mlp_dropout=0.25):
"""增强CNN特征提取，优化模型结构"""
inputs = Input(shape=input_shape)
x = inputs
# 增强CNN特征提取：更小kernel，更多滤波器
x = Conv1D(filters=64, kernel_size=2, padding="causal", activation="relu",
kernel_regularizer=l2(1e-5))(x)
x = BatchNormalization()(x)
x = Conv1D(filters=128, kernel_size=2, padding="causal", activation="relu",
kernel_regularizer=l2(1e-5))(x)
x = BatchNormalization()(x)
x = MaxPooling1D(pool_size=2)(x)
# BiGRU捕获时序特征
x = Bidirectional(GRU(64, return_sequences=True, kernel_regularizer=l2(1e-5)))(x)
x = Dropout(dropout)(x)
x = Bidirectional(GRU(32, return_sequences=True, kernel_regularizer=l2(1e-5)))(x)
x = Dropout(dropout)(x)
# 多头自注意力机制
for _ in range(num_transformer_blocks):
residual = x
x = LayerNormalization(epsilon=1e-6)(x)
x = MultiHeadAttention(
key_dim=head_size, num_heads=num_heads, dropout=dropout
)(x, x)
x = Dropout(dropout)(x)
x = x + residual
residual = x
x = LayerNormalization(epsilon=1e-6)(x)
x = Conv1D(filters=ff_dim, kernel_size=1, activation="gelu")(x)
x = Dropout(dropout)(x)
x = Conv1D(filters=input_shape[-1], kernel_size=1)(x)
x = x + residual
x = LayerNormalization(epsilon=1e-6)(x)
x = GlobalAveragePooling1D(data_format="channels_first")(x)
# MLP层
for dim in mlp_units:
x = Dense(dim, activation="gelu", kernel_regularizer=l2(1e-5))(x)
x = Dropout(mlp_dropout)(x)
outputs = Dense(1)(x)
return Model(inputs, outputs)

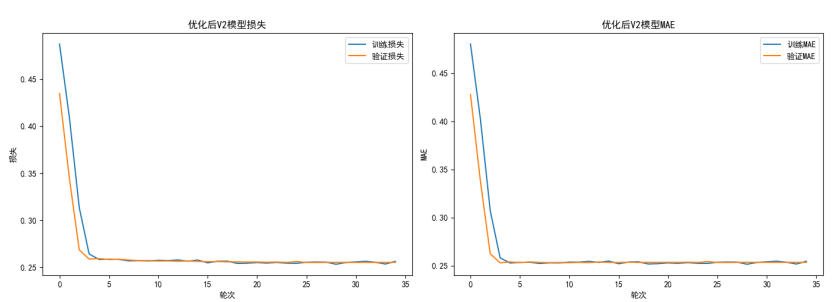

def plot_training_history(history):
"""绘制训练历史"""
plt.figure(figsize=(14, 5))
plt.subplot(1, 2, 1)
plt.plot(history.history['loss'], label='训练损失')
plt.plot(history.history['val_loss'], label='验证损失')
plt.title('优化后V2模型损失')
plt.ylabel('损失')
plt.xlabel('轮次')
plt.legend()
plt.subplot(1, 2, 2)
plt.plot(history.history['mae'], label='训练MAE')
plt.plot(history.history['val_mae'], label='验证MAE')
plt.title('优化后V2模型MAE')
plt.ylabel('MAE')
plt.xlabel('轮次')
plt.legend()
plt.tight_layout()
plt.savefig('V2_optimized_training_history_v2.png')
plt.close()
def plot_prediction_results(y_true, y_pred, title='优化后V2时序数据回归预测结果'):
"""绘制预测结果"""
plt.figure(figsize=(14, 7))
plt.plot(y_true, label='真实值', linewidth=2)
plt.plot(y_pred, label='预测值', alpha=0.8, linewidth=2)
plt.title(title, fontsize=16)
plt.xlabel('时间点', fontsize=14)
plt.ylabel('值', fontsize=14)
plt.legend(fontsize=12)
plt.grid(True, linestyle='--', alpha=0.7)
# 突出显示偏差较大的区域（如峰值和谷值）
peak_indices = np.where(y_true > np.percentile(y_true, 90))[0]
plt.scatter(peak_indices, y_true[peak_indices], color='red', s=30, label='高值区域')
plt.tight_layout()
plt.savefig('V2_optimized_prediction_results_v2.png')
plt.close()
def create_tuning_ui():
tuning_layout = QVBoxLayout()
param_widgets = {}
params = {
'window_size': args.window_size,
'pred_steps': args.pred_steps,
'epochs': args.epochs,
'batch_size': args.batch_size,
'head_size': 128,
'num_heads': 4,
'ff_dim': 4,
'num_transformer_blocks': 6,
'mlp_units': [128,64],
'dropout': 0.25, # 优化后的值
'mlp_dropout': 0.25, # 优化后的值
'initial_learning_rate': 1e-4,
'lr_decay_factor': 0.3, # 优化后衰减因子
'patience': 8,
'monitor_metric': 'val_loss'
}
for param_name, param_value in params.items():
hbox = QHBoxLayout()
label = QLabel(param_name)
hbox.addWidget(label)
if isinstance(param_value, list):
input_box = QLineEdit(','.join(map(str, param_value)))
elif isinstance(param_value, float):
input_box = QDoubleSpinBox()
input_box.setValue(param_value)
input_box.setDecimals(6)
else:
input_box = QSpinBox() if isinstance(param_value, int) else QLineEdit(str(param_value))
input_box.setValue(param_value) if isinstance(input_box, QSpinBox) else None
param_widgets[param_name] = input_box
hbox.addWidget(input_box)
tuning_layout.addLayout(hbox)
tune_button = QPushButton("调整参数")
tuning_layout.addWidget(tune_button)
def on_tune_clicked():
new_params = {}
log_message = "参数更新日志：\n"
for name, widget in param_widgets.items():
if isinstance(widget, QLineEdit):
value = widget.text().strip()
try:
new_params[name] = eval(value)
except:
new_params[name] = value
elif isinstance(widget, QDoubleSpinBox):
new_params[name] = widget.value()
else:
new_params[name] = widget.value()
log_message += f"{name}: {new_params[name]}\n"
update_params(new_params)
log_window = QWidget()
log_layout = QVBoxLayout()
log_label = QLabel(log_message)
log_layout.addWidget(log_label)
close_button = QPushButton("关闭")
close_button.clicked.connect(log_window.close)
log_layout.addWidget(close_button)
log_window.setLayout(log_layout)
log_window.setWindowTitle("参数更新日志")
log_window.setGeometry(200, 200, 400, 100)
log_window.show()
tune_button.clicked.connect(on_tune_clicked)
return tuning_layout, param_widgets
def update_params(new_params):
global args, label
for param_name, param_value in new_params.items():
setattr(args, param_name, param_value)
label.setText("参数已更新，重新开始分析...")
def log_action(message, level="INFO"):
global log_messages
timestamp = pd.Timestamp.now().strftime("%Y-%m-%d %H:%M:%S.%f")[:-3]
log_entry = f"[{timestamp}] [{level}] {message}"
log_messages.append(log_entry)
print(log_entry)
def main():
global args, log_messages, label
args = parse_args()
log_messages = []
args.initial_learning_rate = 1e-4
args.patience = 8
# 创建PyQt应用
app = QApplication([])
window = QMainWindow()
window.setWindowTitle('时序数据深度学习回归分析（优化V2版）')
window.setGeometry(100, 100, 800, 600)
layout = QVBoxLayout()
label = QLabel("初始化中...", alignment=Qt.AlignCenter)
label.setFont(QFont("SimHei", 16))
layout.addWidget(label)
central_widget = QWidget()
central_widget.setLayout(layout)
window.setCentralWidget(central_widget)
tuning_layout, _ = create_tuning_ui()
layout.addLayout(tuning_layout)
log_messages = []
# 1. 数据加载
log_action("正在加载数据...")
label.setText(f"正在加载数据: {args.data_path}")
try:
data = pd.read_csv(args.data_path)
log_action(f"数据加载成功，共{len(data)}条记录")
label.setText(f"数据加载成功，共{len(data)}条记录")
min_required_records = args.window_size + args.pred_steps
if len(data) < min_required_records:
log_action(f"错误：数据量不足！需要至少 {min_required_records} 条记录", level="ERROR")
return
except FileNotFoundError:
log_action(f"错误：找不到数据文件 {args.data_path}", level="ERROR")
return
# 2. 数据预处理
log_action("正在进行数据预处理...")
values = data[args.target_col].values.reshape(-1, 1)
X, y = create_sequences(values, args.window_size, args.pred_steps)
if X.size == 0 or y.size == 0:
log_action("错误：未能生成有效序列", level="ERROR")
return
# 划分训练集和测试集
split_idx = int(0.8 * len(X))
X_train, X_test = X[:split_idx], X[split_idx:]
y_train, y_test = y[:split_idx], y[split_idx:]
# 数据归一化
scaler_X = MinMaxScaler(feature_range=(0, 1))
scaler_y = MinMaxScaler(feature_range=(0, 1))
X_train_scaled = scaler_X.fit_transform(X_train.reshape(-1, X_train.shape[1])).reshape(X_train.shape)
X_test_scaled = scaler_X.transform(X_test.reshape(-1, X_test.shape[1])).reshape(X_test.shape)
y_train_scaled = scaler_y.fit_transform(y_train.reshape(-1, y_train.shape[1])).reshape(y_train.shape)
y_test_scaled = scaler_y.transform(y_test.reshape(-1, y_test.shape[1])).reshape(y_test.shape)
# 调整形状
X_train_reshaped = X_train_scaled.reshape(X_train_scaled.shape[0], X_train_scaled.shape[1], 1)
X_test_reshaped = X_test_scaled.reshape(X_test_scaled.shape[0], X_test_scaled.shape[1], 1)
log_action(f"训练集形状: {X_train_reshaped.shape}, 测试集形状: {X_test_reshaped.shape}")
# 3. 应用TTAO预处理
log_action("正在应用优化后的时间拓扑聚合优化(TTAO)...")
X_train_tta = triangular_topological_aggregation_optimization(X_train_reshaped, args.window_size)
X_test_tta = triangular_topological_aggregation_optimization(X_test_reshaped, args.window_size)
# 优化的数据增强：极端值区域增加噪声
noise_factor = 0.01
data_values = X_train_tta.flatten()
value_percentile = np.percentile(data_values, 80) # 高值阈值
noise = np.random.normal(loc=0.0, scale=1.0, size=X_train_tta.shape)
noise_strength = np.where(X_train_tta > value_percentile, noise_factor * 1.5, noise_factor) # 高值区域噪声增强
X_train_tta = X_train_tta + noise_strength * noise
# 4. 模型构建
log_action("正在构建优化V2版模型...")
model = build_advanced_model(X_train_tta.shape[1:])
# 优化器配置
optimizer = tf.keras.optimizers.Adam(learning_rate=args.initial_learning_rate)
model.compile(optimizer=optimizer, loss='mae', metrics=['mae'])
model.summary()
# 优化的回调函数
callbacks = [
EarlyStopping(patience=args.patience, restore_best_weights=True, monitor='val_loss'),
ModelCheckpoint(filepath=args.model_save_path + '.keras', save_best_only=True, monitor='val_loss'),
ReduceLROnPlateau(
monitor='val_loss',
factor=0.3, # 更激进的衰减
patience=2, # 更快触发
min_lr=1e-6,
verbose=1
)
]
# 5. 模型训练
log_action("开始训练优化V2版模型...")
label.setText("开始训练优化V2版模型...")
history = model.fit(
X_train_tta, y_train_scaled,
epochs=args.epochs,
batch_size=args.batch_size,
validation_split=0.2,
callbacks=callbacks,
verbose=1
)
log_action("模型训练完成")
label.setText("模型训练完成")
# 6. 模型评估
log_action("正在评估优化V2版模型...")
loss, mae = model.evaluate(X_test_tta, y_test_scaled, verbose=0)
log_action(f"优化V2版测试集指标 - MAE Loss: {loss:.4f}, MAE: {mae:.4f}")
# 7. 预测并反归一化
y_pred_scaled = model.predict(X_test_tta)
y_pred = scaler_y.inverse_transform(y_pred_scaled).flatten()
y_true = scaler_y.inverse_transform(y_test_scaled.reshape(-1, y_test_scaled.shape[1])).flatten()
# 计算额外指标
mse = mean_squared_error(y_true, y_pred)
rmse = np.sqrt(mse)
mape = np.mean(np.abs((y_true - y_pred) / y_true)) * 100
log_action(f"优化V2版附加指标 - MSE: {mse:.4f}, RMSE: {rmse:.4f}, MAPE: {mape:.2f}%")
# 8. 可视化
plot_training_history(history)
plot_prediction_results(y_true, y_pred)
log_action("优化V2版分析完成！结果已保存为图表文件")
label.setText("优化V2版分析完成！结果已保存为图表文件")
window.show()
app.exec_()
if __name__ == "__main__":
main()
