Arduino IDE离线安装ESP8266板管理工具

概要

Arduino IDE离线安装ESP8266板管理工具，在线安装因为网络或者https的问题不能安装

官网地址

Adruino：https://www.arduino.cc/
ESP8266项目：<a href-‘https://github.com/esp8266/’ target=‘_blank’>https://github.com/esp8266/

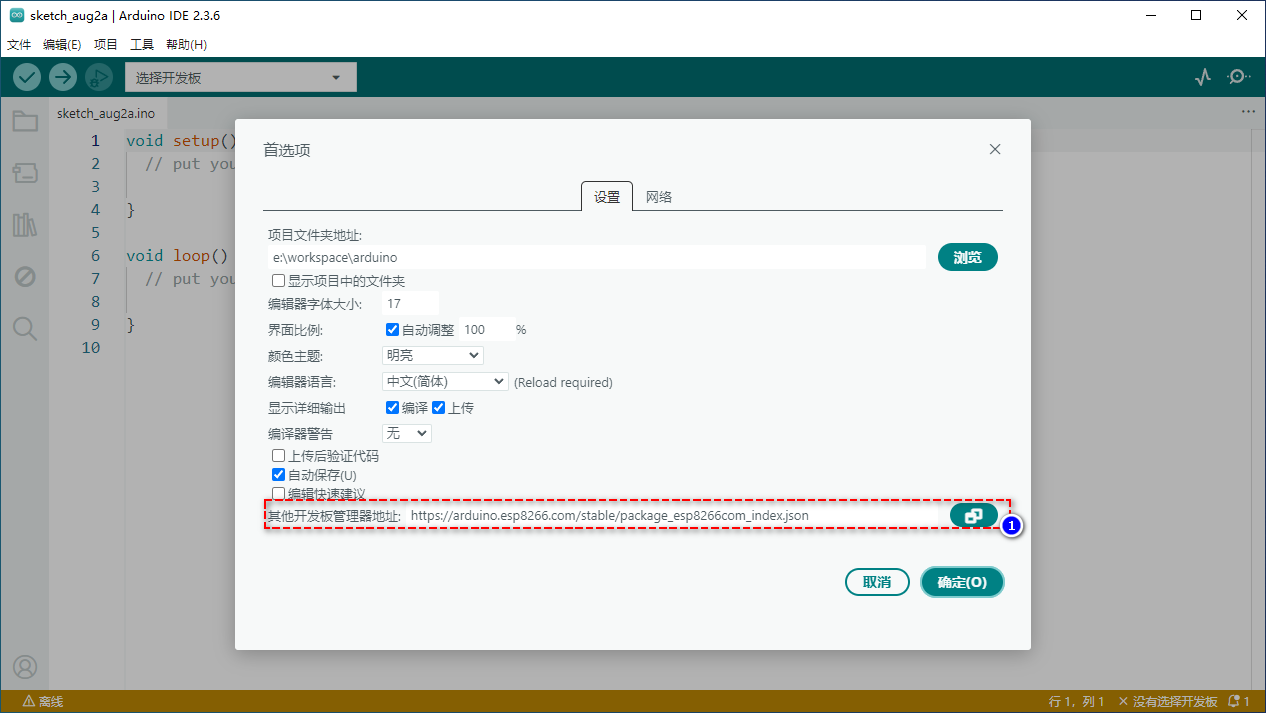

开发板管理地址

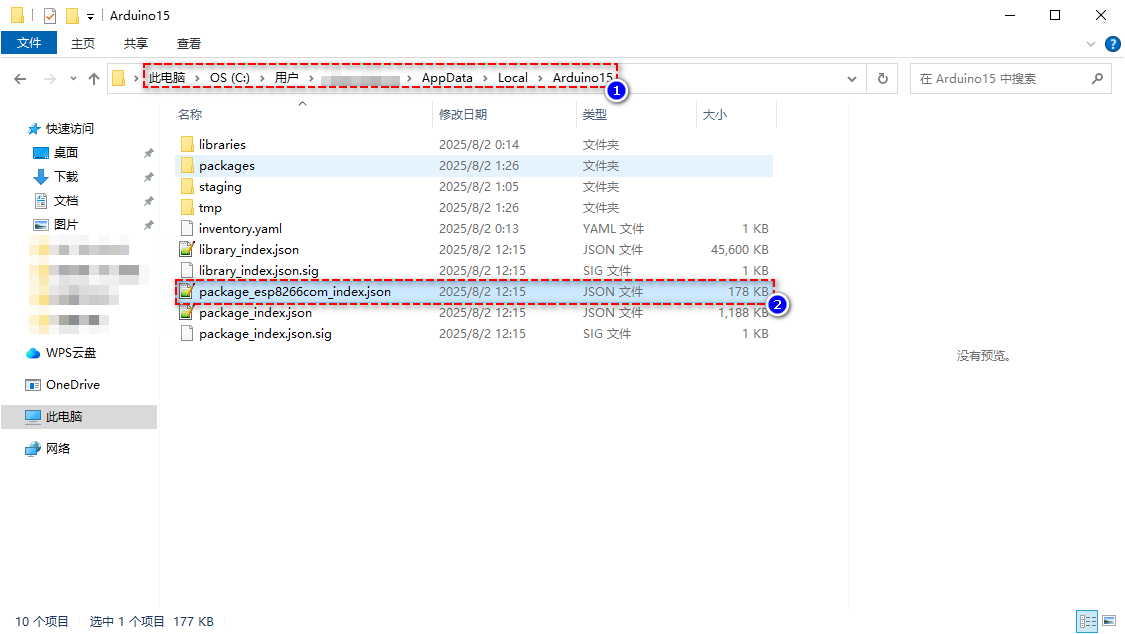

在配置了地址之后，会将该JSON文件下载到本地目录

安装ESP8266开发板支持

离线安装

按照上面的安装时候的报错，可以看到Arduino IDE去下载了什么文件，然后手动将文件下载保存到本地的任意目录，启动一个HTTP服务，下面是用NODE启动一个简单的HTTP服务
使用npm install http-server -g全局安装http-server

/e/workspace/http-server
$ http-server ./public -p 3000 --cors
Starting up http-server, serving ./public

http-server version: 14.1.1

http-server settings:
CORS: true
Cache: 3600 seconds
Connection Timeout: 120 seconds
Directory Listings: visible
AutoIndex: visible
Serve GZIP Files: false
Serve Brotli Files: false
Default File Extension: none

Available on:
  http://192.168.0.119:3000
  http://127.0.0.1:3000
Hit CTRL-C to stop the server

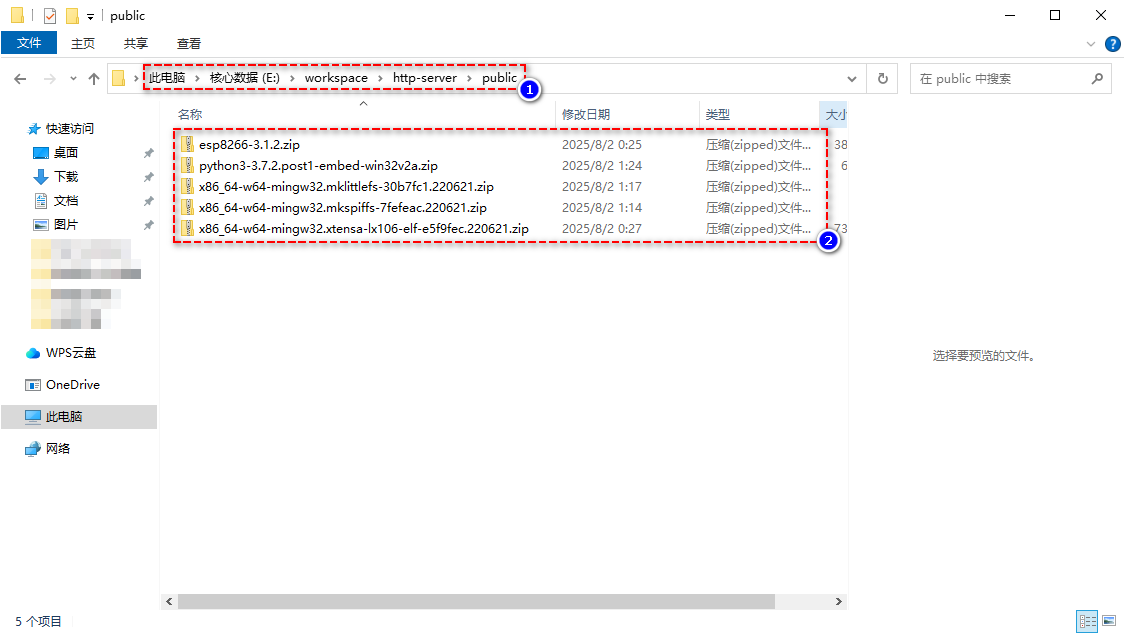

将下载的文件放到/e/workspace/http-server/public下

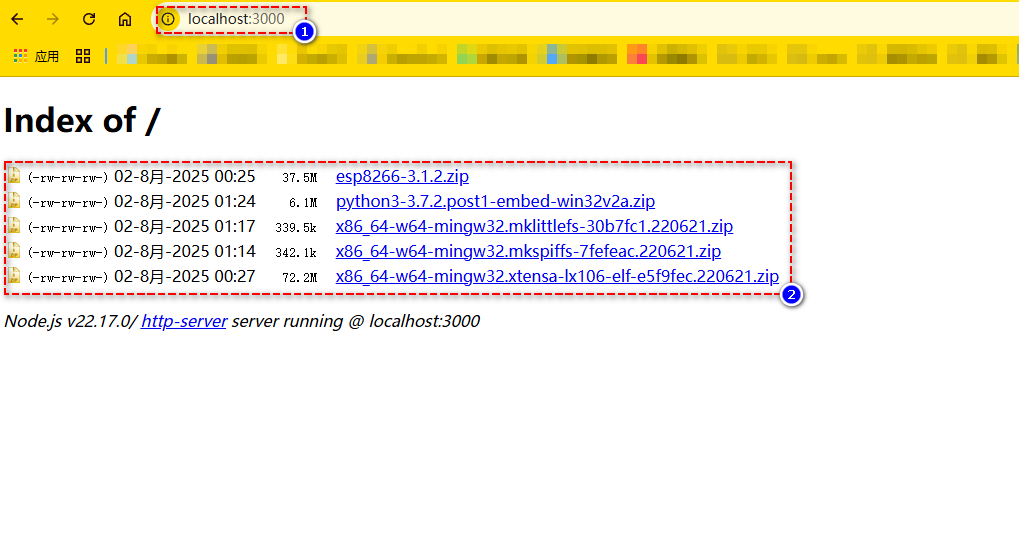

启动上面的服务，在浏览器中访问

将上面的地址文件下载地址替换掉package_esp8266com_index.json中下载的文件地址

https://github.com/esp8266/Arduino/releases/download/3.1.2/esp8266-3.1.2.zip
https://github.com/earlephilhower/esp-quick-toolchain/releases/download/2.5.0-4/python3-3.7.2.post1-embed-win32v2a.zip
https://github.com/earlephilhower/esp-quick-toolchain/releases/download/3.1.0-gcc10.3/x86_64-w64-mingw32.xtensa-lx106-elf-e5f9fec.220621.zip
https://github.com/earlephilhower/esp-quick-toolchain/releases/download/3.1.0-gcc10.3/x86_64-w64-mingw32.mkspiffs-7fefeac.220621.zip
https://github.com/earlephilhower/esp-quick-toolchain/releases/download/3.1.0-gcc10.3/x86_64-w64-mingw32.mklittlefs-30b7fc1.220621.zip

替换为

http://localhost:3000/esp8266-3.1.2.zip
http://localhost:3000/python3-3.7.2.post1-embed-win32v2a.zip
http://localhost:3000/x86_64-w64-mingw32.xtensa-lx106-elf-e5f9fec.220621.zip
http://localhost:3000/x86_64-w64-mingw32.mkspiffs-7fefeac.220621.zip
http://localhost:3000/x86_64-w64-mingw32.mklittlefs-30b7fc1.220621.zip

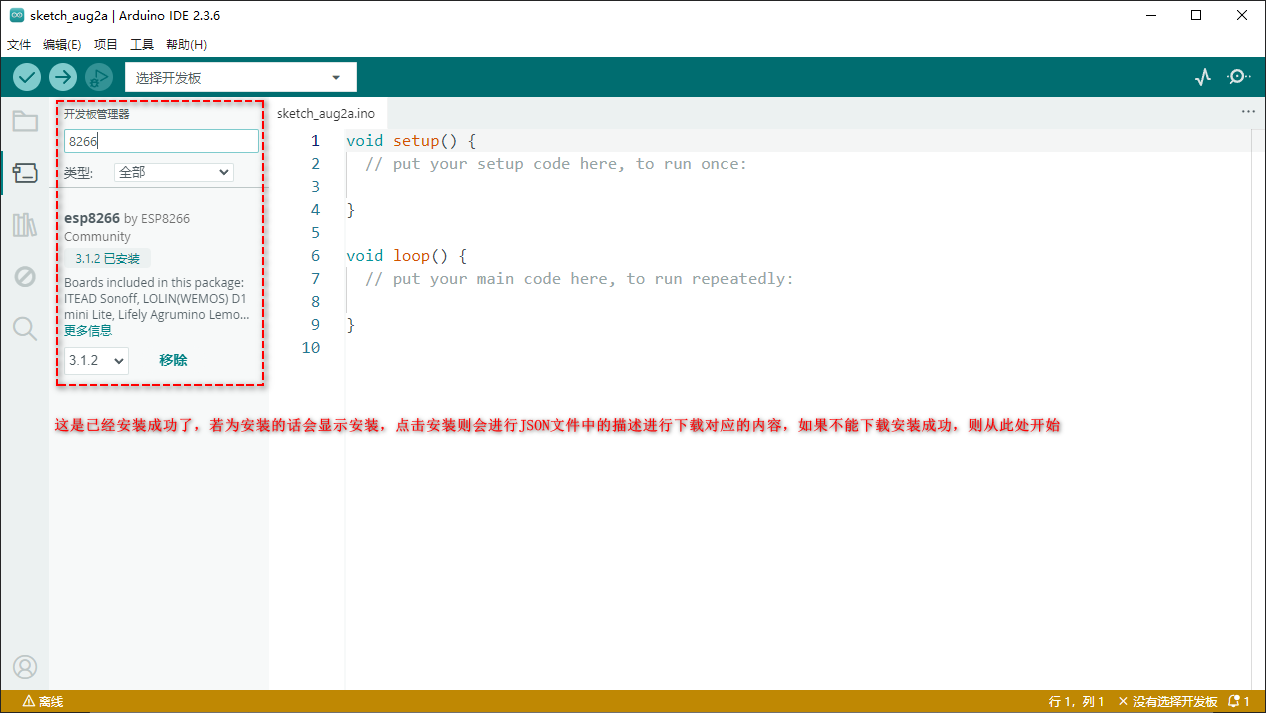

然后重启Arduino IDE，继续安装，就能安装成功

额外记录NODE启动服务

可以使用项目方式启动

$ npm init
$ cd http-server
$ mkdir public
$ npm install http-server --save-dev
$ npm install express --save-dev
$ npm install serve-index --save-dev

编辑package.json文件

{
  "name": "http-server",
  "version": "1.0.0",
  "main": "server.js",
  "scripts": {
    "serve": "node server.js"
  },
  "author": "",
  "license": "ISC",
  "description": "",
  "devDependencies": {
    "express": "^5.1.0",
    "http-server": "^14.1.1",
    "serve-index": "^1.9.1"
  }
}

创建server.js文件

const express = require('express');
const path = require('path');
const serveIndex = require('serve-index');

const app = express();

app.use((req, res, next) => {
    res.header('Access-Control-Allow-Origin', '*');
    next();
});

app.use(express.static(path.join(__dirname, './public')));

app.use('/', serveIndex(path.join(__dirname, './public'), {
    icons: true,
    stylesheet: false
    // stylesheet: './style.css',
}));

app.listen(60802, () => {
    console.log('Server running on http://localhost:60802');
});

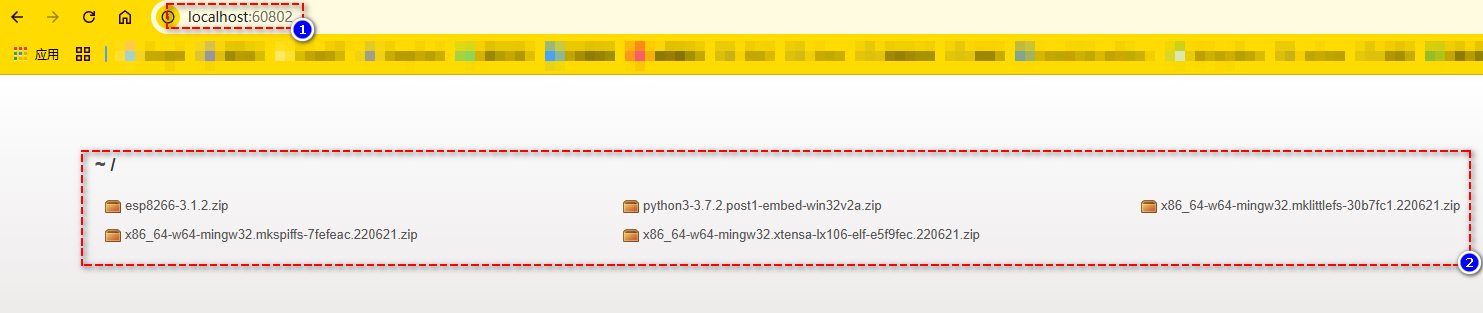

启动

$npm run serve

> http-server@1.0.0 serve
> node server.js

Server running on http://localhost:60802
