手把手教你快速搭建一个SSM框架（超级详细）IDEA+Maven版

环境所需：JDK1.8、IDEA、Maven、MySQL5.7及以上等

引言：手把手教大家基于IDEA的maven环境搭建一个SSM框架、请事先装好所需要的软件工具等，SSM+Java+Maven+JSP，SSM整合JSP，mapper和实体层使用的是自动生成噢！

Java环境搭建教程：浏览器搜索https://www.bilibili.com/video/BV1BN4y1c7Fp/

以下是完整的框架案例！可以在上面上进行修改！

点击获取下载地址

​

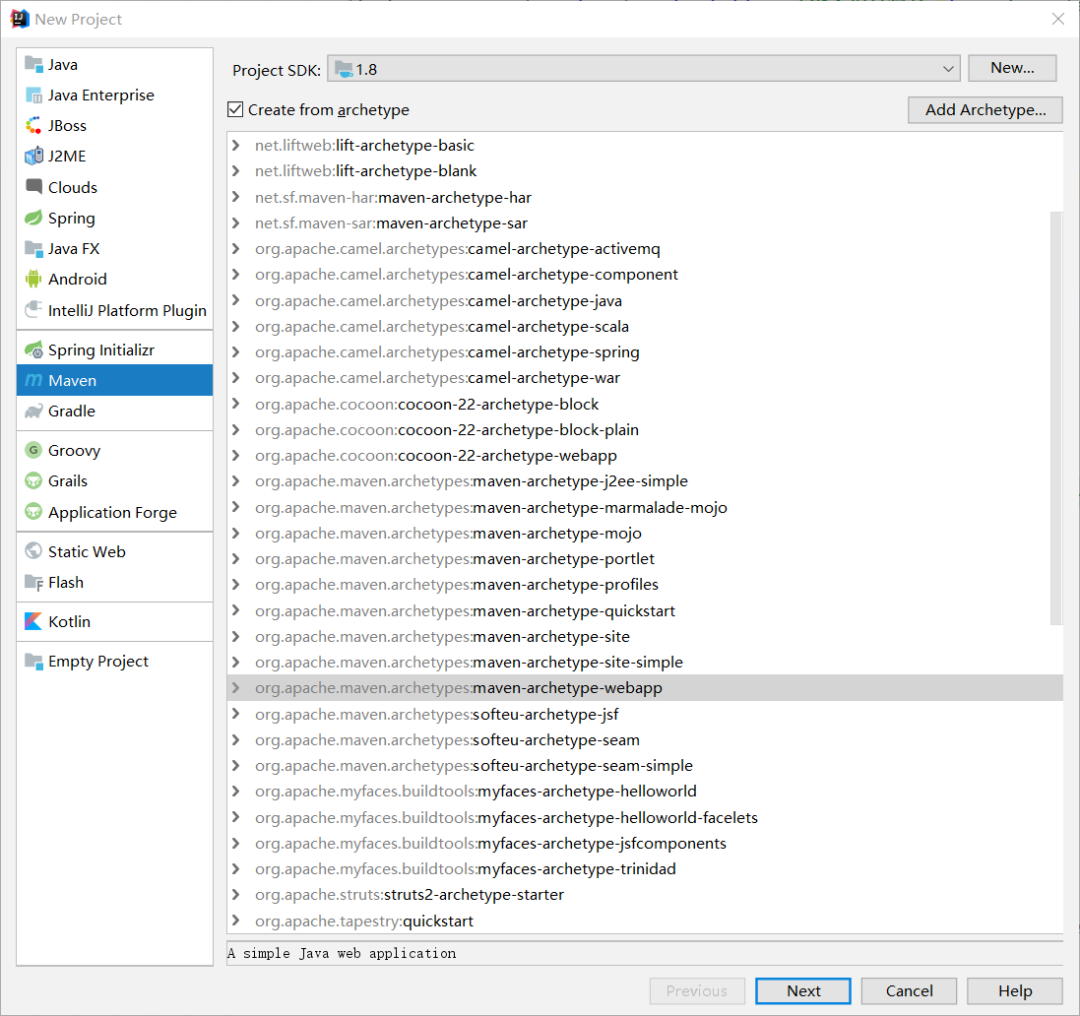

1、打开idea，新建Project，选择Maven、勾选骨架，并选中maven-archetype-webapp之后，点击next

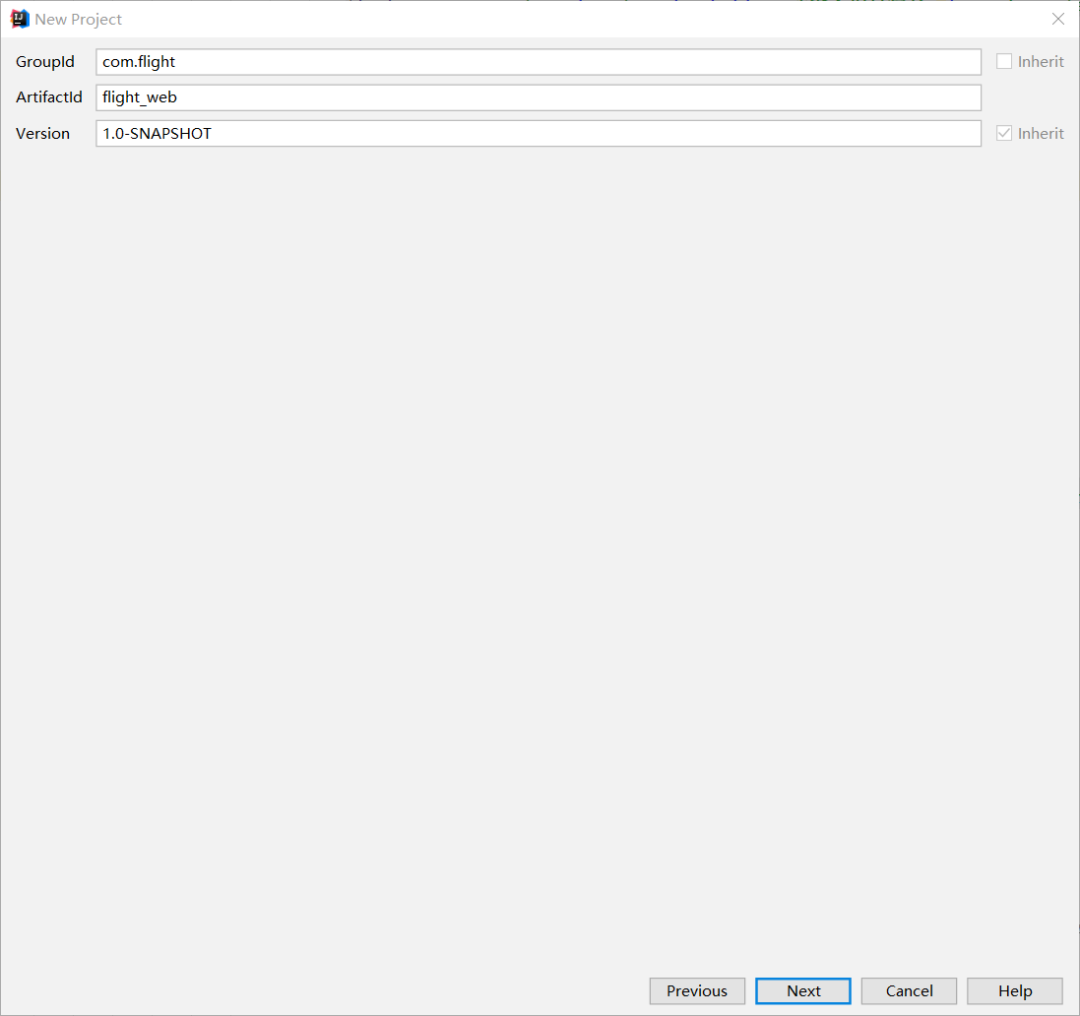

2、创建GroupId（包名）com.flight,ArtifactId（项目名称）flight_web,然后点击next

3、选择maven的安装目录，并配置setting.xml,然后点击next，如果没有搭建maven，请搜索：https://www.bilibili.com/video/BV1BN4y1c7Fp/

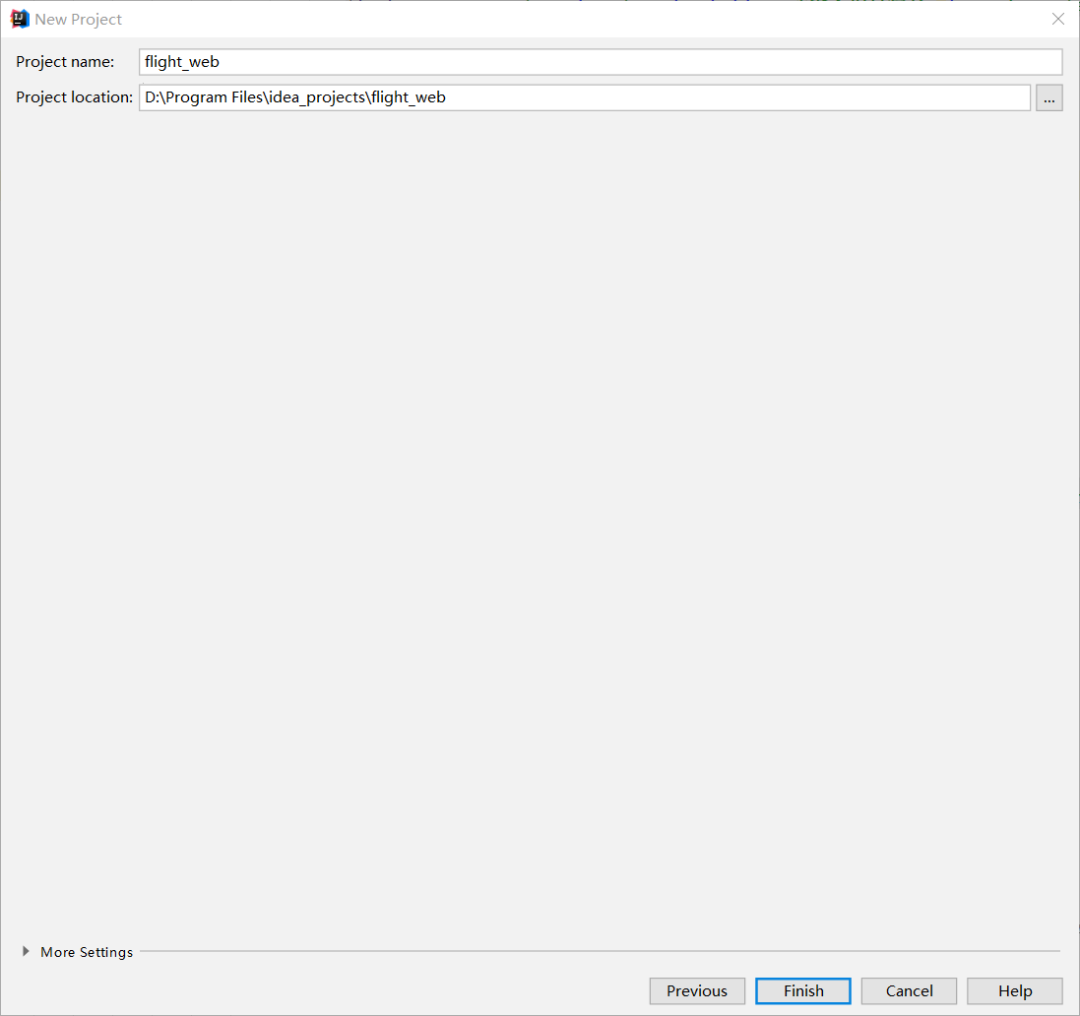

4、选择安装目录，放到D盘，然点击Finish

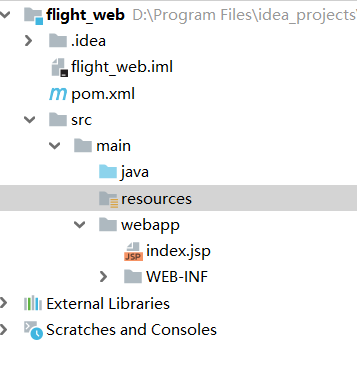

5、open打开项目之后，在main目录下创建两个dirctory（包），分别是java和resources文件夹。

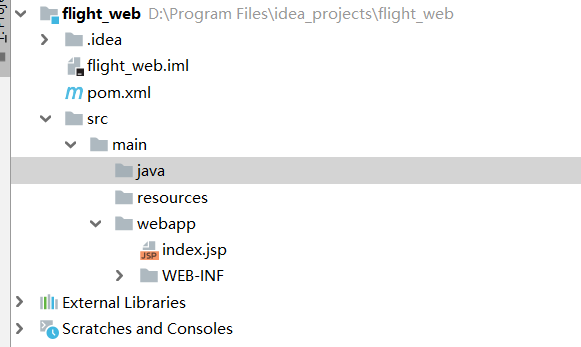

6、点击java包右击选择Mark Directory as -->Sources Root，然后 选择resouces包右击右击选择Mark Directory as -->Resources Root，就编程下面的样子了，需要手动操作的！

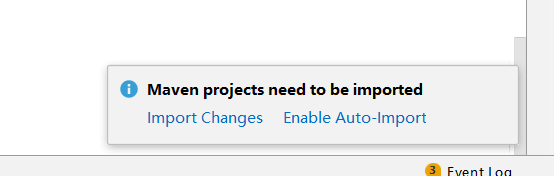

7、配置pom文件,在maven的pom文件配置下面的jar，然后点击Import Changes

<?xml version="1.0" encoding="UTF-8"?>​<project xmlns="http://maven.apache.org/POM/4.0.0" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"  xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">  <modelVersion>4.0.0</modelVersion>​  <groupId>com.flight</groupId>  <artifactId>flight_web</artifactId>  <version>1.0-SNAPSHOT</version>  <packaging>war</packaging>​  <name>flight_web Maven Webapp</name>  <!-- FIXME change it to the project's website -->  <url>http://www.example.com</url>​  <properties>    <project.build.sourceEncoding>UTF-8</project.build.sourceEncoding>    <maven.compiler.source>1.7</maven.compiler.source>    <maven.compiler.target>1.7</maven.compiler.target>    <junit.version>4.12</junit.version>    <spring.version>4.2.4.RELEASE</spring.version>    <mybatis.version>3.2.8</mybatis.version>    <mybatis.spring.version>1.2.2</mybatis.spring.version>    <mybatis.paginator.version>1.2.15</mybatis.paginator.version>    <mysql.version>8.0.18</mysql.version>    <slf4j.version>1.6.4</slf4j.version>    <jackson.version>2.4.2</jackson.version>    <druid.version>1.0.9</druid.version>    <jstl.version>1.2</jstl.version>    <servlet-api.version>2.5</servlet-api.version>    <jsp-api.version>2.0</jsp-api.version>    <commons-lang3.version>3.3.2</commons-lang3.version>    <commons-io.version>1.3.2</commons-io.version>    <commons-net.version>3.3</commons-net.version>    <pagehelper.version>5.1.2</pagehelper.version>    <commons-fileupload.version>1.3.1</commons-fileupload.version>​  </properties>​​​  <dependencies>    <!--导出excel-->​    <dependency>      <groupId>org.apache.poi</groupId>      <artifactId>poi</artifactId>      <version>4.1.1</version>    </dependency>    <dependency>      <groupId>org.apache.poi</groupId>      <artifactId>poi-ooxml</artifactId>      <version>4.1.1</version>    </dependency>​    <!--对象oss-->​    <dependency>      <groupId>com.aliyun.oss</groupId>      <artifactId>aliyun-sdk-oss</artifactId>      <version>3.10.2</version>    </dependency>​​​    <!-- Apache工具组件 -->    <dependency>      <groupId>org.apache.commons</groupId>      <artifactId>commons-lang3</artifactId>      <version>${commons-lang3.version}</version>    </dependency>​    <dependency>      <groupId>com.gitee.qdbp.thirdparty</groupId>      <artifactId>ueditor</artifactId>      <version>1.4.3.3</version>    </dependency>​​​    <!-- 引入org.json所需依赖 -->    <dependency>      <groupId>org.json</groupId>      <artifactId>json</artifactId>      <version>20160810</version>    </dependency>​    <dependency>      <groupId>commons-net</groupId>      <artifactId>commons-net</artifactId>      <version>${commons-net.version}</version>    </dependency>    <!-- Jackson Json处理工具包 -->    <dependency>      <groupId>com.fasterxml.jackson.core</groupId>      <artifactId>jackson-databind</artifactId>      <version>${jackson.version}</version>    </dependency>    <!-- 单元测试 -->    <dependency>      <groupId>junit</groupId>      <artifactId>junit</artifactId>      <version>${junit.version}</version>      <scope>test</scope>    </dependency>    <!-- 日志处理 -->    <dependency>      <groupId>org.slf4j</groupId>      <artifactId>slf4j-log4j12</artifactId>      <version>${slf4j.version}</version>    </dependency>    <!-- log -->    <!-- https://mvnrepository.com/artifact/org.slf4j/slf4j-api -->    <dependency>      <groupId>org.slf4j</groupId>      <artifactId>slf4j-api</artifactId>      <version>${slf4j.version}</version>    </dependency>​    <!-- Mybatis框架 -->    <dependency>      <groupId>org.mybatis</groupId>      <artifactId>mybatis</artifactId>      <version>${mybatis.version}</version>    </dependency>    <dependency>      <groupId>org.mybatis</groupId>      <artifactId>mybatis-spring</artifactId>      <version>${mybatis.spring.version}</version>    </dependency>​    <!-- 分页插件 -->    <dependency>      <groupId>com.github.pagehelper</groupId>      <artifactId>pagehelper</artifactId>      <version>${pagehelper.version}</version>    </dependency>    <!-- MySql数据库 -->    <dependency>      <groupId>mysql</groupId>      <artifactId>mysql-connector-java</artifactId>      <version>${mysql.version}</version>    </dependency>    <!-- 阿里巴巴连接池 -->    <dependency>      <groupId>com.alibaba</groupId>      <artifactId>druid</artifactId>      <version>${druid.version}</version>    </dependency>    <!-- Spring支持 -->    <!-- IOC容器 -->    <dependency>      <groupId>org.springframework</groupId>      <artifactId>spring-beans</artifactId>      <version>${spring.version}</version>    </dependency>    <!-- 扩展IOC容器，添加任务调度 邮件服务等 -->    <dependency>      <groupId>org.springframework</groupId>      <artifactId>spring-context</artifactId>      <version>${spring.version}</version>    </dependency>​    <!-- spring mvc框架 -->    <dependency>      <groupId>org.springframework</groupId>      <artifactId>spring-webmvc</artifactId>      <version>${spring.version}</version>    </dependency>    <!-- spring context的扩展，用于mvc -->    <dependency>      <groupId>org.springframework</groupId>      <artifactId>spring-context-support</artifactId>      <version>${spring.version}</version>    </dependency>    <!-- spring jdbc的简单封装 -->    <dependency>      <groupId>org.springframework</groupId>      <artifactId>spring-jdbc</artifactId>      <version>${spring.version}</version>    </dependency>    <!-- 面向切面编程 -->    <dependency>      <groupId>org.springframework</groupId>      <artifactId>spring-aspects</artifactId>      <version>${spring.version}</version>    </dependency>    <!-- JSP相关 -->    <dependency>      <groupId>jstl</groupId>      <artifactId>jstl</artifactId>      <version>${jstl.version}</version>    </dependency>    <dependency>      <groupId>javax.servlet</groupId>      <artifactId>servlet-api</artifactId>      <version>${servlet-api.version}</version>      <scope>provided</scope>    </dependency>    <dependency>      <groupId>javax.servlet</groupId>      <artifactId>jsp-api</artifactId>      <version>${jsp-api.version}</version>      <scope>provided</scope>    </dependency>    <!-- 文件上传组件 -->    <dependency>      <groupId>commons-fileupload</groupId>      <artifactId>commons-fileupload</artifactId>      <version>${commons-fileupload.version}</version>    </dependency>    <dependency>      <groupId>commons-io</groupId>      <artifactId>commons-io</artifactId>      <version>${commons-io.version}</version>    </dependency>  </dependencies>​​  <build>    <finalName>website</finalName>    <plugins>      <plugin>        <groupId>org.apache.tomcat.maven</groupId>        <artifactId>tomcat7-maven-plugin</artifactId>        <version>2.2</version>        <configuration>          <path>/</path>          <port>8080</port>        </configuration>      </plugin>      <plugin>        <groupId>org.mybatis.generator</groupId>        <artifactId>mybatis-generator-maven-plugin</artifactId>        <version>1.3.7</version>        <configuration>          <configurationFile>${basedir}/src/main/resources/generatorConfig.xml</configurationFile>          <overwrite>true</overwrite>          <verbose>true</verbose>        </configuration>      </plugin>    </plugins>    <resources>      <resource>        <directory>src/main/java</directory>        <includes>          <include>**/*.xml</include>        </includes>      </resource>      <resource>        <directory>src/main/resources</directory>        <includes>          <include>**/*.*</include>        </includes>      </resource>    </resources>  </build></project>​

8、配置webapp下的WEB-INF下的web.xml文件，把下面的复制过去，并在WEB-INF下面建一个jsp的目录，解析的界面放在jsp目录里面。

<!DOCTYPE web-app PUBLIC "-//Sun Microsystems, Inc.//DTD Web Application 2.3//EN" "http://java.sun.com/dtd/web-app_2_3.dtd" >​<web-app xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xmlns="http://java.sun.com/xml/ns/javaee" xsi:schemaLocation="http://java.sun.com/xml/ns/javaee http://java.sun.com/xml/ns/javaee/web-app_2_5.xsd" id="WebApp_ID" version="2.5">  <display-name>flight_web</display-name>  <context-param>    <param-name>contextConfigLocation</param-name>    <param-value>classpath:applicationContext.xml</param-value>  </context-param>  <listener>    <listener-class>org.springframework.web.context.ContextLoaderListener</listener-class>  </listener>  <!-- 配置监听器加载spring的配置文件 -->  <filter>    <filter-name>CharacterEncodingFilter</filter-name>    <filter-class>org.springframework.web.filter.CharacterEncodingFilter</filter-class>    <init-param>      <param-name>encoding</param-name>      <param-value>UTF-8</param-value>    </init-param>  </filter>  <filter-mapping>    <filter-name>CharacterEncodingFilter</filter-name>    <url-pattern>/*</url-pattern>  </filter-mapping>​  <!-- 配置dispatcherServlet，来加载springmvc的配置 -->  <servlet>    <servlet-name>DispatcherServlet</servlet-name>    <servlet-class>org.springframework.web.servlet.DispatcherServlet</servlet-class>    <init-param>      <param-name>contextConfigLocation</param-name>      <param-value>classpath:springmvc.xml</param-value>    </init-param>    <load-on-startup>1</load-on-startup>  </servlet>  <servlet-mapping>    <servlet-name>DispatcherServlet</servlet-name>    <url-pattern>/</url-pattern>  </servlet-mapping>  <error-page>    <error-code>404</error-code>    <location>/WEB-INF/jsp/error.jsp</location>  </error-page></web-app>​

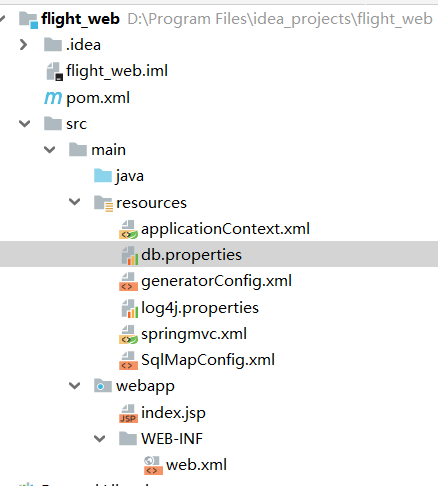

9、在resources目录下面配置applicationContext.xml文件，这个是Spring的配置文件。

<beans xmlns="http://www.springframework.org/schema/beans"  xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xmlns:mvc="http://www.springframework.org/schema/mvc"  xmlns:context="http://www.springframework.org/schema/context"  xmlns:aop="http://www.springframework.org/schema/aop" xmlns:tx="http://www.springframework.org/schema/tx"  xsi:schemaLocation="http://www.springframework.org/schema/beans    http://www.springframework.org/schema/beans/spring-beans-3.2.xsd    http://www.springframework.org/schema/mvc    http://www.springframework.org/schema/mvc/spring-mvc-3.2.xsd    http://www.springframework.org/schema/context    http://www.springframework.org/schema/context/spring-context-3.2.xsd    http://www.springframework.org/schema/aop    http://www.springframework.org/schema/aop/spring-aop-3.2.xsd    http://www.springframework.org/schema/tx    http://www.springframework.org/schema/tx/spring-tx-3.2.xsd ">  <!--修改，业务层接口所在的包-->  <context:component-scan base-package="com.flight.service"></context:component-scan>​  <!-- 接口开发,扫描 com.ssm.core.dao包 ，写在此包下的接口即可被扫描到 -->  <bean class="org.mybatis.spring.mapper.MapperScannerConfigurer">    <property name="basePackage" value="com.flight.mapper" />  </bean>  <!-- 配置数据库连接池 -->  <!-- 加载配置文件 -->  <context:property-placeholder location="classpath:db.properties"/>  <!-- 数据库连接池 -->  <bean id="dataSource" class="com.alibaba.druid.pool.DruidDataSource"    destroy-method="close">    <property name="url" value="${jdbc.url}" />    <property name="username" value="${jdbc.username}" />    <property name="password" value="${jdbc.password}" />    <property name="driverClassName" value="${jdbc.driver}" />    <property name="maxActive" value="10" />    <property name="minIdle" value="5" />  </bean>  <!-- 配置sqlsessionFactory -->  <bean id="sqlSessionFactory" class="org.mybatis.spring.SqlSessionFactoryBean">    <property name="configLocation" value="classpath:SqlMapConfig.xml"></property>    <property name="dataSource" ref="dataSource"></property>    <!--修改，实体类的包-->    <property name="typeAliasesPackage" value="com.flight.entity"></property>    <!--修改，DAO接口和映射配置文件的包-->    <property name="mapperLocations" value="classpath:com/flight/mapper/*.xml"></property>  </bean>  <!-- 配置扫描包，加载mapper代理对象 -->  <bean class="org.mybatis.spring.mapper.MapperScannerConfigurer">    <property name="basePackage" value="com.flight.mapper"></property>    <property name="sqlSessionFactoryBeanName" value="sqlSessionFactory"></property>  </bean>​  <bean id="transactionManager" class="org.springframework.jdbc.datasource.DataSourceTransactionManager">    <!-- 数据源 -->    <property name="dataSource" ref="dataSource"></property>  </bean>  <!-- 通知 -->  <tx:advice id="txAdvice" transaction-manager="transactionManager">    <tx:attributes>      <!-- 传播行为 -->      <tx:method name="save*" propagation="REQUIRED"/>      <tx:method name="insert*" propagation="REQUIRED"/>      <tx:method name="add*" propagation="REQUIRED"/>      <tx:method name="create*" propagation="REQUIRED"/>      <tx:method name="delete*" propagation="REQUIRED"/>      <tx:method name="update*" propagation="REQUIRED"/>            <tx:method name="find*" propagation="SUPPORTS" read-only="true"/>      <tx:method name="select*" propagation="SUPPORTS" read-only="true"/>      <tx:method name="get*" propagation="SUPPORTS" read-only="true"/>    </tx:attributes>  </tx:advice>  <!-- 切面 -->  <aop:config>    <aop:advisor advice-ref="txAdvice" pointcut="execution(* com.flight.service.*.*(..))"/>  </aop:config></beans>

10、在resources目录下面配置db.propretie文件，这个是数据库的配置文件。

jdbc.driver=com.mysql.cj.jdbc.Driverjdbc.url=jdbc:mysql://localhost:3306/db_flight_web?useSSL=false&serverTimezone=UTC&allowPublicKeyRetrieval=true&useUnicode=true&characterEncoding=utf-8jdbc.username=rootjdbc.password=123456

11、接着在resources目录下面配置generatorConfig.xml文件，这个是对象映射框架的配置文件，可以生成自动生成mapper和实体类，不需要手动创建。

注意：将mysql-connector-java-5.1.46.jar放到D盘里面，可以是其他版本的，不然无法自动生成！

<?xml version="1.0" encoding="UTF-8"?><!DOCTYPE generatorConfiguration        PUBLIC "-//mybatis.org//DTD MyBatis Generator Configuration 1.0//EN"        "http://mybatis.org/dtd/mybatis-generator-config_1_0.dtd"><generatorConfiguration>    <!-- 数据库驱动:选择你的本地硬盘上面的数据库驱动包-->    <classPathEntry  location="D:\mysql-connector-java-5.1.46.jar"/>    <context id="DB2Tables"  targetRuntime="MyBatis3">        <commentGenerator>            <property name="suppressDate" value="true"/>            <!-- 是否去除自动生成的注释 true：是 ： false:否 -->            <property name="suppressAllComments" value="true"/>        </commentGenerator>        <!--数据库链接URL，用户名、密码 -->        <jdbcConnection driverClass="com.mysql.jdbc.Driver" connectionURL="jdbc:mysql://localhost:3306/db_flight_web"                        userId="root" password="123456">        </jdbcConnection>        <javaTypeResolver>            <property name="forceBigDecimals" value="false"/>        </javaTypeResolver>        <!-- 生成模型的包名和位置-->        <javaModelGenerator targetPackage="com.flight.entity" targetProject="src/main/java">            <property name="enableSubPackages" value="true"/>            <property name="trimStrings" value="true"/>        </javaModelGenerator>        <!-- 生成映射文件的包名和位置-->        <sqlMapGenerator targetPackage="com.flight.mapper" targetProject="src/main/java">            <property name="enableSubPackages" value="true"/>        </sqlMapGenerator>        <!-- 生成DAO的包名和位置-->        <javaClientGenerator type="XMLMAPPER" targetPackage="com.flight.mapper" targetProject="src/main/java">            <property name="enableSubPackages" value="true"/>        </javaClientGenerator>        <!-- 要生成的表 tableName是数据库中的表名或视图名 domainObjectName是实体类名-->​​​        <table tableName="t_admin" domainObjectName="Admin">            <property name="useActualColumnNames" value="true"></property>        </table>​​​        </context></generatorConfiguration>

12、接着在resources目录下面配置log4j.properties文件，这个是配置日志文件。

log4j.rootLogger=DEBUG, Console  #Consolelog4j.appender.Console=org.apache.log4j.ConsoleAppender  log4j.appender.Console.layout=org.apache.log4j.PatternLayout  log4j.appender.Console.layout.ConversionPattern=%d [%t] %-5p [%c] - %m%n  log4j.logger.java.sql.ResultSet=INFO  log4j.logger.org.apache=INFO  log4j.logger.java.sql.Connection=DEBUG  log4j.logger.java.sql.Statement=DEBUG  log4j.logger.java.sql.PreparedStatement=DEBUG

13、接着在resources目录下面配置springmvc.xml文件，这个是配置SpringMVC的配置文件。

<beans xmlns="http://www.springframework.org/schema/beans"  xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xmlns:mvc="http://www.springframework.org/schema/mvc"  xmlns:context="http://www.springframework.org/schema/context"  xmlns:aop="http://www.springframework.org/schema/aop" xmlns:tx="http://www.springframework.org/schema/tx"  xsi:schemaLocation="http://www.springframework.org/schema/beans    http://www.springframework.org/schema/beans/spring-beans-3.2.xsd     http://www.springframework.org/schema/mvc     http://www.springframework.org/schema/mvc/spring-mvc-3.2.xsd     http://www.springframework.org/schema/context     http://www.springframework.org/schema/context/spring-context-3.2.xsd     http://www.springframework.org/schema/aop     http://www.springframework.org/schema/aop/spring-aop-3.2.xsd     http://www.springframework.org/schema/tx    http://www.springframework.org/schema/tx/spring-tx-3.2.xsd ">  <!-- 配置包扫描器，扫描@Controller注解的类 -->  <context:component-scan base-package="com.flight.controller"></context:component-scan>  <!-- 配置注解驱动 -->  <mvc:annotation-driven></mvc:annotation-driven>  <mvc:resources  location="/static/" mapping="/resource/**"/>    <!-- 视图解析器 -->  <bean    class="org.springframework.web.servlet.view.InternalResourceViewResolver">    <property name="prefix" value="/WEB-INF/jsp/" />    <property name="suffix" value=".jsp" />  </bean>  <!-- 不拦截资源文件 -->  <mvc:default-servlet-handler/>  <!-- 附件解析器 -->  <bean id="multipartResolver" class="org.springframework.web.multipart.commons.CommonsMultipartResolver">    <!-- 1G: -->    <property name="maxUploadSize" value="1073741824"></property>  </bean>​<mvc:interceptors>    <mvc:interceptor>      <!-- 拦截所有mvc控制器 -->      <mvc:mapping path="/login"></mvc:mapping>      <!-- mvc:exclude-mapping是另外一种拦截，它可以在你后来的测试中对某个页面进行不拦截，这样就不用在-->      <bean class="com.flight.intercepter.LoginIntercepter"></bean>    </mvc:interceptor>  </mvc:interceptors></beans>

14、接着在resources目录下面配置SqlMapConfig.xml文件，配置分页插件，和驼峰设置！

<?xml version="1.0" encoding="UTF-8"?><!DOCTYPE configurationPUBLIC "-//mybatis.org//DTD Config 3.0//EN""http://mybatis.org/dtd/mybatis-3-config.dtd"><configuration>  <settings>       <setting name="mapUnderscoreToCamelCase" value="true"/>   </settings>  <plugins>    <!-- 配置分页插件 -->    <plugin interceptor="com.github.pagehelper.PageInterceptor"></plugin>  </plugins></configuration>

15、配置LoginIntercepter进行登录拦截！,比如只有登录之后才可以访问后台，如果没有登录则不可以访问！

package com.flight.intercepter;​import com.flight.entity.Admin;import org.springframework.web.servlet.HandlerInterceptor;import org.springframework.web.servlet.ModelAndView;​import javax.servlet.http.HttpServletRequest;import javax.servlet.http.HttpServletResponse;import javax.servlet.http.HttpSession;​​public class LoginIntercepter implements HandlerInterceptor {    @Override    public boolean preHandle(HttpServletRequest request, HttpServletResponse response, Object handler) throws Exception {​        // 获取请求的URL        String url = request.getRequestURI();        // URL:除了login.jsp是可以公开访问的，其它的URL都进行拦截控制        if(url.indexOf("/login")>=0){            return true;        }        // 获取Session        HttpSession session = request.getSession();        Admin admin = (Admin) session.getAttribute("admin");        // 判断Session中是否有用户数据，如果有，则返回true,继续向下执行        if(admin != null){            return true;        }        // 不符合条件的给出提示信息，并转发到登录页面        request.setAttribute("msg", "您还没有登录，请先登录！");        request.getRequestDispatcher("/WEB-INF/jsp/login.jsp")                .forward(request, response);        return false;​    }​    @Override    public void postHandle(HttpServletRequest request, HttpServletResponse response, Object handler, ModelAndView modelAndView) throws Exception {​    }​    @Override    public void afterCompletion(HttpServletRequest request, HttpServletResponse response, Object handler, Exception ex) throws Exception {​    }}​

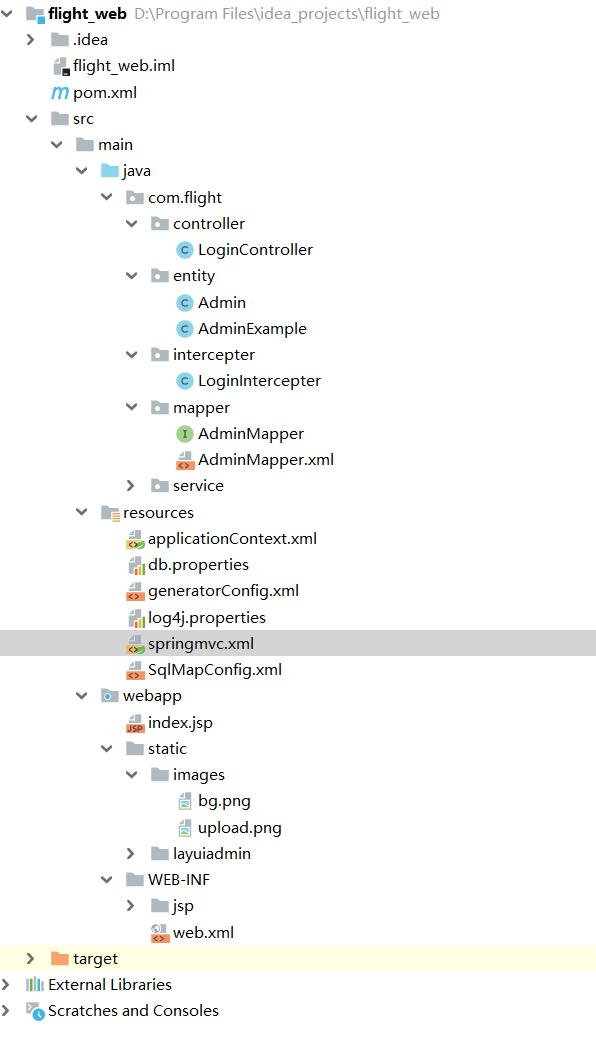

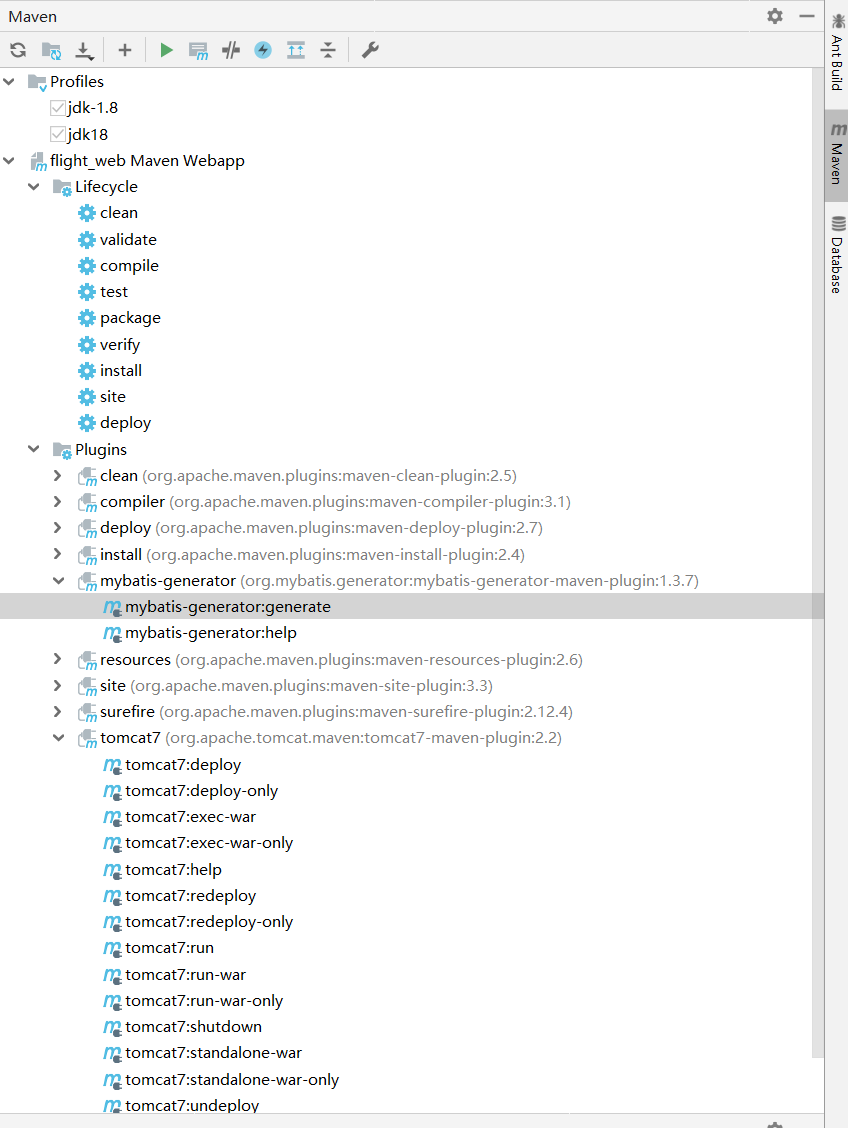

16、自动生成实体和mapper，双击mybaits-generator:generate！即可生成！

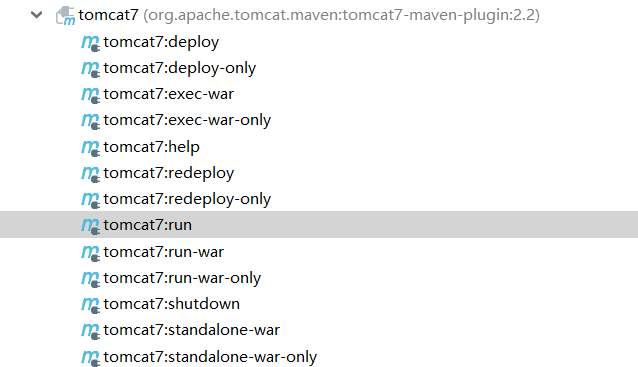

17、配置tomcat使用自带插件，双击tomcat7:run即可，非常快速，然后访问路径进入到登陆界面！
