前言

Blackbox_exporter 是 Prometheus 官方提供的一个 exporter，可以监控 HTTP，HTTPS，DNS，TCP ，ICMP和gRPC等目标实例，从而实现对被监控节点进行监控和数据采集。

部署Blackbox_exporter

下载安装二进制文件：

wget https://github.com/prometheus/blackbox_exporter/releases/download/v0.22.0/blackbox_exporter-0.22.0.linux-amd64.tar.gz

tar zxvf blackbox_exporter-0.22.0.linux-amd64.tar.gz
cp -r blackbox_exporter-0.22.0.linux-amd64 /apps/blackbox_exporter

创建blackbox_exporter服务：

vim /etc/systemd/system/blackbox-exporter.service

[Unit]
Description=Prometheus Blackbox Exporter
After=network.target

[Service]
Type=simple
User=root
Group=root
ExecStart=/apps/blackbox_exporter/blackbox_exporter \
--config.file=/apps/blackbox_exporter/blackbox.yml \
--web.listen-address=:9115
Restart=on-failure

[Install]
WantedBy=multi-user.target

开机自启动：

systemctl daemon-reload
systemctl enable --now blackbox-exporter.service
systemctl status blackbox-exporter.service

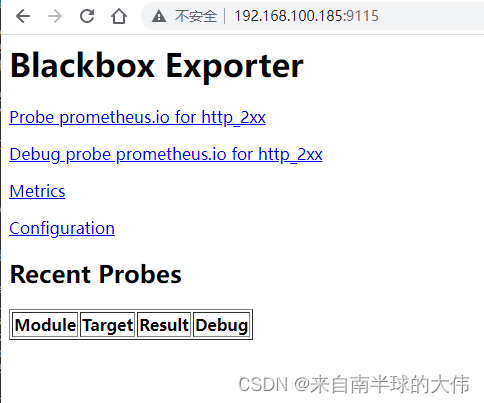

访问blackbox_exporter服务，在服务定义了端口9115：

配置Prometheus

blackbox_exporter的监控，包括URL，ICMP，TCP等。都是先在prometheus设置监控内容，再转发到blackbox_exporter的地址，最后得出监控结果。

设置完prometheus配置文件后，可以使用检查工具：

# 检查工具路径，命令，配置文件
sudo /apps/prometheus/promtool check config /apps/prometheus/prometheus.yml
# 正确提示
Checking /apps/prometheus/prometheus.yml
 SUCCESS: /apps/prometheus/prometheus.yml is valid prometheus config file syntax

# 错误提示
Checking /apps/prometheus/prometheus.yml
  FAILED: parsing YAML file /apps/prometheus/prometheus.yml: yaml: line 71: did not find expected '-' indicator

URL监控

在prometheus服务器添加url监控工作，末尾指定blackbox_exporter地址：

vim /apps/prometheus/prometheus.yml

  - job_name: 'blackbox_url'
    metrics_path: /probe	# Probe is the path
    params:
      module: [http_2xx]  # Look for a HTTP 200 response.
    static_configs:
      - targets:
        - http://www.baidu.com    # Target to probe with http.
        - https://www.baidu.com   # Target to probe with https.
        - http://example.com:8080 # Target to probe with http on port 8080.
    relabel_configs:
      - source_labels: [__address__]
        target_label: __param_target
      - source_labels: [__param_target]
        target_label: instance
      - target_label: __address__
        replacement: 192.168.100.185:9115  # The blackbox exporter's real hostname:port.

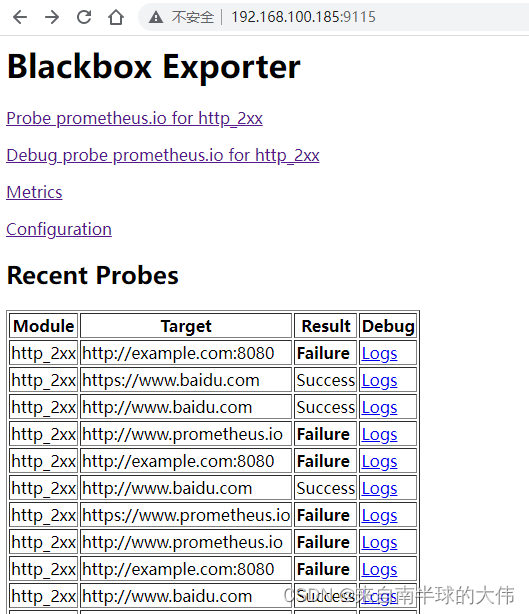

在blackbox_exporter服务器查看最近URL探测：

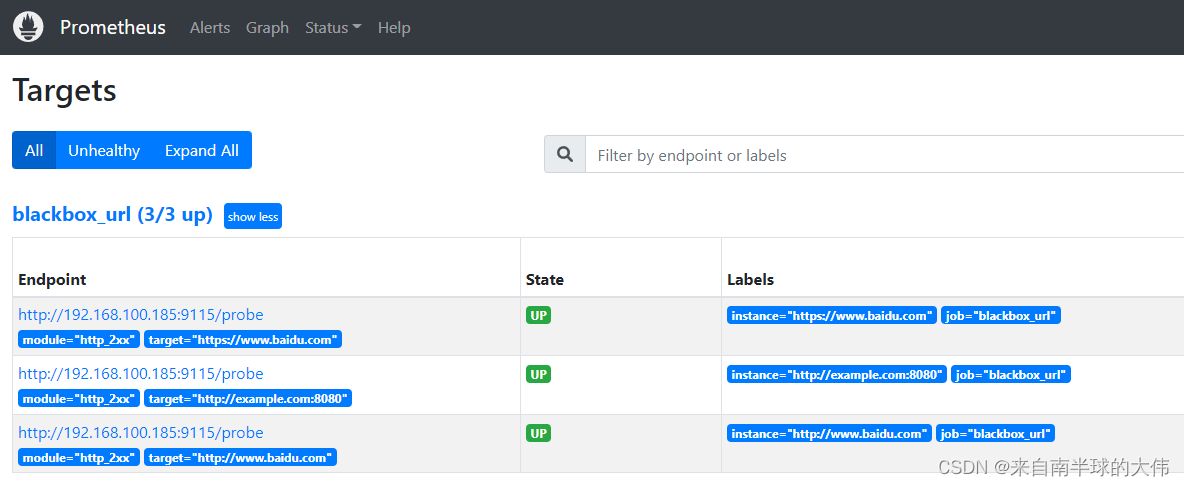

在prometheus查看URL工作采集状态：

ICMP监控

ICMP就是Ping使用的协议，可以探测IP是否在线：

vim /apps/prometheus/prometheus.yml

  - job_name: 'ping_status'
    metrics_path: /probe
    params:
      module: [icmp]
    static_configs:
      - targets:
        - 192.168.100.191
        - 192.168.100.196
        labels:
          instance: 'ping_status'
          group: 'icmp'
    relabel_configs:
      - source_labels: [__address__]
        target_label: __param_target
      - source_labels: [__param_target]
        target_label: ip
      - target_label: __address__
        replacement: 192.168.100.185:9115

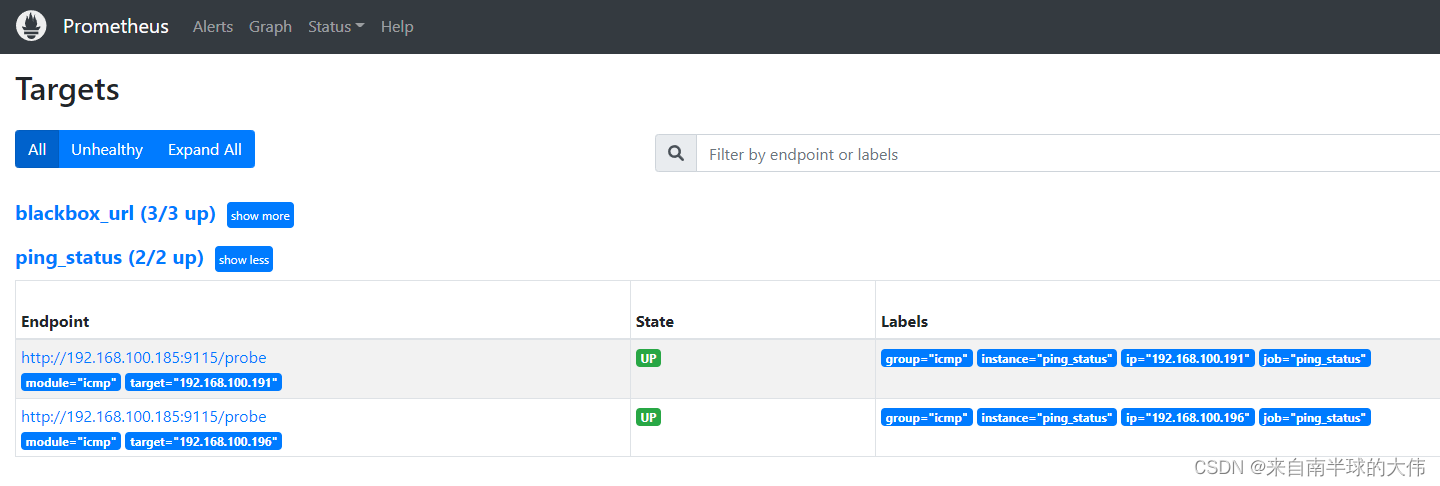

在prometheus查看ICMP工作采集状态：

在blackbox_exporter服务器查看最近ICMP探测：

Port监控

Port端口用于检测服务器端口是否开启，服务是否可用：

vim /apps/prometheus/prometheus.yml

  - job_name: 'port_status'
    metrics_path: /probe
    params:
      module: [tcp_connect]
    static_configs:
      - targets: ['192.168.100.194:22', '192.168.100.195:3306','192.168.100.196:9100']
        labels:
          instance: 'port_status'
          group: 'port'
    relabel_configs:
      - source_labels: [__address__]
        target_label: __param_target
      - source_labels: [__param_target]
        target_label: ip
      - target_label: __address__
        replacement: 192.168.100.185:9115

在prometheus查看Port工作采集状态：

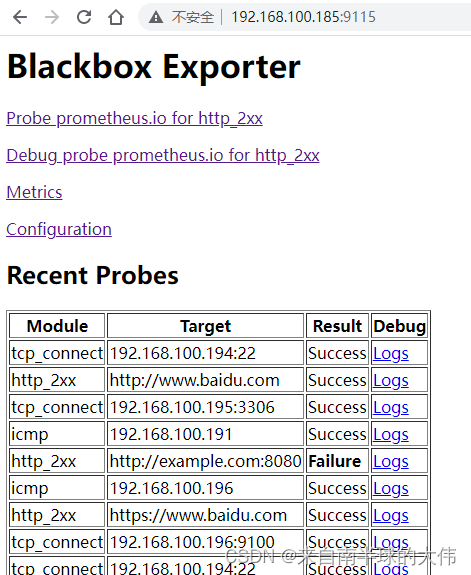

在blackbox_exporter服务器查看最近Port探测：

Grafana模板

可在官网查找blackbox_exporter相关的模板：

https://grafana.com/grafana/dashboards/

推荐模板ID：9965, 13587

TLS证书过期监控

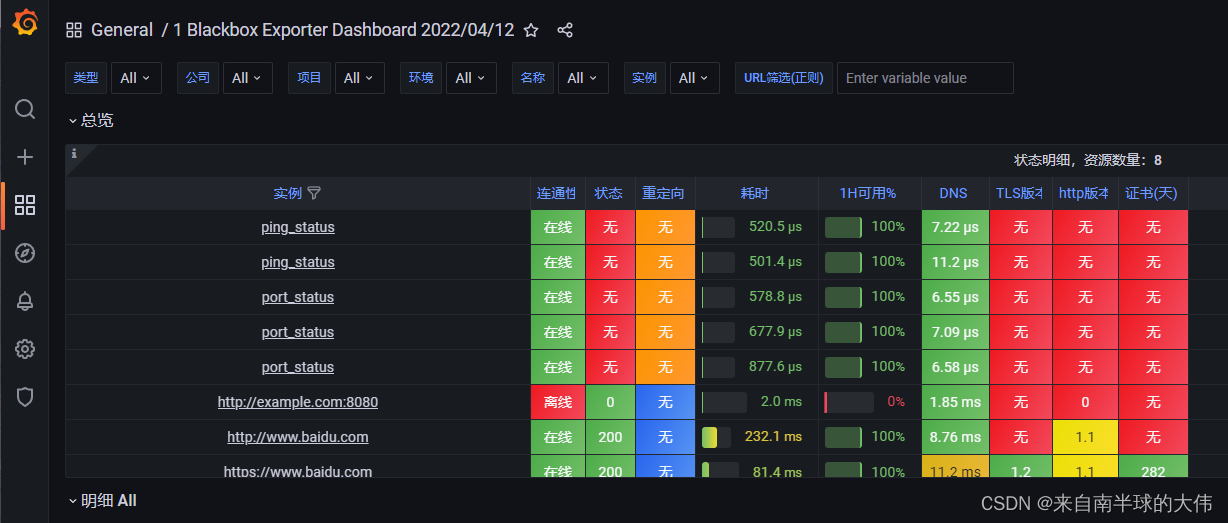

在总览面板中，有一项证书(天)选项记录了网站的Https证书剩余天数，可为延期做准备。

下列例子中，https://www.baidu.com的证书还剩282天到期：
