SSM整合大概流程

发布于：2022-12-09 ⋅ 阅读:(336) ⋅ 点赞:(0)

提示：文章写完后，目录可以自动生成，如何生成可参考右边的帮助文档

文章目录

SSM框架：

  • Spring
  • SpringMVC
  • MyBatis

M: Model 模型层 [ MyBatis优化数据访问层 ]

  • 实体类
  • 业务逻辑层
  • 数据访问层

V: View 视图层 [ ]

显示数据
  • html
  • javaScript, vue

C: Controller 控制器 [ SpringMVC优化 ]

接受客户啊短的请求，响应到客户端的组件
  • Servlet
  • action

基于注解的SpringMVC框架开发的步骤

  1. 新建项目，选择webapp模板

  2. 修改目录，添加缺失的test,java,resources，并修改目录属性

  3. 修改pom.xml文件，添加SpringMVC,Servlet的依赖

  4. 添加springmvc.xml配置文件，指定包扫描，添加视图解析器

  5. 删除web.xml文件，新建web.xml

  6. 在web.xml文件中注册springMVC框架（所有的web请求都是基于servlet的）

  7. 删除index.jsp页面，并新建，发送请求给服务器

  8. 开发控制器（Servlet)，他是一个普通的类

  9. 添加tomacat进行测试

SSM整合文件配置

  1. pom.xml文件：
<properties>
    <junit.version>4.12</junit.version>
    <spring.version>5.2.5.RELEASE</spring.version>
    <mybatis.version>3.5.1</mybatis.version>
    <mybatis.spring.version>1.3.1</mybatis.spring.version>
    <mybatis.paginator.version>1.2.15</mybatis.paginator.version>
    <mysql.version>5.1.32</mysql.version>
    <slf4j.version>1.6.4</slf4j.version>
    <druid.version>1.1.12</druid.version>
    <pagehelper.version>5.1.2</pagehelper.version>
    <jstl.version>1.2</jstl.version>
    <servlet-api.version>3.0.1</servlet-api.version>
    <jsp-api.version>2.0</jsp-api.version>
    <jackson.version>2.9.6</jackson.version>
  </properties>


  <dependencies>
  <!-- spring -->
  <dependency>
    <groupId>org.springframework</groupId>
    <artifactId>spring-context</artifactId>
    <version>5.3.10</version>
  </dependency>
  <dependency>
    <groupId>org.springframework</groupId>
    <artifactId>spring-beans</artifactId>
    <version>5.3.10</version>
  </dependency>
  <dependency>
    <groupId>org.springframework</groupId>
    <artifactId>spring-webmvc</artifactId>
    <version>5.3.10</version>
  </dependency>
  <dependency>
    <groupId>org.springframework</groupId>
    <artifactId>spring-jdbc</artifactId>
    <version>5.3.10</version>
  </dependency>
  <dependency>
    <groupId>org.springframework</groupId>
    <artifactId>spring-aspects</artifactId>
    <version>5.3.10</version>
  </dependency>
  <dependency>
    <groupId>org.springframework</groupId>
    <artifactId>spring-jms</artifactId>
    <version>5.3.10</version>
  </dependency>
  <dependency>
    <groupId>org.springframework</groupId>
    <artifactId>spring-context-support</artifactId>
    <version>5.3.10</version>
  </dependency>
  <dependency>
    <groupId>org.springframework</groupId>
    <artifactId>spring-test</artifactId>
    <version>5.2.8.RELEASE</version>
  </dependency>
  <!-- Mybatis -->
  <dependency>
    <groupId>org.mybatis</groupId>
    <artifactId>mybatis</artifactId>
    <version>3.5.2</version>
  </dependency>
  <dependency>
    <groupId>org.mybatis</groupId>
    <artifactId>mybatis-spring</artifactId>
    <version>${mybatis.spring.version}</version>
  </dependency>
  <dependency>
    <groupId>com.github.miemiedev</groupId>
    <artifactId>mybatis-paginator</artifactId>
    <version>${mybatis.paginator.version}</version>
  </dependency>
  <dependency>
    <groupId>com.github.pagehelper</groupId>
    <artifactId>pagehelper</artifactId>
    <version>${pagehelper.version}</version>
  </dependency>
  <!-- MySql -->
  <dependency>
    <groupId>mysql</groupId>
    <artifactId>mysql-connector-java</artifactId>
    <version>${mysql.version}</version>
  </dependency>
  <!-- 连接池?-->
  <dependency>
    <groupId>com.alibaba</groupId>
    <artifactId>druid</artifactId>
    <version>${druid.version}</version>
  </dependency>

  <!-- 单元测试 4.12版本支持spring junit -->
  <dependency>
    <groupId>junit</groupId>
    <artifactId>junit</artifactId>
    <version>${junit.version}</version>
  </dependency>


    <!-- JSP相关 -->
  <dependency>
    <groupId>jstl</groupId>
    <artifactId>jstl</artifactId>
    <version>${jstl.version}</version>
  </dependency>
  <dependency>
    <groupId>javax.servlet</groupId>
    <artifactId>javax.servlet-api</artifactId>
    <version>3.1.0</version>
    <scope>provided</scope>
  </dependency>
  <dependency>
    <groupId>javax.servlet</groupId>
    <artifactId>jsp-api</artifactId>
    <scope>provided</scope>
    <version>${jsp-api.version}</version>
  </dependency>
  <!-- Jackson Json处理工具包-->
  <dependency>
    <groupId>com.fasterxml.jackson.core</groupId>
    <artifactId>jackson-databind</artifactId>
    <version>${jackson.version}</version>
  </dependency>
  <dependency>
    <groupId>org.json</groupId>
    <artifactId>json</artifactId>
    <version>20140107</version>
  </dependency>


  <dependency>
    <groupId>commons-io</groupId>
    <artifactId>commons-io</artifactId>
    <version>2.4</version>
  </dependency>
  <dependency>
    <groupId>commons-fileupload</groupId>
    <artifactId>commons-fileupload</artifactId>
    <version>1.3.1</version>
  </dependency>
</dependencies>


  <build>
    <plugins>
      <plugin>
        <groupId>org.apache.maven.plugins</groupId>
        <artifactId>maven-compiler-plugin</artifactId>
        <configuration>
          <source>1.8</source>
          <target>1.8</target>
          <encoding>UTF-8</encoding>
        </configuration>
      </plugin>
    </plugins>

    <resources>
      <resource>
        <directory>src/main/java</directory>
        <includes>
          <include>**/*.properties</include>
          <include>**/*.xml</include>
        </includes>
        <filtering>false</filtering>
      </resource>
      <resource>
        <directory>src/main/resources</directory>
        <includes>
          <include>**/*.properties</include>
          <include>**/*.xml</include>
        </includes>
        <filtering>false</filtering>
      </resource>
    </resources>
  </build>

  1. jdbc.properties

    jdbc.driverClassName=com.mysql.jdbc.Driver
jdbc.url=jdbc:mysql://localhost:3306/ssmuser?useUnicode=true&characterEncoding=utf8
jdbc.username=root
jdbc.password=Yanghaojie-123

  2. applicationContext_mapper.xml

<!--    读取属性文件-->
    <context:property-placeholder location="classpath:jdbc.properties"></context:property-placeholder>
<!--    配置数据源-->
    <bean id="dataSource" class="com.alibaba.druid.pool.DruidDataSource">
        <property name="driverClassName" value="${jdbc.driverClassName}"></property>
        <property name="url" value="${jdbc.url}"></property>
        <property name="username" value="${jdbc.username}"></property>
        <property name="password" value="${jdbc.password}"></property>
    </bean>
<!--    配置SqlSessionFactoryBean-->

    <bean class="org.mybatis.spring.SqlSessionFactoryBean">
<!--        配置数据源-->
        <property name="dataSource" ref="dataSource"></property>
<!--        配置SqlMapConfig.xml-->
        <property name="configLocation" value="classpath:SqlMapConfig.xml"></property>
        <!--        注册实体类-->
        <property name="typeAliasesPackage" value="com.bjpowernode.pojo"></property>
    </bean>

<!--    注册mapper.xml-->
    <bean class="org.mybatis.spring.mapper.MapperScannerConfigurer">
        <property name="basePackage" value="com.bjpowernode.mapper"></property>
    </bean>
</beans>
  1. applicationContext_service.xml
<!--添加包扫描-->
<context:component-scan base-package="com.bjpowernode.service.impl"></context:component-scan>
<!--添加事务管理器-->
<bean id="transactionManager" class="org.springframework.jdbc.datasource.DataSourceTransactionManager">
    <!--切记切记:配置数据源-->
    <property name="dataSource" ref="dataSource"></property>
</bean>
<!--配置事务切面-->
<tx:advice id="myadvice" transaction-manager="transactionManager">
    <tx:attributes>
        <tx:method name="*select*" read-only="true"/>
        <tx:method name="*find*" read-only="true"/>
        <tx:method name="*search*" read-only="true"/>
        <tx:method name="*get*" read-only="true"/>
        <tx:method name="*insert*" propagation="REQUIRED"/>
        <tx:method name="*add*" propagation="REQUIRED"/>
        <tx:method name="*save*" propagation="REQUIRED"/>
        <tx:method name="*set*" propagation="REQUIRED"/>
        <tx:method name="*update*" propagation="REQUIRED"/>
        <tx:method name="*change*" propagation="REQUIRED"/>
        <tx:method name="*modify*" propagation="REQUIRED"/>
        <tx:method name="*delete*" propagation="REQUIRED"/>
        <tx:method name="*drop*" propagation="REQUIRED"/>
        <tx:method name="*remove*" propagation="REQUIRED"/>
        <tx:method name="*clear*" propagation="REQUIRED"/>
        <tx:method name="*" propagation="SUPPORTS"/>
    </tx:attributes>
</tx:advice>
<!--配置切入点+绑定-->
<aop:config>
    <aop:pointcut id="mycut" expression="execution(* com.bjpowernode.service.impl.*.*(..))"></aop:pointcut>
    <aop:advisor advice-ref="myadvice" pointcut-ref="mycut"></aop:advisor>
</aop:config>

  1. springmvc.xml

    jdbc.driverClassName=com.mysql.jdbc.Driver
jdbc.url=jdbc:mysql://localhost:3306/ssmuser?useUnicode=true&characterEncoding=utf8
jdbc.username=root
jdbc.password=Yanghaojie-123

  2. SqlMapConfig.xml

    <!--设置日志输出语句,显示相应操作的sql语名-->
<settings>
    <setting name="logImpl" value="STDOUT_LOGGING"/>
</settings>

  3. web.xml

    <!--添加中文编码过滤器
    private String encoding;
    private boolean forceRequestEncoding;
    private boolean forceResponseEncoding;
-->
<filter>
  <filter-name>encode</filter-name>
  <filter-class>org.springframework.web.filter.CharacterEncodingFilter</filter-class>
  <init-param>
    <param-name>encoding</param-name>
    <param-value>UTF-8</param-value>
  </init-param>
  <init-param>
    <param-name>forceRequestEncoding</param-name>
    <param-value>true</param-value>
  </init-param>
  <init-param>
    <param-name>forceResponseEncoding</param-name>
    <param-value>true</param-value>
  </init-param>
</filter>
<filter-mapping>
  <filter-name>encode</filter-name>
  <url-pattern>/*</url-pattern>
</filter-mapping>
<!--注册SpringMVC框架-->
<servlet>
  <servlet-name>springmvc</servlet-name>
  <servlet-class>org.springframework.web.servlet.DispatcherServlet</servlet-class>
  <init-param>
    <param-name>contextConfigLocation</param-name>
    <param-value>classpath:springmvc.xml</param-value>
  </init-param>
</servlet>
<servlet-mapping>
  <servlet-name>springmvc</servlet-name>
  <url-pattern>/</url-pattern>
</servlet-mapping>
<!--注册Spring框架,目的就是启动spring容器-->
<listener>
  <listener-class>org.springframework.web.context.ContextLoaderListener</listener-class>
</listener>
<context-param>
  <param-name>contextConfigLocation</param-name>
  <param-value>classpath:applicationContext_*.xml</param-value>
</context-param>

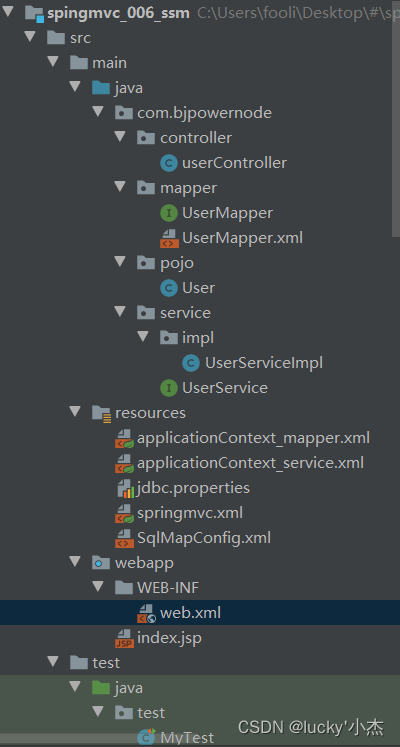

  4. 项目目录：
    请添加图片描述

  5. pojo层User类

请添加图片描述

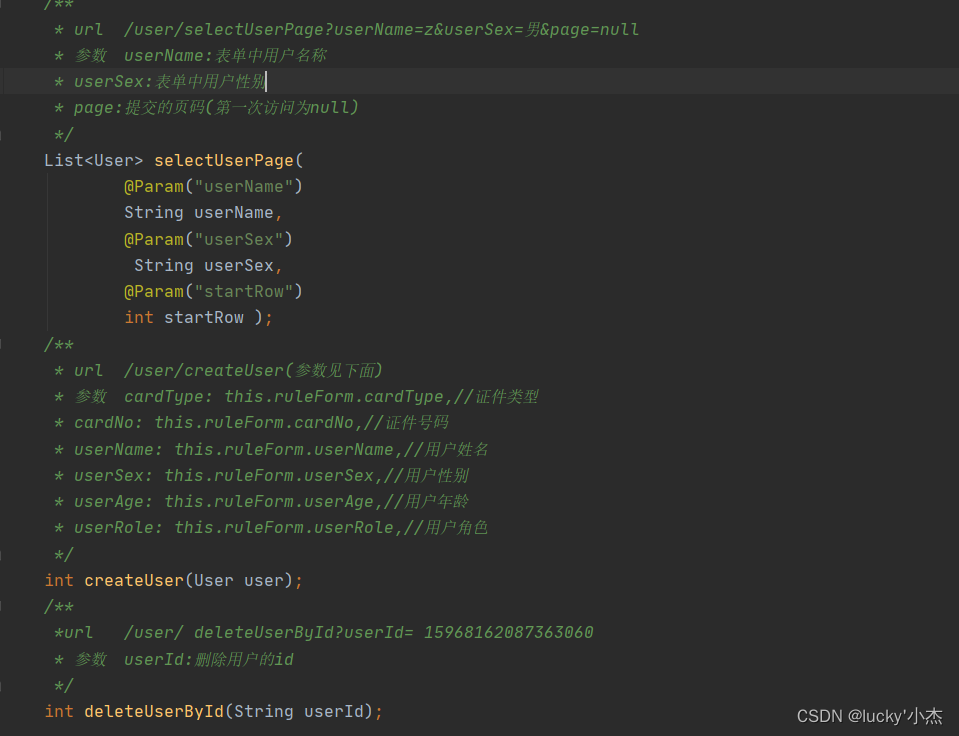

  1. mapper层UserMapper类

    请添加图片描述

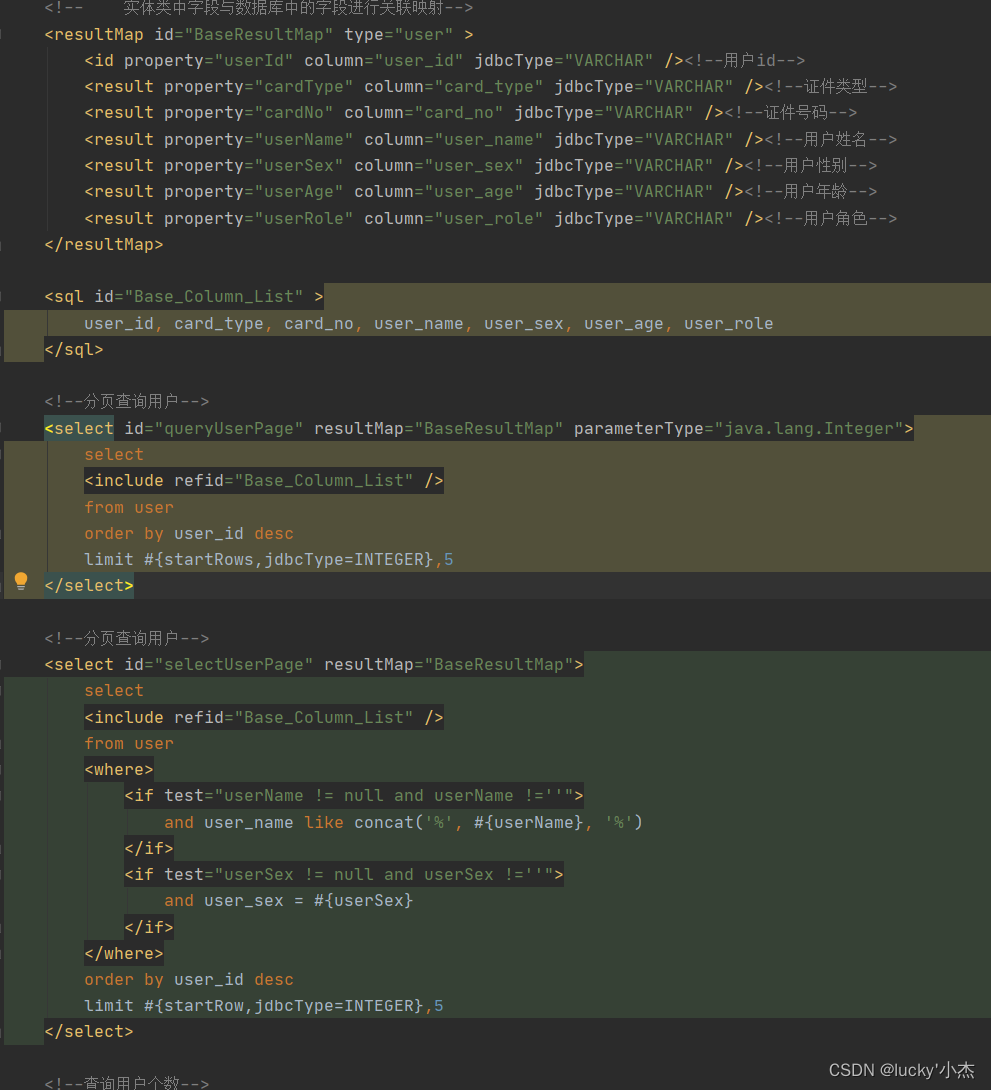

  2. UserMapper.xml

    请添加图片描述

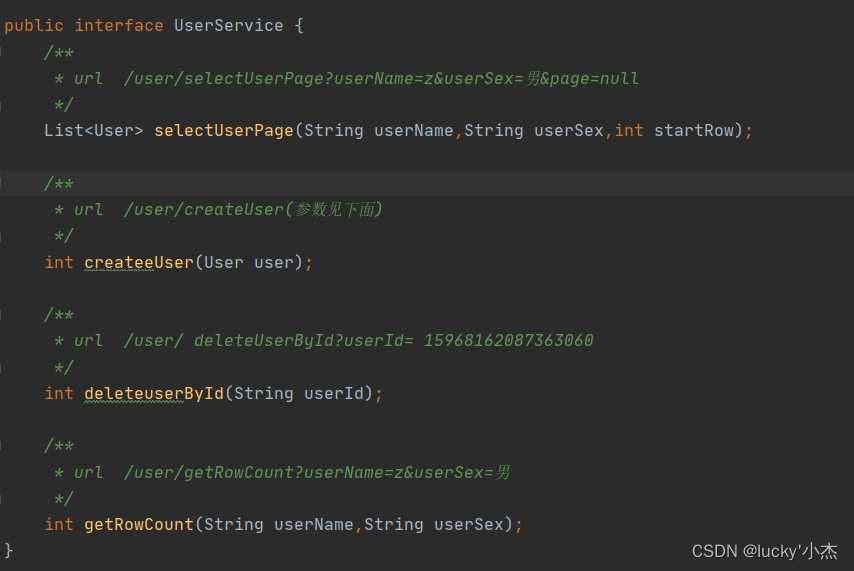

  3. service层UserService类：

    请添加图片描述

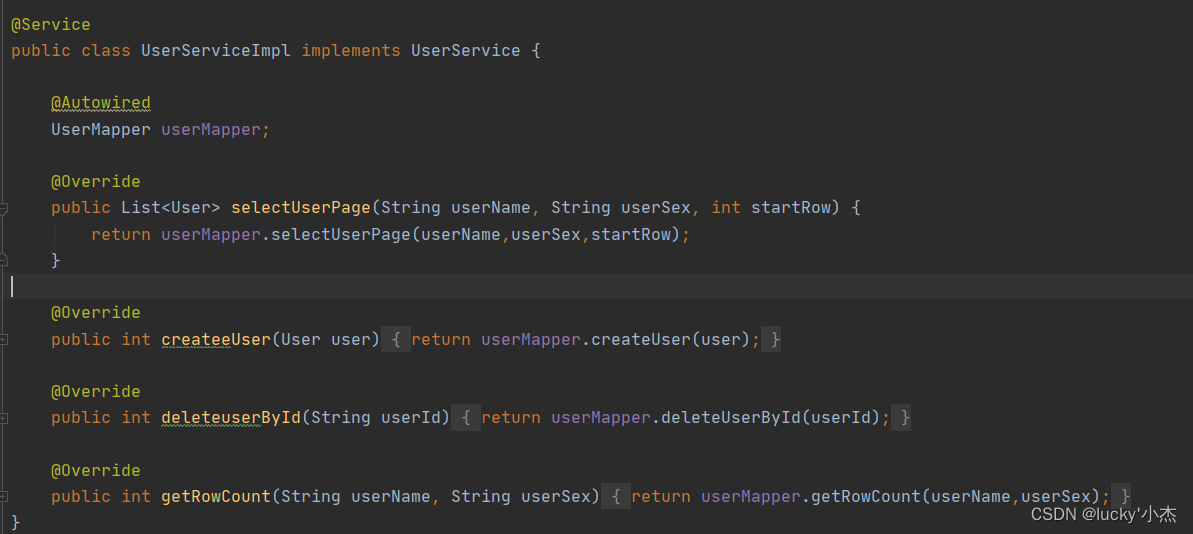

  4. service层impl层UserServicelmpl

    请添加图片描述

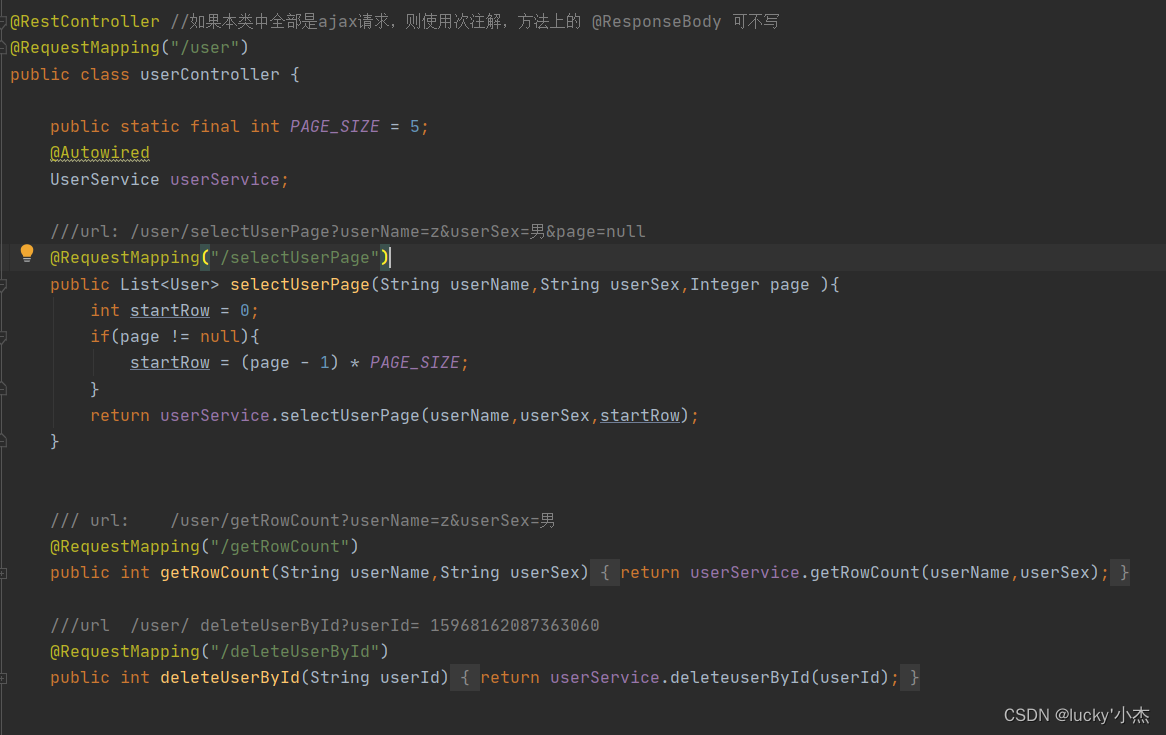

  5. controller层userController

请添加图片描述

本文含有隐藏内容，请 开通VIP 后查看
