一、项目介绍

本项目通过对棋牌游戏数据的探索，通过python数据处理以及可视化，最后进行数据建模预测，整个项目分为项目目的的确定、数据的预处理、对数据的分析和项目总结这五个部分。

二、项目流程

项目目的

找到棋牌游戏用户流失的原因，并通过构建Xgboost模型对其预测

数据来源

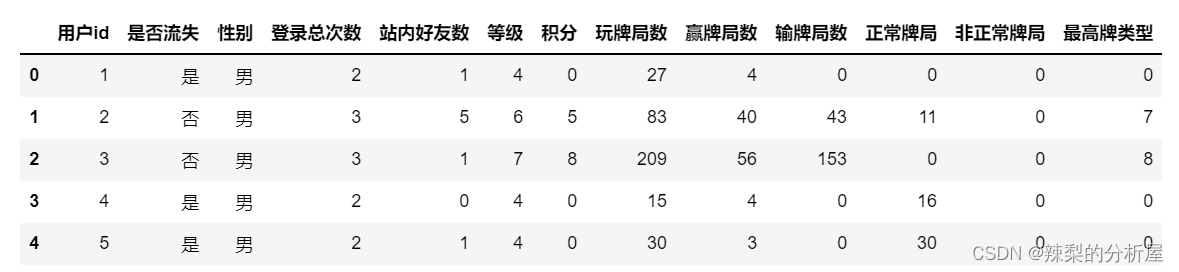

数据来源于和鲸社区，数据字段如下图所示，共有1309条数据，13个字段，数据为棋牌游戏用户一周的行为数据

数据预处理

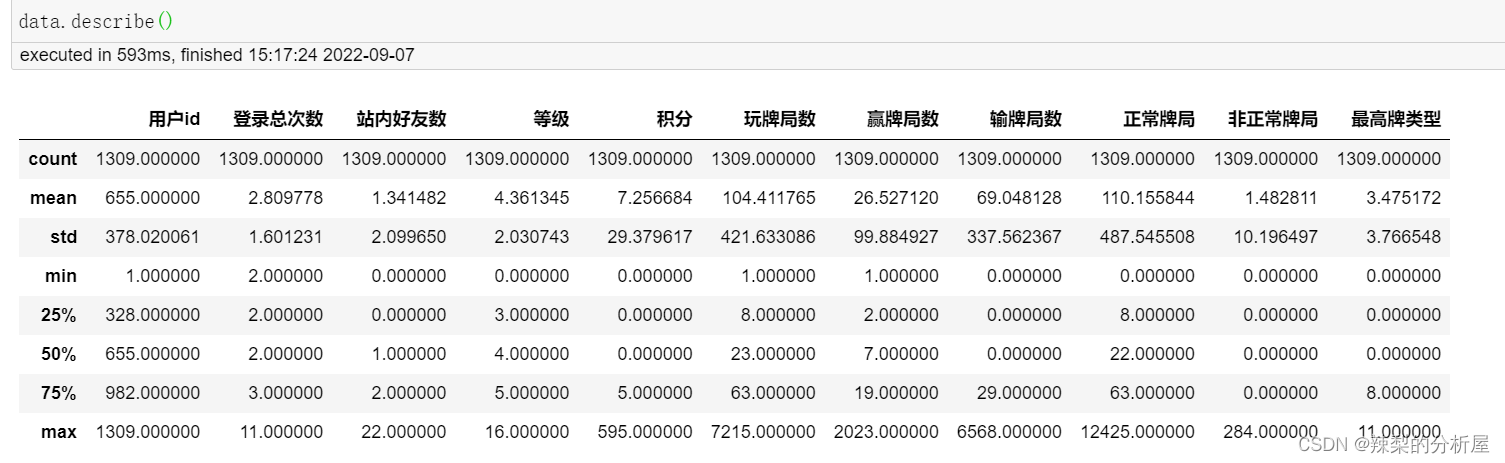

数据基本概况

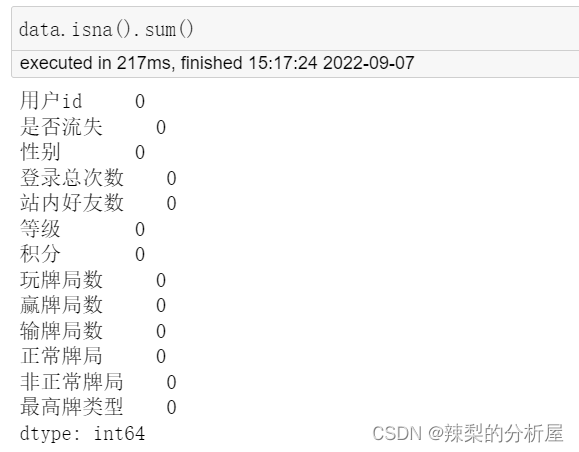

 缺失值查看

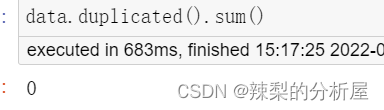

 重复值查看

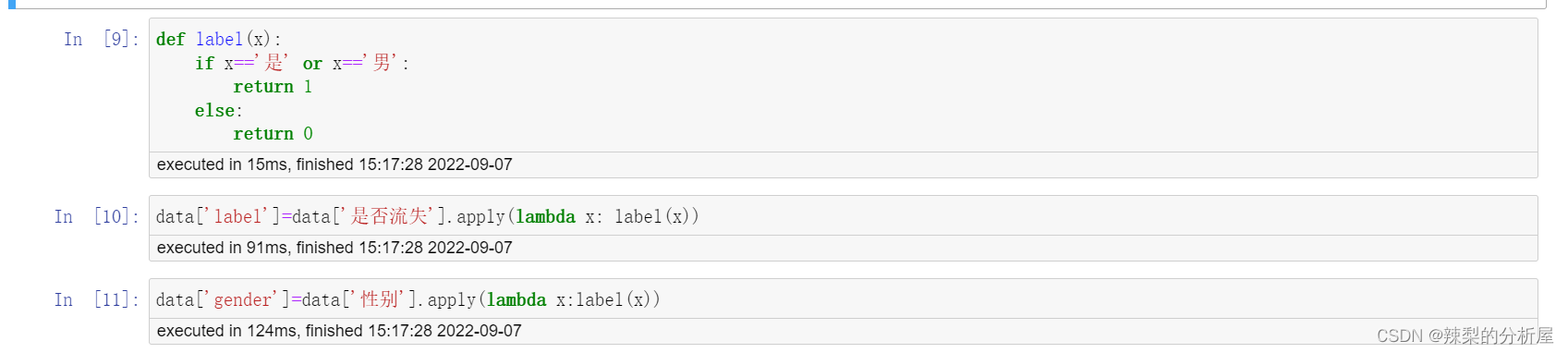

label编码

因为仅需要对性别和label编码处理，较为简单，不进行导包处理（labelEncoder）

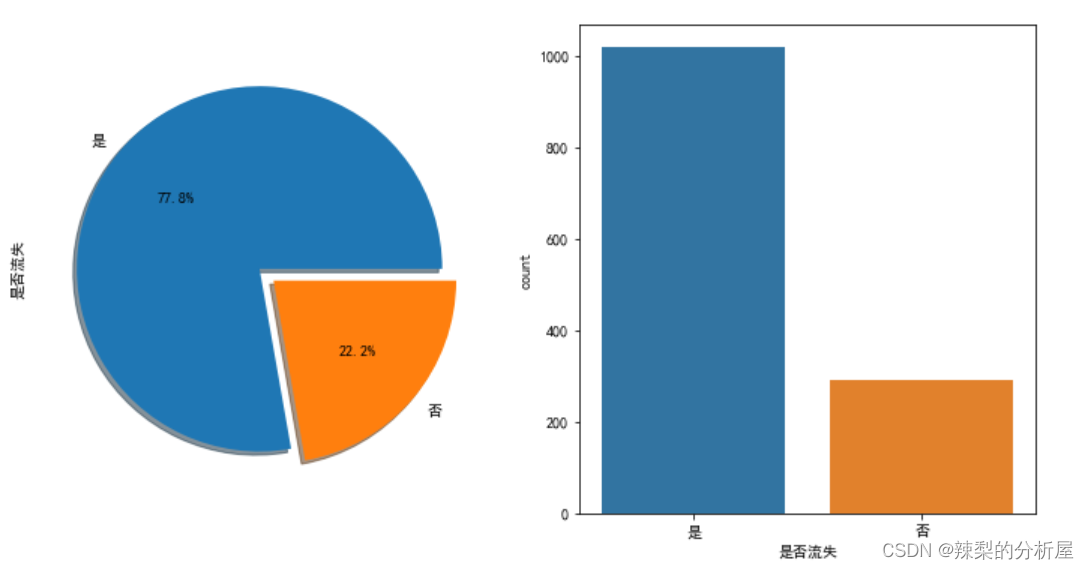

查看数据流失占比

label_gp = data.groupby('是否流失')['用户id'].count()
print('是否流失样本的数量：\n',label_gp)
_,axe = plt.subplots(1,2,figsize=(12,6))
data['是否流失'].value_counts().plot(kind='pie',autopct='%1.1f%%',shadow=True,explode=[0,0.1],ax=axe[0])
sns.countplot('是否流失',data=data,ax=axe[1],)

 可视化分析（pyecharts）

由下图性别与用户流失关系可以得到，性别与是否流失的影响不大，男性与女性的流失占比相差无几

a=(round((data[data['gender']==1].groupby(['label'])['用户id'].count()/data[data['gender']==1].shape[0]),2)).tolist()
b=(round((data[data['gender']==0].groupby(['label'])['用户id'].count()/data[data['gender']==0].shape[0]),2)).tolist()
fn = """
    function(params) {
        if(params.name == '是')
            return '\\n\\n\\n' + params.name + ' : ' + params.value + '%';
        return params.name + ' : ' + params.value + '%';
    }
    """


def new_label_opts():
    return opts.LabelOpts(formatter=JsCode(fn), position="center")
c = (
    Pie()
    .add(
        "男",
        [list(z) for z in zip(["是", "否"], a)],
        center=["20%", "30%"],
        radius=[60, 80],
        label_opts=new_label_opts(),
    )
    .add(
        "女",
        [list(z) for z in zip(["是", "否"], b)],
        center=["55%", "30%"],
        radius=[60, 80],
        label_opts=new_label_opts(),
    )
    .set_global_opts(
        title_opts=opts.TitleOpts(title="性别与是否流失关系"),
        legend_opts=opts.LegendOpts(
            type_="scroll", pos_top="20%", pos_left="80%", orient="vertical"
        ),
    )

)
c.render_notebook()

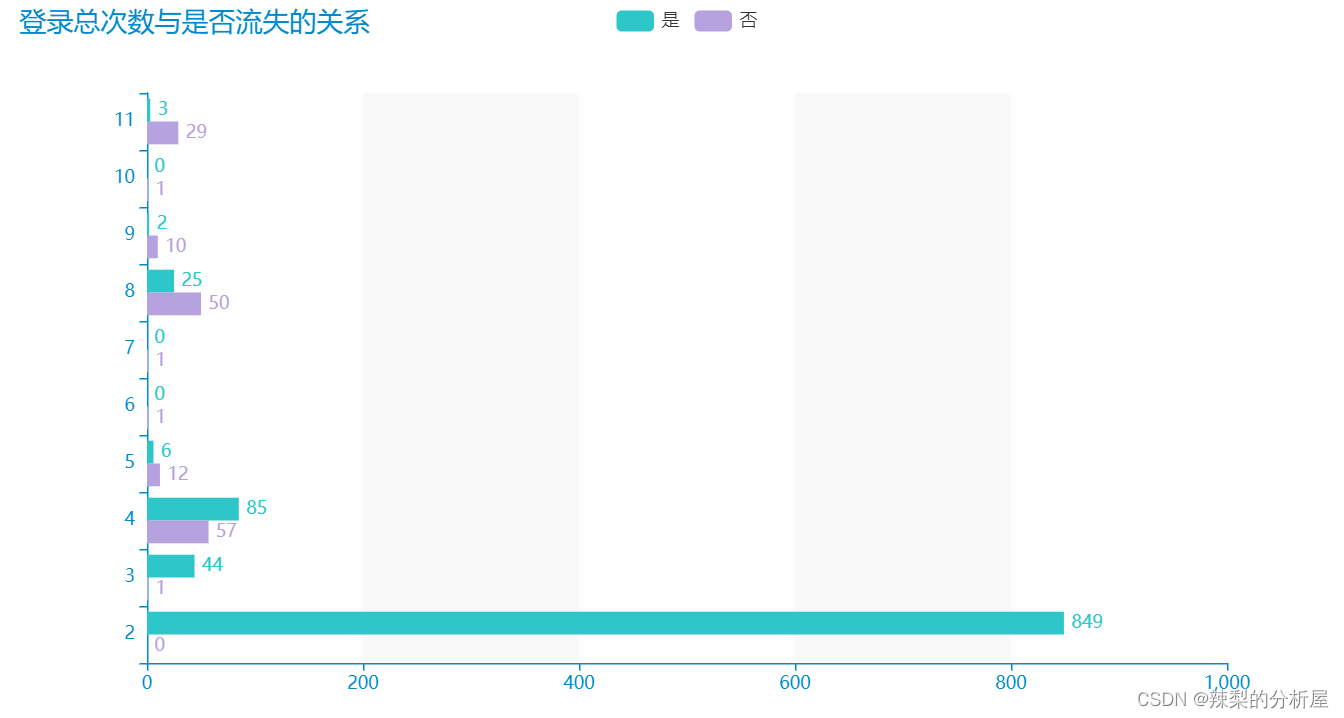

 由下图登录总次数与用户流失的关系，大部分的流失在一周内的登录次数为2次，可能的原因是游戏界面吸引力不强，游戏的新手教学较为复杂，游戏可能刚开始就进行用户消费引导，游戏的广告设置问题等。

c = (
    Bar({"theme": ThemeType.MACARONS})
    .add_xaxis(
       [str(i) for i in range(2,12)]
    )
    .add_yaxis("是", list(d1.values()))
    .add_yaxis("否", list(d2.values()),gap=0)
    .reversal_axis()
    .set_series_opts(label_opts=opts.LabelOpts(position="right"))
    .set_global_opts(

        title_opts=opts.TitleOpts(title="登录总次数与是否流失的关系"),
    )
              )
c.render_notebook()

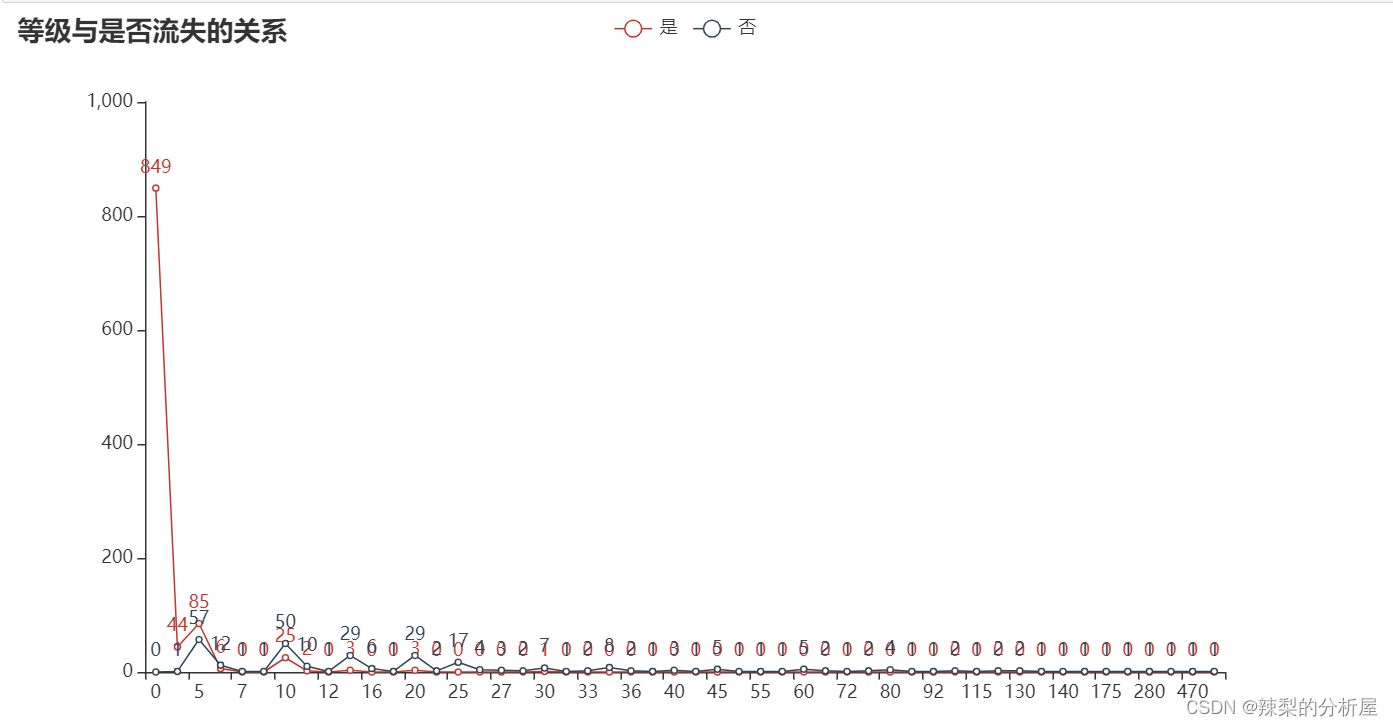

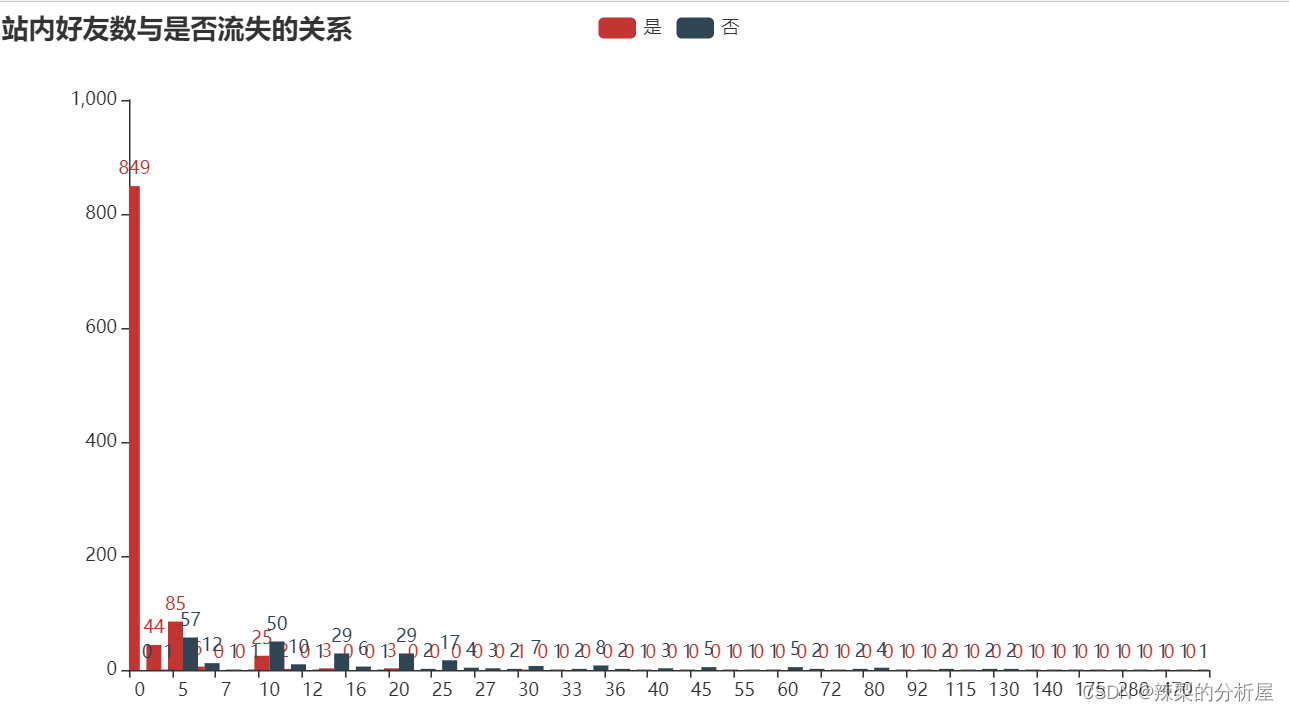

 由下图用户好友数、等级和积分分别与是否流失的关系，由以上我们可以得到大多数流失用户一周内登录次数仅为2天，所以也导致其用户好友数较少，等级提升较少，积分获取也较少，在用户站内好友数上可以建设论坛吸引用户，或者通过活动刺激用户病毒式传播吸引更多用户，在等级和积分上可以尝试降低等级提升难度和积分获取难度

c = (
    Bar()
    .add_xaxis([str(i) for i in d])
    .add_yaxis("是",list(d1.values()),bar_width=10)
    .add_yaxis("否",list(d2.values()),bar_width=10,gap=0)

    .set_global_opts(title_opts=opts.TitleOpts(title="站内好友数与是否流失的关系"))

)
c.render_notebook()



c = (
    Line()
    .add_xaxis([str(i) for i in d])
    .add_yaxis("是",list(d1.values()))
    .add_yaxis("否",list(d2.values()))
    .set_global_opts(title_opts=opts.TitleOpts(title="等级与是否流失的关系"))

)
c.render_notebook()

c = (
    Line()
    .add_xaxis([str(i) for i in d])
    .add_yaxis(
        "是",
        list(d1.values()),
        markpoint_opts=opts.MarkPointOpts(data=[opts.MarkPointItem(type_="max")]),
    )
    .add_yaxis(
        "否",
        list(d2.values()),
        markpoint_opts=opts.MarkPointOpts(data=[opts.MarkPointItem(type_="max")]),
    )
    .set_global_opts(title_opts=opts.TitleOpts(title="积分与是否流失的关系"))

)
c.render_notebook()

 建模分析

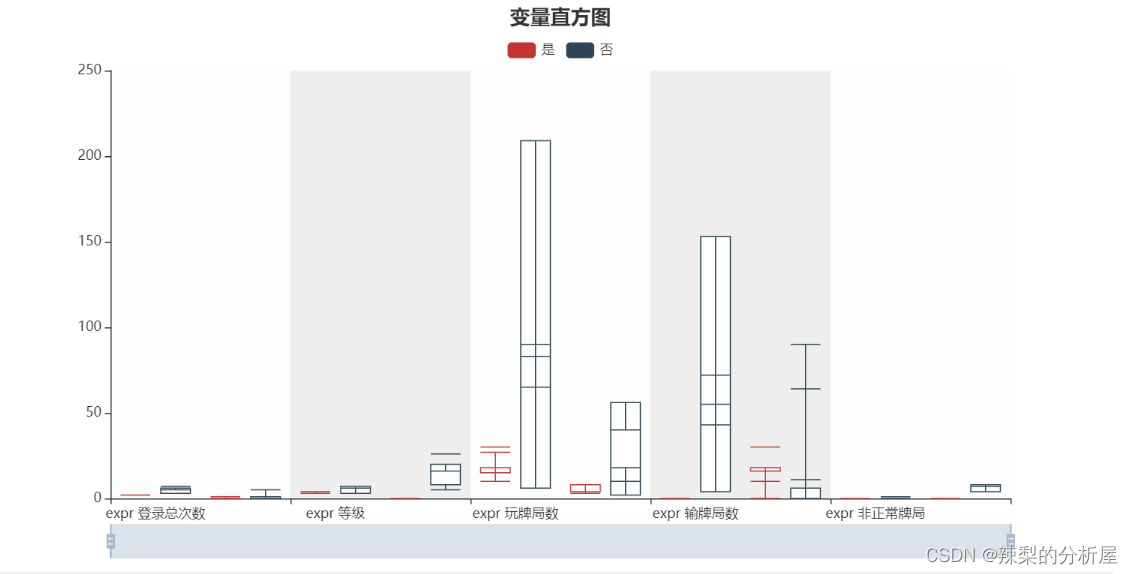

如下图所示，各变量的直方图，因为本数据数据量较小，而且本实验采用Xgboost，对数据归一化影响不大

 对源数据进行建模

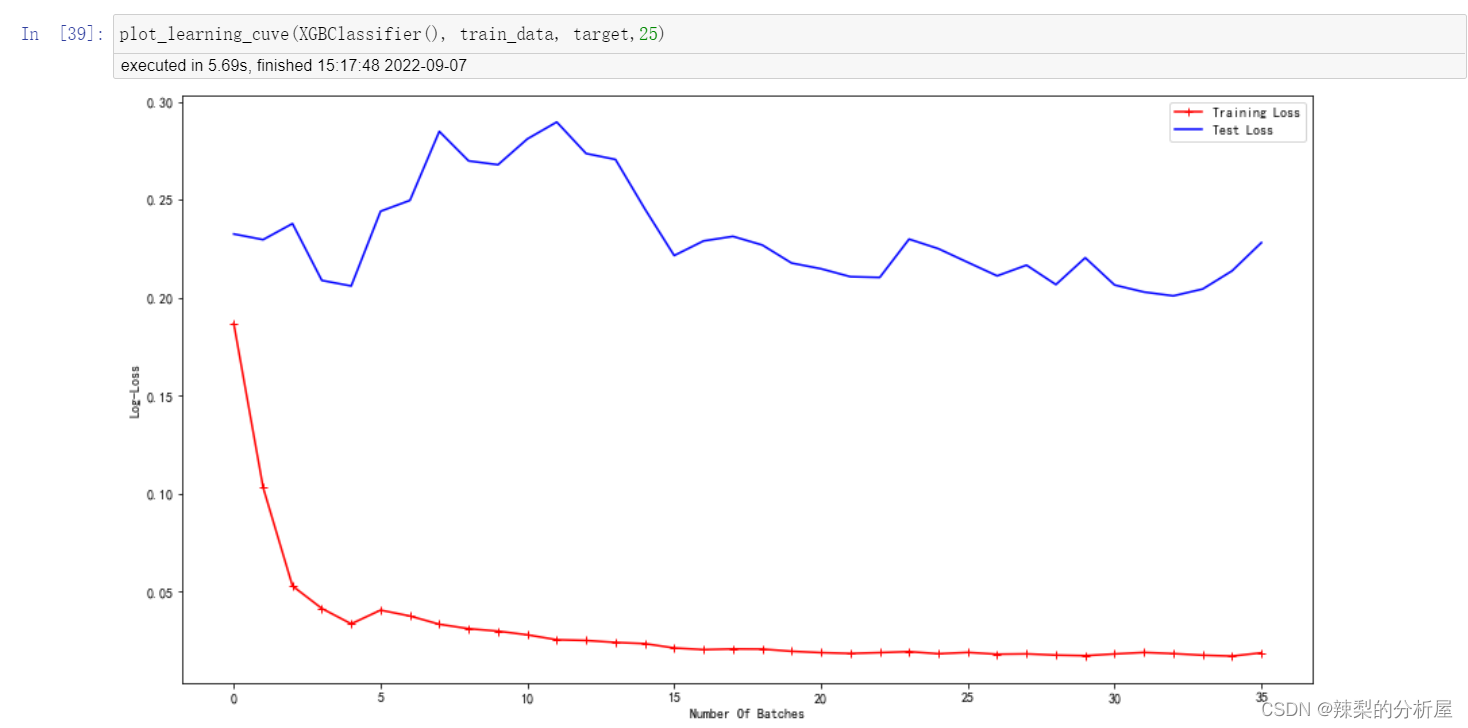

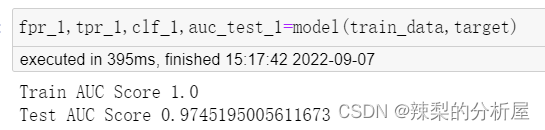

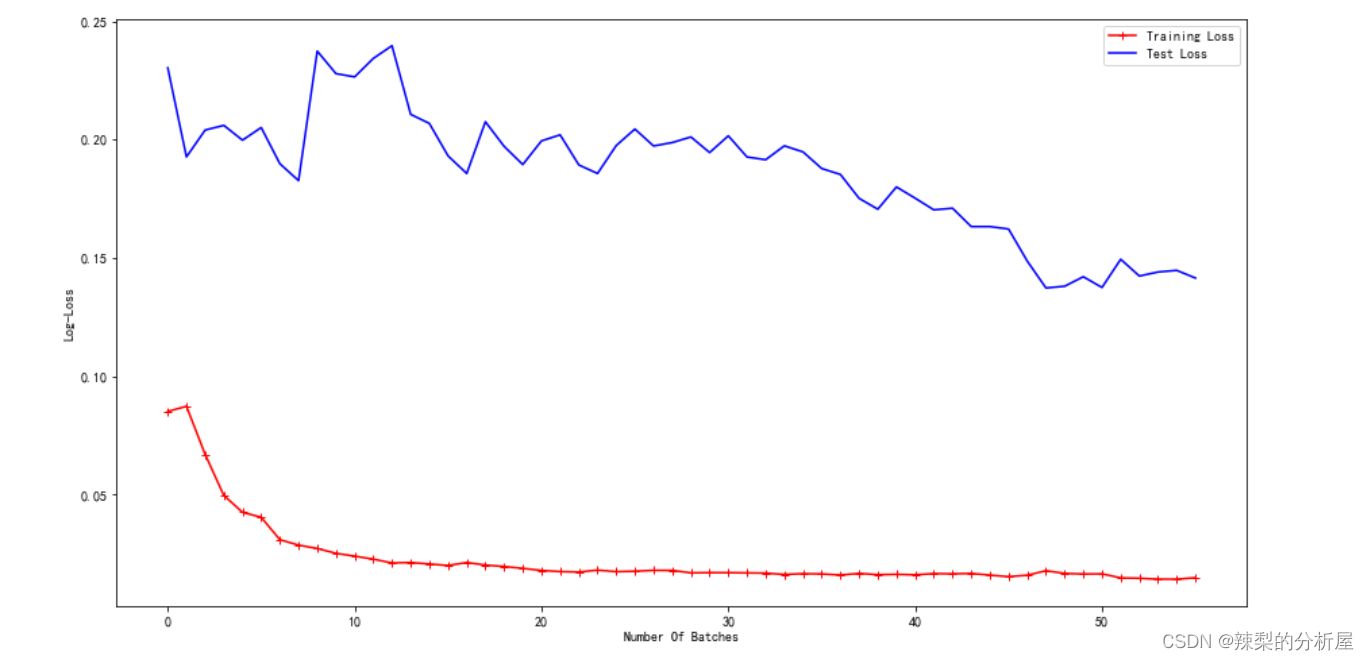

可以看到模型拟合较好，通过学习曲线可以看到存在过拟合

features_columns = [col for col in data.columns if col not in ['用户id','是否流失','性别','label']]
train_data = data[features_columns]
target =data['label']
def model(train_1,target_1):
    X_train, X_val, y_train, y_val = train_test_split(train_1, target_1, test_size = 0.3 ,random_state = 42)

    clf = XGBClassifier()

    clf.fit(X_train, y_train)

    y_train_pred = clf.predict_proba(X_train)
    y_train_pred_pos = y_train_pred[:,1]

    y_val_pred = clf.predict_proba(X_val)
    y_val_pred_pos = y_val_pred[:,1]

    auc_train = roc_auc_score(y_train, y_train_pred_pos)
    auc_test = roc_auc_score(y_val, y_val_pred_pos)

    print(f"Train AUC Score {auc_train}")
    print(f"Test AUC Score {auc_test}")

    fpr, tpr, _ = roc_curve(y_val, y_val_pred_pos)
    return fpr,tpr,clf,auc_test

def plot_learning_cuve(model, X, Y,num):

    x_train, x_test, y_train, y_test = train_test_split(X, Y, test_size = 0.3, random_state = 11)
    train_loss, test_loss = [], []

    for m in range(num,len(x_train),num):

        model.fit(x_train.iloc[:m,:], y_train[:m])
        y_train_prob_pred = model.predict_proba(x_train.iloc[:m,:])
        train_loss.append(log_loss(y_train[:m], y_train_prob_pred))

        y_test_prob_pred = model.predict_proba(x_test)
        test_loss.append(log_loss(y_test, y_test_prob_pred))

    plt.figure(figsize = (15,8))
    plt.plot(train_loss, 'r-+', label = 'Training Loss')
    plt.plot(test_loss, 'b-', label = 'Test Loss')
    plt.xlabel('Number Of Batches')
    plt.ylabel('Log-Loss')
    plt.legend(loc = 'best')
    plt.show()

 通过过采样对数据进行平衡,平衡后的学习曲线

smote = SMOTE(random_state = 402)
X_smote, Y_smote = smote.fit_resample(train_data,target)
sns.countplot(Y_smote, edgecolor = 'black')

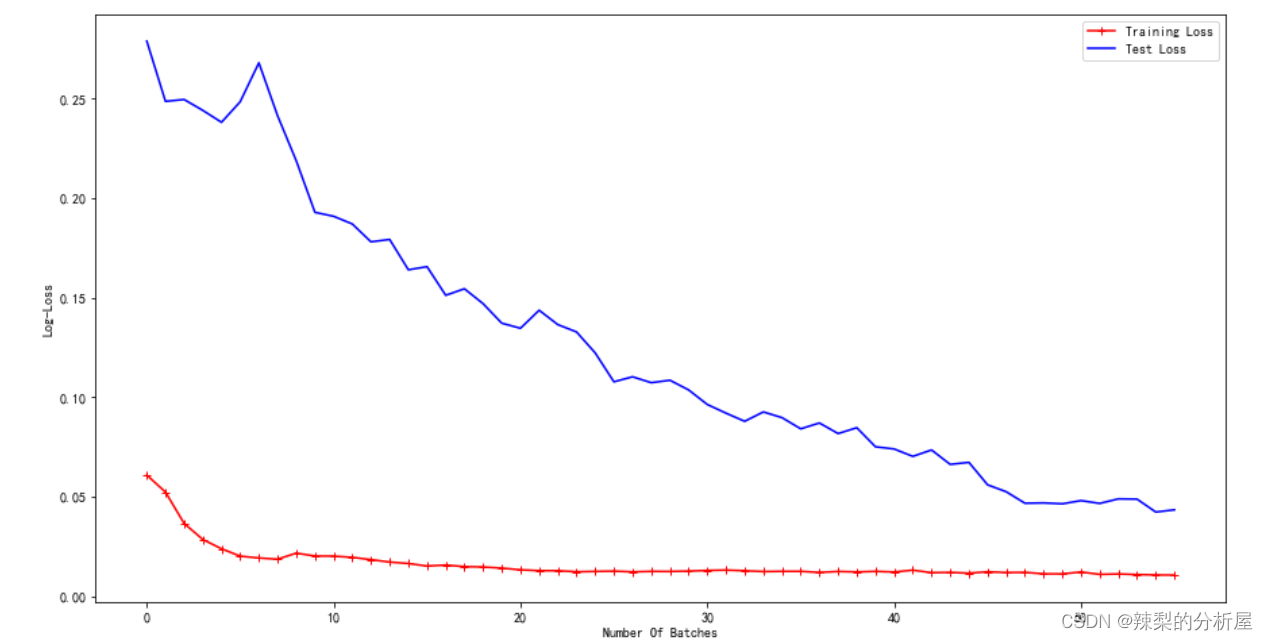

 继续采样获取数据，可以看到明显减小过拟合程度，可以继续对其进行采样,本实验仅采样一次

smote = SMOTE(random_state = 446)
X_smote1, Y_smote1 = smote.fit_resample(train_data,target)


X_final = pd.concat([X_smote, X_smote1], axis = 0).reset_index(drop = True)
Y_final = pd.concat([Y_smote, Y_smote1], axis = 0).reset_index(drop = True)

sns.countplot(Y_final, edgecolor = 'black')

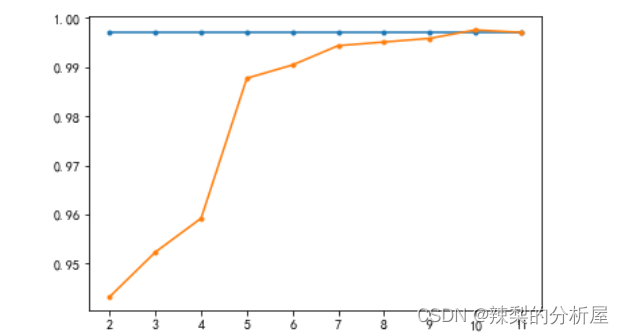

 对模型特征选择，由图可知，选择全部特征进行建模较好

def feature_selection(train, train_sel, target):
    clf = XGBClassifier()

    scores = cross_val_score(clf, train, target, cv=5)

    scores_sel = cross_val_score(clf, train_sel, target, cv=5)

    print("No Select Accuracy: %0.2f (+/- %0.2f)" % (scores.mean(), scores.std() * 2))
    print("Features Select Accuracy: %0.2f (+/- %0.2f)" % (scores_sel.mean(), scores_sel.std() * 2))
    return scores.mean(),scores_sel.mean()
def select(train,goal):
    a_score=[]
    b_score=[]
    for i in range(2,train.shape[1]+1):
        sel = SelectKBest(mutual_info_classif, k=i)
        sel = sel.fit(train, goal)
        train_sel = sel.transform(train)

        print('训练数据未特征筛选维度', train.shape)
        print('训练数据特征筛选维度后', train_sel.shape)
        mean_train,mean_test=feature_selection(train, train_sel, goal)
        a_score.append(mean_train)
        b_score.append(mean_test)
    x=list(range(2,train.shape[1]+1))
    plt.plot(x, a_score, marker='o', markersize=3)  # 绘制折线图，添加数据点，设置点的大小
    plt.plot(x, b_score, marker='o', markersize=3)
    plt.xticks(x)
    plt.show()
    return a_score,b_score

 模型调参

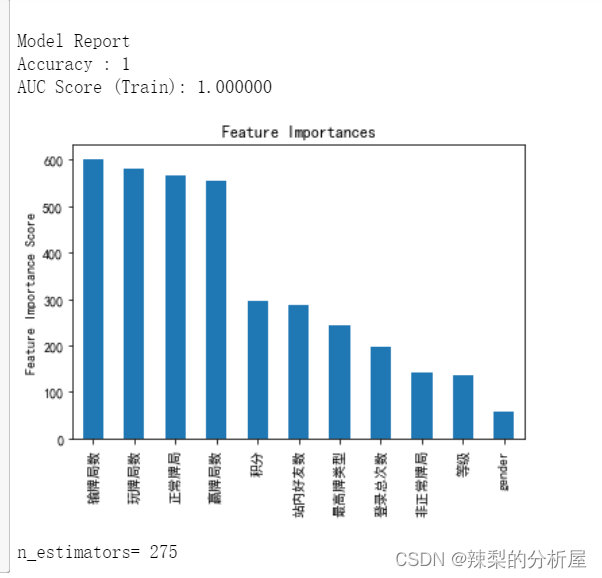

 树的个数,估计器的个数n_estimators，由下图可知确定树的个数为275

def tun_parameters(train_x,train_y):  #通过这个函数，确定树的个数
    xgb1 = XGBClassifier(learning_rate=0.1,n_estimators=1000,max_depth=5,min_child_weight=1,gamma=0,subsample=0.8,
                         colsample_bytree=0.8,objective= 'binary:logistic',scale_pos_weight=1,seed=27)
    modelfit(xgb1,train_x,train_y)
def modelfit(alg,X, y,useTrainCV=True, cv_folds=5, early_stopping_rounds=50):
    if useTrainCV:
        xgb_param = alg.get_xgb_params()#参数
        xgtrain = xgb.DMatrix(X, label=y)#训练数据
        cvresult = xgb.cv(xgb_param, xgtrain, num_boost_round=alg.get_params()['n_estimators'],
                          nfold=cv_folds,metrics='auc', early_stopping_rounds=early_stopping_rounds)
        #num_boost_round:树的个数 nfold 几折交叉验证 early_stopping_rounds 早停值
        alg.set_params(n_estimators=cvresult.shape[0])
        #输出树的个数
    #Fit the algorithm on the data
    alg.fit(X, y,eval_metric='auc')

    #Predict training set:
    dtrain_predictions = alg.predict(X)
    dtrain_predprob = alg.predict_proba(X)[:,1]

    #Print model report:
    print ("\nModel Report")
    print ("Accuracy : %.4g" % metrics.accuracy_score(y, dtrain_predictions))
    print ("AUC Score (Train): %f" % metrics.roc_auc_score(y, dtrain_predprob))


    feat_imp = pd.Series(alg.get_booster().get_fscore()).sort_values(ascending=False)
    #bosster()改为get_bosster()
    feat_imp.plot(kind='bar', title='Feature Importances')
    plt.ylabel('Feature Importance Score')
    plt.show()
    print ('n_estimators=',cvresult.shape[0])

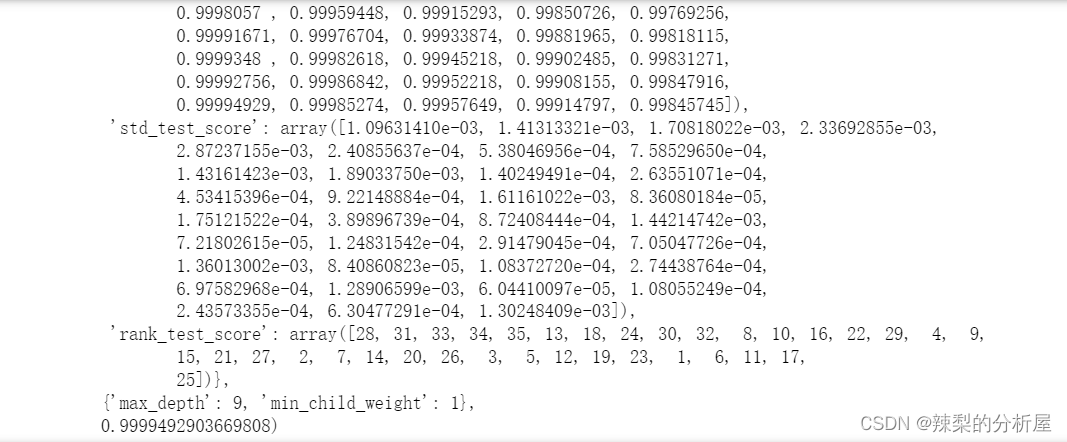

 max_depth树的最大深度  min_child_weight[默认1] 决定最小叶子节点样本权重和，由下图可知，

树最大深度为9，最小叶节点样本权重为1

#树的最大深度 最小叶子节点样本权重
param_test1 = {
  'max_depth':range(3,10,1),
 'min_child_weight':range(1,6,1)
}
gsearch1 = GridSearchCV(estimator = XGBClassifier(learning_rate =0.1, n_estimators=275, max_depth=5,
min_child_weight=1, gamma=0, subsample=0.8,colsample_bytree=0.8,\
 objective= 'binary:logistic', nthread=8,scale_pos_weight=1, seed=27),
 param_grid = param_test1,scoring='roc_auc',n_jobs=-1, cv=5)
gsearch1.fit(X_final,Y_final)
gsearch1.cv_results_, gsearch1.best_params_, gsearch1.best_score_

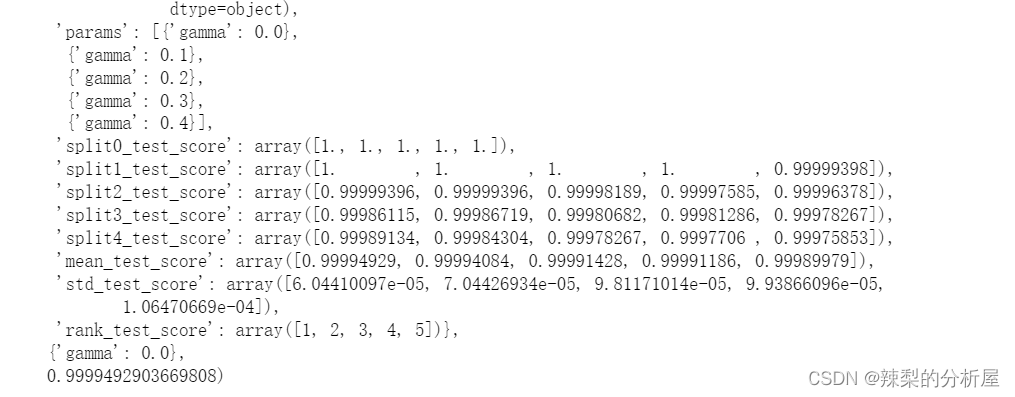

 gamma分割最小损失值 ,由下图可知，gamma确定为0.0

param_test3 = {
    'gamma': [i / 10.0 for i in range(0, 5)]
}
gsearch3 = GridSearchCV(
    estimator=XGBClassifier(learning_rate=0.1, n_estimators=275, max_depth=9, min_child_weight=1, gamma=0,
                            subsample=0.8, colsample_bytree=0.8, objective='binary:logistic', nthread=8,
                            scale_pos_weight=1, seed=27), param_grid=param_test3, scoring='roc_auc', n_jobs=-1,
     cv=5)
gsearch3.fit(X_final,Y_final)
gsearch3.cv_results_, gsearch3.best_params_, gsearch3.best_score_

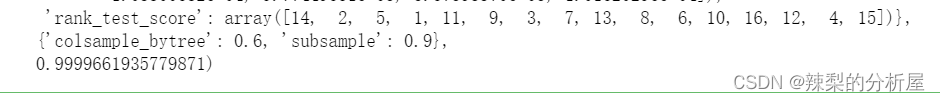

 colsample_bytree:每轮训练使用的特征占比 subsample ：采样率，由下图可确定每轮训练占比为0.6，采样率为0.9

param_test4 = {
    'subsample': [i / 10.0 for i in range(6, 10)],
    'colsample_bytree': [i / 10.0 for i in range(6, 10)]
}

gsearch4 = GridSearchCV(
    estimator=XGBClassifier(learning_rate=0.1, n_estimators=275, max_depth=9, min_child_weight=1, gamma=0.0,
                            subsample=0.8, colsample_bytree=0.8, objective='binary:logistic', nthread=8,
                            scale_pos_weight=1, seed=27), param_grid=param_test4, scoring='roc_auc', n_jobs=-1,
     cv=5)

gsearch4.fit(X_final,Y_final)
gsearch4.cv_results_, gsearch4.best_params_, gsearch4.best_score_

 reg_alpha:L1正则化的权重系数,由下图可确定正则化的权重系数为0.0001

param_test6 = {
 'reg_alpha':[1e-5,1e-4,1e-3, 1e-2, 0.1, 1, 100]
}
gsearch6 = GridSearchCV(estimator = XGBClassifier( learning_rate =0.1, n_estimators=275, max_depth=9, min_child_weight=1,
    gamma=0.0, subsample=0.9, colsample_bytree=0.6, objective= 'binary:logistic', nthread=8,
    scale_pos_weight=1,seed=27), param_grid = param_test6, scoring='roc_auc',n_jobs=-1,cv=5)
gsearch6.fit(X_final,Y_final)
gsearch6.cv_results_, gsearch6.best_params_, gsearch6.best_score_

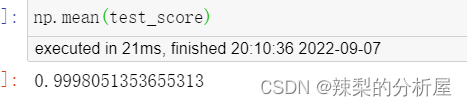

 通过交叉验证得到的最终结果为：0.9998

from sklearn.model_selection import KFold
train_score=[]
test_score=[]
kf = KFold(n_splits=5)
for k, (train_index, test_index) in enumerate(kf.split(X_final)):

    train_data1,test_data1,train_target1,test_target1 = X_final.iloc[train_index],X_final.iloc[test_index],Y_final[train_index],Y_final[test_index]
    clf = XGBClassifier(
        learning_rate =0.1,
        n_estimators=275,max_depth=9, min_child_weight=1,
        gamma=0.0, subsample=0.9, colsample_bytree=0.6, objective= 'binary:logistic', nthread=8,
        scale_pos_weight=1,seed=27,reg_alpha=0.0001
                        )

    clf.fit(train_data1,train_target1)

    train_pred=clf.predict_proba(train_data1)[:,1]
    test_pred=clf.predict_proba(test_data1)[:,1]
    score_train = roc_auc_score(train_target1, train_pred)
    score_test = roc_auc_score(test_target1, test_pred)
    train_score.append(score_train)
    test_score.append(score_test)

 参考来源

xgboost调参笔记XGBoost调参笔记_浅笑古今的博客-CSDN博客_xgboost调参

xgboost核心数据结构和API（速查表）XGBoost 核心数据结构和API(速查表)_maerdym的博客-CSDN博客_xgboost结构
