06-Docker安装RabbitMQ（Mac）

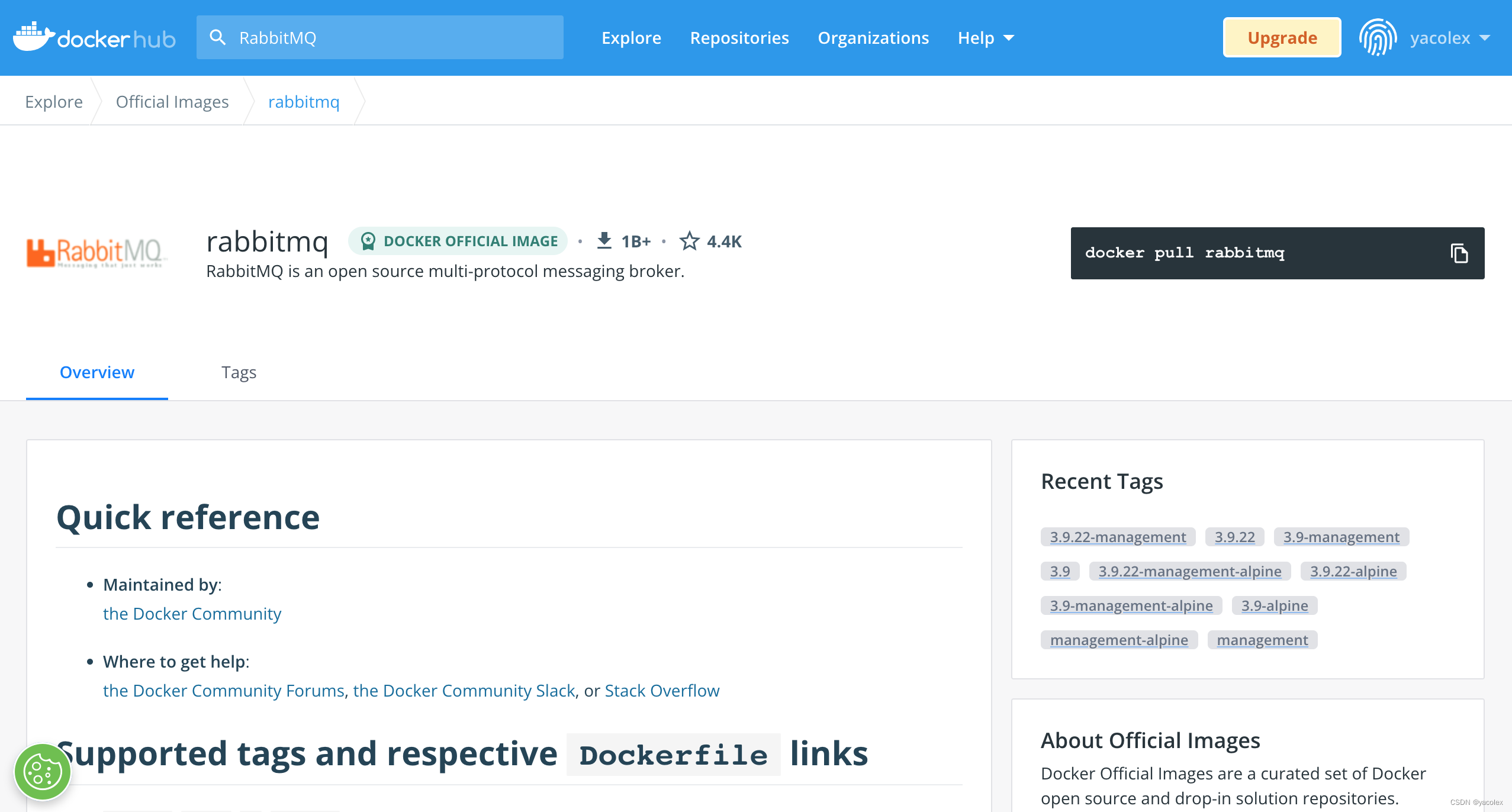

DockerHub地址

https://hub.docker.com/_/rabbitmq

镜像

RabbitMQ版本号：3.9.11

拉取镜像

# 默认版本 latest
docker pull rabbitmq

# 如需指定版本，如下
docker pull rabbitmq:3.9

操作如下：

# 拉取镜像
luyou@MacBook-Pro-yaco ~ % docker pull rabbitmq
Using default tag: latest
latest: Pulling from library/rabbitmq
7b1a6ab2e44d: Already exists
37f453d83d8f: Pull complete
e64e769bc4fd: Pull complete
c288a913222f: Pull complete
12addf9c8bf9: Pull complete
eaeb088e057d: Pull complete
b63d48599313: Pull complete
05c99d3d2a57: Pull complete
43665bfbc3f9: Pull complete
Digest: sha256:884146137011519524d506a12687127f3d2c7c37c2cc11206dc72c59bedea5e2
Status: Downloaded newer image for rabbitmq:latest
docker.io/library/rabbitmq:latest
# 查询镜像
luyou@MacBook-Pro-yaco ~ % docker images
REPOSITORY   TAG       IMAGE ID       CREATED        SIZE
rabbitmq     latest    d445c0adc9a5   8 months ago   220MB

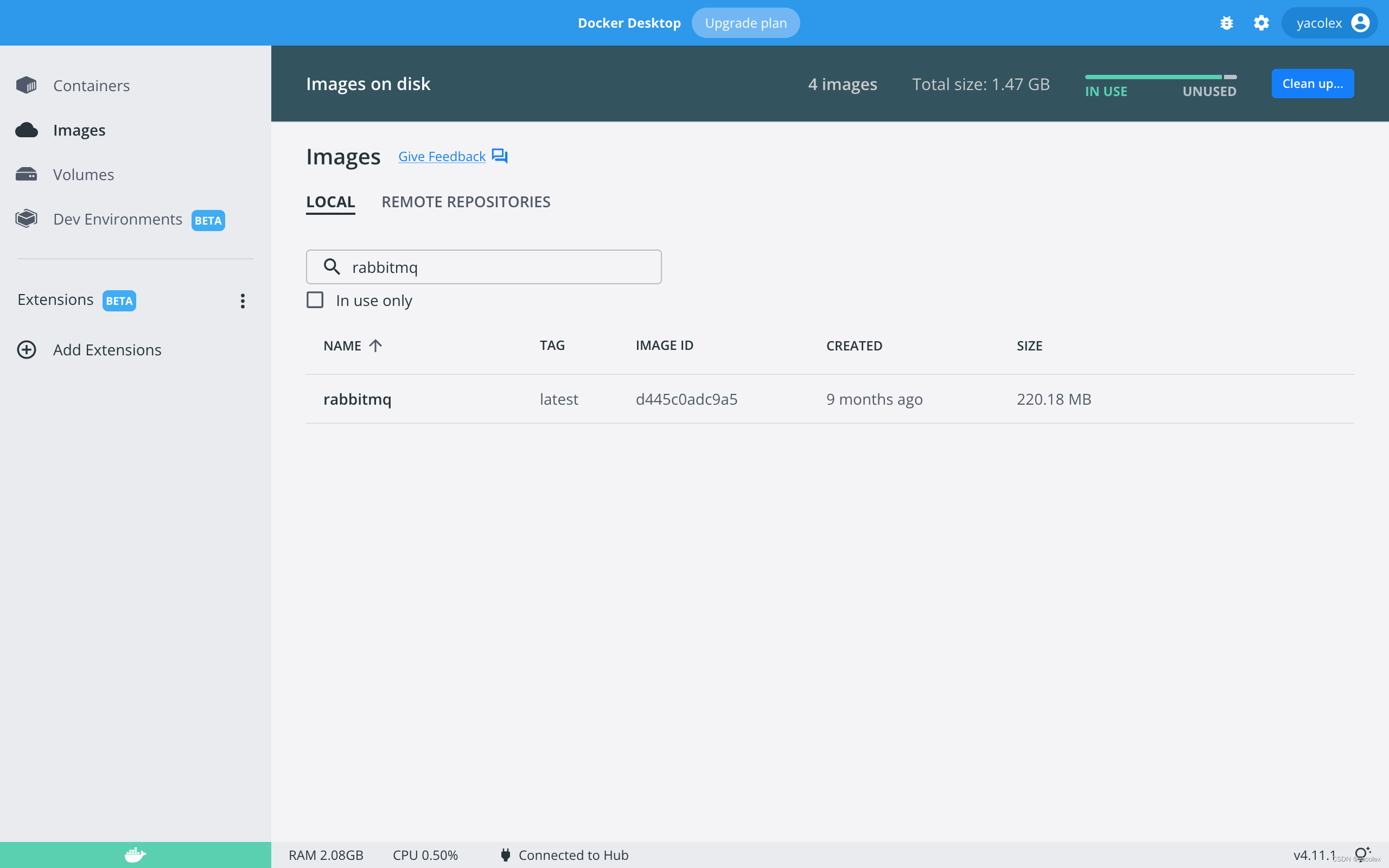

结果：

容器

1、映射目录

根据需要创建本地目录

​

2、创建容器

docker run --name rabbitmq \
--hostname local \
-e RABBITMQ_DEFAULT_USER=admin \
-e RABBITMQ_DEFAULT_PASS=admin \
-p 15672:15672 \
-p 5672:5672 \
-v /Users/luyou/docker/rabbitmq/conf:/etc/rabbitmq \
-d rabbitmq:latest

操作如下：

luyou@MacBook-Pro-yaco ~ % docker ps -a
CONTAINER ID   IMAGE             COMMAND                  CREATED          STATUS                      PORTS                                                                                              NAMES
14876467845c   rabbitmq:latest   "docker-entrypoint.s…"   4 seconds ago    Up 4 seconds                4369/tcp, 0.0.0.0:5672->5672/tcp, 5671/tcp, 15691-15692/tcp, 25672/tcp, 0.0.0.0:15672->15672/tcp   rabbitmq

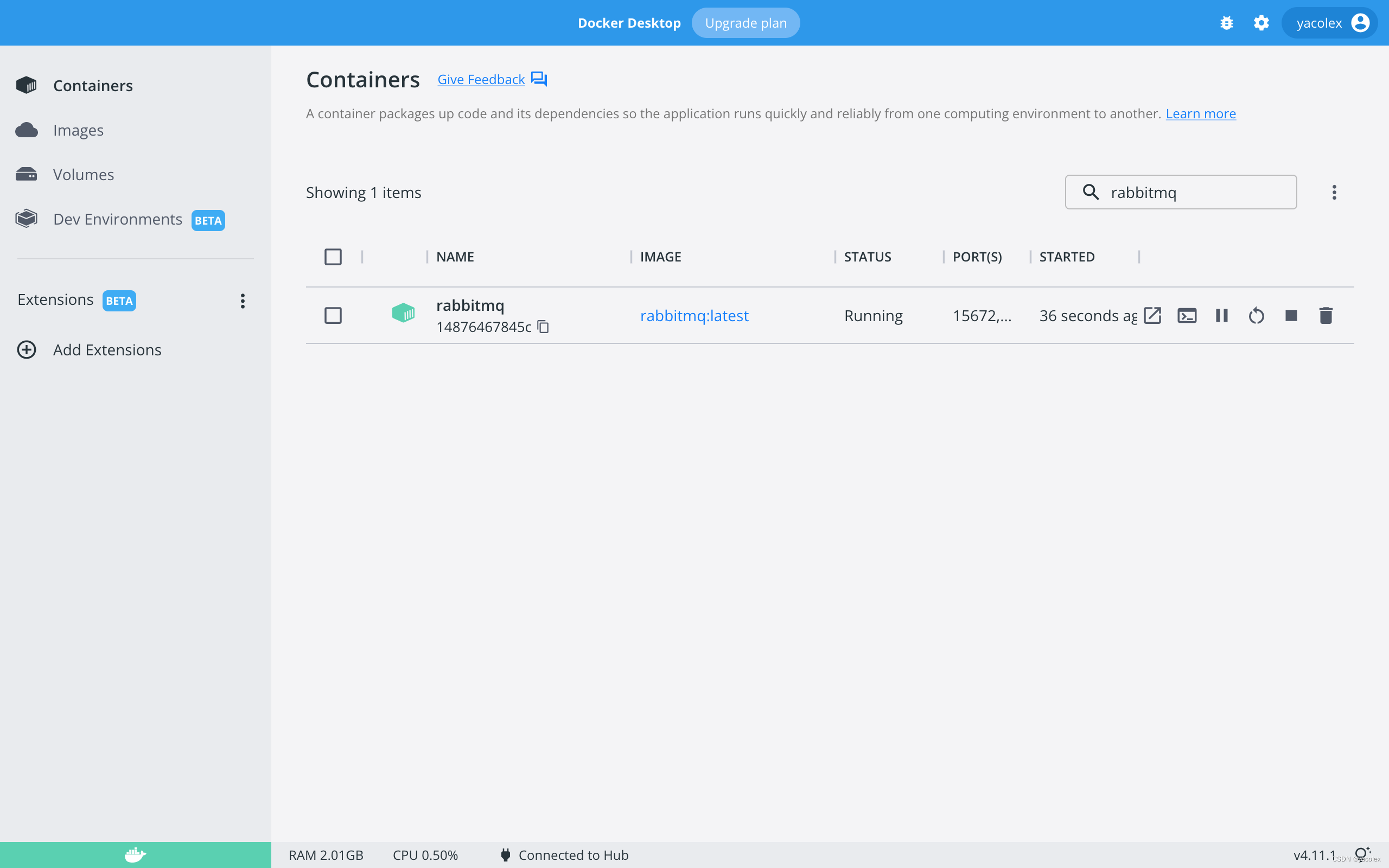

结果：

3、配置插件

控制台

# 进入容器
docker exec -it rabbitmq /bin/bash
# 开启控制台插件
root@local:/# rabbitmq-plugins enable rabbitmq_management
Enabling plugins on node rabbit@local:
rabbitmq_management
The following plugins have been configured:
  rabbitmq_management
  rabbitmq_management_agent
  rabbitmq_web_dispatch
Applying plugin configuration to rabbit@local...
The following plugins have been enabled:
  rabbitmq_management
  rabbitmq_management_agent
  rabbitmq_web_dispatch

started 3 plugins.

延迟队列插件

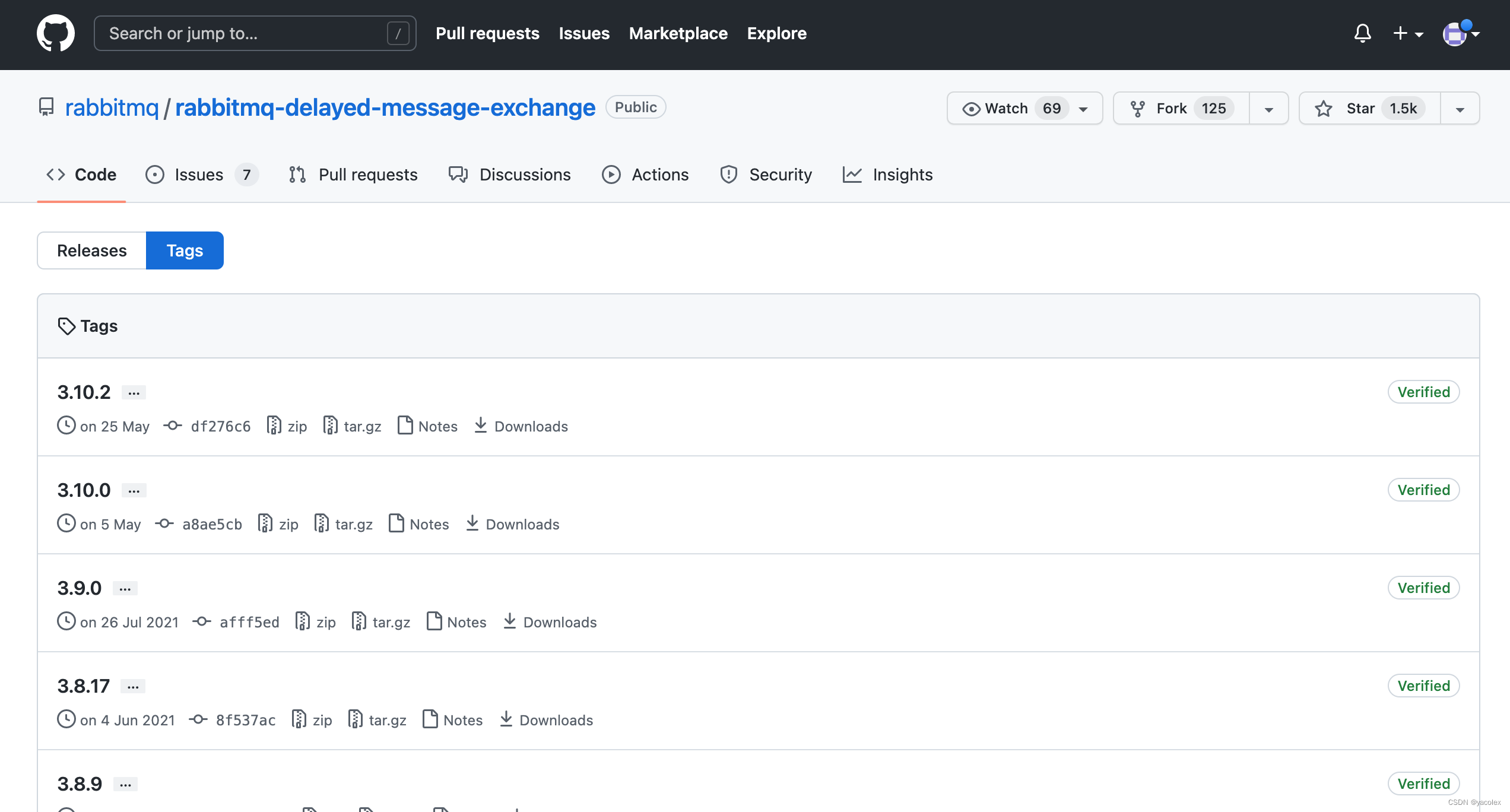

（1）下载插件

下载地址：https://github.com/rabbitmq/rabbitmq-delayed-message-exchange/releases

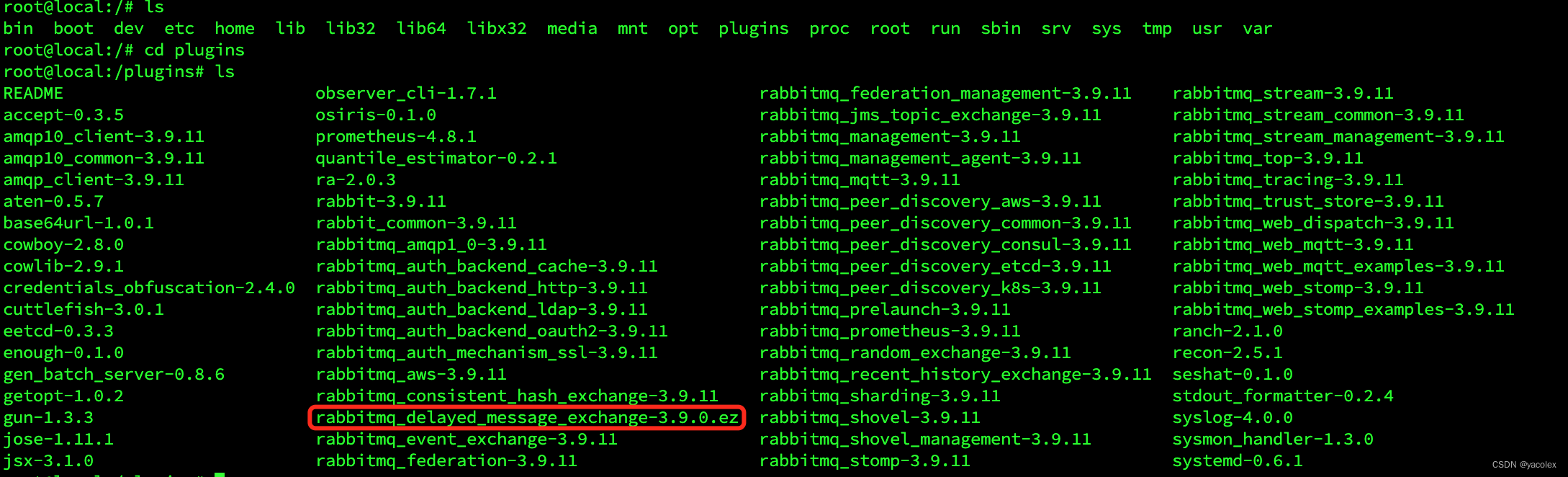

（2）上传插件包

# 进入安装包所在目录
cd /Users/luyou/docker/rabbitmq/plugins;
# 拷贝至容器目录
docker cp ./rabbitmq_delayed_message_exchange-3.9.0.ez rabbitmq:/plugins

（3）安装插件

# 启用延迟队列插件
root@local:/plugins# rabbitmq-plugins enable rabbitmq_delayed_message_exchange
Enabling plugins on node rabbit@local:
rabbitmq_delayed_message_exchange
The following plugins have been configured:
  rabbitmq_delayed_message_exchange
  rabbitmq_management
  rabbitmq_management_agent
  rabbitmq_web_dispatch
Applying plugin configuration to rabbit@local...
The following plugins have been enabled:
  rabbitmq_delayed_message_exchange

started 1 plugins.

（4）查询已安装插件

root@local:/plugins# rabbitmq-plugins list
Listing plugins with pattern ".*" ...
 Configured: E = explicitly enabled; e = implicitly enabled
 | Status: * = running on rabbit@local
 |/
[  ] rabbitmq_amqp1_0                  3.9.11
[  ] rabbitmq_auth_backend_cache       3.9.11
[  ] rabbitmq_auth_backend_http        3.9.11
[  ] rabbitmq_auth_backend_ldap        3.9.11
[  ] rabbitmq_auth_backend_oauth2      3.9.11
[  ] rabbitmq_auth_mechanism_ssl       3.9.11
[  ] rabbitmq_consistent_hash_exchange 3.9.11
[E*] rabbitmq_delayed_message_exchange 3.9.0
[  ] rabbitmq_event_exchange           3.9.11

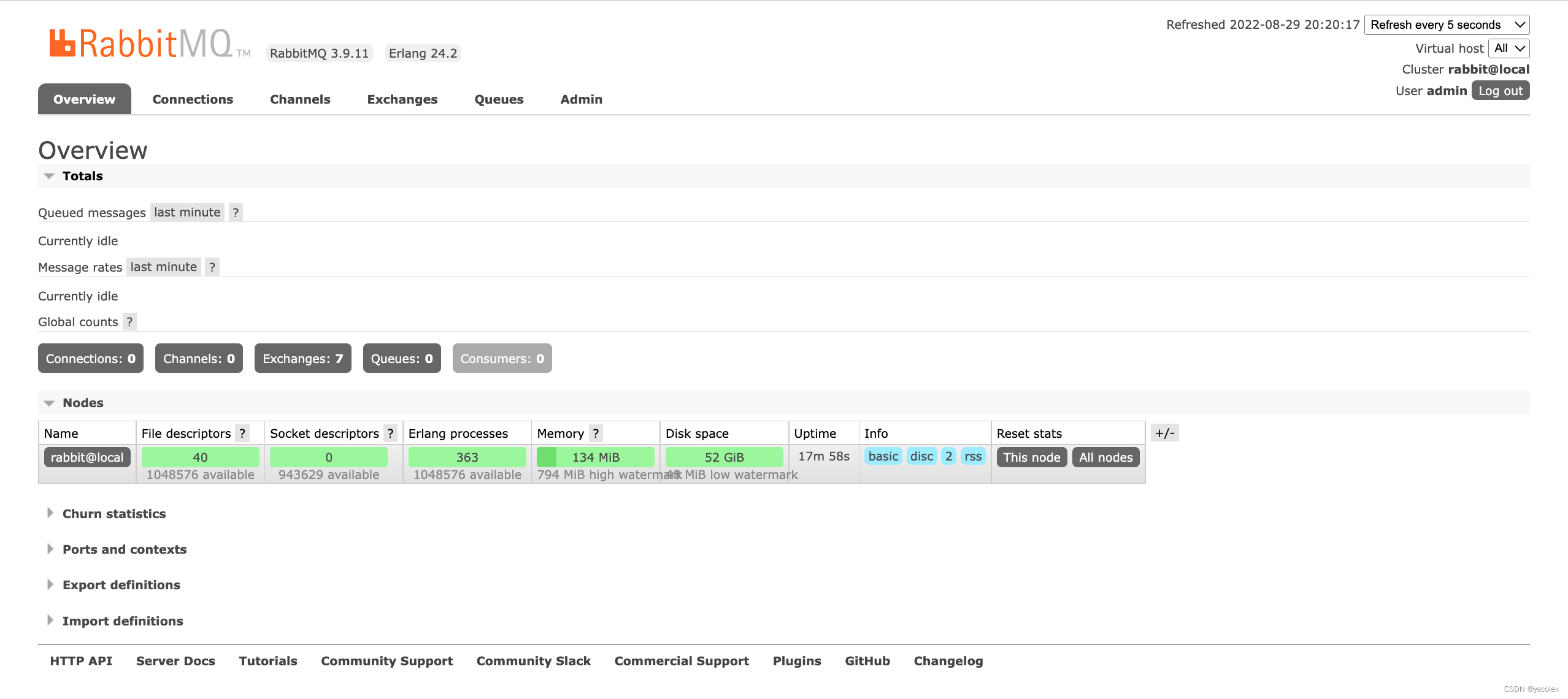

访问控制台

• 地址：http://localhost:15672/#/
• 账号：admin
• 密码：admin

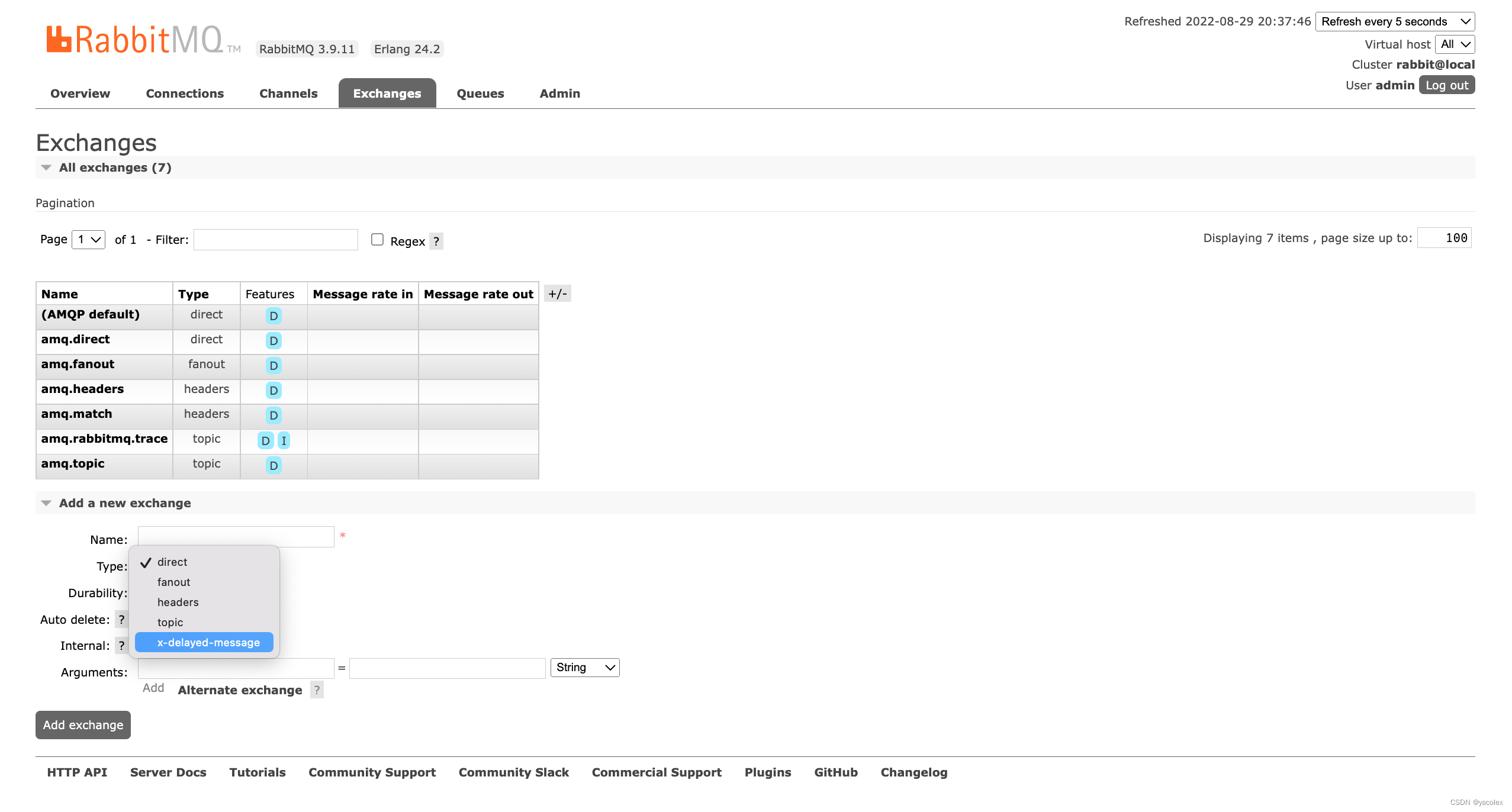

延迟队列插件：

常用操作

启动

命令行：

docker start rabbitmq

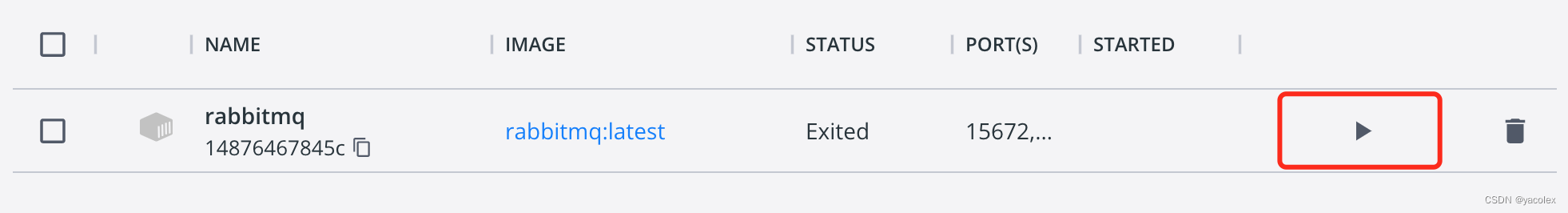

图形界面：

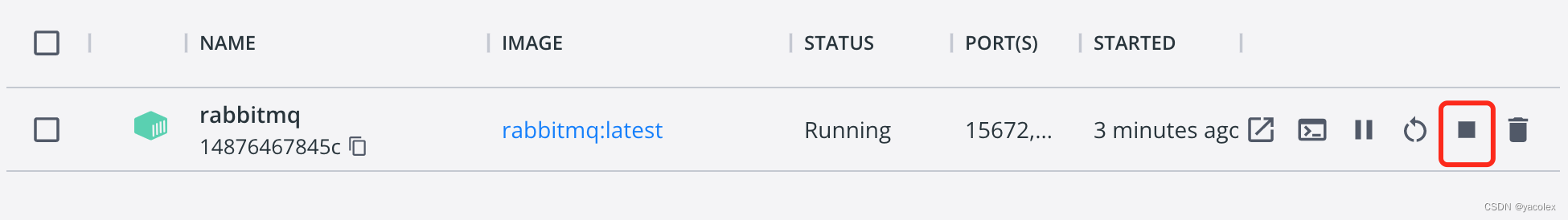

停止

命令行：

docker stop rabbitmq

图形界面：

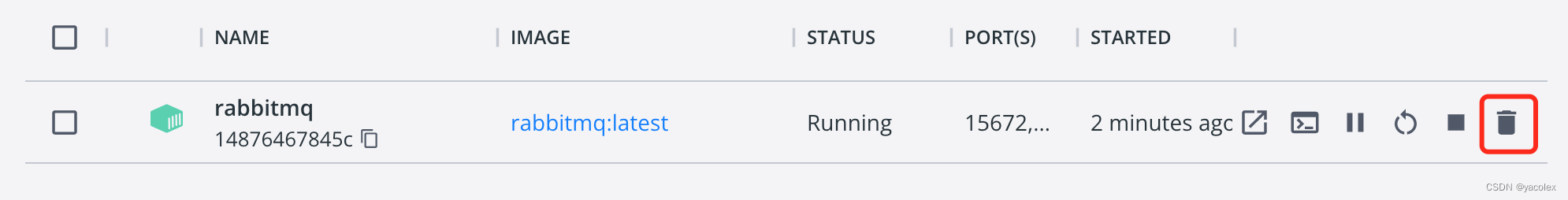

删除

命令行：

docker rm rabbitmq

图形界面：

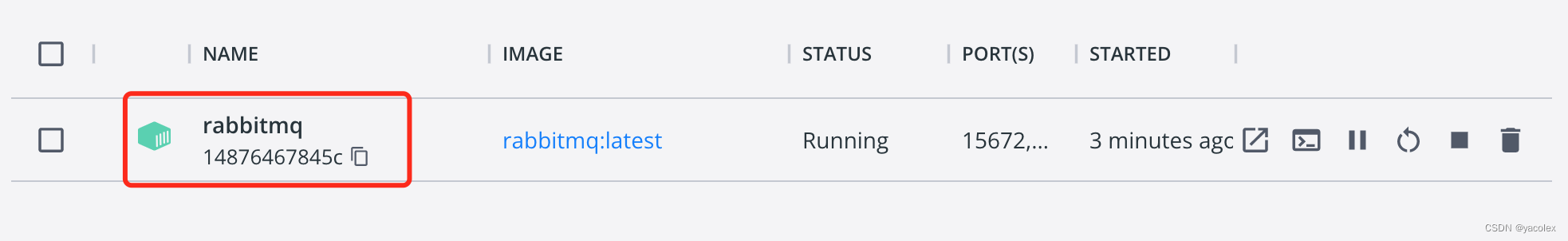

查询日志

命令行：

docker logs -f rabbitmq

图形界面：

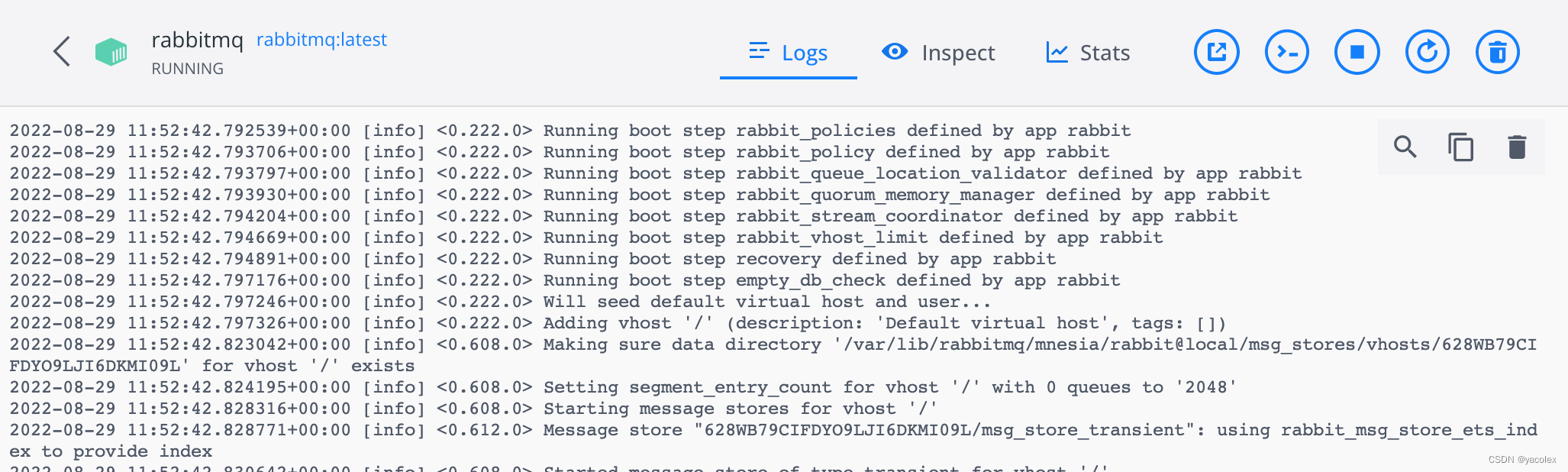

图形日志：

进入容器

# 进入容器
docker exec -it rabbitmq bash

# 退出容器
exit
