UTM坐标系与GPS坐标系转换笔记

UTM坐标系

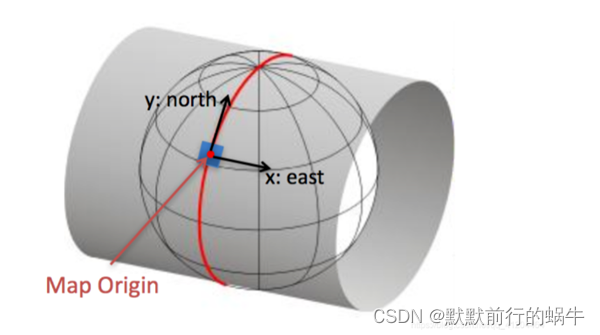

像橘子一样均匀地切成60个称为“区域”的部分，展平这些区域中的每个区域，通用横轴Mercator（UTM）投影；
可以这样看：UTM区域是地球的6°区域，因为圆具有360°，这意味着地球上有60个UTM区域。

如何读取UTM坐标

UTM 坐标中的第一个数字称为东距，第二个数字称为北距。

代码示例

用到的maven依赖 对应的开源库

<!-- https://mvnrepository.com/artifact/org.locationtech.proj4j/proj4j -->
<dependency>
    <groupId>org.locationtech.proj4j</groupId>
    <artifactId>proj4j</artifactId>
    <version>1.1.1</version>
</dependency>

坐标转换示例代码

CRSFactory crsFactory = new CRSFactory();
        CoordinateReferenceSystem WGS84 = crsFactory.createFromName("epsg:4326");
        CoordinateReferenceSystem UTM = crsFactory.createFromName("epsg:32649");//32649 是对应中国福建省区域
        CoordinateTransformFactory ctFactory = new CoordinateTransformFactory();
        CoordinateTransform wgsToUtm = ctFactory.createTransform(WGS84, UTM);
        // `result` is an output parameter to `transform()`
        ProjCoordinate result = new ProjCoordinate();
        //GPS经纬度
        double lon = 118.143196;
        double lat = 24.505581;
        wgsToUtm.transform(new ProjCoordinate(lon, lat), result);
        System.out.println("gps-utm:"+result.x+","+result.y);
        CoordinateTransform utmtoGPS = ctFactory.createTransform(UTM, WGS84);
        // `result` is an output parameter to `transform()`
        ProjCoordinate result2 = new ProjCoordinate();
        //UTM坐标系
        double x = 1224915.1399418628;
        double y = 2729012.1354469475;
        utmtoGPS.transform(new ProjCoordinate(x, y), result2);
        System.out.println("utm-gps:"+result2.x+","+result2.y);

其中里面需要找区域对应的epsg编码
官网：
https://epsg.io/transform#s_srs=4326&t_srs=3857
https://www.latlong.net/lat-long-utm.html

参考资料

https://github.com/locationtech/proj4j

https://trac.osgeo.org/proj4j/browser/branches/projcoordinate_refactoring/resources/nad/epsg

在线坐标转换：
https://www.latlong.net/lat-long-utm.html
