使用JMeter 编写的测试计划的多个线程组如何生成独立的线程组报告

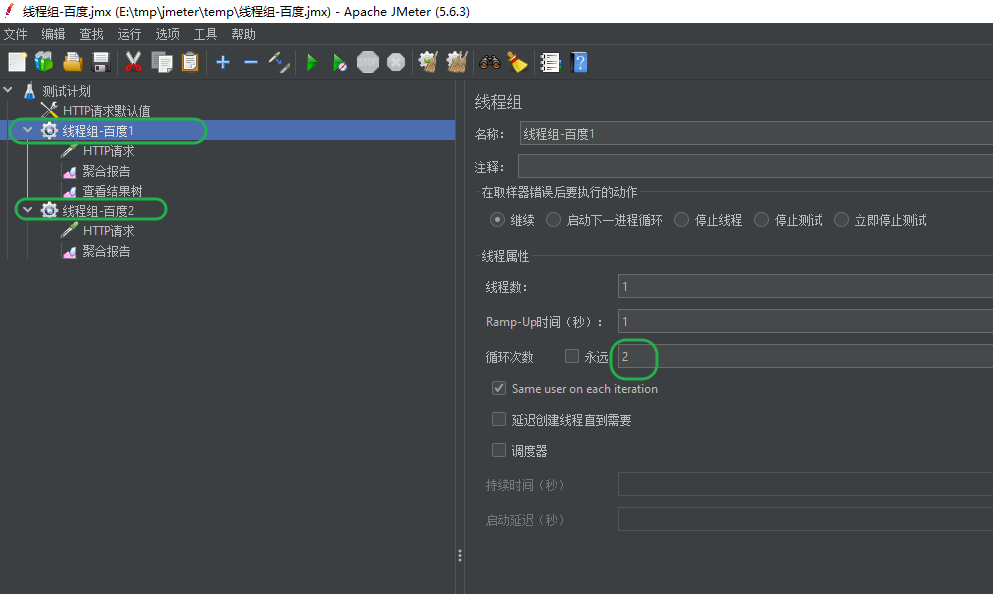

我有一个测试计划，里面有两个线程组，如下：

添加了一个HTTP请求默认值：

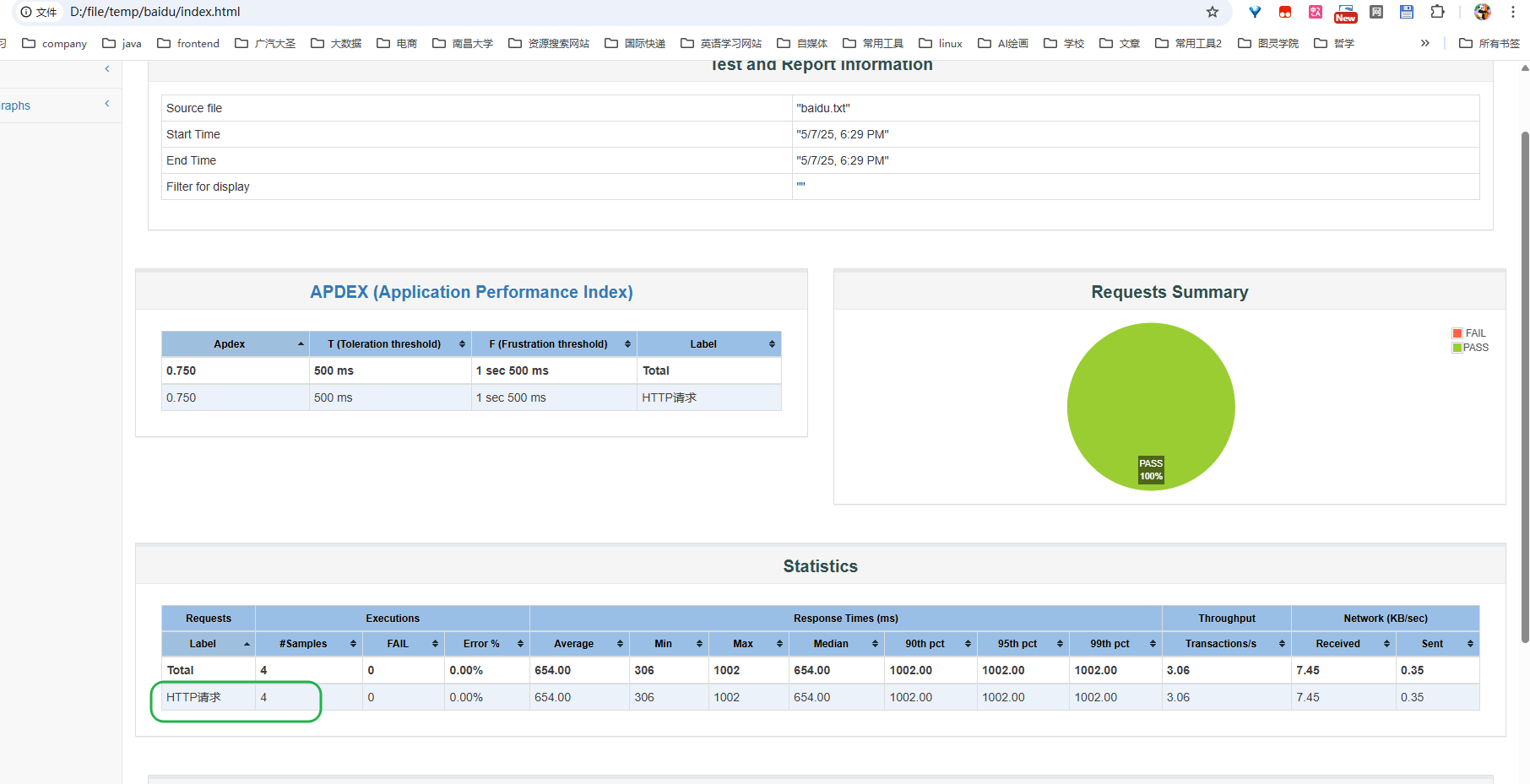

然后我使用如下命令生成的可视化报告是两个线程组合并后的聚合报告。

jmeter -n -t 百度测试计划.jmx -l baidu.txt -e -o ./baidu

但是我想要的效果是每个线程组有自己的独立报告，怎么办呢？

首先

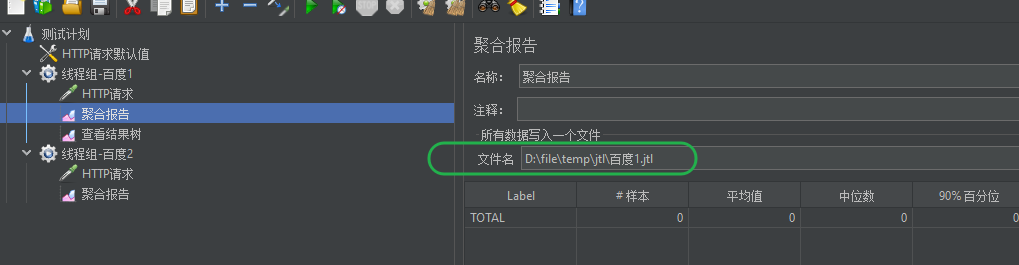

在 线程组-百度1 下面的 聚合报告 中的右侧面板的 文件名 中输入要存放的 jtl 文件位置，我这里存放在 “D:\file\temp\jtl\百度1.jtl” 。

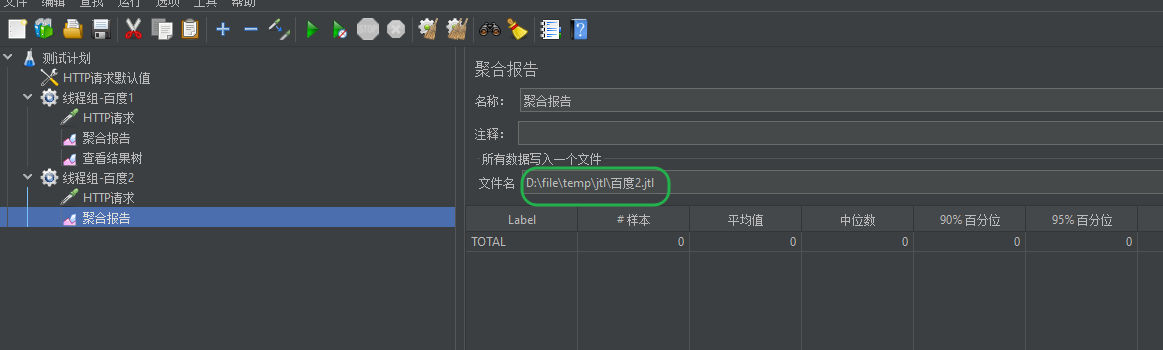

在 线程组-百度2 下面的 聚合报告 中的右侧面板的 文件名 中输入要存放的 jtl 文件位置，我这里存放在 “D:\file\temp\jtl\百度2.jtl” 。

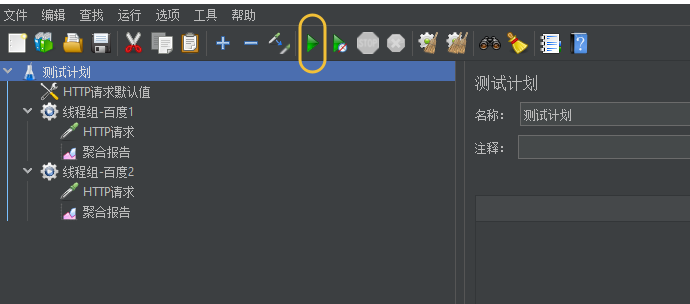

然后运行测试计划：

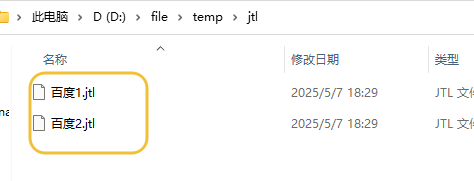

然后就可以在 “D:\file\temp\jtl” 目录下看到两个 jtl 文件：

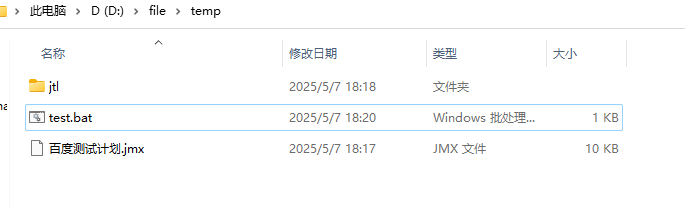

然后创建一个 test.bat 脚本, 从 “D:\file\temp\jtl” 文件中读取 jtl 文件，循环遍历jtl 文件并将报告生成到 “D:\file\temp\reports” 目录下。

@echo off
set "source_dir=D:\file\temp\jtl"
set "target_parent=D:\file\temp\reports"
if not exist "%source_dir%\" (echo 源目录不存在 & exit /b 1)
if not exist "%target_parent%\" md "%target_parent%"
for /r "%source_dir%" %%f in (*.jtl) do (
    md "%target_parent%\%%~nf" 2>nul
    jmeter -g "%%f" -o "%target_parent%\%%~nf"
)
echo 所有JTL文件处理完成
pause

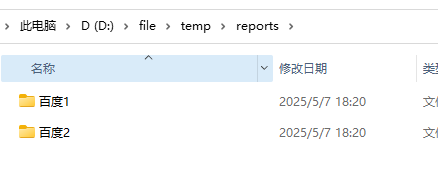

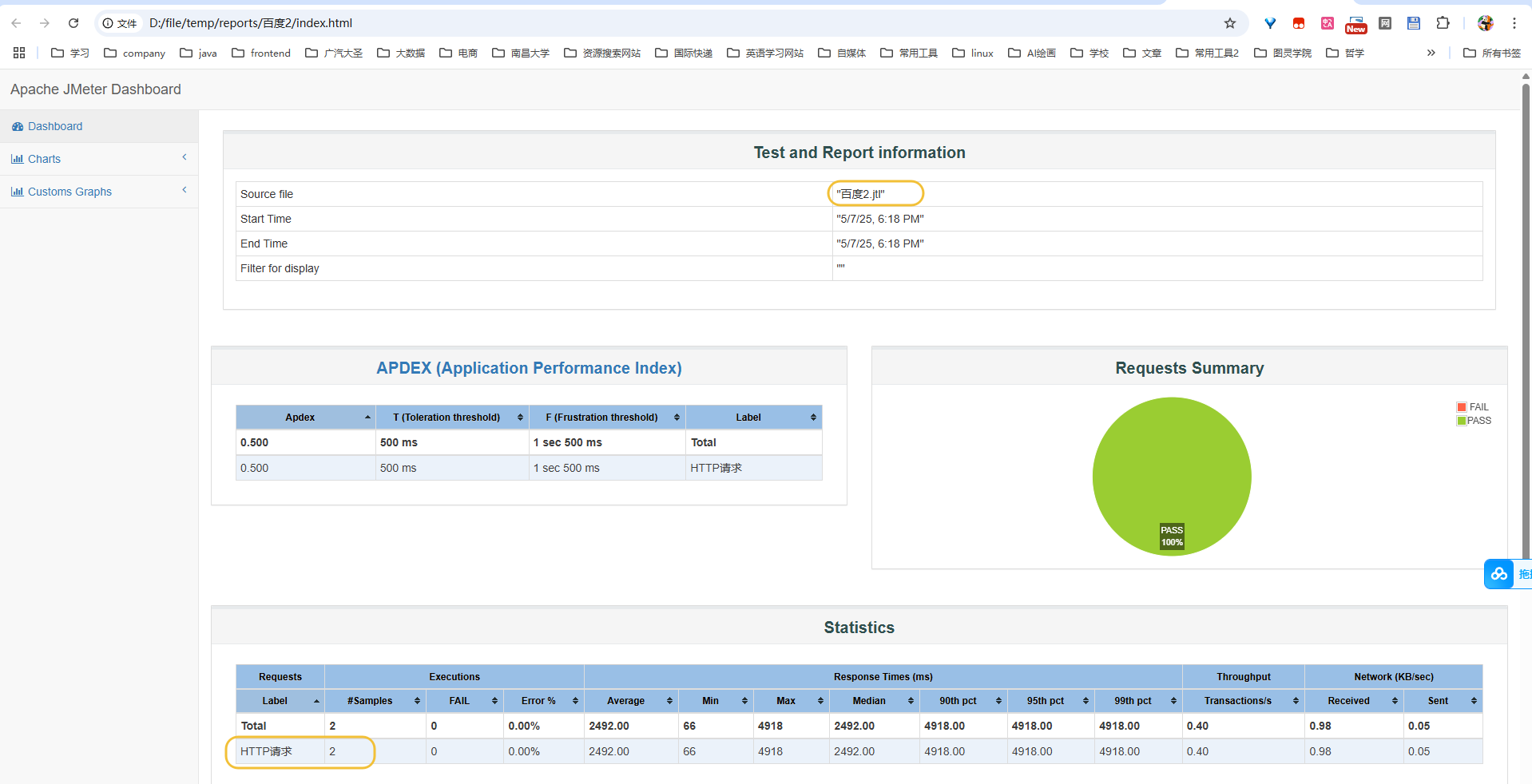

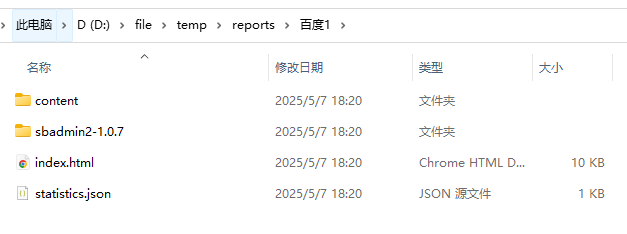

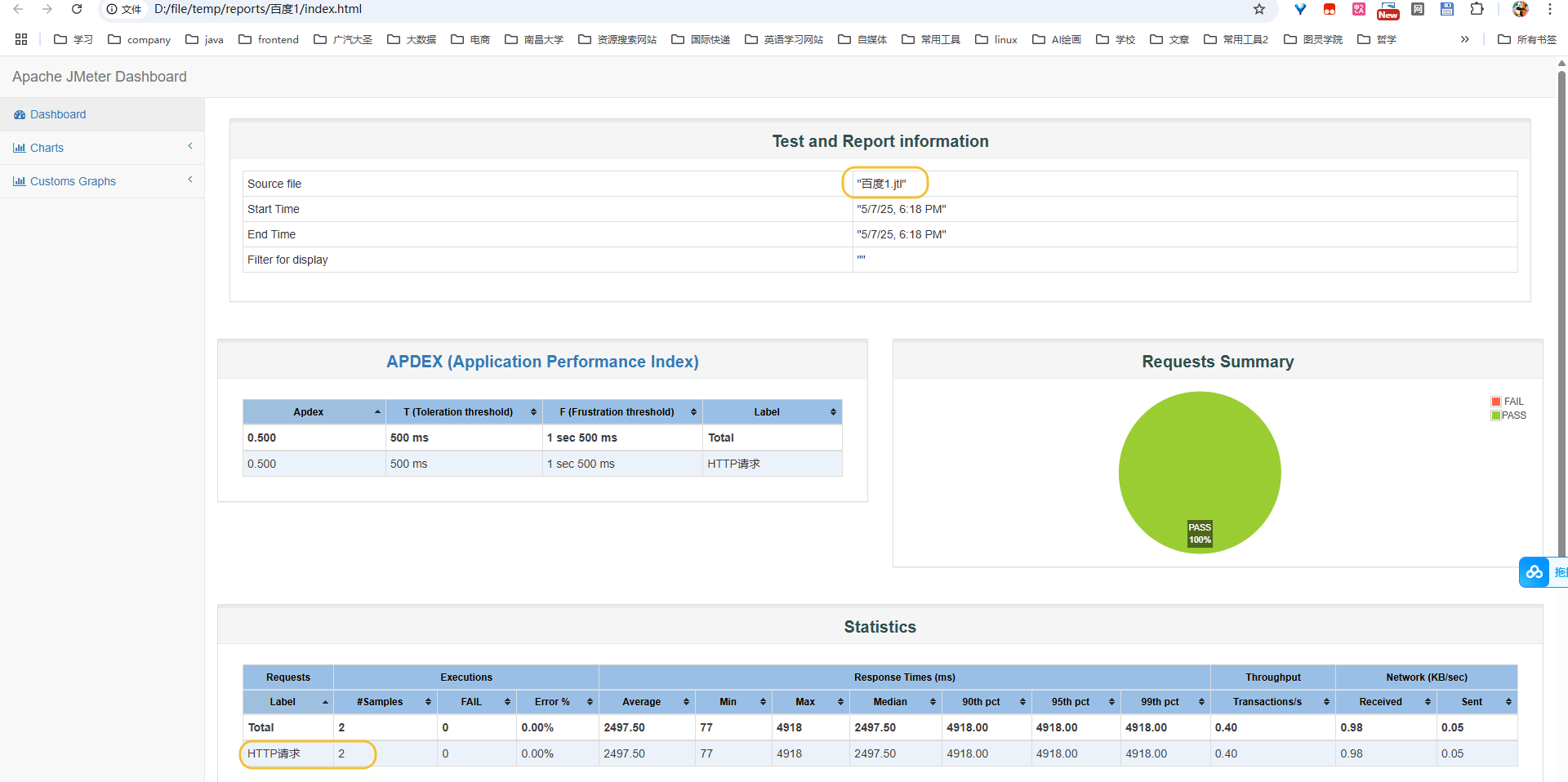

双击 test.bat 脚本，就会升成如下两组独立的报告：

到此就达到我要的效果了。

注意事项：

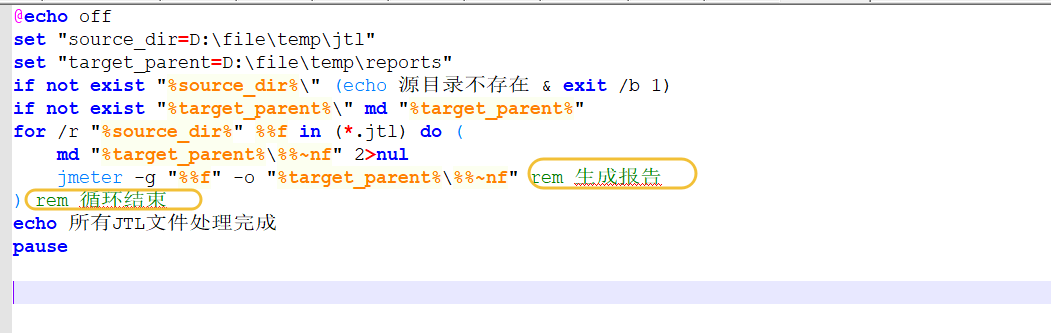

rem 注释不能和代码写在同一行，如下：

这样双击 test.bat 脚本会闪退，或者会生成报告失败。

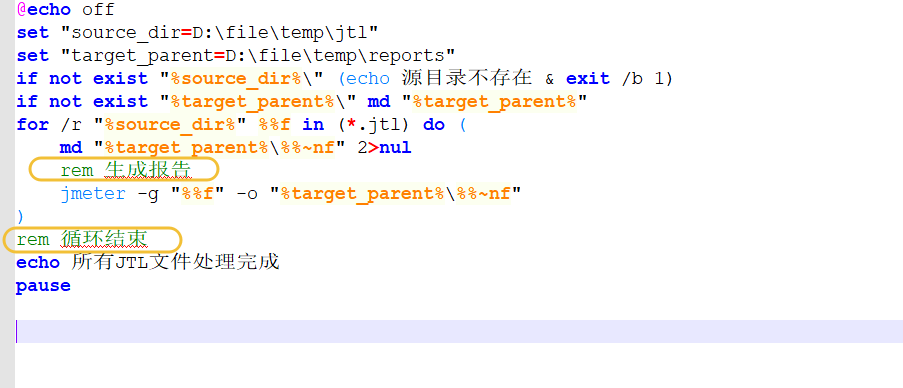

只能写在上下行：

还有一个注意事项，bat 脚本需要使用 ASCII 或 GBK编码(GB2312（简体中文）)， 否则可能也会有问题。

最后附上测试计划 jmx 的文件内容：

<?xml version="1.0" encoding="UTF-8"?>
<jmeterTestPlan version="1.2" properties="5.0" jmeter="5.6.3">
  <hashTree>
    <TestPlan guiclass="TestPlanGui" testclass="TestPlan" testname="测试计划">
      <elementProp name="TestPlan.user_defined_variables" elementType="Arguments" guiclass="ArgumentsPanel" testclass="Arguments" testname="用户定义的变量">
        <collectionProp name="Arguments.arguments"/>
      </elementProp>
      <boolProp name="TestPlan.functional_mode">false</boolProp>
      <boolProp name="TestPlan.serialize_threadgroups">false</boolProp>
    </TestPlan>
    <hashTree>
      <ConfigTestElement guiclass="HttpDefaultsGui" testclass="ConfigTestElement" testname="HTTP请求默认值">
        <stringProp name="HTTPSampler.domain">www.baidu.com</stringProp>
        <stringProp name="HTTPSampler.port">80</stringProp>
        <stringProp name="HTTPSampler.protocol">http</stringProp>
        <stringProp name="HTTPSampler.contentEncoding">utf-8</stringProp>
        <elementProp name="HTTPsampler.Arguments" elementType="Arguments" guiclass="HTTPArgumentsPanel" testclass="Arguments" testname="User Defined Variables">
          <collectionProp name="Arguments.arguments"/>
        </elementProp>
        <stringProp name="HTTPSampler.implementation">HttpClient4</stringProp>
      </ConfigTestElement>
      <hashTree/>
      <ThreadGroup guiclass="ThreadGroupGui" testclass="ThreadGroup" testname="线程组-百度1">
        <intProp name="ThreadGroup.num_threads">1</intProp>
        <intProp name="ThreadGroup.ramp_time">1</intProp>
        <boolProp name="ThreadGroup.same_user_on_next_iteration">true</boolProp>
        <stringProp name="ThreadGroup.on_sample_error">continue</stringProp>
        <elementProp name="ThreadGroup.main_controller" elementType="LoopController" guiclass="LoopControlPanel" testclass="LoopController" testname="循环控制器">
          <stringProp name="LoopController.loops">2</stringProp>
          <boolProp name="LoopController.continue_forever">false</boolProp>
        </elementProp>
      </ThreadGroup>
      <hashTree>
        <HTTPSamplerProxy guiclass="HttpTestSampleGui" testclass="HTTPSamplerProxy" testname="HTTP请求">
          <boolProp name="HTTPSampler.follow_redirects">true</boolProp>
          <stringProp name="HTTPSampler.method">GET</stringProp>
          <boolProp name="HTTPSampler.use_keepalive">true</boolProp>
          <boolProp name="HTTPSampler.postBodyRaw">false</boolProp>
          <elementProp name="HTTPsampler.Arguments" elementType="Arguments" guiclass="HTTPArgumentsPanel" testclass="Arguments" testname="User Defined Variables">
            <collectionProp name="Arguments.arguments"/>
          </elementProp>
        </HTTPSamplerProxy>
        <hashTree/>
        <ResultCollector guiclass="StatVisualizer" testclass="ResultCollector" testname="聚合报告">
          <boolProp name="ResultCollector.error_logging">false</boolProp>
          <objProp>
            <name>saveConfig</name>
            <value class="SampleSaveConfiguration">
              <time>true</time>
              <latency>true</latency>
              <timestamp>true</timestamp>
              <success>true</success>
              <label>true</label>
              <code>true</code>
              <message>true</message>
              <threadName>true</threadName>
              <dataType>true</dataType>
              <encoding>false</encoding>
              <assertions>true</assertions>
              <subresults>true</subresults>
              <responseData>false</responseData>
              <samplerData>false</samplerData>
              <xml>false</xml>
              <fieldNames>true</fieldNames>
              <responseHeaders>false</responseHeaders>
              <requestHeaders>false</requestHeaders>
              <responseDataOnError>false</responseDataOnError>
              <saveAssertionResultsFailureMessage>true</saveAssertionResultsFailureMessage>
              <assertionsResultsToSave>0</assertionsResultsToSave>
              <bytes>true</bytes>
              <sentBytes>true</sentBytes>
              <url>true</url>
              <threadCounts>true</threadCounts>
              <idleTime>true</idleTime>
              <connectTime>true</connectTime>
            </value>
          </objProp>
          <stringProp name="filename">D:\file\temp\jtl\百度1.jtl</stringProp>
        </ResultCollector>
        <hashTree/>
        <ResultCollector guiclass="ViewResultsFullVisualizer" testclass="ResultCollector" testname="查看结果树">
          <boolProp name="ResultCollector.error_logging">false</boolProp>
          <objProp>
            <name>saveConfig</name>
            <value class="SampleSaveConfiguration">
              <time>true</time>
              <latency>true</latency>
              <timestamp>true</timestamp>
              <success>true</success>
              <label>true</label>
              <code>true</code>
              <message>true</message>
              <threadName>true</threadName>
              <dataType>true</dataType>
              <encoding>false</encoding>
              <assertions>true</assertions>
              <subresults>true</subresults>
              <responseData>false</responseData>
              <samplerData>false</samplerData>
              <xml>false</xml>
              <fieldNames>true</fieldNames>
              <responseHeaders>false</responseHeaders>
              <requestHeaders>false</requestHeaders>
              <responseDataOnError>false</responseDataOnError>
              <saveAssertionResultsFailureMessage>true</saveAssertionResultsFailureMessage>
              <assertionsResultsToSave>0</assertionsResultsToSave>
              <bytes>true</bytes>
              <sentBytes>true</sentBytes>
              <url>true</url>
              <threadCounts>true</threadCounts>
              <idleTime>true</idleTime>
              <connectTime>true</connectTime>
            </value>
          </objProp>
          <stringProp name="filename"></stringProp>
        </ResultCollector>
        <hashTree/>
      </hashTree>
      <ThreadGroup guiclass="ThreadGroupGui" testclass="ThreadGroup" testname="线程组-百度2">
        <intProp name="ThreadGroup.num_threads">1</intProp>
        <intProp name="ThreadGroup.ramp_time">1</intProp>
        <boolProp name="ThreadGroup.same_user_on_next_iteration">true</boolProp>
        <stringProp name="ThreadGroup.on_sample_error">continue</stringProp>
        <elementProp name="ThreadGroup.main_controller" elementType="LoopController" guiclass="LoopControlPanel" testclass="LoopController" testname="循环控制器">
          <stringProp name="LoopController.loops">2</stringProp>
          <boolProp name="LoopController.continue_forever">false</boolProp>
        </elementProp>
      </ThreadGroup>
      <hashTree>
        <HTTPSamplerProxy guiclass="HttpTestSampleGui" testclass="HTTPSamplerProxy" testname="HTTP请求">
          <boolProp name="HTTPSampler.follow_redirects">true</boolProp>
          <stringProp name="HTTPSampler.method">GET</stringProp>
          <boolProp name="HTTPSampler.use_keepalive">true</boolProp>
          <boolProp name="HTTPSampler.postBodyRaw">false</boolProp>
          <elementProp name="HTTPsampler.Arguments" elementType="Arguments" guiclass="HTTPArgumentsPanel" testclass="Arguments" testname="User Defined Variables">
            <collectionProp name="Arguments.arguments"/>
          </elementProp>
        </HTTPSamplerProxy>
        <hashTree/>
        <ResultCollector guiclass="StatVisualizer" testclass="ResultCollector" testname="聚合报告">
          <boolProp name="ResultCollector.error_logging">false</boolProp>
          <objProp>
            <name>saveConfig</name>
            <value class="SampleSaveConfiguration">
              <time>true</time>
              <latency>true</latency>
              <timestamp>true</timestamp>
              <success>true</success>
              <label>true</label>
              <code>true</code>
              <message>true</message>
              <threadName>true</threadName>
              <dataType>true</dataType>
              <encoding>false</encoding>
              <assertions>true</assertions>
              <subresults>true</subresults>
              <responseData>false</responseData>
              <samplerData>false</samplerData>
              <xml>false</xml>
              <fieldNames>true</fieldNames>
              <responseHeaders>false</responseHeaders>
              <requestHeaders>false</requestHeaders>
              <responseDataOnError>false</responseDataOnError>
              <saveAssertionResultsFailureMessage>true</saveAssertionResultsFailureMessage>
              <assertionsResultsToSave>0</assertionsResultsToSave>
              <bytes>true</bytes>
              <sentBytes>true</sentBytes>
              <url>true</url>
              <threadCounts>true</threadCounts>
              <idleTime>true</idleTime>
              <connectTime>true</connectTime>
            </value>
          </objProp>
          <stringProp name="filename">D:\file\temp\jtl\百度2.jtl</stringProp>
        </ResultCollector>
        <hashTree/>
      </hashTree>
    </hashTree>
  </hashTree>
</jmeterTestPlan>
