IAM角色访问AWS RDS For MySQL

Tips: 写这篇文章，主要是用作记录；在AWS配置IAM RDS 角色权限访问，官方文档不怎么全，踩了一些坑…

AWS云上配置

开启IAM身份验证
- 登录AWS控制台
- 搜索并进入Databases管理页面
- 选择数据库实例，点击修改按钮

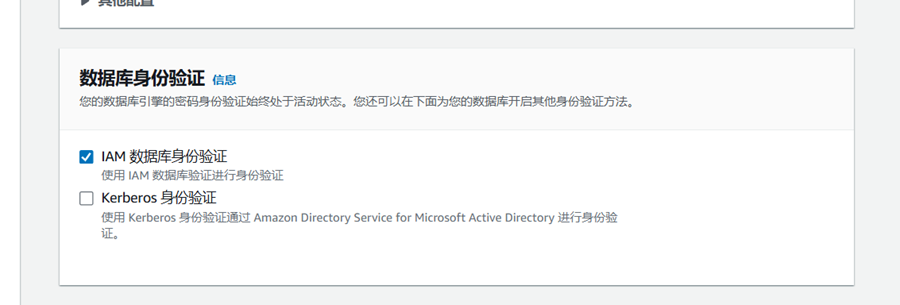

- 在Database authentication部分，选择Password and IAM database authentication，启用IAM数据库身份验证

创建IAM Policy

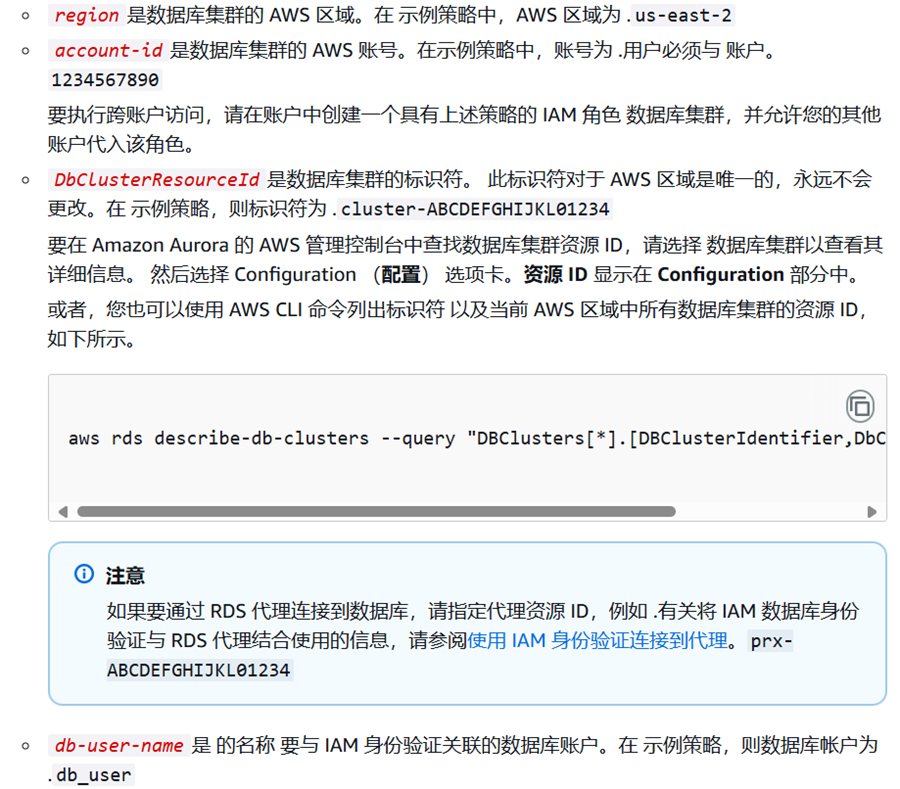

搜索策略，创建策略，选择JSON配置; Resource指向的是 db实例/数据库账号

示例策略：

{
    "Version": "2012-10-17",
    "Statement": [
        {
            "Sid": "Statement1",
            "Effect": "Allow",
            "Action": [
                "rds-db:connect"
            ],
            "Resource": [
                "arn:aws-cn:rds-db:cn-northwest-1:xxxxxxxx:dbuser:cluster-xxxxxxxx/dbuser"
            ]
        }
    ]
}

创建IAM角色并附加策略

创建一个角色，选择RDS，并附加上述策略
编辑新创建的权限，信任关系，指向session；即AWS那个字段，取值为个人账号arn

示例信任关系：

{
    "Version": "2012-10-17",
    "Statement": [
        {
            "Effect": "Allow",
            "Principal": {
                "AWS": "arn:aws-cn:iam::xxxxx:user/个人acount",
                "Service": [
                    "rds.amazonaws.com"
                ]
            },
            "Action": "sts:AssumeRole"
        }
    ]
}

AWS Config 配置

新增role配置
- 登录到宿主机，进入.aws目录
- 查看config和credentials文件
- 在credentials中配置IAM用户的accessId和accessSecret； config与 credentials 通过 profile {name} 匹配
- 在config中新增相关配置：
```
[profile prodaccess]
    role_arn = arn:aws:iam::xxxxxxxx:role/ProductionAccessRole
    source_profile = default
```
- 如果 default的credentials配置无role权限，请切换profile或者授权

Role授权

AWS上role信任实体配置

跳板机执行命令：

aws sts assume-role --role-arn "arn:aws-cn:iam::xxxxx:role/rolename" --role-session-name 主账号 --profile profile

TIPS: 这里的rolename即是需要配置的role

使用IAM身份验证创建数据库账户

创建数据库用户
- 需要与策略中的用户保持一致，用户名为dbuser，可以换成自己的
- 命令：
```
CREATE USER 'dbuser' IDENTIFIED WITH AWSAuthenticationPlugin AS 'RDS';
```
- 如果要开启SSL：
```
ALTER USER 'dbuser'@'%' REQUIRE SSL;
```

命令行连通性验证

写入变量

设置RDS主机名：

export RDSHOST="rds-aurora-xxx.cluster-xxxx.rds.cn-northwest-1.amazonaws.com.cn"

获取token：

aws rds generate-db-auth-token --hostname $RDSHOST --port 3306 --region cn-northwest-1 --username dbuser --profile xxxx_profile

xxxx_profile是自定义的profile名称，不加–profile 参数默认使用default

将获取到的token写入变量：
```
export TOKEN="...token..."
```

引用变量进行连接：

mysql --host=$RDSHOST --port=3306 --enable-cleartext-plugin --user=dbuser --password=$TOKEN

SpringBoot应用接入Datasource

新增配置

在application.properties中添加：

aws.rds.host=rds-aurora-xxxxx.cluster-xxxxx.rds.cn-northwest-1.amazonaws.com.cn
aws.rds.port=3306
aws.rds.user=dbuser
aws.rds.dbname=dbuser
aws.region=cn-northwest-1

添加AWS SDK依赖：

<dependency>
    <groupId>software.amazon.awssdk</groupId>
    <artifactId>rds</artifactId>
    <version>2.20.0</version>
</dependency>

剔除SpringBoot数据源配置文件注入，重新注入DataSource

package com.xxl.job.admin.core.conf;

import com.zaxxer.hikari.HikariDataSource;
import lombok.extern.slf4j.Slf4j;
import org.springframework.beans.factory.annotation.Value;
import org.springframework.context.annotation.Bean;
import org.springframework.context.annotation.Configuration;
import org.springframework.context.annotation.Primary;
import software.amazon.awssdk.auth.credentials.AwsCredentialsProvider;
import software.amazon.awssdk.auth.credentials.DefaultCredentialsProvider;
import software.amazon.awssdk.auth.credentials.ProfileCredentialsProvider;
import software.amazon.awssdk.regions.Region;
import software.amazon.awssdk.services.rds.RdsUtilities;

import javax.sql.DataSource;
import java.sql.Connection;
import java.sql.ResultSet;
import java.sql.SQLException;
import java.sql.Statement;
import java.util.concurrent.Executors;
import java.util.concurrent.ScheduledExecutorService;
import java.util.concurrent.TimeUnit;

@Slf4j
@Configuration
public class DynamicDataSourceConfig {

    @Value("${aws.rds.host}") private String dbHost;
    @Value("${aws.rds.port}") private int dbPort;
    @Value("${aws.rds.user}") private String dbUser;
    @Value("${aws.rds.dbname}") private String dbName;
    @Value("${aws.region}") private String region;

    @Bean
    @Primary
    public DataSource dataSource() {
        log.info("[DynamicDataSourceConfig] create datasource start");
        String token = refreshIamToken();
        log.info("[DynamicDataSourceConfig] get token: {}", token);
        HikariDataSource dataSource = new HikariDataSource();
        dataSource.setJdbcUrl(buildJdbcUrl());
        dataSource.setUsername(dbUser);
        dataSource.setPassword(token);

        //TODO 验证可用性，可删除
        validateDataSource(dataSource);

        // 每10分钟刷新令牌
        // 临时凭证，默认有效期为15分钟
        ScheduledExecutorService scheduler = Executors.newScheduledThreadPool(1);
        scheduler.scheduleAtFixedRate(() ->
            dataSource.setPassword(refreshIamToken()),
            10, 10, TimeUnit.MINUTES
        );

        return dataSource;
    }

    private void validateDataSource(HikariDataSource dataSource) {
        try (Connection conn = dataSource.getConnection();
             Statement stmt = conn.createStatement()) {
            ResultSet rs = stmt.executeQuery("SELECT 1");
            log.info("Database connection test succeeded");
        } catch (SQLException e) {
            log.error("Database connection test FAILED", e);
            throw new RuntimeException("Datasource validation failed", e);
        }
    }

    private String refreshIamToken() {
        return generateAuthToken(
            dbHost,
            dbPort,
            dbUser,
            Region.of(region)
        );
    }

    private String buildJdbcUrl() {
        return String.format("jdbc:mysql://%s:%d/%s?" +
                        "allowCleartextPasswords=true&useUnicode=true&characterEncoding=UTF-8"
                        + "&autoReconnect=true&serverTimezone=Asia/Shanghai"
                        + "&useSSL=false&requireSSL=false",
                dbHost, dbPort, dbName);
    }

    private String generateAuthToken(String dbHost, int dbPort, String dbUser, Region region) {
        //profile需做成环境变量
		//dev_mysql_auth_profile, 这里换成对应的profile名称，若没有自定义配置则设置为default
        AwsCredentialsProvider credentialsProvider =
                ProfileCredentialsProvider.create("dev_mysql_auth_profile");
        return RdsUtilities.builder()
                .credentialsProvider(credentialsProvider)
                .region(region)
                .build()
                .generateAuthenticationToken(b -> b
                        .hostname(dbHost)
                        .port(dbPort)
                        .username(dbUser)
                        .region(region)
                );
    }
}

使用默认凭证链，自动获取Pod角色权限：AwsCredentialsProvider

K8s secret 挂载映射

代码中使用：AwsCredentialsProvider
使用默认凭证链，自动获取Pod角色权限：AwsCredentialsProvider

官方文档

参考AWS官方文档以获取更多详细信息。
通用文档：https://docs.aws.amazon.com/zh_cn/AmazonRDS/latest/UserGuide/UsingWithRDS.IAMDBAuth.Connecting.Java.html
切换角色：https://docs.amazonaws.cn/IAM/latest/UserGuide/id_roles_use_switch-role-cli.html
信任授权：https://repost.aws/zh-Hans/knowledge-center/iam-assume-role-error
