缘起：有些时候，需要在uboot阶段做一些事情。
于是，希望在荣品的PRO-RK3566开发板的Android13下的uboot启动停下。

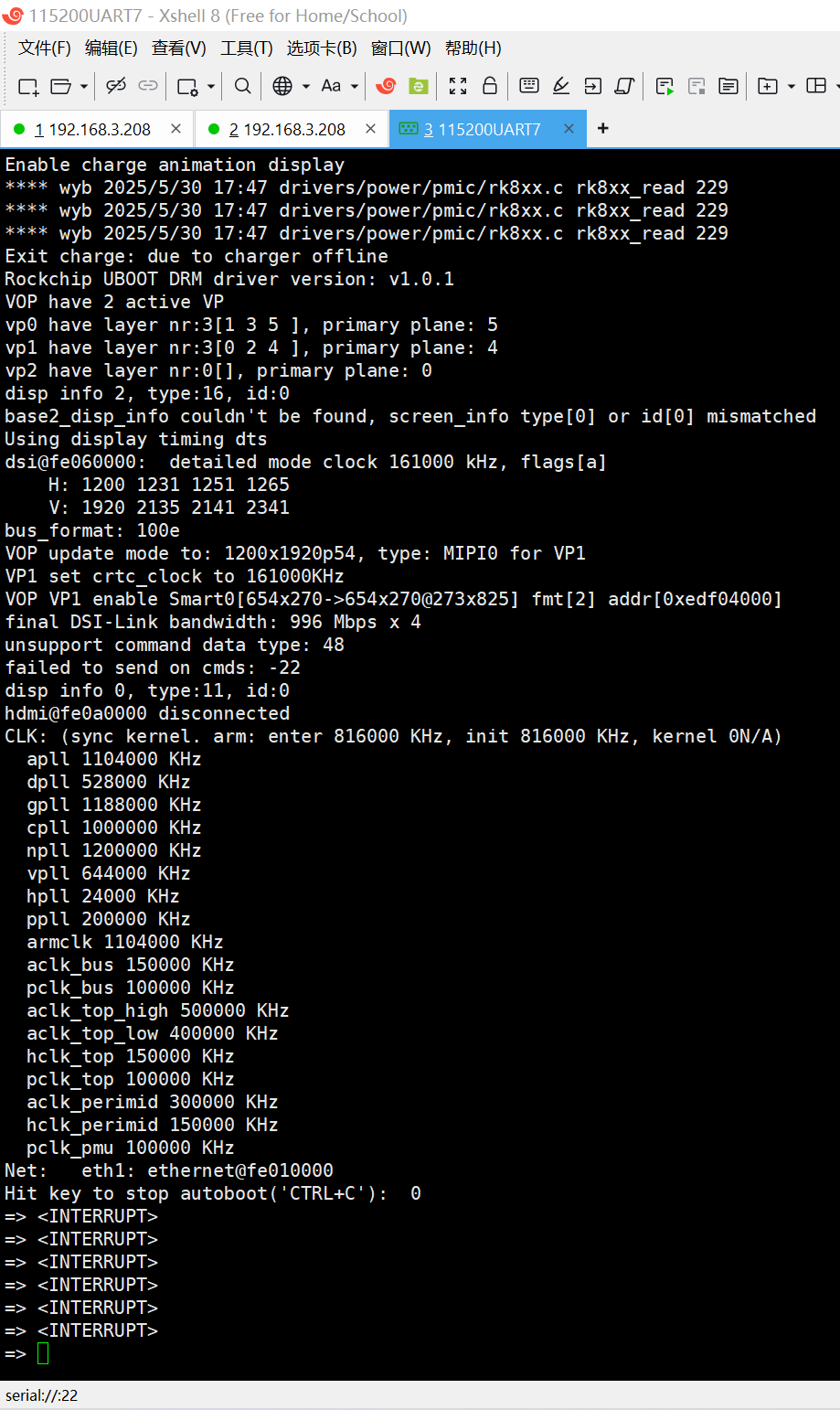

1、【原始的LOG，如果不配置BOOTDELAY。上电/开启之后就请使劲按CTRL+C吧！^_这时也能够让系统启动停下来！】
**** wyb 2025/5/30 17:47 drivers/power/pmic/rk8xx.c rk8xx_write 214
Enable charge animation display
**** wyb 2025/5/30 17:47 drivers/power/pmic/rk8xx.c rk8xx_read 229
**** wyb 2025/5/30 17:47 drivers/power/pmic/rk8xx.c rk8xx_read 229
**** wyb 2025/5/30 17:47 drivers/power/pmic/rk8xx.c rk8xx_read 229
Exit charge: due to charger offline
Rockchip UBOOT DRM driver version: v1.0.1
VOP have 2 active VP
vp0 have layer nr:3[1 3 5 ], primary plane: 5
vp1 have layer nr:3[0 2 4 ], primary plane: 4
vp2 have layer nr:0[], primary plane: 0
disp info 2, type:16, id:0
base2_disp_info couldn't be found, screen_info type[0] or id[0] mismatched
Using display timing dts
dsi@fe060000: detailed mode clock 161000 kHz, flags[a]
H: 1200 1231 1251 1265
V: 1920 2135 2141 2341
bus_format: 100e
VOP update mode to: 1200x1920p54, type: MIPI0 for VP1
VP1 set crtc_clock to 161000KHz
VOP VP1 enable Smart0[654x270->654x270@273x825] fmt[2] addr[0xedf04000]
final DSI-Link bandwidth: 996 Mbps x 4
unsupport command data type: 48
failed to send on cmds: -22
disp info 0, type:11, id:0
hdmi@fe0a0000 disconnected
CLK: (sync kernel. arm: enter 816000 KHz, init 816000 KHz, kernel 0N/A)
apll 1104000 KHz
dpll 528000 KHz
gpll 1188000 KHz
cpll 1000000 KHz
npll 1200000 KHz
vpll 644000 KHz
hpll 24000 KHz
ppll 200000 KHz
armclk 1104000 KHz
aclk_bus 150000 KHz
pclk_bus 100000 KHz
aclk_top_high 500000 KHz
aclk_top_low 400000 KHz
hclk_top 150000 KHz
pclk_top 100000 KHz
aclk_perimid 300000 KHz
hclk_perimid 150000 KHz
pclk_pmu 100000 KHz
Net: eth1: ethernet@fe010000
Hit key to stop autoboot('CTRL+C'): 0
=> <INTERRUPT>
=> <INTERRUPT>
=> <INTERRUPT>
=> <INTERRUPT>
=> <INTERRUPT>
=> <INTERRUPT>
=>
2、加入了CONFIG_BOOTDELAY=10

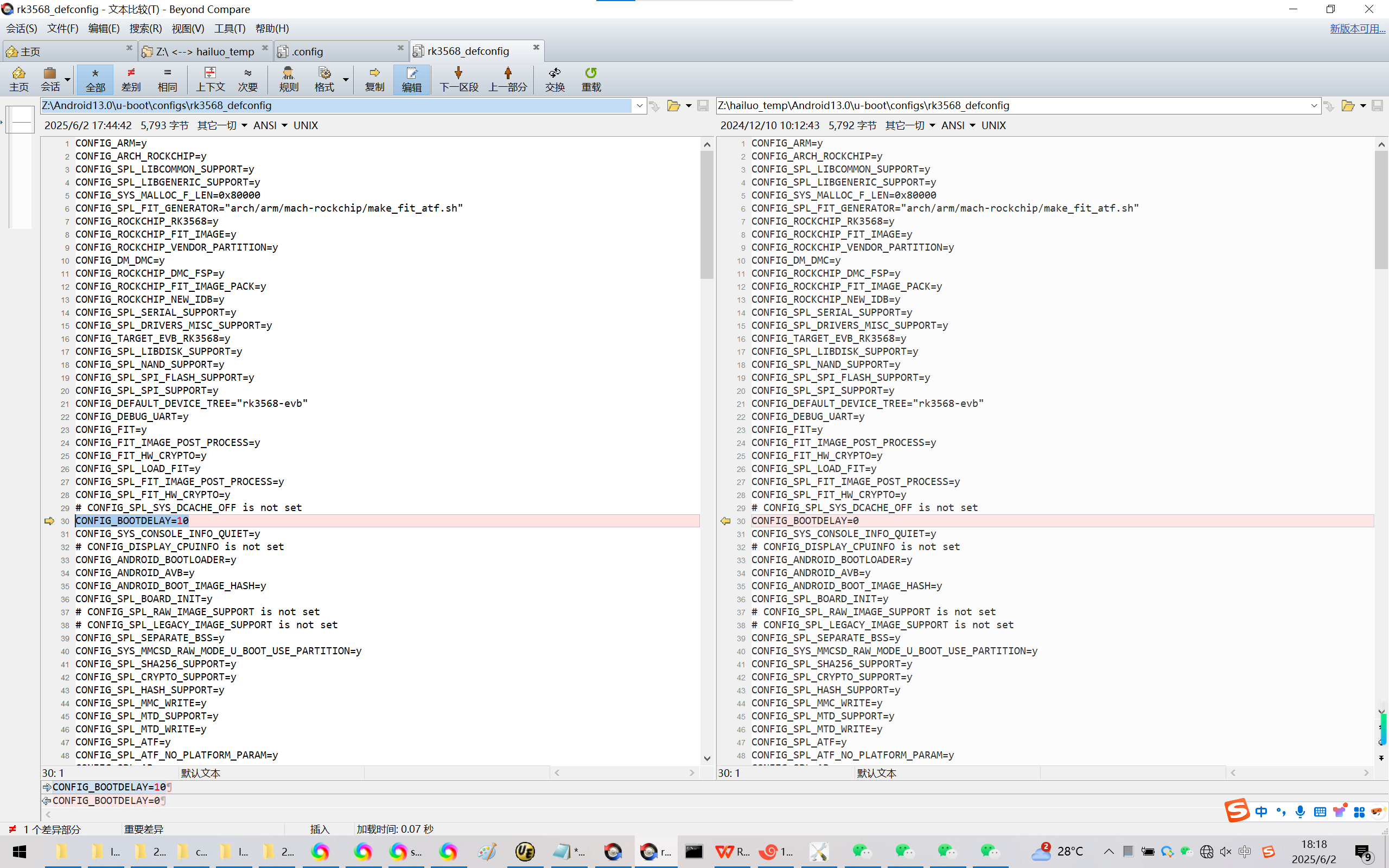

Z:\Android13.0\u-boot\configs\rk3568_defconfig
Z:\hailuo_temp\Android13.0\u-boot\configs\rk3568_defconfig
# CONFIG_SPL_SYS_DCACHE_OFF is not set
CONFIG_BOOTDELAY=0
CONFIG_SYS_CONSOLE_INFO_QUIET=y
修改为：
# CONFIG_SPL_SYS_DCACHE_OFF is not set
CONFIG_BOOTDELAY=10
CONFIG_SYS_CONSOLE_INFO_QUIET=y

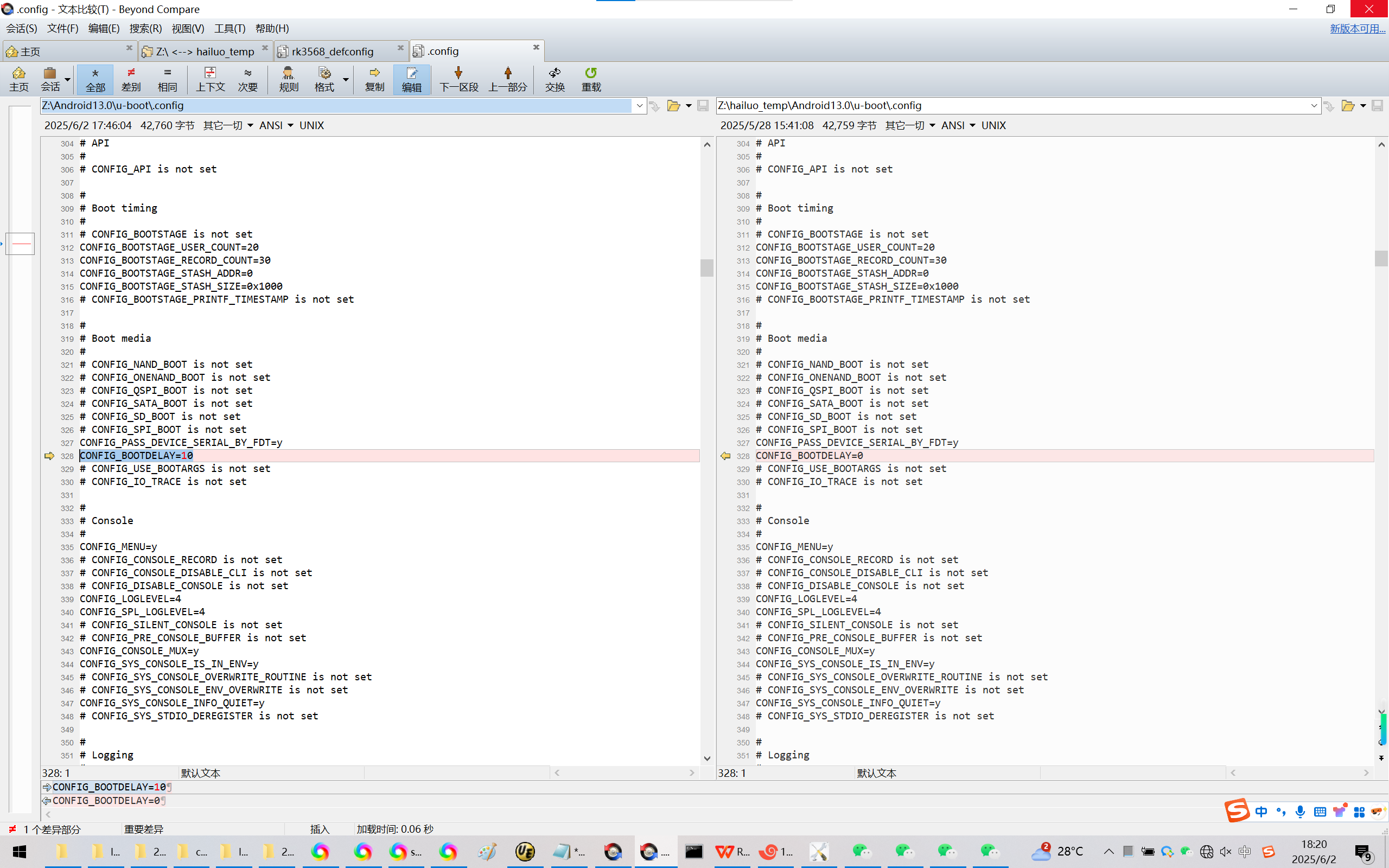

Z:\Android13.0\u-boot\.config
Z:\hailuo_temp\Android13.0\u-boot\.config
#
# Boot media
#
# CONFIG_NAND_BOOT is not set
# CONFIG_ONENAND_BOOT is not set
# CONFIG_QSPI_BOOT is not set
# CONFIG_SATA_BOOT is not set
# CONFIG_SD_BOOT is not set
# CONFIG_SPI_BOOT is not set
CONFIG_PASS_DEVICE_SERIAL_BY_FDT=y
CONFIG_BOOTDELAY=0
# CONFIG_USE_BOOTARGS is not set
# CONFIG_IO_TRACE is not set
修改为：
#
# Boot media
#
# CONFIG_NAND_BOOT is not set
# CONFIG_ONENAND_BOOT is not set
# CONFIG_QSPI_BOOT is not set
# CONFIG_SATA_BOOT is not set
# CONFIG_SD_BOOT is not set
# CONFIG_SPI_BOOT is not set
CONFIG_PASS_DEVICE_SERIAL_BY_FDT=y
CONFIG_BOOTDELAY=10
# CONFIG_USE_BOOTARGS is not set
# CONFIG_IO_TRACE is not set
【LOG复核】
