作业：
day43的时候我们安排大家对自己找的数据集用简单cnn训练，现在可以尝试下借助这几天的知识来实现精度的进一步提高
关于 Dataset
从谷歌图片中抓取了 1000 多张猫和狗的图片。问题陈述是构建一个模型，该模型可以尽可能准确地在图像中的猫和狗之间进行分类。
图像大小范围从大约 100x100 像素到 2000x1000 像素。
图像格式为 jpeg。
已删除重复项。
猫狗图像分类
https://i-blog.csdnimg.cn/direct/e9afa2653aa74ecf9042321652063514.png
import torch
import torch.nn as nn
import torch.optim as optim
import torchvision
import torchvision.transforms as transforms
from torch.utils.data import DataLoader
# 设备设置
device = torch.device('cuda' if torch.cuda.is_available() else 'cpu')
# CBAM 模块
class ChannelAttention(nn.Module):
def __init__(self, in_planes, ratio=16):
super(ChannelAttention, self).__init__()
self.avg_pool = nn.AdaptiveAvgPool2d(1)
self.max_pool = nn.AdaptiveMaxPool2d(1)
self.fc1 = nn.Conv2d(in_planes, in_planes // ratio, 1, bias=False)
self.relu1 = nn.ReLU()
self.fc2 = nn.Conv2d(in_planes // ratio, in_planes, 1, bias=False)
self.sigmoid = nn.Sigmoid()
def forward(self, x):
avg_out = self.fc2(self.relu1(self.fc1(self.avg_pool(x))))
max_out = self.fc2(self.relu1(self.fc1(self.max_pool(x))))
out = avg_out + max_out
return self.sigmoid(out)
class SpatialAttention(nn.Module):
def __init__(self, kernel_size=7):
super(SpatialAttention, self).__init__()
assert kernel_size in (3, 7), 'kernel size must be 3 or 7'
padding = 3 if kernel_size == 7 else 1
self.conv1 = nn.Conv2d(2, 1, kernel_size, padding=padding, bias=False)
self.sigmoid = nn.Sigmoid()
def forward(self, x):
avg_out = torch.mean(x, dim=1, keepdim=True)
max_out, _ = torch.max(x, dim=1, keepdim=True)
x = torch.cat([avg_out, max_out], dim=1)
x = self.conv1(x)
return self.sigmoid(x)
# 基础 CNN 模型含 CBAM
class CNNWithCBAM(nn.Module):
def __init__(self):
super(CNNWithCBAM, self).__init__()
self.conv1 = nn.Conv2d(3, 64, kernel_size=3, padding=1)
self.bn1 = nn.BatchNorm2d(64)
self.ca1 = ChannelAttention(64)
self.sa1 = SpatialAttention()
self.relu = nn.ReLU(inplace=True)
self.pool = nn.MaxPool2d(2, 2)
self.conv2 = nn.Conv2d(64, 128, kernel_size=3, padding=1)
self.bn2 = nn.BatchNorm2d(128)
self.ca2 = ChannelAttention(128)
self.sa2 = SpatialAttention()
self.fc1 = nn.Linear(128 * 8 * 8, 128)
self.fc2 = nn.Linear(128, 10)
def forward(self, x):
x = self.relu(self.bn1(self.conv1(x)))
x = self.ca1(x) * x
x = self.sa1(x) * x
x = self.pool(x)
x = self.relu(self.bn2(self.conv2(x)))
x = self.ca2(x) * x
x = self.sa2(x) * x
x = self.pool(x)
x = x.view(-1, 128 * 8 * 8)
x = self.relu(self.fc1(x))
x = self.fc2(x)
return x
# 数据预处理
transform = transforms.Compose([
transforms.RandomCrop(32, padding=4),
transforms.RandomHorizontalFlip(),
transforms.ToTensor(),
transforms.Normalize((0.5, 0.5, 0.5), (0.5, 0.5, 0.5))
])
# 加载 CIFAR - 10 数据集
trainset = torchvision.datasets.CIFAR10(root='./data', train=True,
download=True, transform=transform)
trainloader = DataLoader(trainset, batch_size=32, shuffle=True)
testset = torchvision.datasets.CIFAR10(root='./data', train=False,
download=True, transform=transform)
testloader = DataLoader(testset, batch_size=32, shuffle=False)
# 初始化模型、损失函数和优化器
model = CNNWithCBAM().to(device)
criterion = nn.CrossEntropyLoss()
optimizer = optim.Adam(model.parameters(), lr=0.001)
# 训练函数
def train(model, trainloader, criterion, optimizer, device, epochs):
model.train()
for epoch in range(epochs):
running_loss = 0.0
for i, data in enumerate(trainloader, 0):
inputs, labels = data[0].to(device), data[1].to(device)
optimizer.zero_grad()
outputs = model(inputs)
loss = criterion(outputs, labels)
loss.backward()
optimizer.step()
running_loss += loss.item()
print(f'Epoch {epoch + 1}, Loss: {running_loss / len(trainloader)}')
# 评估函数
def evaluate(model, testloader, device):
model.eval()
correct = 0
total = 0
with torch.no_grad():
for data in testloader:
images, labels = data[0].to(device), data[1].to(device)
outputs = model(images)
_, predicted = torch.max(outputs.data, 1)
total += labels.size(0)
correct += (predicted == labels).sum().item()
print(f'Accuracy of the network on the 10000 test images: {100 * correct / total} %')
# 开始训练和评估

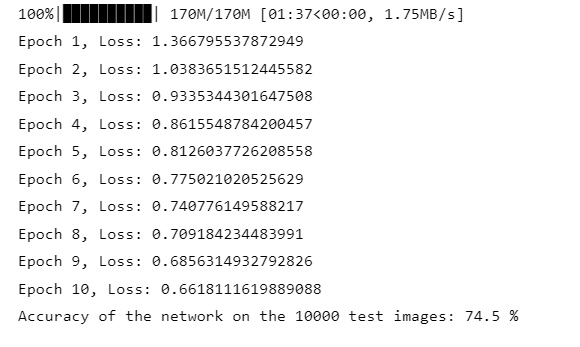

train(model, trainloader, criterion, optimizer, device, epochs=10)
evaluate(model, testloader, device)
