k3s集群部署(使用外部etcd集群)

发布于：2025-09-15 ⋅ 阅读:(66) ⋅ 点赞:(0)

一、为什么选择k3s

k3s是k8s官方发行的轻量版本，只有一个二进制文件，官方提供部署脚本，相较于K8S，k3s只需要设置好参数，部署起来非常方便。虽然k3s是轻量版本，但是使用起来几乎和K8S没有区别，非常适合作为小型项目的基座。k3s集成度高，内置了etcd，但是对于生产环境而言，使用内置的etcd要考虑性能和数据安全，所以此处放弃使用k3s内置etcd，选择部署单独的etcd集群。考虑到网络性能的问题，此处使用calico来替换内置Flannel网络插件。

二、集群规划

操作系统：Rocky Linux release 9.6 (Blue Onyx)
架构：x86

机器IP 主机名 角色
192.168.18.11 k3s1 etcd, k3s master节点
192.168.18.12 k3s2 etcd, k3s master节点
192.168.18.13 k3s3 etcd, k3s master节点
192.168.18.14 k3s4 k3s node节点
192.168.18.15 k3s5 k3s node 节点

在进行安装前关闭所有机器的防火墙和selinux！

systemctl stop firewalld && systemctl disable firewalld
setenforce 0
sed -i 's/^SELINUX=.*/SELINUX=disabled/' /etc/selinux/config

在每台机器的/etc/hosts中配置好主机映射
cat /etc/hosts

192.168.18.11 k3s1
192.168.18.12 k3s2
192.168.18.13 k3s3
192.168.18.14 k3s4
192.168.18.15 k3s5

三、安装etcd集群

3.1 从github下载etcd二进制包

etcd ：https://github.com/etcd-io/etcd/releases
此处我使用的版本是3.5.21

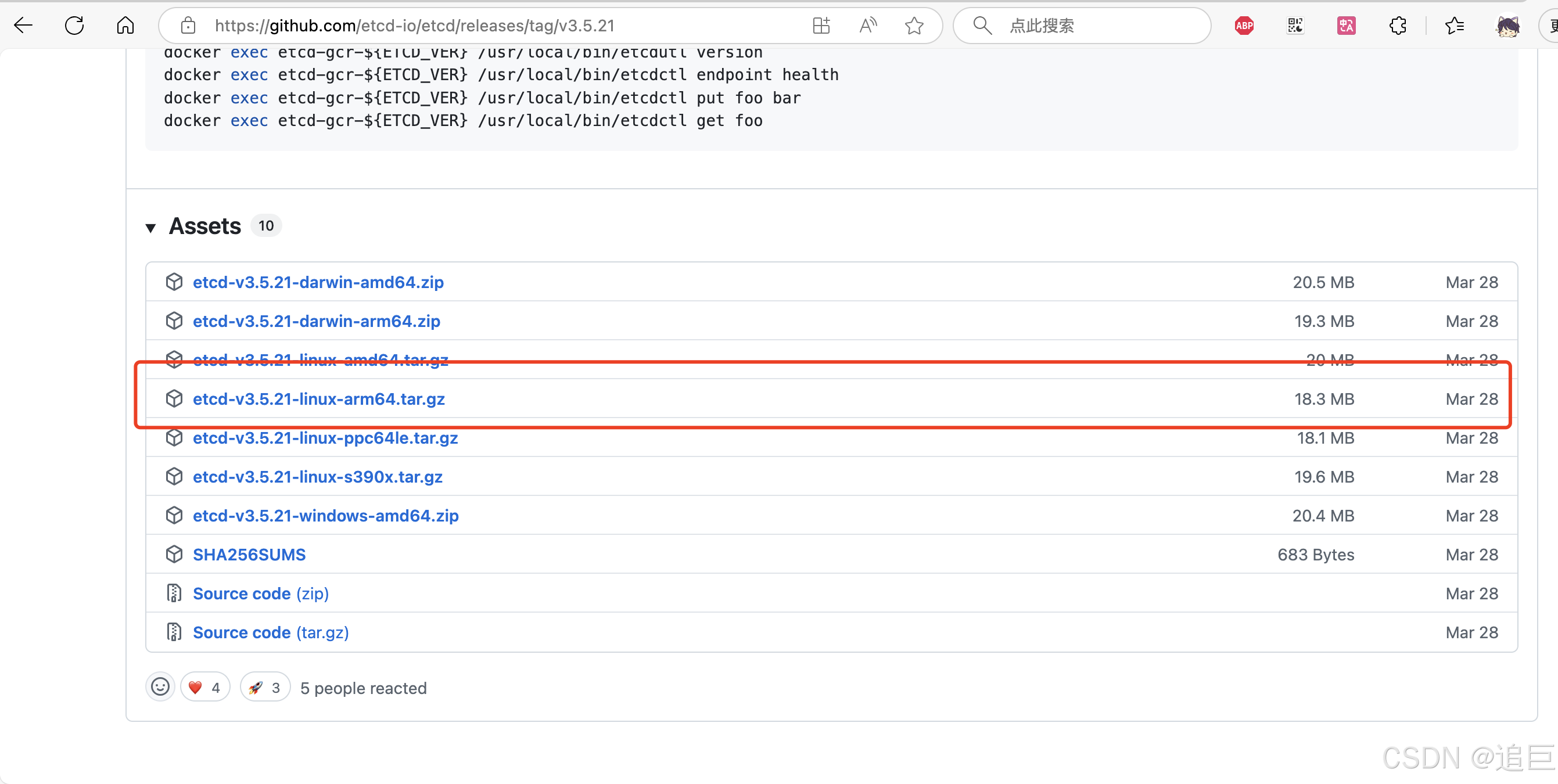

在这里插入图片描述

3.2 生成证书

在k3s1上生成证书，生成后传到其他节点即可

3.2.1 安装cfssl

需要下载两个二进制文件
cfssl：https://pkg.cfssl.org/R1.2/cfssl_linux-amd64
cfssljson：https://pkg.cfssl.org/R1.2/cfssljson_linux-amd64
文件下载完成后，上传到k3s1的/usrl/local/bin下

cd /usrl/local/bin
mv cfssl_linux-amd64 cfssl
mv cfssljson_linux-amd64 cfssljson
chmod +x cfssl*

3.2.2 创建证书目录

mkdir -p /etc/etcd/ssl
cd /etc/etcd/ssl

3.2.3 创建ca配置文件

cat ca-config.json

{
  "signing": {
    "default": {
      "expiry": "876000h"
    },
    "profiles": {
      "etcd": {
        "expiry": "876000h",
        "usages": ["signing", "key encipherment", "server auth", "client auth"]
      }
    }
  }
}

876000h=100年，生成的证书有效期为100年

3.2.4 生成 CA 证书签发配置

cat ca-csr.json

{
  "CN": "etcd-ca",
  "key": {
    "algo": "rsa",
    "size": 2048
  },
  "names": [
    {
      "C": "CN",
      "ST": "Beijing",
      "L": "Beijing",
      "O": "etcd",
      "OU": "Etcd Security"
    }
  ]
}

生成ca

cfssl gencert -initca ca-csr.json | cfssljson -bare ca

当前目录下会生成ca.pem、ca-key.pem文件

3.2.5 生成 etcd 节点证书

cat etcd-csr.json

{
  "CN": "etcd",
  "hosts": [
    "127.0.0.1",
    "192.168.18.11",
    "192.168.18.12",
    "192.168.18.13"
  ],
  "key": {
    "algo": "rsa",
    "size": 2048
  },
  "names": [
    {
      "C": "CN",
      "ST": "Beijing",
      "L": "Beijing",
      "O": "etcd",
      "OU": "Etcd Security"
    }
  ]
}

生成证书：

cfssl gencert -ca=ca.pem -ca-key=ca-key.pem -config=ca-config.json -profile=etcd etcd-csr.json | cfssljson -bare server

得到文件server.pem,server-key.pem
把 /etc/etcd/ssl 整个目录拷贝到剩余2台k3s master节点，即k3s2 、k3s2

3.3 配置 etcd systemd 服务

ks3 master 三台机器分别创建 /etc/systemd/system/etcd.service

etcd.service中的参数--data-dir指定etcd存储目录，自己部署时根据实际情况配置

3.3.1 k3s1:

cat /etc/systemd/system/etcd.service

[Unit]
Description=etcd
After=network.target

[Service]
ExecStart=/usr/local/etcd/etcd \
  --name etcd1 \
  --data-dir=/data/etcd \
  --listen-peer-urls=https://192.168.18.11:2380 \
  --listen-client-urls=https://192.168.18.11:2379,https://127.0.0.1:2379 \
  --advertise-client-urls=https://192.168.18.11:2379 \
  --initial-advertise-peer-urls=https://192.168.18.11:2380 \
  --initial-cluster=etcd1=https://192.168.18.11:2380,etcd2=https://192.168.18.12:2380,etcd3=https://192.168.18.13:2380 \
  --initial-cluster-token=etcd-cluster \
  --initial-cluster-state=new \
  --cert-file=/etc/etcd/ssl/server.pem \
  --key-file=/etc/etcd/ssl/server-key.pem \
  --trusted-ca-file=/etc/etcd/ssl/ca.pem \
  --peer-cert-file=/etc/etcd/ssl/server.pem \
  --peer-key-file=/etc/etcd/ssl/server-key.pem \
  --peer-trusted-ca-file=/etc/etcd/ssl/ca.pem
Restart=always
RestartSec=5
LimitNOFILE=65536

[Install]
WantedBy=multi-user.target

3.3.2 k3s2:

service文件复制k3s1的
修改：

  1. --name=etcd2
  2. 除了 --initial-cluster的值不变，其余所有 192.168.18.11改为 192.168.18.12

3.3.2 k3s3:

service文件复制k3s1的
修改：

  1. --name=etcd3
  2. 除了 --initial-cluster的值不变，其余所有 192.168.18.11改为 192.168.18.13

3.4 启动etcd集群

三台k3s master都执行：

mkdir -p /data/etcd
systemctl daemon-reload
systemctl enable etcd
systemctl start etcd
systemctl status etcd

3.5 验证集群

3.5.1查看集群状态

export ETCDCTL_API=3
etcdctl --endpoints=https://192.168.18.11:2379,https://192.168.18.12:2379,https://192.168.18.13:2379 \
  --cacert=/etc/etcd/ssl/ca.pem \
  --cert=/etc/etcd/ssl/server.pem \
  --key=/etc/etcd/ssl/server-key.pem \
  endpoint health

输出

https://192.168.18.11:2379 is healthy: successfully committed proposal: took = 10.53214ms
https://192.168.18.12:2379 is healthy: successfully committed proposal: took = 19.628183ms
https://192.168.18.13:2379 is healthy: successfully committed proposal: took = 20.344884ms

3.5.2查看集群成员

etcdctl --endpoints=https://192.168.18.12:2379 \
  --cacert=/etc/etcd/ssl/ca.pem \
  --cert=/etc/etcd/ssl/server.pem \
  --key=/etc/etcd/ssl/server-key.pem \
  member list

输出

632ec20f66831869, started, etcd1, https://192.168.18.11:2380, https://192.168.18.220:2379, false
8fcad094509e23f8, started, etcd2, https://192.168.18.12:2380, https://192.168.18.213:2379, false
eb8619032bd3933c, started, etcd3, https://192.168.18.13:2380, https://192.168.18.214:2379, false

3.5.3查看集群leader

ETCDCTL_API=3 etcdctl --endpoints=https://192.168.18.11:2379 \
  --cacert=/etc/etcd/ssl/ca.pem --cert=/etc/etcd/ssl/server.pem --key=/etc/etcd/ssl/server-key.pem \
  endpoint status --write-out=table

输出

+-----------------------------+------------------+---------+---------+-----------+------------+-----------+------------+--------------------+--------+
|          ENDPOINT           |        ID        | VERSION | DB SIZE | IS LEADER | IS LEARNER | RAFT TERM | RAFT INDEX | RAFT APPLIED INDEX | ERRORS |
+-----------------------------+------------------+---------+---------+-----------+------------+-----------+------------+--------------------+--------+
| https://192.168.18.11:2379 | 632ec20f66831869 |  3.5.21 |  8.4 MB |     false |      false |         4 |     583509 |             583509 |        |
+-----------------------------+------------------+---------+---------+-----------+------------+-----------+------------+--------------------+--------+

3.5.4数据读写测试

ETCDCTL_API=3 etcdctl --endpoints=https://192.168.18.11:2379 \
  --cacert=/etc/etcd/ssl/ca.pem --cert=/etc/etcd/ssl/server.pem --key=/etc/etcd/ssl/server-key.pem \
  put foo bar

ETCDCTL_API=3 etcdctl --endpoints=https://192.168.18.11:2379 \
  --cacert=/etc/etcd/ssl/ca.pem --cert=/etc/etcd/ssl/server.pem --key=/etc/etcd/ssl/server-key.pem \
  get foo

etcd集群安装完成，接下来就可以进行k3s的安装了

四、安装k3s集群

4.1 下载k3s安装包

下载地址：https://github.com/k3s-io/k3s/releases

此处我使用的版本是1.32.6

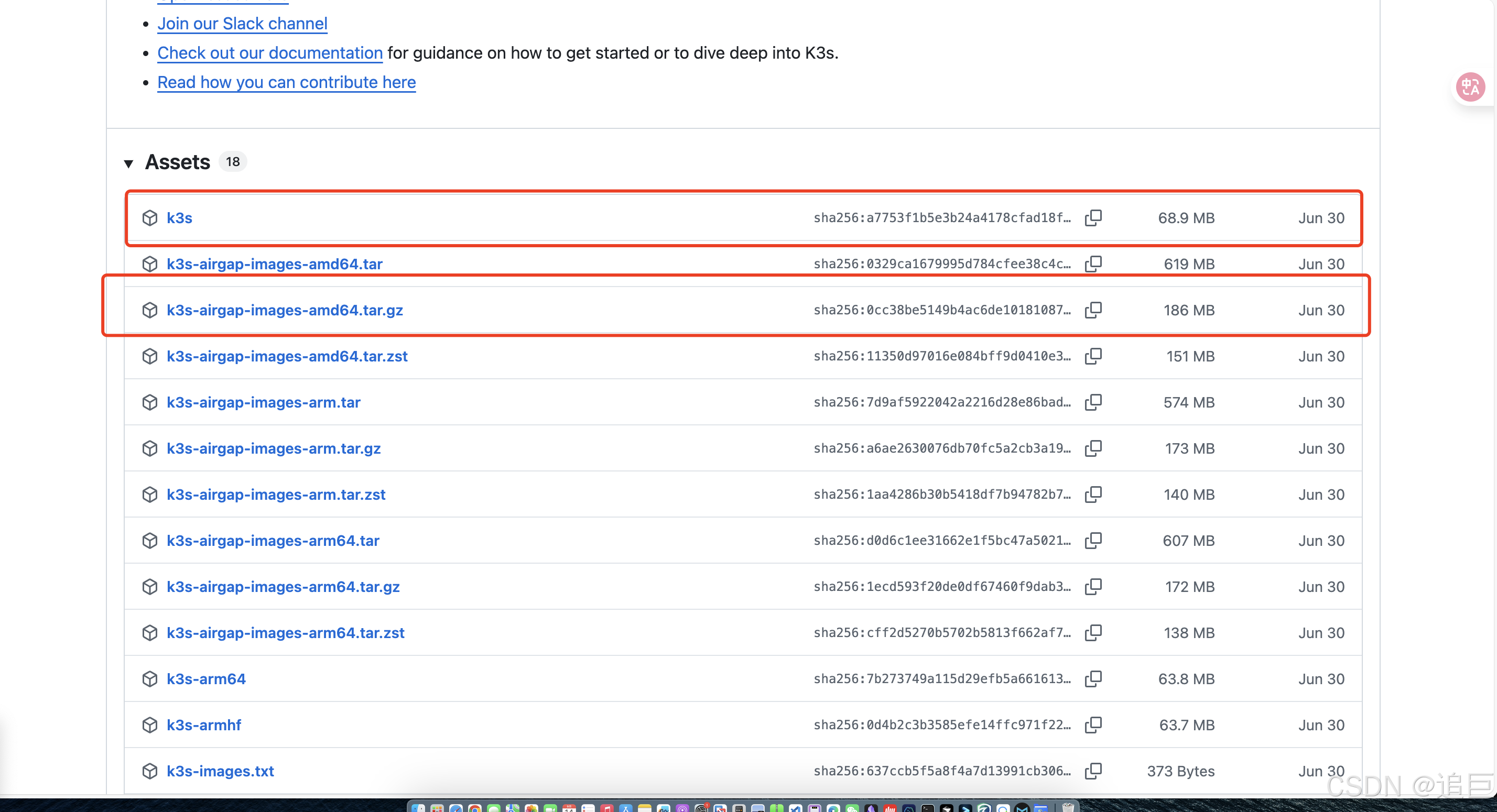

在这里插入图片描述
下载k3s可执行文件和镜像包
在这里插入图片描述
k3s可执行文件上传至每台/usr/local/bin，镜像包可暂时放在每台机器的/root下
在每台机器上下载k3s安装脚本(如果链接失效，就自行百度下，该脚本在官网上是有的)

cd /root
curl -O https://rancher-mirror.rancher.cn/k3s/k3s-install.sh
chmod +x /root/k3s-install.sh
chmod +x /usr/local/bin/k3s

4.2 调整系统参数（每台机器都需要执行）

echo "*   soft    nofile  65535" >> /etc/security/limits.conf

echo "*   hard    nofile  65535" >> /etc/security/limits.conf

cat << eof > /etc/modules-load.d/ipvs.conf
ip_vs
ip_vs_rr
ip_vs_wrr
ip_vs_sh
eof

cat << eof > /etc/modules-load.d/k8s.conf
overlay
br_netfilter
nf_conntrack
eof

加载系统参数

cat /etc/modules-load.d/{ipvs,k8s}.conf | xargs -n 1 modprobe
lsmod | grep -e ip_vs -e nf_conntrack_ipv4 -e br_netfilter -e nf_conntrack -e overlay

cat << eof > /etc/sysctl.conf
vm.swappiness=0
net.ipv4.ip_forward = 1
net.bridge.bridge-nf-call-ip6tables = 1
net.bridge.bridge-nf-call-iptables = 1
net.bridge.bridge-nf-call-arptables =1
eof

sysctl -p

4.3在k3s1上初始化集群

4.3.1 设置参数，执行脚本，初始化集群

参数的含义详见：https://docs.rancher.cn/docs/k3s/installation/install-options/_index

export K3S_DATASTORE_ENDPOINT='https://192.168.18.11:2379,https://192.168.18.12:2379,https://192.168.18.13:2379'
export INSTALL_K3S_SKIP_DOWNLOAD=true
export K3S_DATASTORE_CAFILE='/etc/etcd/ssl/ca.pem'
export K3S_DATASTORE_CERTFILE='/etc/etcd/ssl/server.pem'
export K3S_DATASTORE_KEYFILE='/etc/etcd/ssl/server-key.pem'
export INSTALL_K3S_MIRROR=cn
export INSTALL_K3S_EXEC="--flannel-backend=none  --disable-network-policy --cluster-cidr=182.18.0.0/16 --data-dir=/data/rancher/k3s --write-kubeconfig-mode=644 --tls-san 192.168.18.11 --tls-san 192.168.18.12 --tls-san 192.168.18.13 "
sh k3s-install.sh server

4.3.2 安装calico网络插件

kubectl apply -f https://raw.githubusercontent.com/projectcalico/calico/v3.27.0/manifests/calico.yaml

4.3.2 查看集群token

cat /data/rancher/k3s/server/token

该token是节点加入集群的唯一凭证，复制token内容

4.4 其余master节点加入集群

在 k3s2、k3s3上执行，注意--token的值，就是/data/rancher/k3s/server/token的内容

export K3S_DATASTORE_ENDPOINT='https://192.168.18.220:2379,https://192.168.18.213:2379,https://192.168.18.214:2379'
export INSTALL_K3S_SKIP_DOWNLOAD=true
export K3S_DATASTORE_CAFILE='/etc/etcd/ssl/ca.pem'
export K3S_DATASTORE_CERTFILE='/etc/etcd/ssl/server.pem'
export K3S_DATASTORE_KEYFILE='/etc/etcd/ssl/server-key.pem'
export INSTALL_K3S_MIRROR=cn
export INSTALL_K3S_EXEC="--flannel-backend=none  --disable-network-policy --cluster-cidr=182.18.0.0/16 --data-dir=/data/rancher/k3s --write-kubeconfig-mode=644 --tls-san 192.168.18.11 --tls-san 192.168.18.12 --tls-san 192.168.18.13 --token Kxxxxx56427xxxx2f684b327xxxxxxxx::server:xxxxxx8xxxxxxxxxxxx390d8xxxxx12"
sh k3s-install.sh server

此时执行kubectl get node，节点是notReady的，因为镜像包还没有导入

cd /root
ctr -n k8s.io images import k3s-airgap-images-amd64.tar.gz

4.5 node 节点加入集群

4.5.1 配置nginx （所有的node节点上执行）

node节点安装nginx，做高可用

yum install -y nginx nginx-mod-stream

vim /etc/nginx/nginx.conf
加入stream配置

stream {

    log_format  main  '$remote_addr $upstream_addr - [$time_local] $status $upstream_bytes_sent';

    access_log  /var/log/nginx/stream-access.log  main;

    include /etc/nginx/conf.d/stream/*.conf;
}

mkdir /etc/nginx/conf.d/stream/

cat /etc/nginx/conf.d/stream/k3s.conf

upstream k3s-apiserver {
            server 192.168.18.11:6443 max_fails=3 fail_timeout=10s;
            server 192.168.18.12:6443 max_fails=3 fail_timeout=10s;
            server 192.168.18.13:6443 max_fails=3 fail_timeout=10s;
    }

server {
   listen 6444;
   proxy_pass k3s-apiserver;
}

systemctl enable nginx --now

4.5.2 node节点加入集群

在所有k3s node节点上执行

cd /root/
export INSTALL_K3S_SKIP_DOWNLOAD=true
export INSTALL_K3S_EXEC="agent --disable-apiserver-lb --data-dir=/data/rancher/k3s --token Kxxxxx56427xxxx2f684b327xxxxxxxx::server:xxxxxx8xxxxxxxxxxxx390d8xxxxx12"
export K3S_URL=https://127.0.0.1:6444
sh k3s-install.sh

导入镜像

cd /root/
ctr -n k8s.io images import k3s-airgap-images-amd64.tar.gz

4.6 查看集群状态

在mater节点上查看集群状态

[root@k3s01 ~]# kubectl get node
NAME              STATUS   ROLES                  AGE   VERSION
k3s01   Ready    control-plane,master   1h   v1.32.6+k3s1
k3s02   Ready    control-plane,master   1h   v1.32.6+k3s1
k3s03   Ready    control-plane,master   1h   v1.32.6+k3s1
k3s04   Ready    <none>                 1h   v1.32.6+k3s1
k3s05   Ready    <none>                 1h   v1.32.6+k3s1
[root@ytsd-test-k3s02 ~]#

查看pod

[root@k3s01 ~]# kubectl get pod -A
NAMESPACE     NAME                                       READY   STATUS      RESTARTS   AGE
kube-system   calico-kube-controllers-75cd4cc5b9-h8xzh   1/1     Running     0          42h
kube-system   calico-node-4fgf2                          1/1     Running     0          40h
kube-system   calico-node-5q5nz                          1/1     Running     0          41h
kube-system   calico-node-7thbf                          1/1     Running     0          42h
kube-system   calico-node-9tgg5                          1/1     Running     0          40h
kube-system   calico-node-ngfhh                          1/1     Running     0          42h
kube-system   coredns-5688667fd4-vgqnm                   1/1     Running     0          42h
kube-system   helm-install-traefik-77lkk                 0/1     Completed   2          42h
kube-system   helm-install-traefik-crd-wtqnh             0/1     Completed   0          42h
kube-system   local-path-provisioner-774c6665dc-2dlx2    1/1     Running     0          42h
kube-system   metrics-server-6f4c6675d5-swttr            1/1     Running     0          42h
kube-system   svclb-traefik-9431d9be-2cjj9               2/2     Running     0          39h
kube-system   svclb-traefik-9431d9be-6wjxd               2/2     Running     0          41h
kube-system   svclb-traefik-9431d9be-84mhk               2/2     Running     0          39h
kube-system   svclb-traefik-9431d9be-jwpsz               2/2     Running     0          42h
kube-system   svclb-traefik-9431d9be-l9z8f               2/2     Running     0          39h
kube-system   traefik-c98fdf6fb-nx8wq                    1/1     Running     0          42h
[root@ytsd-test-k3s02 ~]#

集群安装完成。ctr命令实在用不习惯，大家可以下载使用nerdct，和docker用法一样

五、参考链接

  1. 基于 Rocky Linux 9.2 部署 K3s v1.30.6+k3s1 高可用集群 本文作者： reche Rocky Linux 中文社区欢迎您 https://www.rockylinux.cn
  2. https://docs.rancher.cn/
