1. Description(概述)

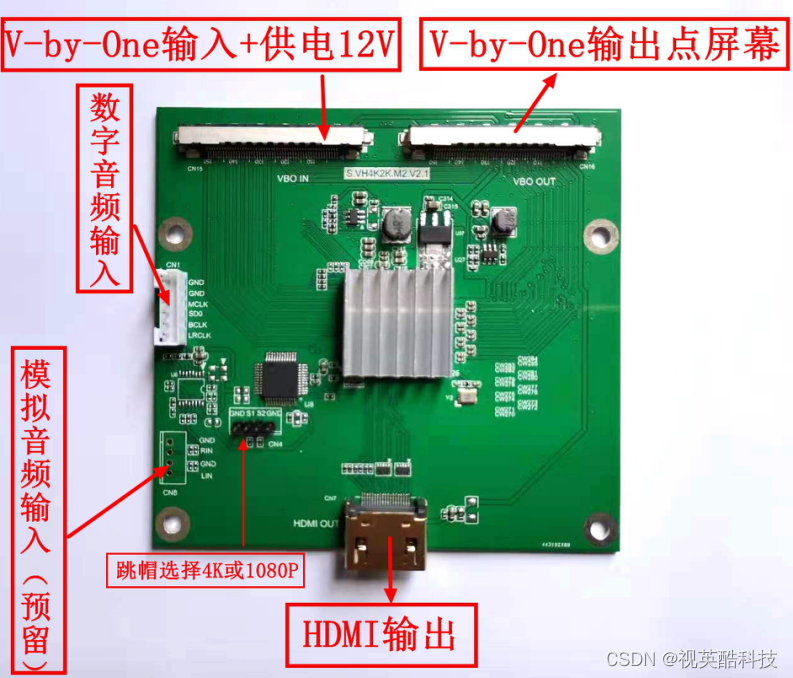

S.VH4K2K.M2.V2.1是一款信号转接板，主要是用于将V-BY-ONE号及模拟音频信号转换成HDMI信号(含音频)。产品可应用于商用显示大屏、机顶盒、广告机、会议系统等领域，V-BY-ONE输入需要标准的VESA/JEIDA的分辨率；DATA为非FIFO。成功案例：Mstar /MTK/HISI系列的MS3458等级以上，MSTAR MS638/648/848/9950/9666/9699系列，海思HV551/HV510/HV811系列，Amlogic T972/T965/982/311D, ARM板, X86主板等。
2. Features(特性说明)
Features ( VBO RX )：(仅支持单分驱输入)
• Support video 4Kx2K@60Hz 18/24/30bit (594Mhz) input via 2/8 lanes and 3 byte or 4 byte 1section mode
• Support up to 3.75Gbps (effective data rate 3Gbps) transmission rate
• Support 8 Lane Swap
Features ( HDMI TX)：
• HSupport HDMI TX V2.0 (Bandwidth up to 594MHz)
• Support HDCP 1.4 (Compliance V1.2)
• Support HDCP 2.2
• Video source of HDMI TX is from Vx1
• Audio source of HDMI TX is from I2S input/Line in
• Support 600 Mega-characters/second (Mcsc) per data channel to deliver 4Kx2K@60 4:4:4content for each single port
Features ( VBO TX)：(支持单/双分驱输出)
• Support max 8 lane Vx1 (Vx1_TX0~Vx1_TX7) output for UHD display
• Support 3/4 byte mode, support 24/30bit, RGB444
• Vx1 output max transmission rate 3.7Gbps, min is 1.2Gbps
• Support SSC for reduce EMI
• Support Offset Modes: 2 Sections for 8 Lanes
• Support 2/8 Lanes Tramsmission
3. FUNCTION CONFIGRATION(功能配置)
产品1规划书：
产品2规格书：
