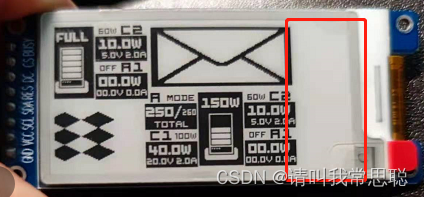

相同的程序在 红黑白三色 屏幕上不错位，

但是在双色屏幕就错位(如上图)

查DataSheet 之后在例程里找到

//初始化屏幕
void OLED_GUIInit(void)
{
  OLED_RES_Clr();  // Module reset
  delay_ms(20); //At least 10ms delay
  OLED_RES_Set();
  delay_ms(20); //At least 10ms delay

  Epaper_READBUSY();
  OLED_WR_REG(0x12);  //SWRESET
  Epaper_READBUSY();

  OLED_WR_REG(0x01); //Driver output control
  OLED_WR_DATA8(0x27);
  OLED_WR_DATA8(0x01);
  OLED_WR_DATA8(0x01);

  OLED_WR_REG(0x11); //data entry mode
  OLED_WR_DATA8(0x01);

  OLED_WR_REG(0x44); //set Ram-X address start/end position
  OLED_WR_DATA8(0x00);
  OLED_WR_DATA8(0x0F);    //0x0F-->(15+1)*8=128

  OLED_WR_REG(0x45); //set Ram-Y address start/end position
  OLED_WR_DATA8(0x27);   //0xF9-->(249+1)=250
  OLED_WR_DATA8(0x01);
  OLED_WR_DATA8(0x00);
  OLED_WR_DATA8(0x00);

  OLED_WR_REG(0x3C); //BorderWavefrom
  OLED_WR_DATA8(0x05);


  OLED_WR_REG(0x21); //  Display update control
  OLED_WR_DATA8(0x00);
  OLED_WR_DATA8(0x80);

  OLED_WR_REG(0x18); //Read built-in temperature sensor
  OLED_WR_DATA8(0x80);

  OLED_WR_REG(0x4E);   // set RAM x address count to 0;
  OLED_WR_DATA8(0x00);
  OLED_WR_REG(0x4F);   // set RAM y address count to 0X199;
  OLED_WR_DATA8(0x27);
  OLED_WR_DATA8(0x01);

  Epaper_READBUSY();
}

其中

  OLED_WR_REG(0x44); //set Ram-X address start/end position
  OLED_WR_DATA8(0x00);
  OLED_WR_DATA8(0x0F);    //0x0F-->(15+1)*8=128
//值是对的，但是后一行可疑
  OLED_WR_REG(0x45); //set Ram-Y address start/end position
  OLED_WR_DATA8(0x27);   //0xF9-->(249+1)=250
  //但是后一行可疑

而这几行正是设置地址的设置

  OLED_WR_REG(0x4E);   // set RAM x address count to 0;
  OLED_WR_DATA8(0x00);
  OLED_WR_REG(0x4F);   // set RAM y address count to 0X199;
  OLED_WR_DATA8(0x27);

同样这也是相同的可疑之处

试了1小时终于把值试出来了（@中景园官方）

改为设置之内的值

就好了。。。。

改为如下

//初始化屏幕
void OLED_GUIInit(void)
{
  OLED_RES_Clr();  // Module reset
  delay_ms(20); //At least 10ms delay
  OLED_RES_Set();
  delay_ms(20); //At least 10ms delay

  Epaper_READBUSY();
  OLED_WR_REG(0x12);  //SWRESET
  Epaper_READBUSY();

  OLED_WR_REG(0x01); //Driver output control
  OLED_WR_DATA8(0x27);
  OLED_WR_DATA8(0x01);
  OLED_WR_DATA8(0x01);

  OLED_WR_REG(0x11); //data entry mode
  OLED_WR_DATA8(0x01);

  OLED_WR_REG(0x44); //set Ram-X address start/end position
  OLED_WR_DATA8(0x00);		//X address start L5B
  OLED_WR_DATA8(0x0F);    //X address end L5B 0x0F-->(15+1)*8=128

  OLED_WR_REG(0x45); //set Ram-Y address start/end position
/*  黑白双色坐标	*/
  OLED_WR_DATA8(0xF9);
  OLED_WR_DATA8(0x01);		//Y End 0xF9-->(249+1)=250
  OLED_WR_DATA8(0x2E);		//Y Start 00
  OLED_WR_DATA8(0x00);
/*  黑白红三色坐标
  OLED_WR_DATA8(0x27);   //0xF9-->(249+1)=250
  OLED_WR_DATA8(0x01);
  OLED_WR_DATA8(0x00);
  OLED_WR_DATA8(0x00);
*/

  OLED_WR_REG(0x3C); //BorderWavefrom
  OLED_WR_DATA8(0x05);


  OLED_WR_REG(0x21); //  Display update control
  OLED_WR_DATA8(0x00);
  OLED_WR_DATA8(0x80);

  OLED_WR_REG(0x18); //Read built-in temperature sensor
  OLED_WR_DATA8(0x80);

  OLED_WR_REG(0x4E);   // set RAM x address count to 0;
  OLED_WR_DATA8(0x00);
  OLED_WR_REG(0x4F);   // set RAM y address count to 0X199;
  OLED_WR_DATA8(0x27); //27 纸筒接缝处坐标
  OLED_WR_DATA8(0x01); //1

  Epaper_READBUSY();
}
