| The Link Your Class | https://bbs.csdn.net/forums/MUEE308FZU202201?typeId=519086 |
|---|---|
| The Link of Requirement of This Assignment | https://bbs.csdn.net/topics/608858956 |
| The Aim of This Assignment | Software prototype design of bobing |
| MU STU ID and FZU STU ID | 20124104_832001205 |
| MU STU ID and FZU STU ID (Teammate) | 20124058_832001227 |
| The Link Of Teammate’s Blog | https://bbs.csdn.net/topics/609000013 |
Directory
PSP
| Personal Software Process Stages | Estimated Time/minutes | Completed Time/minutes |
|---|---|---|
| Planning | 30 | 40 |
| Estimate | 1240 | 1770 |
| Development | 120 | 150 |
| Analysis | 120 | 110 |
| Design Spec | 30 | 40 |
| Design Review | 20 | 40 |
| Coding Standard | 10 | 20 |
| Design | 40 | 50 |
| Coding | 360 | 720 |
| Code Review | 60 | 100 |
| Test | 100 | 300 |
| Reporting | 100 | 120 |
| Test Report | 20 | 30 |
| Size Measurement | 10 | 20 |
| Postmortem&Process Improvement | 20 | 30 |
| total | 1240 | 1770 |

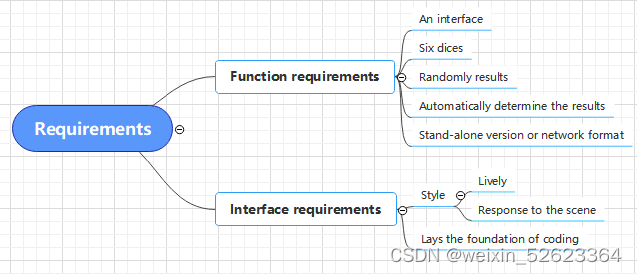

Demand Analysis
N(need)
Because the dice equipment is not complete, and students on the line were unable to enter school due to the epidemic prevention and control, we need to implement a Bobing software.
A(approach)
B(benefit)
- Solve the problem that users can’t gather and play because of the epidemic, so that users can spend the Mid-Autumn Festival happily~🎉
- Provide users with a platform for leisure and entertainment.🎲
- Can help users understand the traditional Mid-Autumn Festival cake custom, learn traditional cultural knowledge.📕
C(competitors)
- Advantage：It can provide users with a multi-party interactive platform and some knowledge about Mid-Autumn Festival.
- Disadvantage：The user group and time are targeted, and the promotion degree is low.
D(delivery)
- Through Weibo, wechat and other social platforms, recommend to those who need online lottery, and promote each other through this way.
- Let some schools, companies and other channels to recommend people to experience it.
Prototype Development Tool

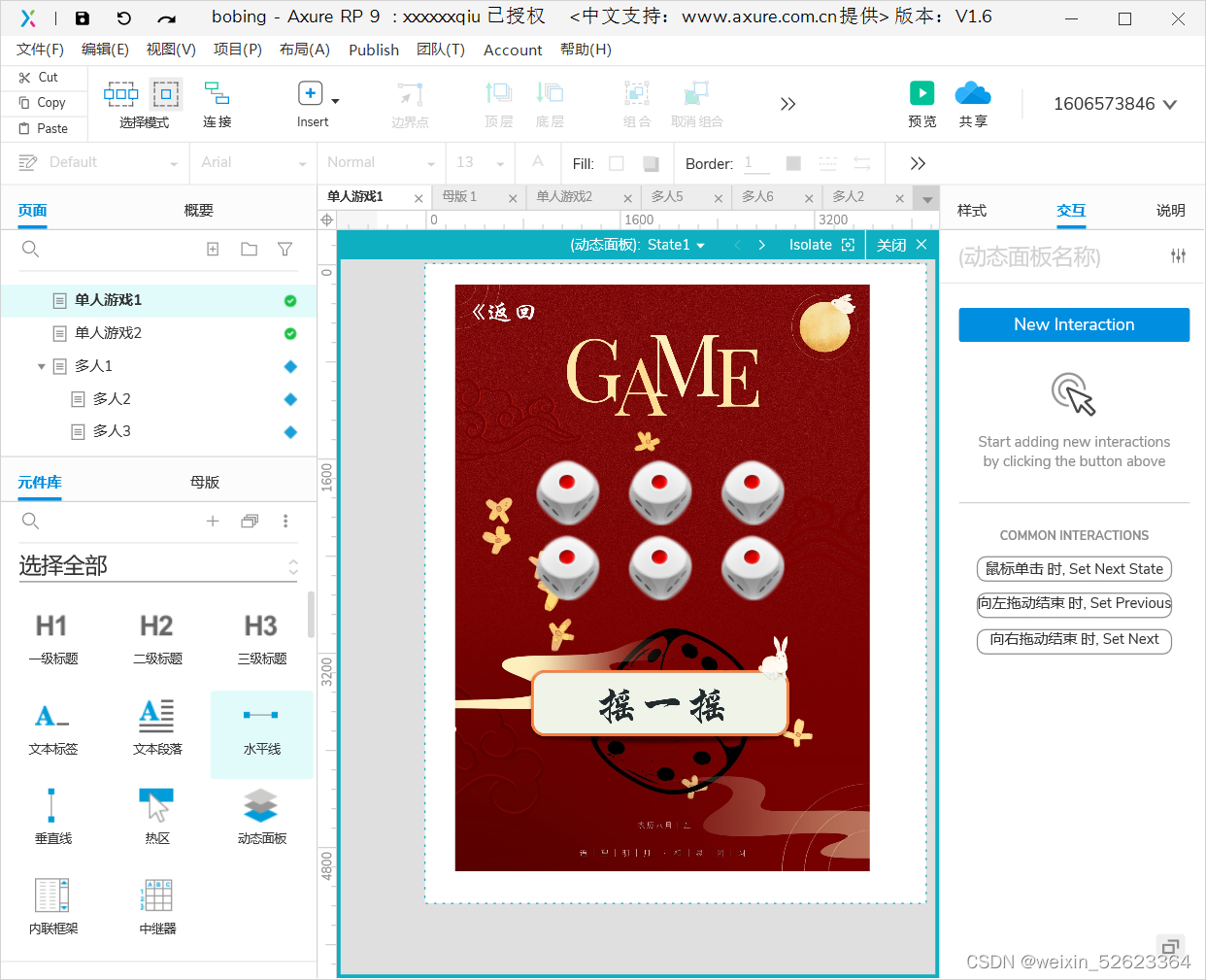

We use Axure to design the UI.
This is our prototype display online link：
https://5bl5tx.axshare.com/#id=si9diw&p=首页1&sc=2&g=1

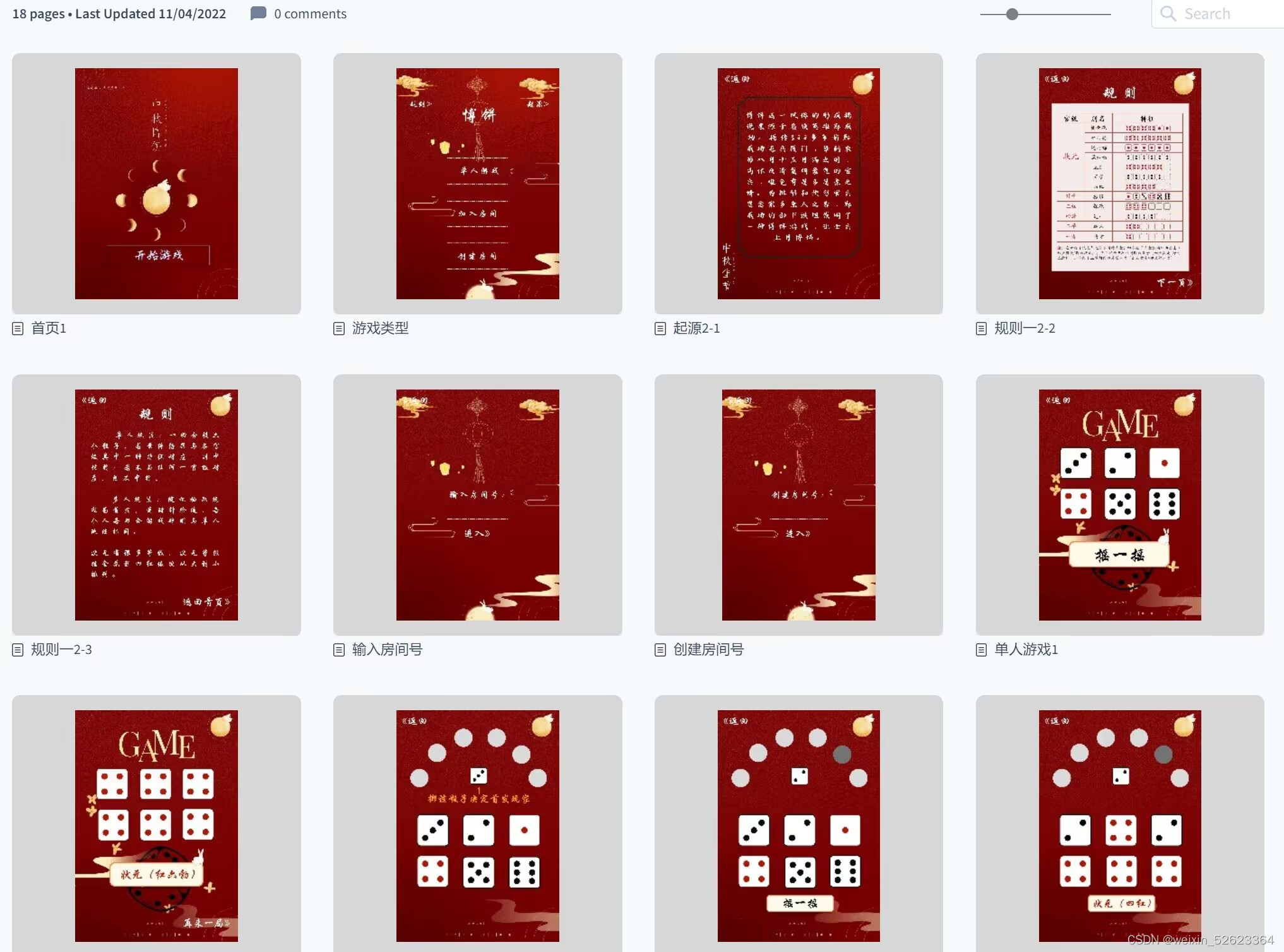

Prototype Demonstrate
Work Record
Summary
- In this experiment, I mainly learned how to use Axure for prototyping and how to analyze and summarize a requirement clearly.
- Objectively, Axure’s dynamic panel module is the most difficult part to learn. I learned how to use this function through videos on bilibili website. At the same time, I think aesthetics is also very important in prototype interface design, which greatly affects the user experience.
