基于图像分割与颜色量化的 k 均值聚类算法

将演示如何对 Astronaut图像执行像素矢量量化（Vector Quantization，VQ），将显示图像所需的颜色数量从 250 种减少到 4 种，同时保持整体外观质量。在本例中，像素在三维空间中表示，使用 k 均值查找 4 个颜色簇。在图像处理文献中，码本是从 k 均值（簇群中心）获得的，称为调色板。在调色板中，使用 1 个字节最多可寻址 256 种颜色，而 RGB 编码要求每个像素 3 个字节。GIF 文件格式使用的就是这样的调色板。为了进行比较，我们还将使用随机码本（随机选取颜色）的量化图像。在使用 k 均值聚类算法对图像进行分割前，加载所需的库和输入图像，如下面的代码所示：

#Kmens 图像分割颜色聚类
import numpy as np
import matplotlib.pyplot as plt
from sklearn.cluster import KMeans
from sklearn.metrics import pairwise_distances_argmin
from skimage.io import imread
from sklearn.utils import shuffle
from skimage import img_as_float
from time import time
pepper = data.astronaut()
# Display the original image
plt.figure(1), plt.clf()
ax = plt.axes([0, 0, 1, 1])
plt.axis('off'), plt.title('Original image (%d colors)' %(len(np.unique(pepper)))), plt.imshow(pepper)
n_colors = 64
# Convert to floats instead of the default 8 bits integer coding. Dividing by
# 255 is important so that plt.imshow behaves works well on float data (need to
# be in the range [0-1])
pepper = np.array(pepper, dtype=np.float64) / 255
# Load Image and transform to a 2D numpy array.
w, h, d = original_shape = tuple(pepper.shape)
# assert d == 3
image_array = np.reshape(pepper, (np.multiply(pepper.shape[0] , pepper.shape[1]), pepper.shape[2]))
# image_gray=np.reshape(pepper,(np.multiply(w,h),d)
# image_gray.shape
def recreate_image(codebook, labels, w, h):
     """Recreate the (compressed) image from the code book & labels"""
     d = codebook.shape[1]
     image = np.zeros((w, h, d))
     label_idx = 0
     for i in range(w):
         for j in range(h):
             image[i][j] = codebook[labels[label_idx]]
             label_idx += 1
     return image
    # Display all results, alongside original image
plt.figure(1)
plt.clf()
ax = plt.axes([0, 0, 1, 1])
plt.axis('off')
plt.title('Original image (96,615 colors)')
plt.imshow(pepper)
plt.figure(2, figsize=(10,10))
plt.clf()
i = 1
for k in [64, 32, 16, 4]:
     t0 = time()
     plt.subplot(2,2,i)
     plt.axis('off')
     image_array_sample = shuffle(image_array, random_state=0)[:1000,:]

     kmeans = KMeans(n_clusters=k, random_state=0).fit(image_array_sample)
     print("done in %0.3fs." % (time() - t0))
     # Get labels for all points
     print("Predicting color indices on the full image (k-means)")
     t0 = time()
     labels = kmeans.predict(image_array)
     print("done in %0.3fs." % (time() - t0))
     plt.title('Quantized image (' + str(k) + ' colors, K-Means)')
     plt.imshow(recreate_image(kmeans.cluster_centers_, labels, w, h))
     i += 1
plt.show()
plt.figure(3, figsize=(10,10))
plt.clf()
i = 1
for k in [64, 32, 16, 4]:
     t0 = time()
     plt.subplot(2,2,i)
     plt.axis('off')
     codebook_random = shuffle(image_array, random_state=0)[:k + 1]
     print("Predicting color indices on the full image (random)")
     t0 = time()
     labels_random = pairwise_distances_argmin(codebook_random,image_array,axis=0)
     print("done in %0.3fs." % (time() - t0))
     plt.title('Quantized image (' + str(k) + ' colors, Random)')
     plt.imshow(recreate_image(codebook_random, labels_random, w, h))
     i += 1
plt.show()

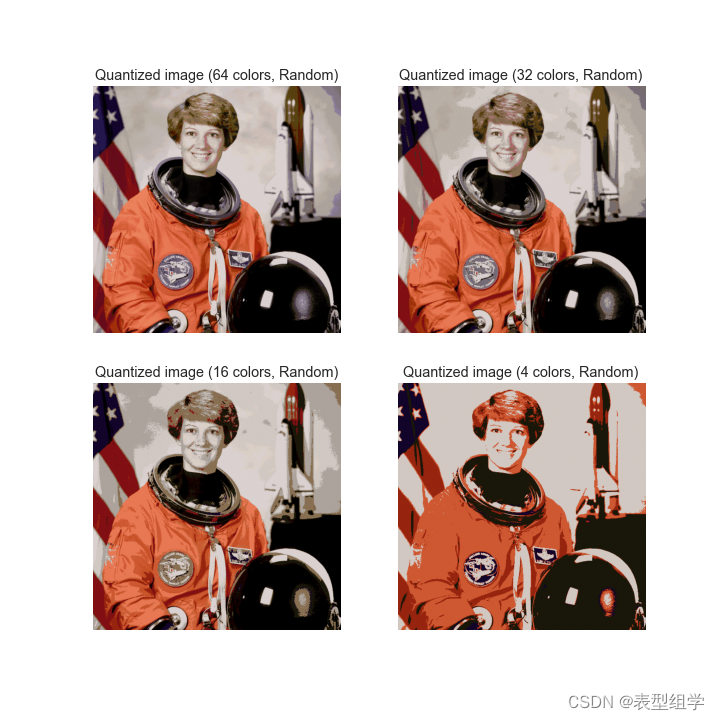

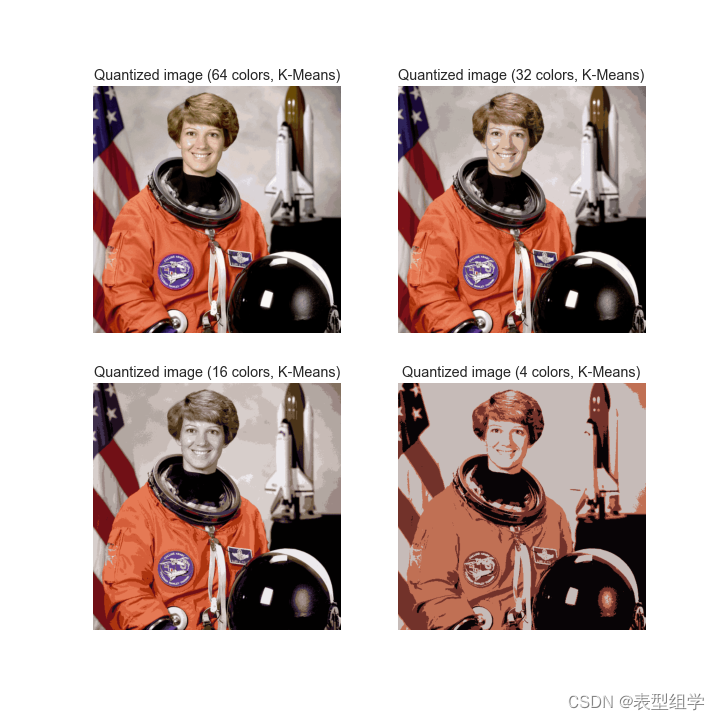

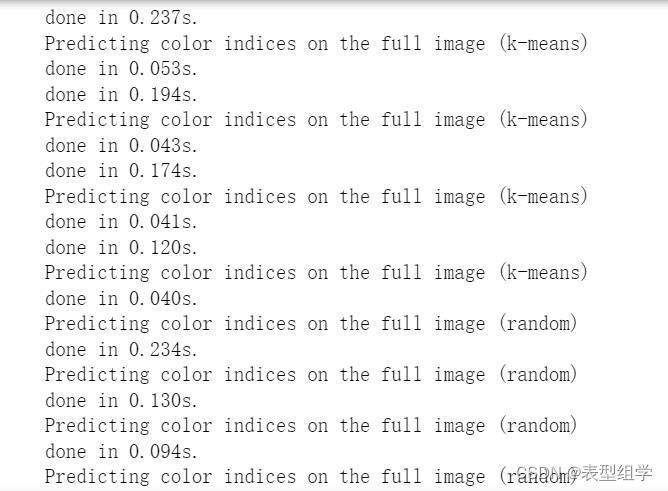

运行上述代码，输出结果上图 所示。可以看到，在保留的图像质量方面，k 均值聚类算法对于颜色量化的效果总是比使用随机码本要好。
